Toyota Corolla (S.AMERICA)

2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

8 part groups · 2 illustrations

Illustrations

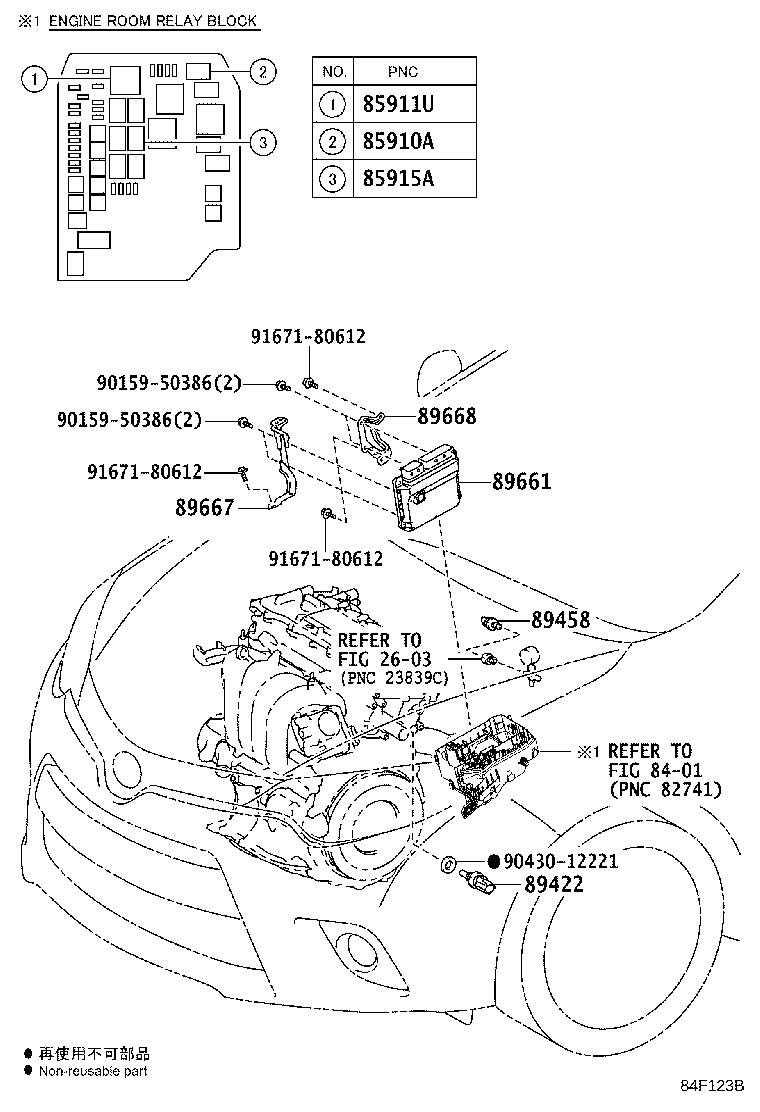

Figure 84E919D 84E919D 2014-03 → — Figure 84F123B 84F123B 2014-08 → —

Part groups

PNCDescription
85910A Relay Assy, Circuit Opening (FOR EFI)
85911U Relay, Cng Main
85915A Relay, Main
89422 Sensor, Water Temperature (FOR E.F.I.)
89458 Sensor, Fuel Pressure
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
