Toyota Corolla (S.AMERICA)

2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

5 part groups · 3 illustrations

Illustrations

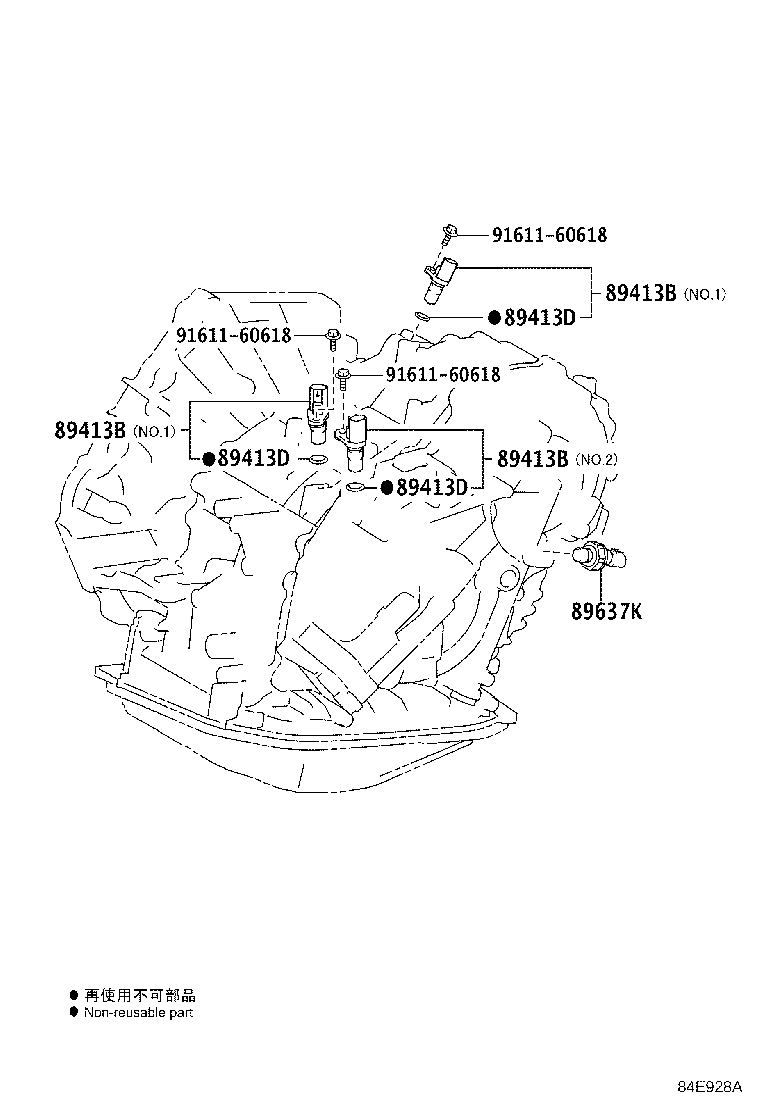

Figure 84E927A 84E927A 2014-03 → — Figure 84E928A 84E928A 2014-03 → — Figure 84F122B 84F122B 2015-01 → —

Part groups

PNCDescription
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
89413N Sensor, Transmission Revolution, (NT)
89413S Sensor, Transmission Revolution (NC)
89637K Sensor, Oil Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
