Toyota Corolla (S.AMERICA)
2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General
Supported model
Data version 2021-11

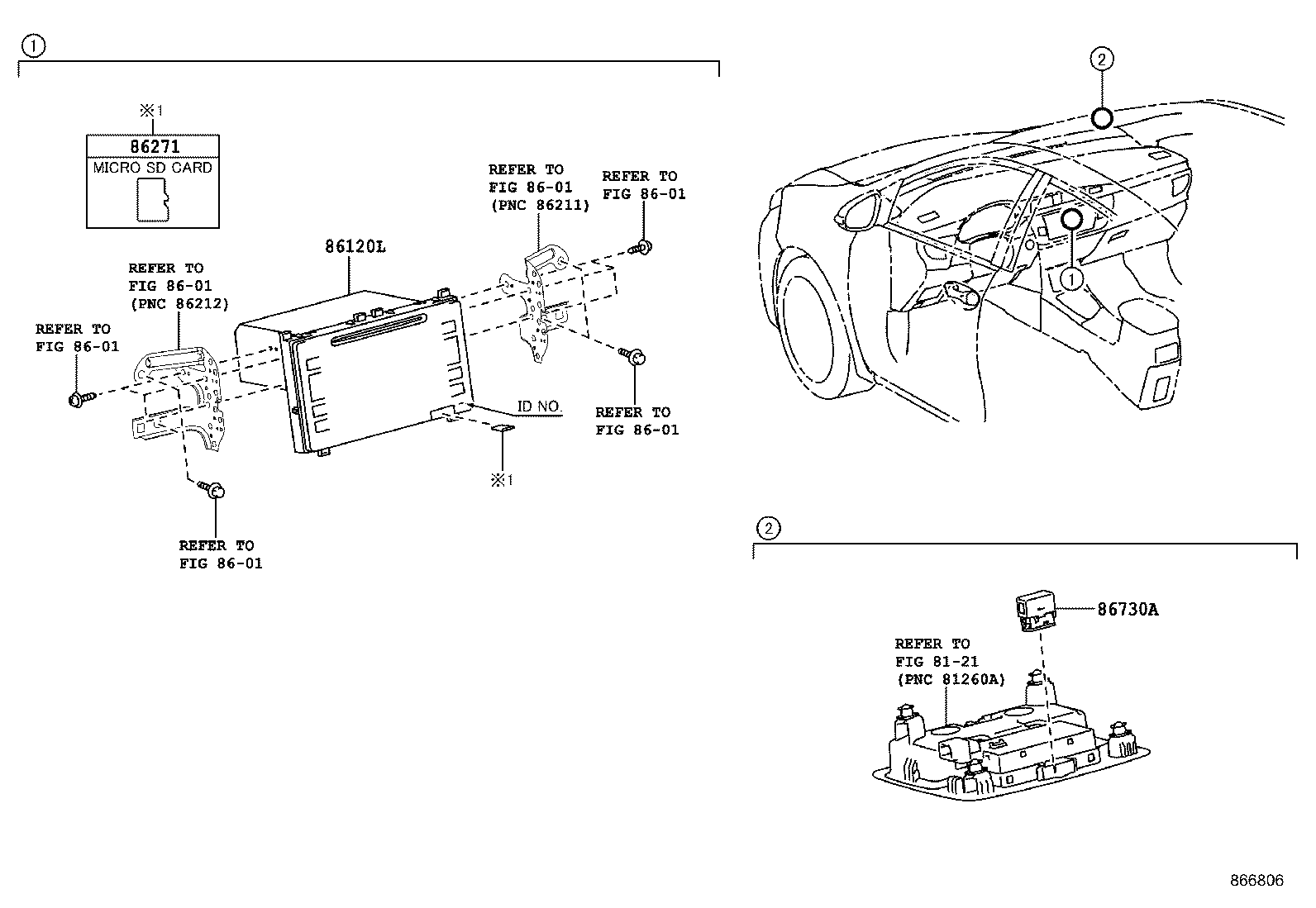

Navigation & Front Monitor Display
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86120L | Receiver Assy, Navigation |
| 86120P | Knob, Navigation Receiver Switch |
| 86134A | Parts, Multi-display |
| 86250E | Microphone Assy, Amplifier |
| 86271 | Disc, Disc Player |
| 86730A | Microphone Assy, Telephone |
| 86808 | Cord Sub-assy, Navigation Antenna, NO.1 |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
