Toyota Corolla (S.AMERICA)
2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General
Supported model
Data version 2021-11

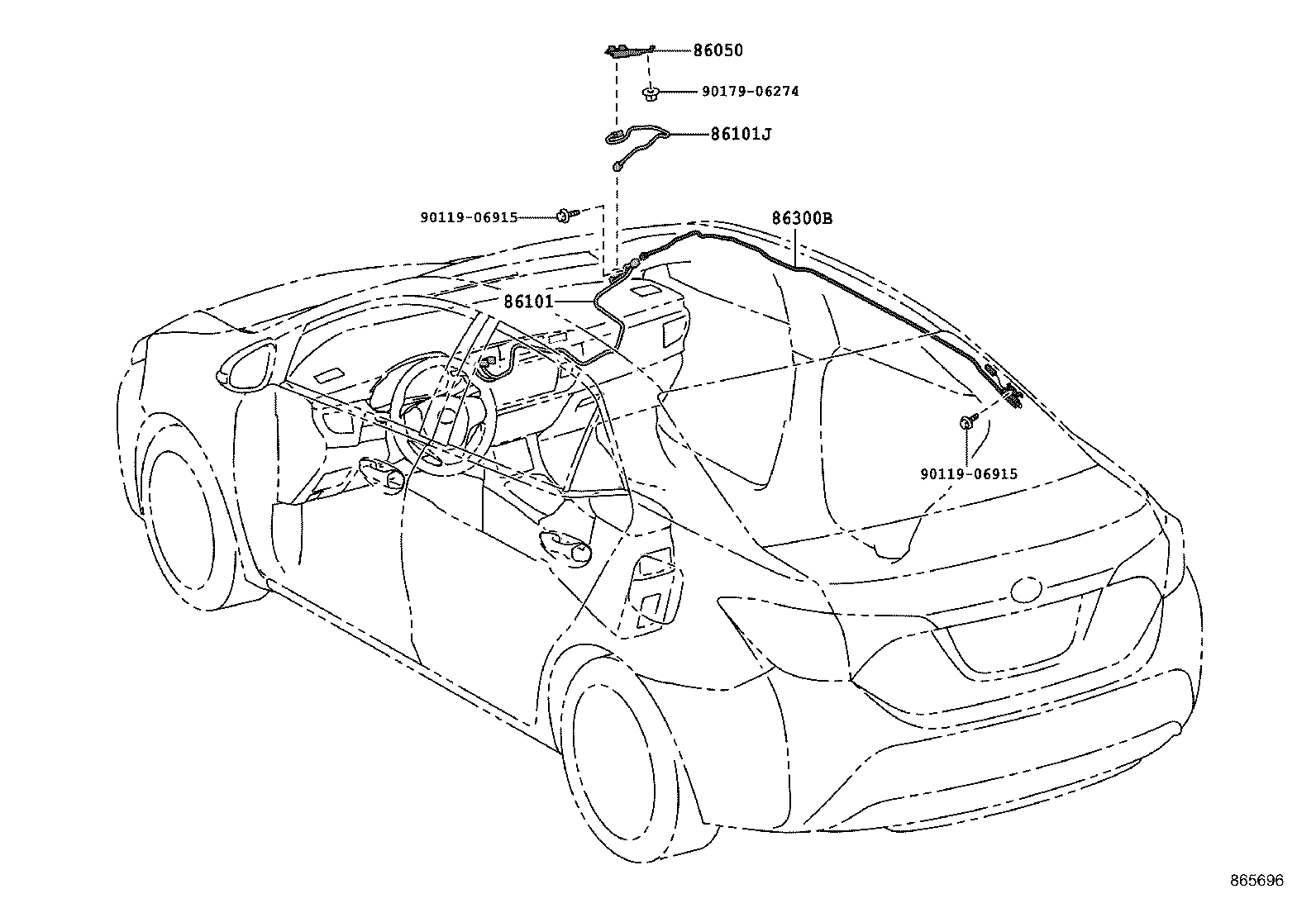

Antenna
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86050 | Antenna Assy, Television |
| 86077 | Cover Kit, Antenna |
| 86101 | Cord Sub-assy, Antenna |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86300J | Antenna Assy, Roof |
| 86769 | Housing, Roof Antenna |
| 86808D | Cord Sub-assy, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
