Toyota Corolla (S.AMERICA)
2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General
Supported model
Data version 2021-11

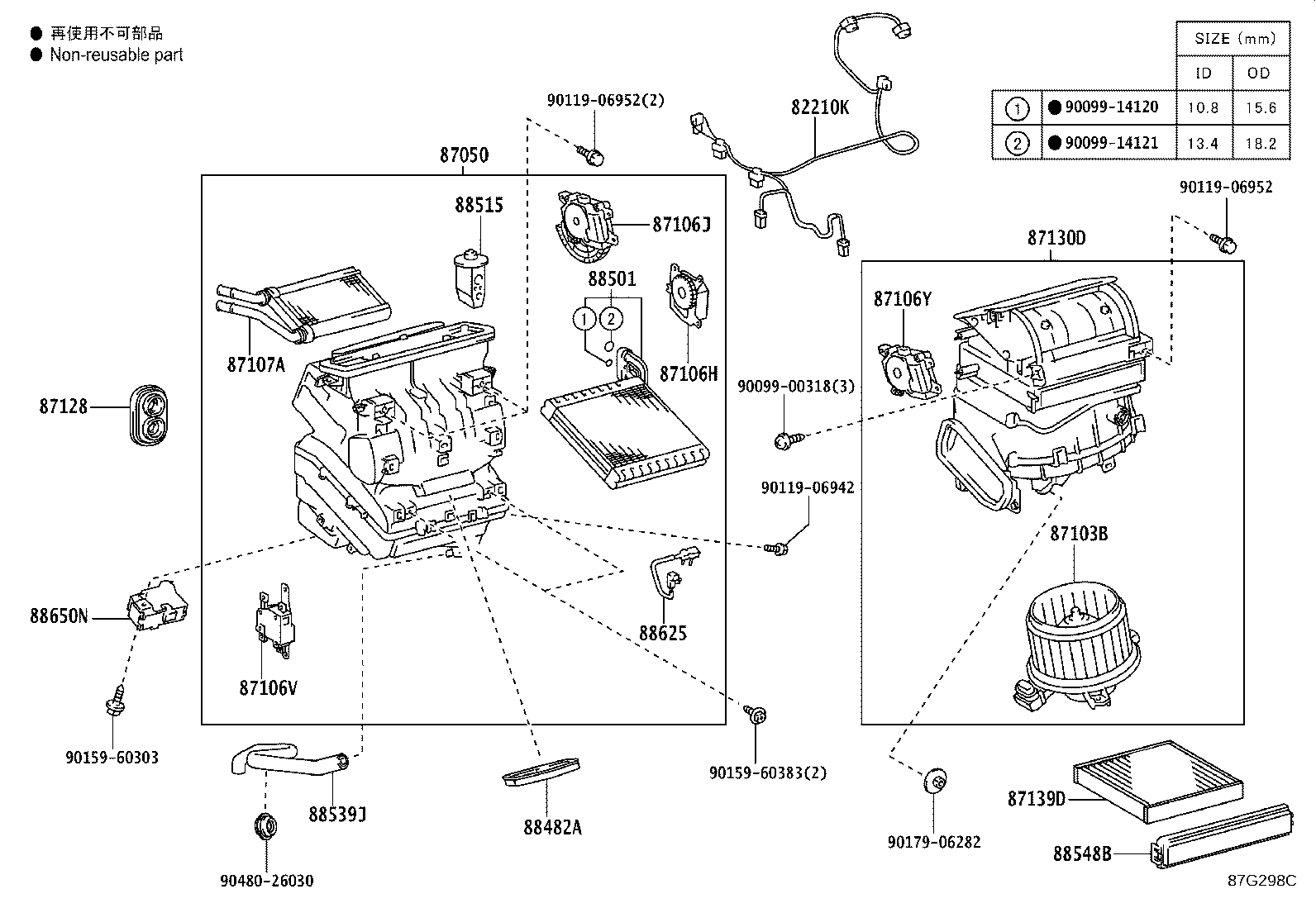

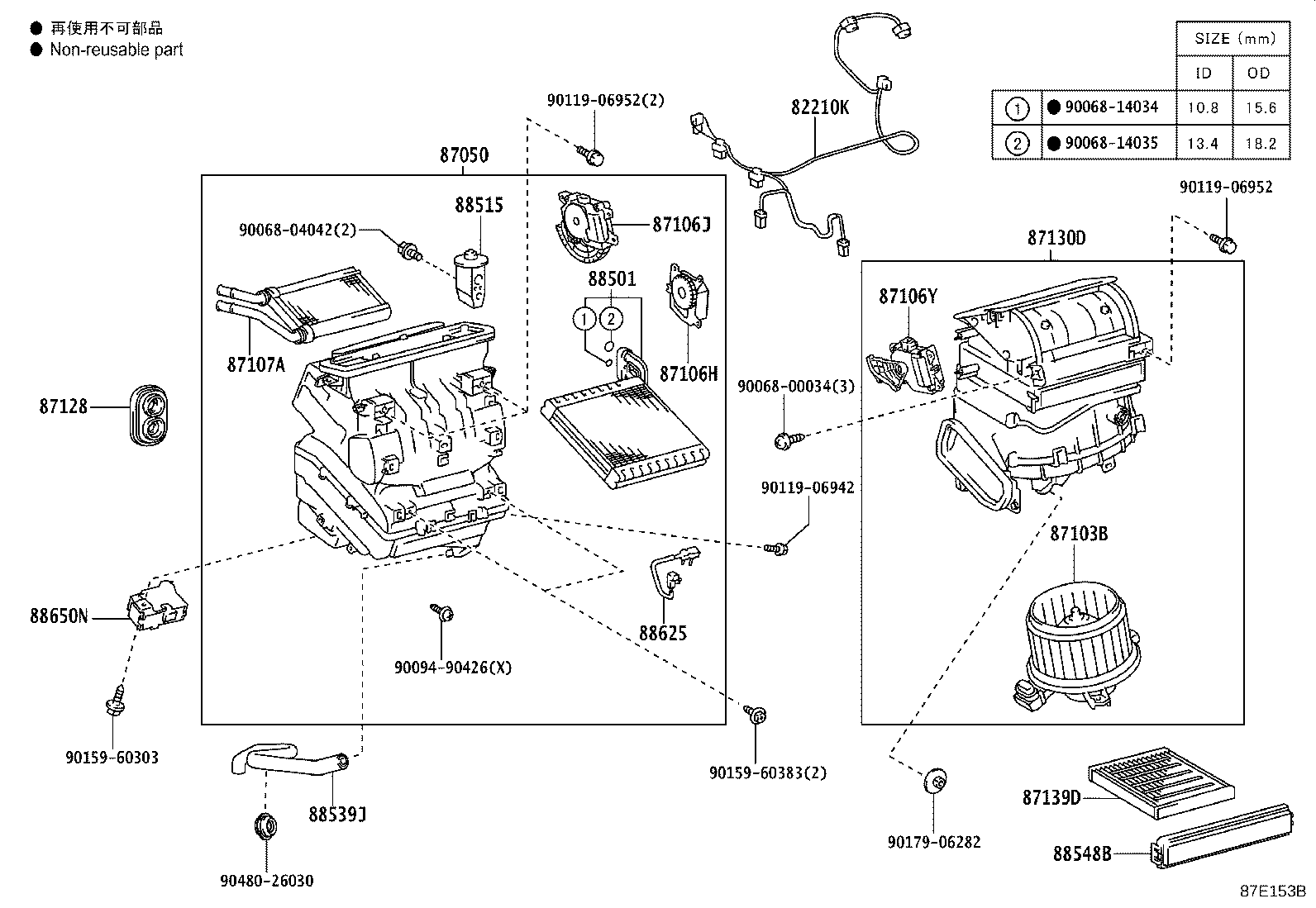

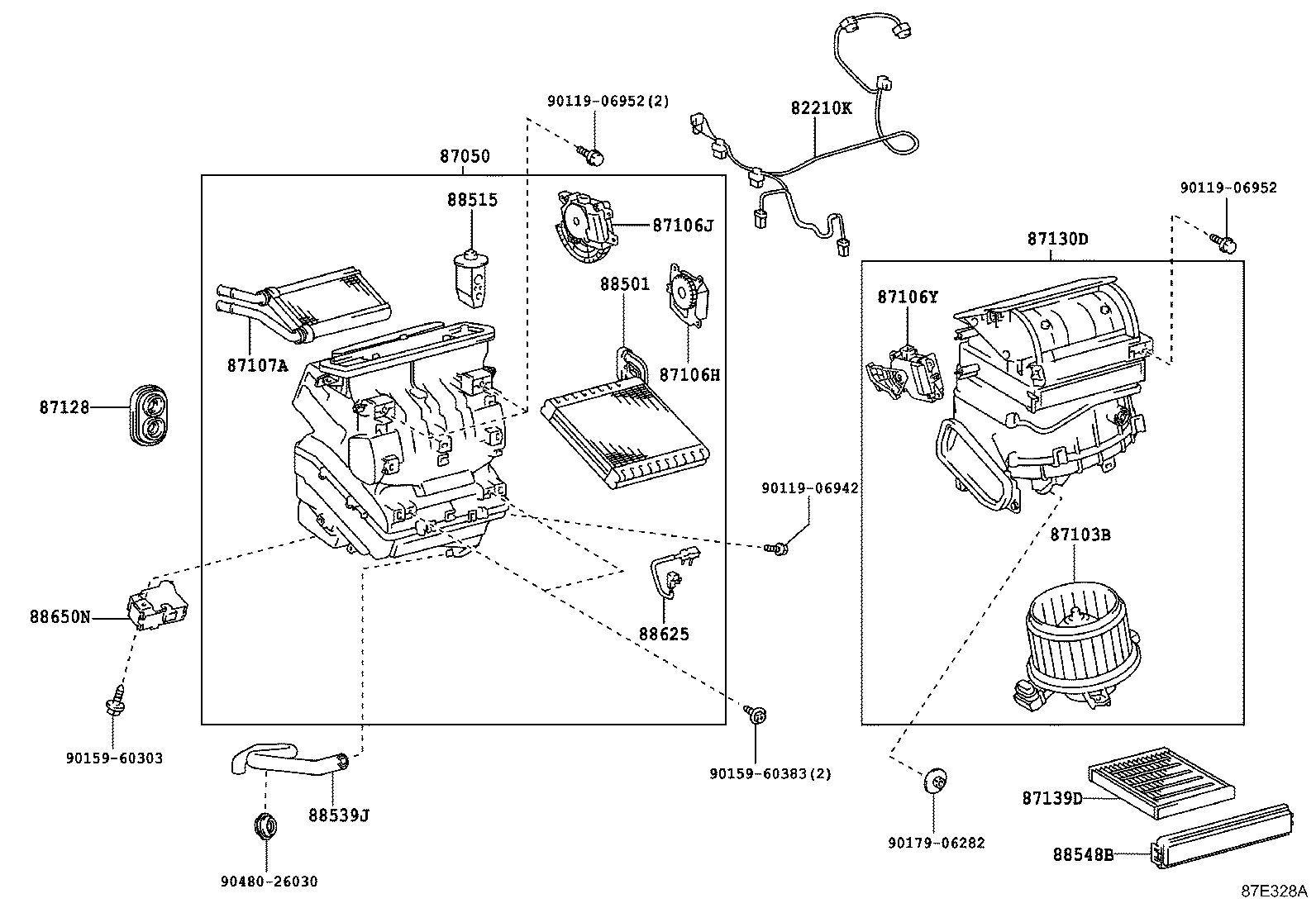

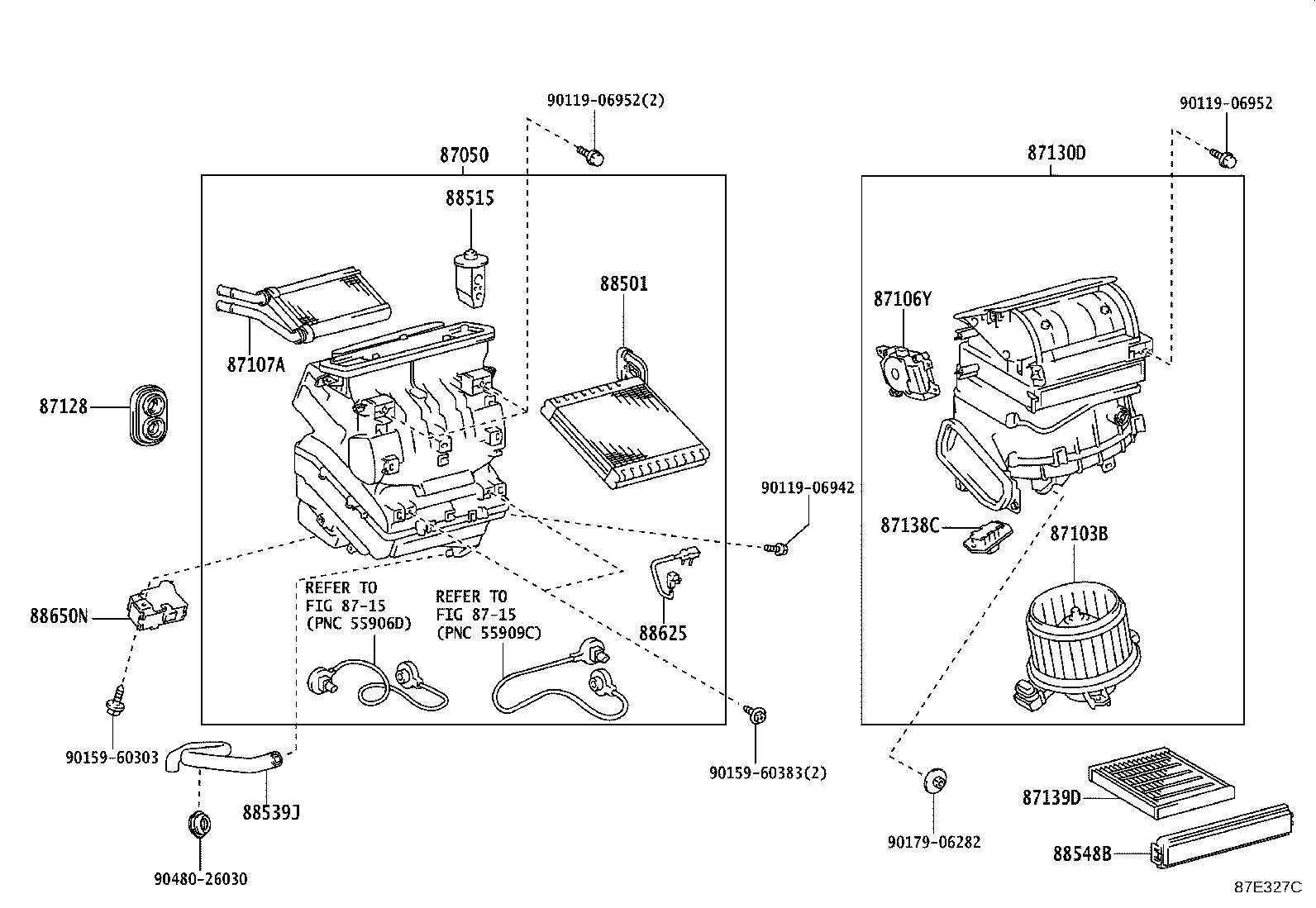

Heating & Air Conditioning - Cooler Unit
19 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 82210K | Harness Assy, Air Conditioner |
| 87050 | Radiator Assy, Air Conditioner |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87106V | Servo Sub-assy, Damper(FOR AIRMIX NO.2) |
| 87106Y | Servo Sub-assy, Damper(FOR RECIRCULATION & FRESH) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87128 | Grommet, Heater |
| 87130D | Blower Assy |
| 87138C | Resistor, Blower |
| 87139D | Element, Air Refiner |
| 88482A | Cover |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88515 | Valve, Cooler Expansion |
| 88539J | Hose, Drain Cooler |
| 88548B | Case, Air Filter |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650N | Amplifier Assy, Air Conditioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
