Heating & Air Conditioning - Control & Air Duct

19 part groups · 12 illustrations

Illustrations

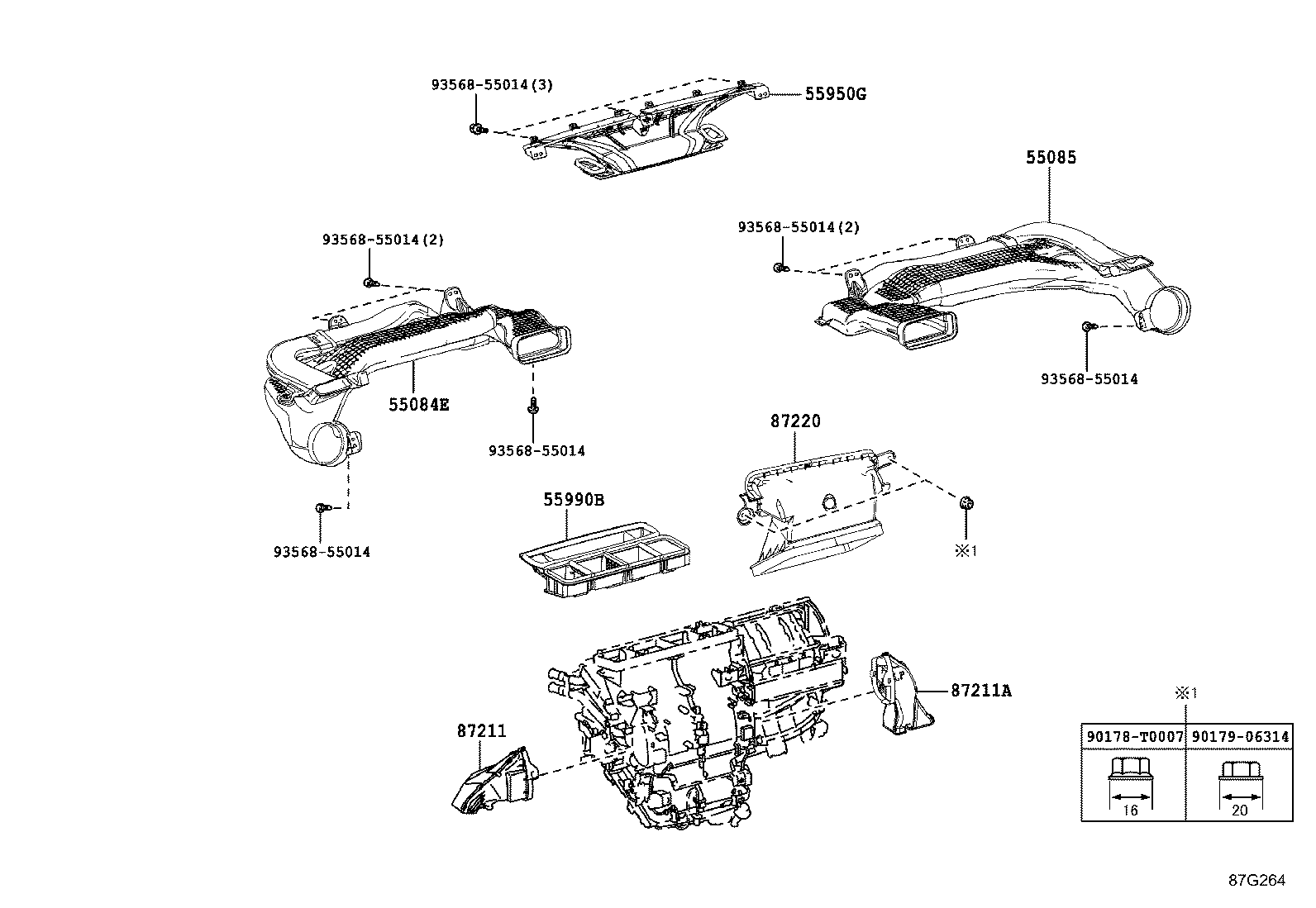

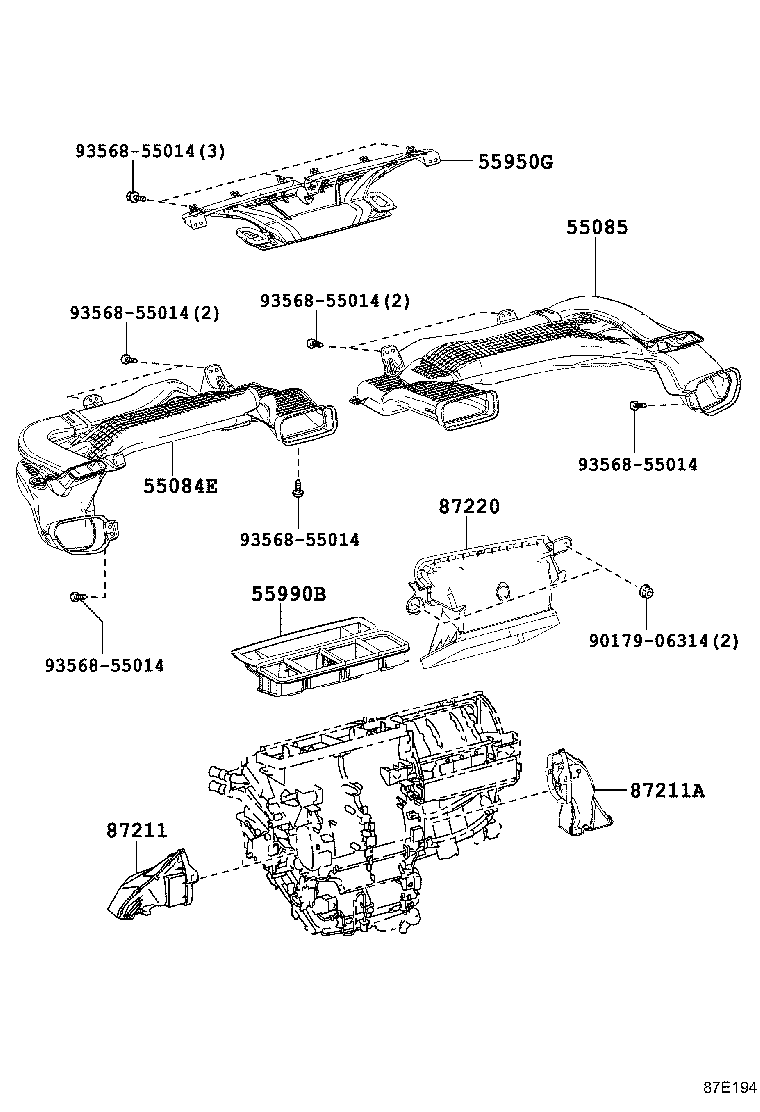

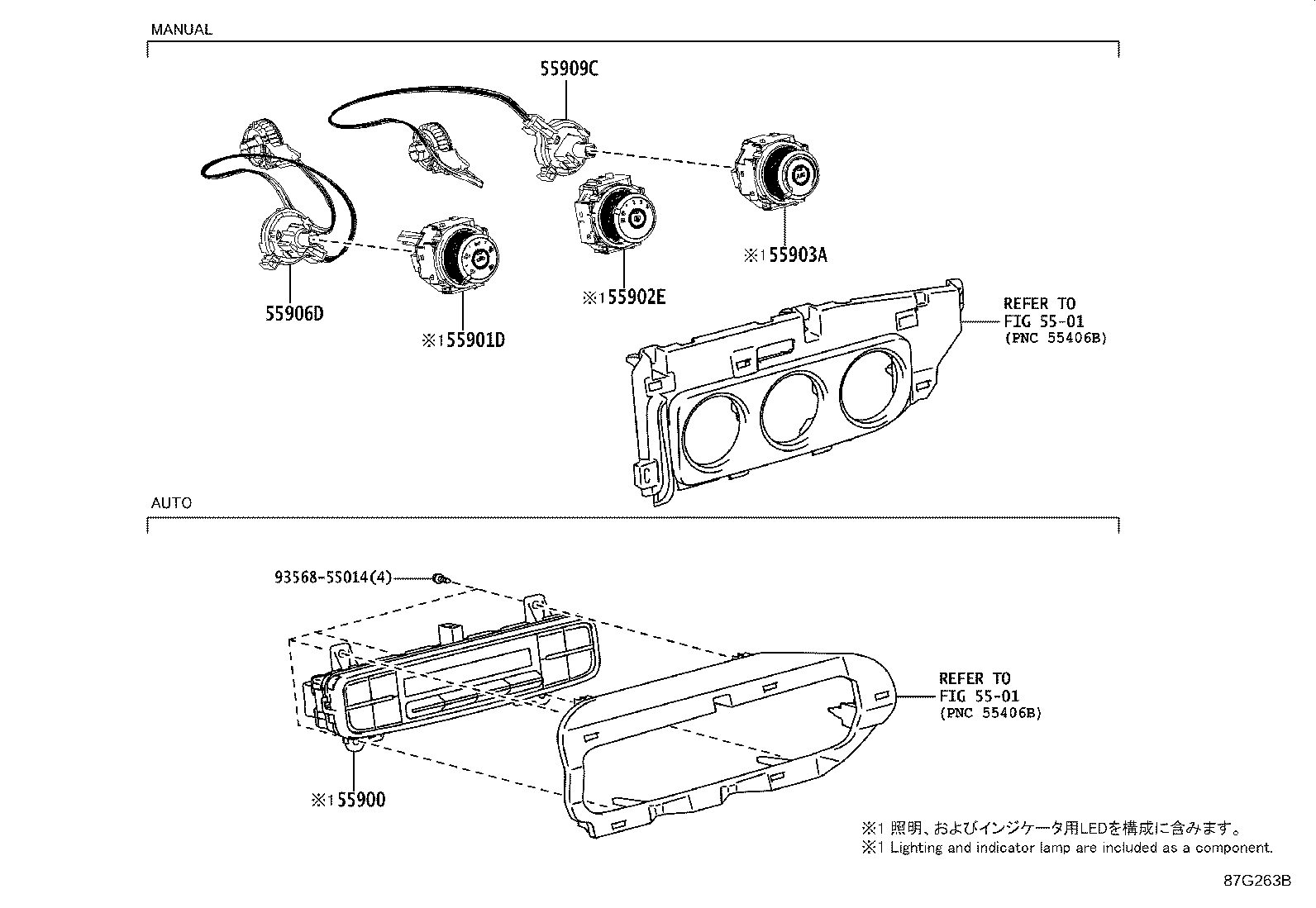

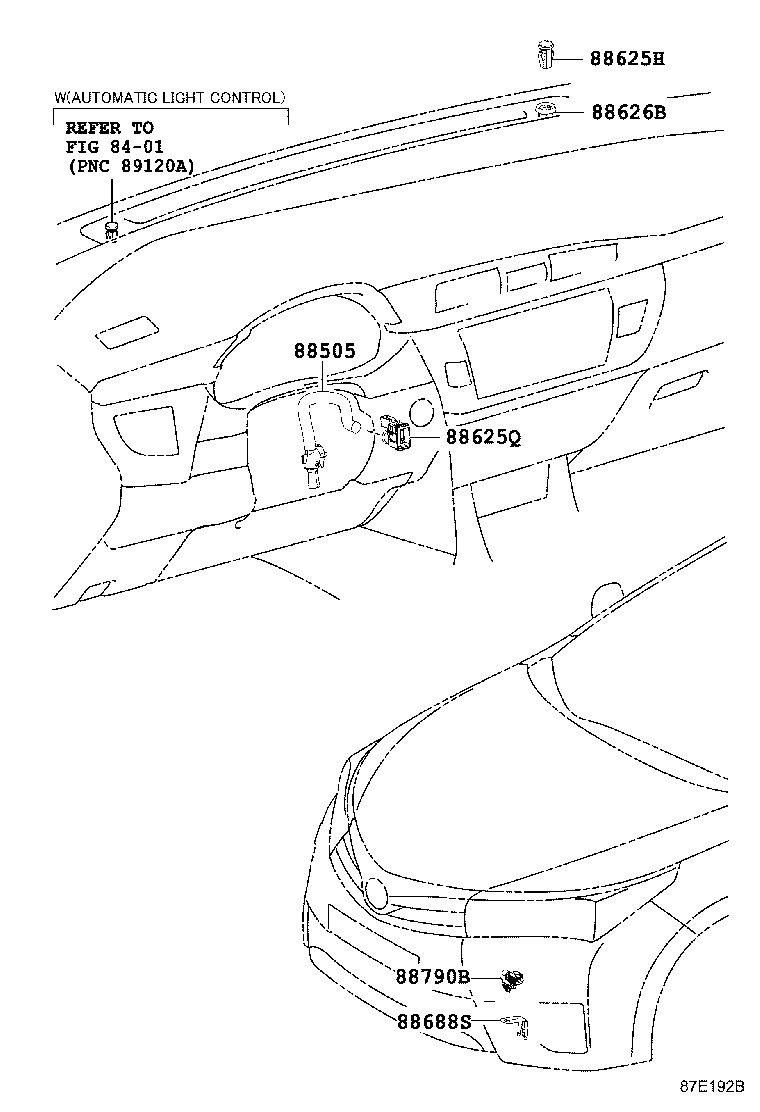

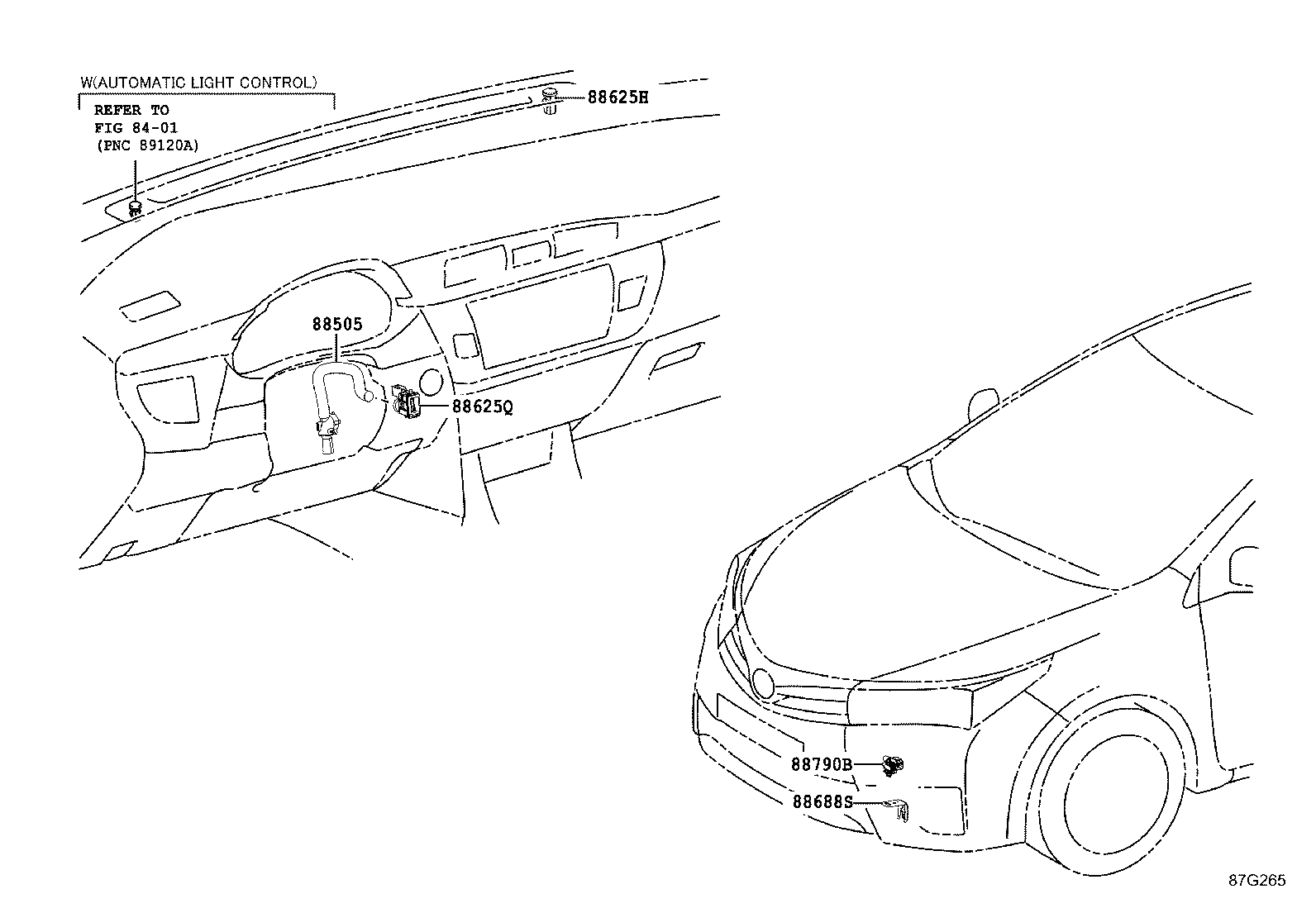

Figure 87E193B 87E193B 2014-03 → 2017-03 Figure 87E193B 87E193B 2014-03 → 2017-08 Figure 87G263B 87G263B 2017-03 → — Figure 87G263B 87G263B 2017-08 → — Figure 87E194 87E194 2014-03 → 2017-03 Figure 87E194 87E194 2014-03 → 2017-08 Figure 87G264 87G264 2017-03 → — Figure 87G264 87G264 2017-08 → — Figure 87E192B 87E192B 2014-03 → 2017-03 Figure 87E192B 87E192B 2014-03 → 2017-08 Figure 87G265 87G265 2017-03 → — Figure 87G265 87G265 2017-08 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55903A Control Sub-assy, Heater, NO.3
55906D Cable Sub-assy, Heater Control, NO.2
55909C Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87220 Duct Assy, Air
88505 Duct Sub-assy,Air Conditioner
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88626B Holder, Thermistor
88688S Bracket (FOR COOLER THERMISTOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
