Heating & Air Conditioning - Water Piping

5 part groups · 4 illustrations

Illustrations

Figure 87E154B

87E154B 2014-03 → —

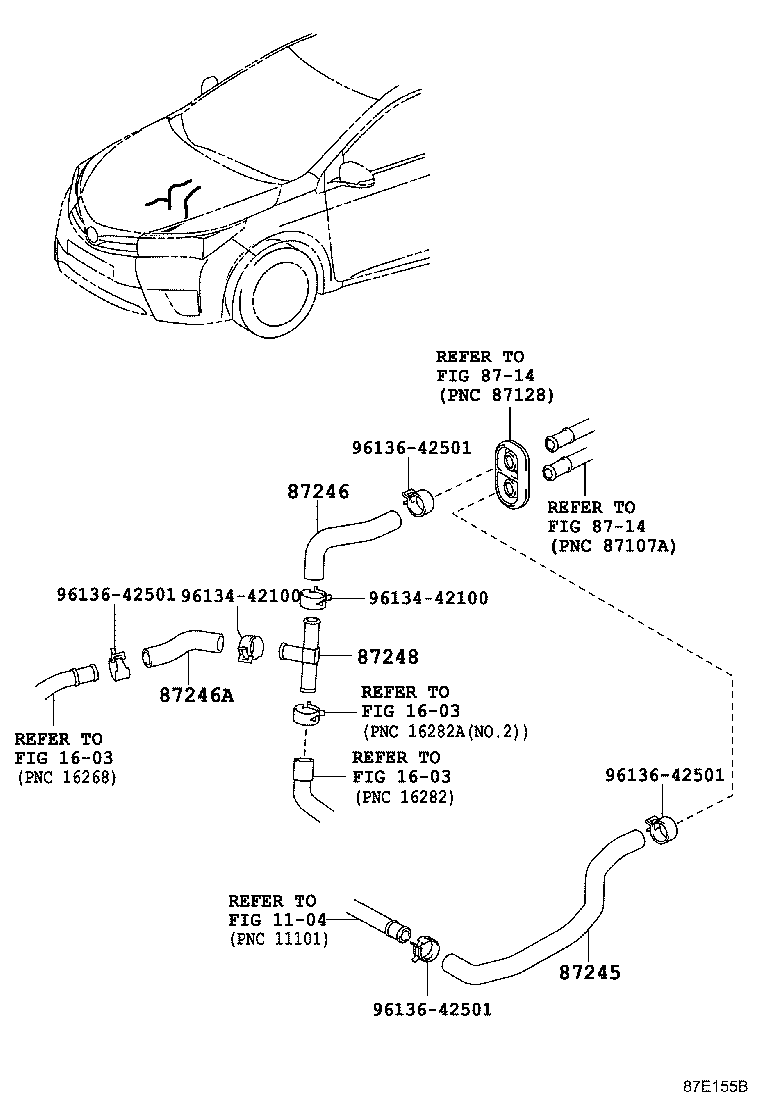

Figure 87E155B

87E155B 2014-03 → —

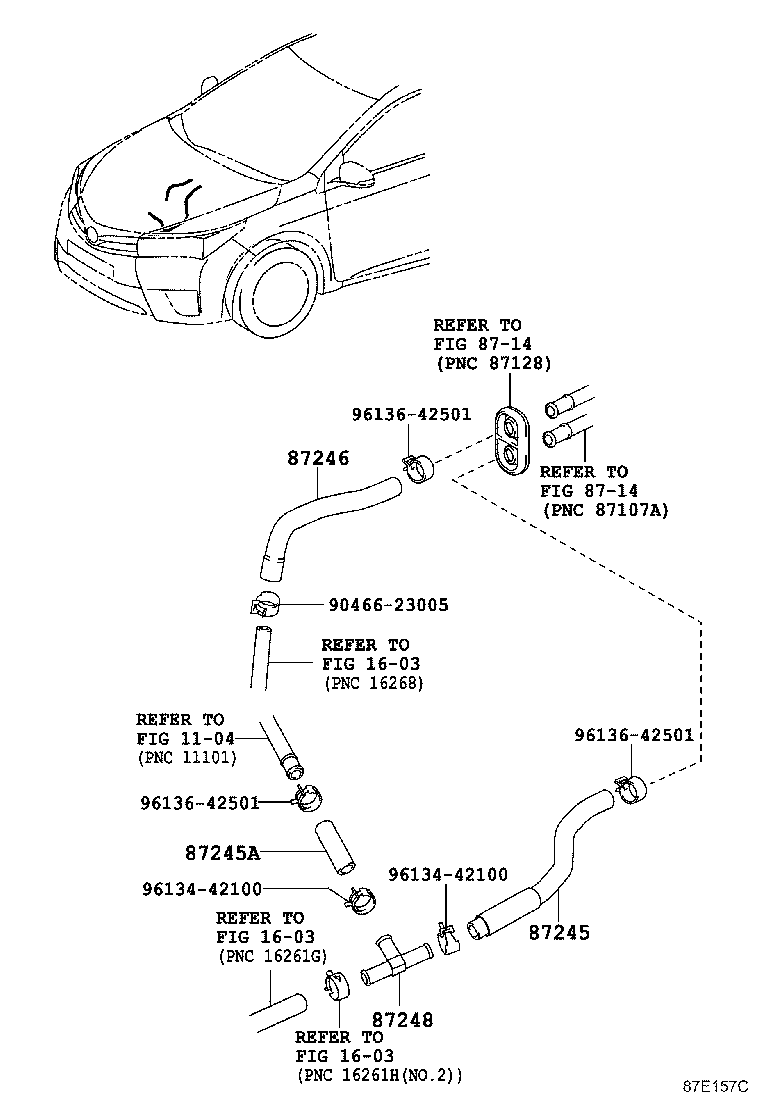

Figure 87E157C

87E157C 2014-03 → —

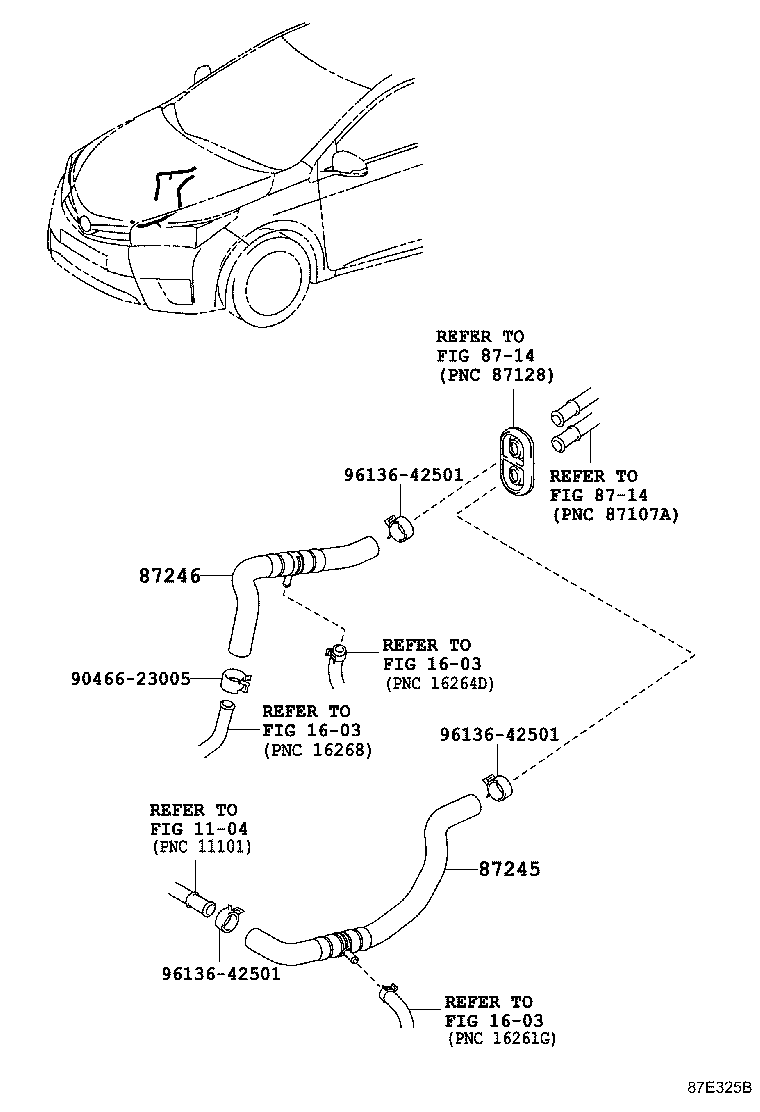

Figure 87E325B

87E325B 2015-01 → —

Part groups

PNC	Description
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87248	Pipe Sub-assy, Water

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
