Toyota Corolla (S.AMERICA)

2019-09 → present · chassis MZEA12,ZRE210,ZWE211 · catalogue 157380 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

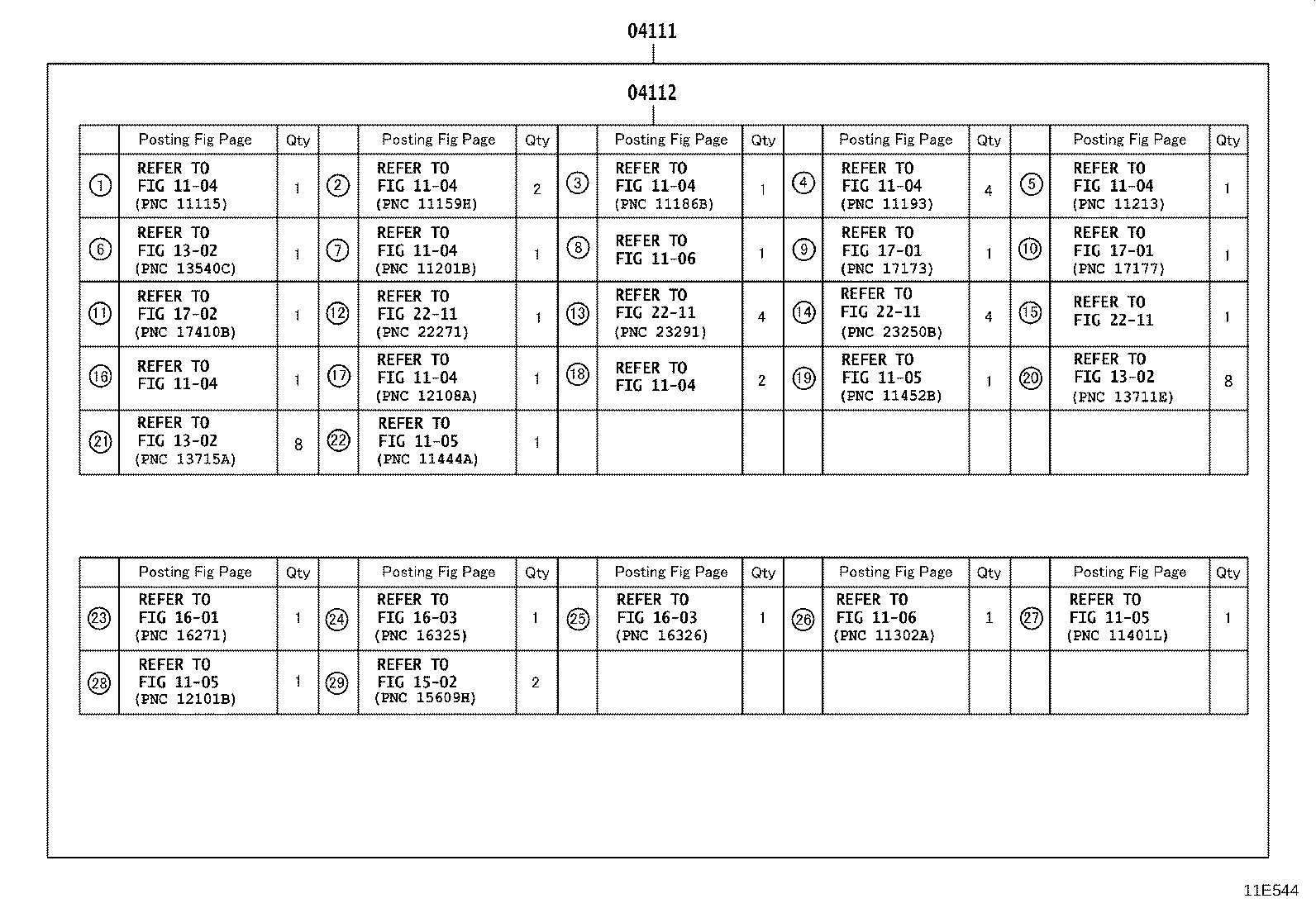

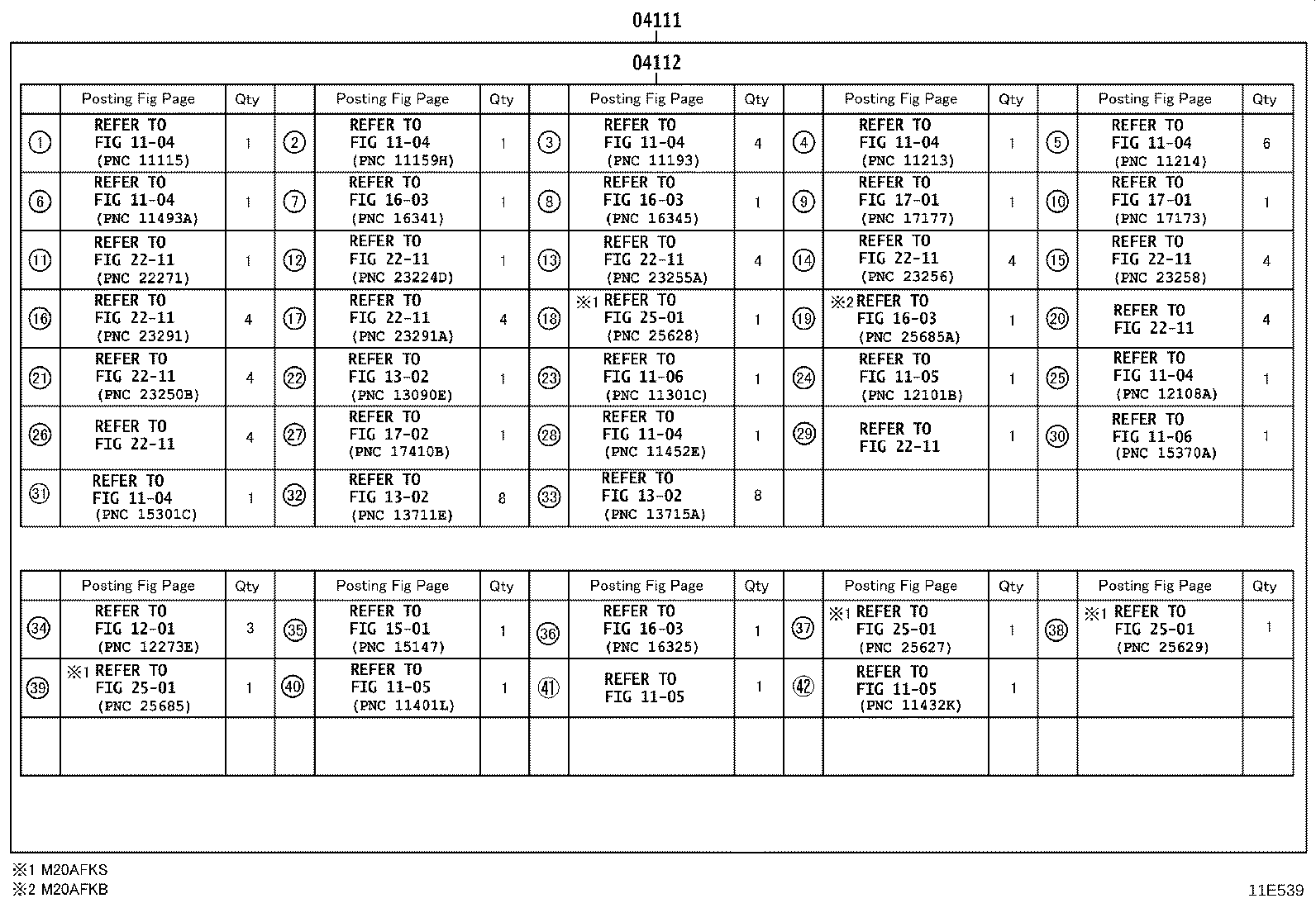

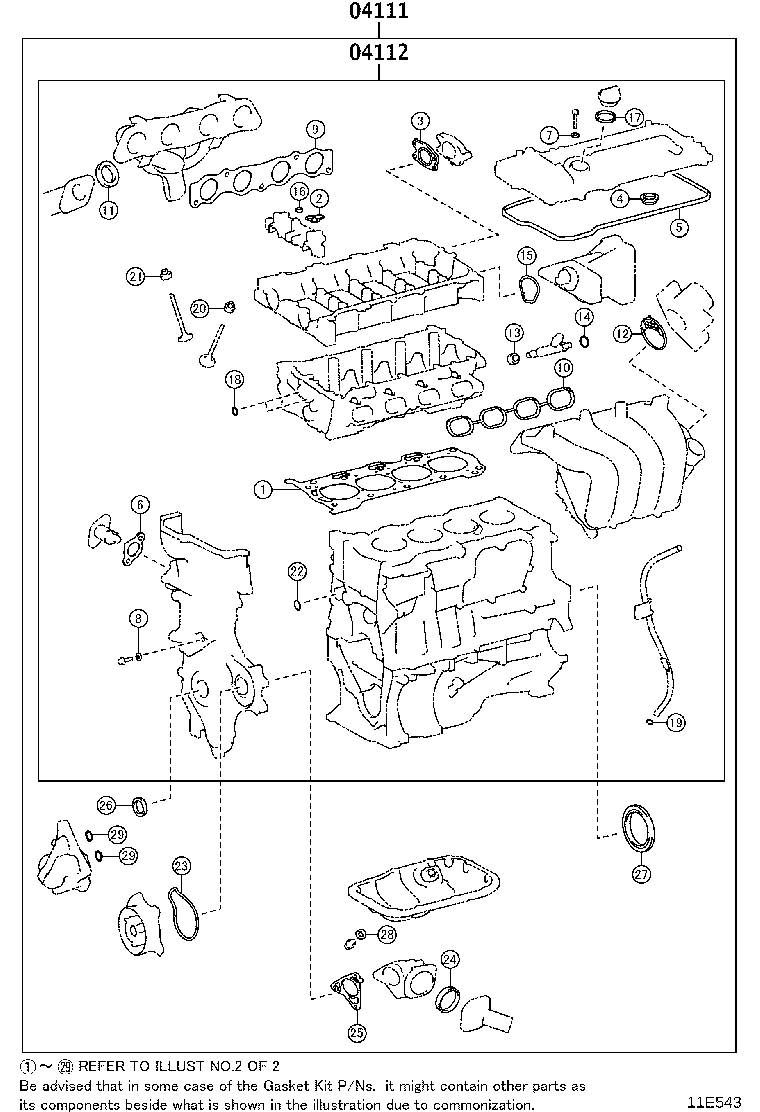

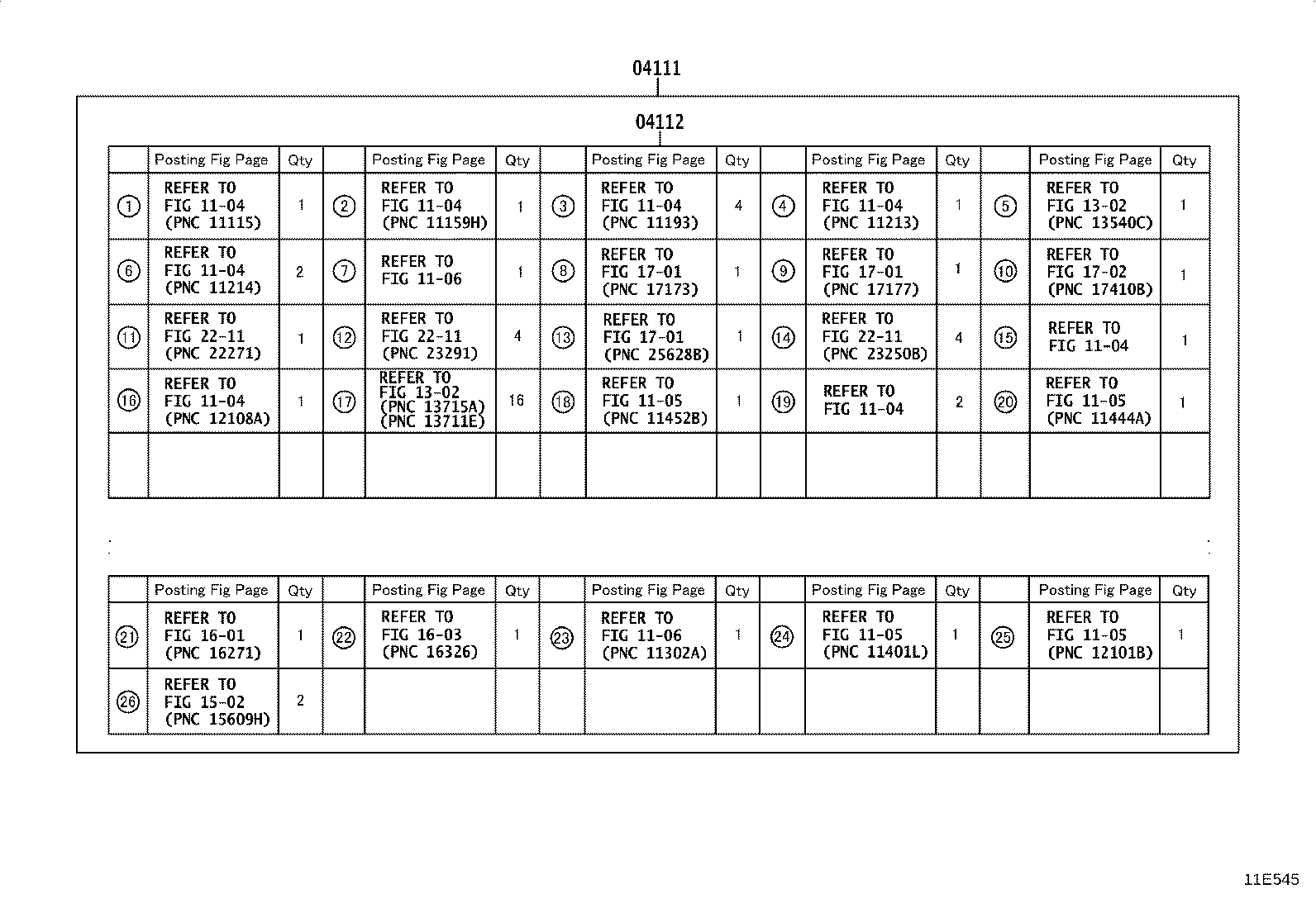

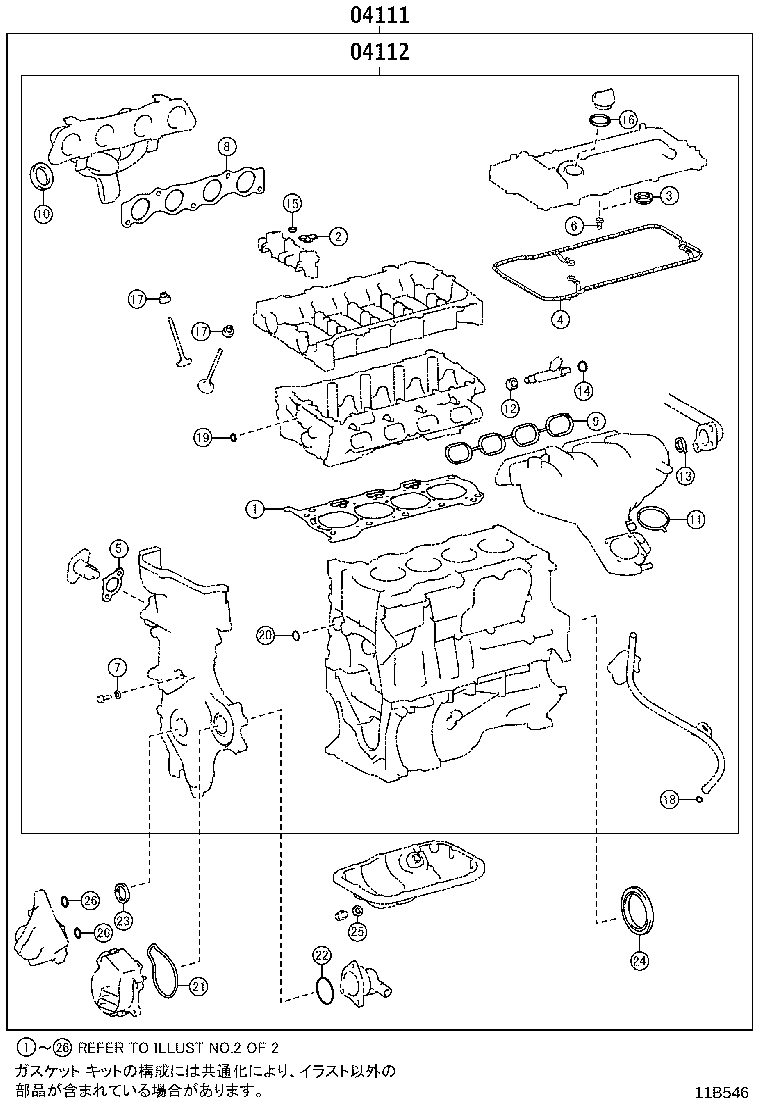

Figure 11E538 11E538 2019-09 → — Figure 11E539 11E539 2019-09 → — Figure 11E543 11E543 2019-09 → — Figure 11E546 11E546 2019-09 → — Figure 11E544 11E544 2019-09 → — Figure 11E545 11E545 2019-09 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
