Toyota Corolla (S.AMERICA)
2019-09 → present · chassis MZEA12,ZRE210,ZWE211 · catalogue 157380 · General
Supported model
Data version 2024-11

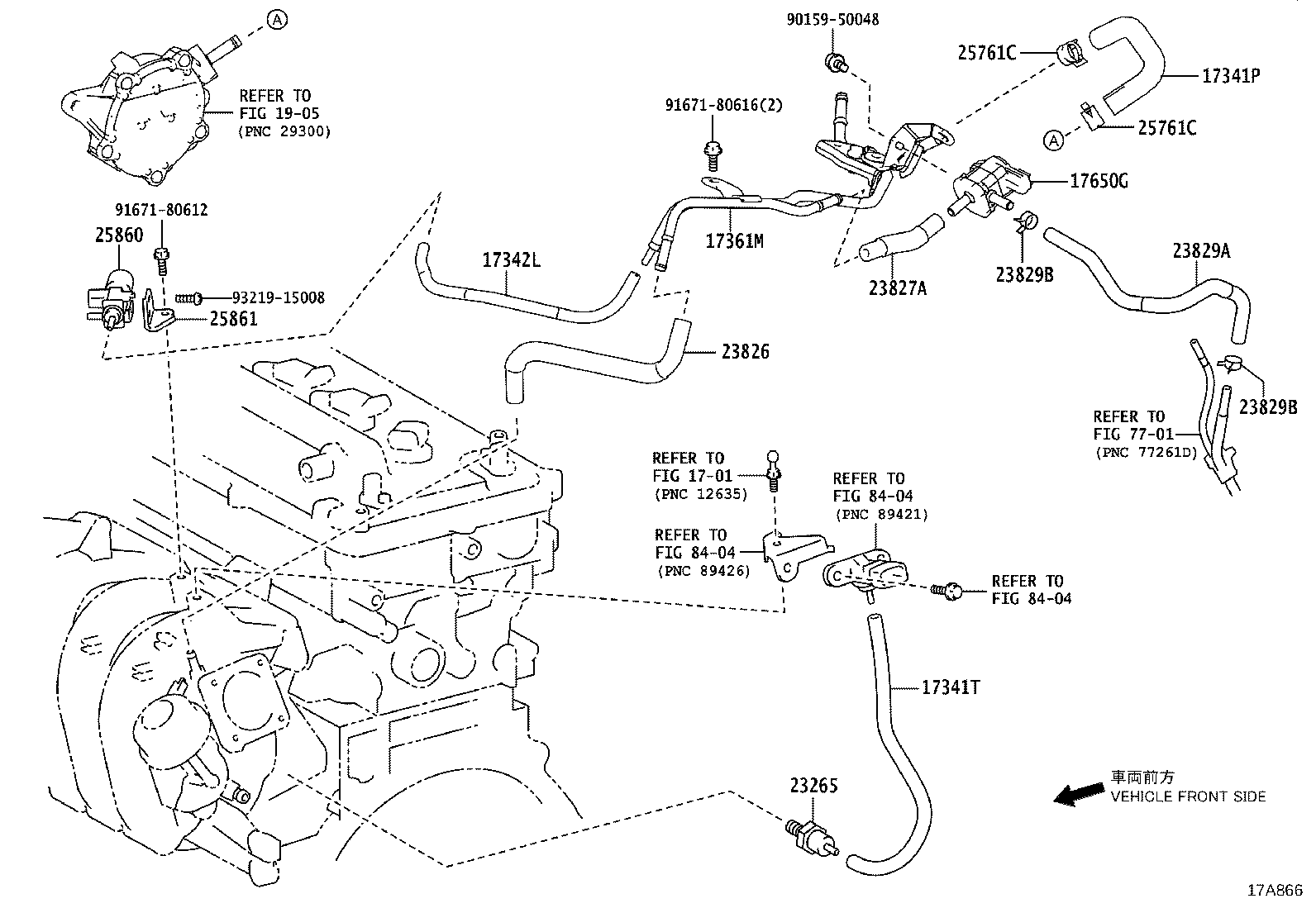

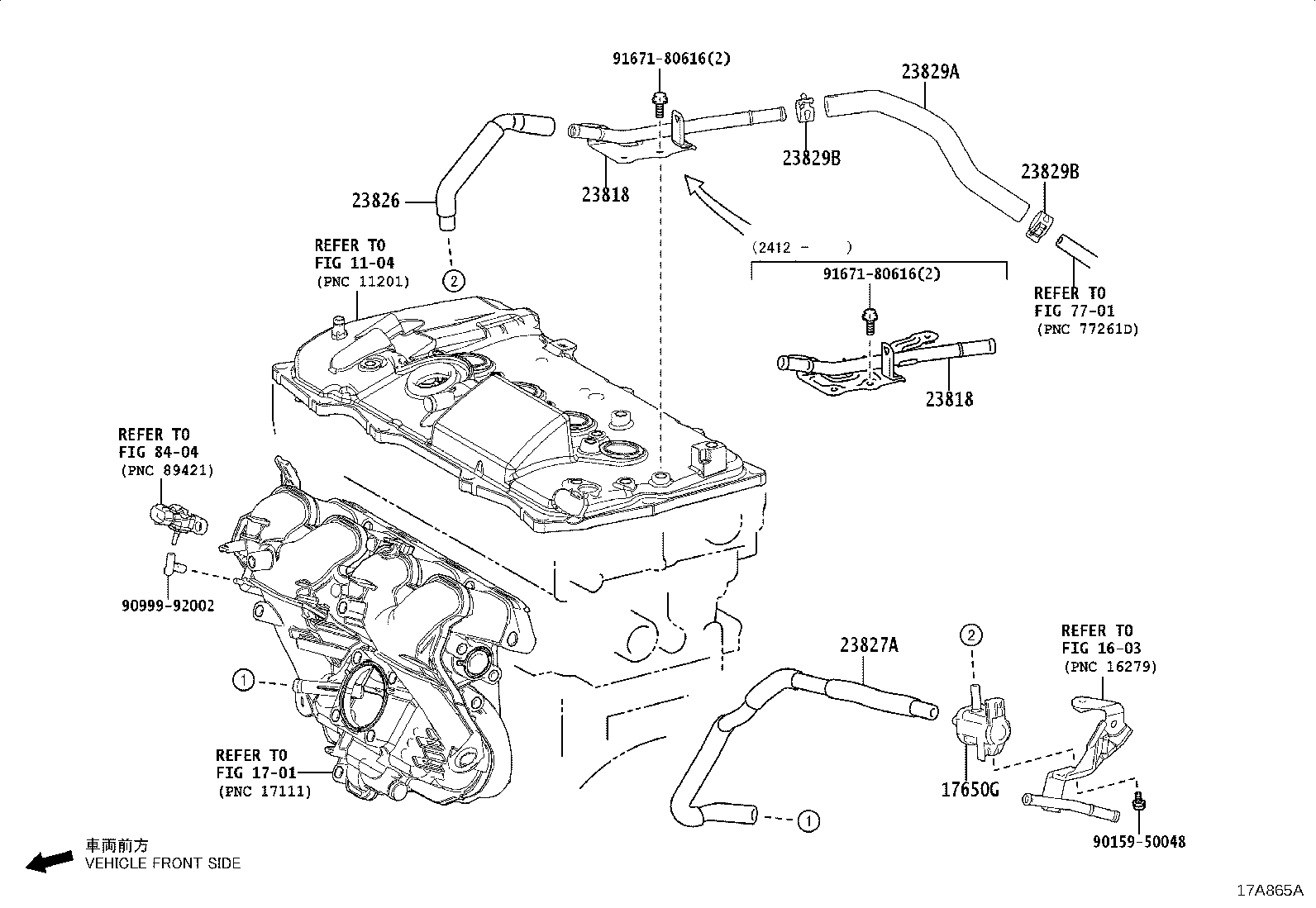

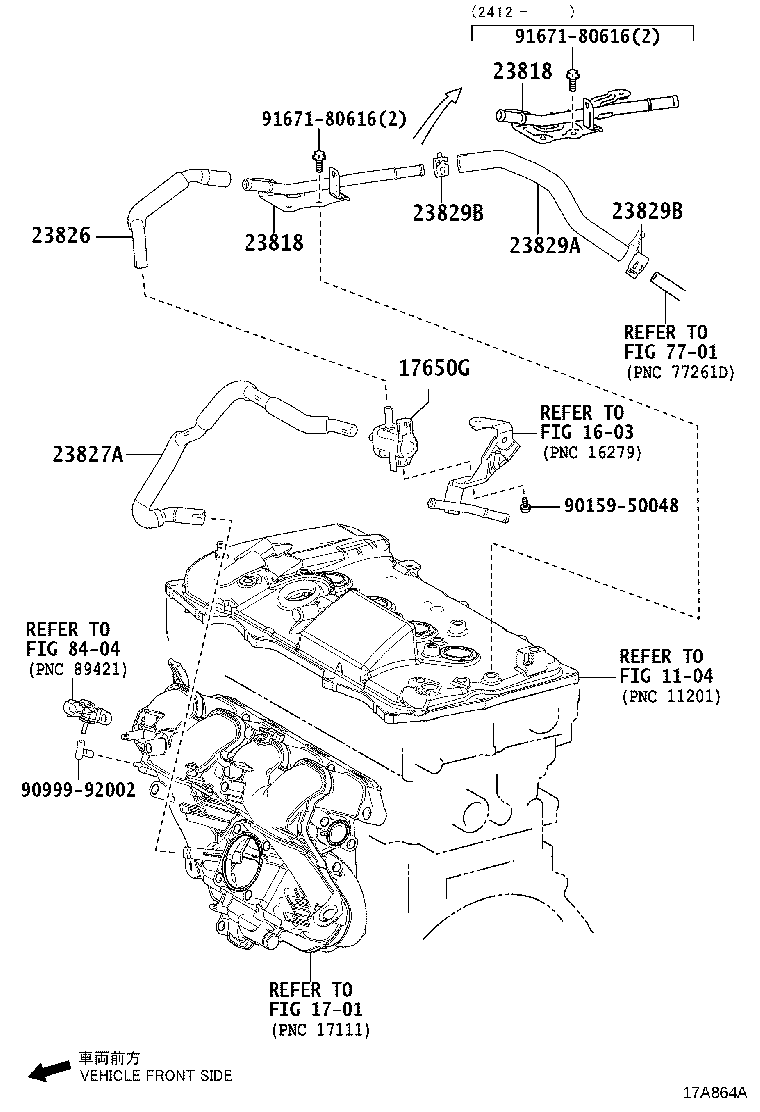

Vacuum Piping
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17341P | Hose, Air |
| 17341T | Hose, Air, NO.1 |
| 17342L | Hose, Air, NO.2 |
| 17361M | Tube, Air |
| 17650G | Valve, Duty Vacuum Switching |
| 23265 | Filter, Gas, NO.1 |
| 23818 | Pipe, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23827F | Hose, Fuel Vapor Feed, NO.3 |
| 23827G | Clip(FOR FUEL VAPOR FEED HOSE, NO.3) |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25719 | Tank, Vacuum Surge |
| 25761C | Clip(VACCUM TRANSMITTING HOSE NO.1) |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25861 | Bracket, Vacuum Switching Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
