Toyota Corolla (S.AMERICA)

2019-09 → present · chassis MZEA12,ZRE210,ZWE211 · catalogue 157380 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Release Cylinder

6 part groups · 2 illustrations

Illustrations

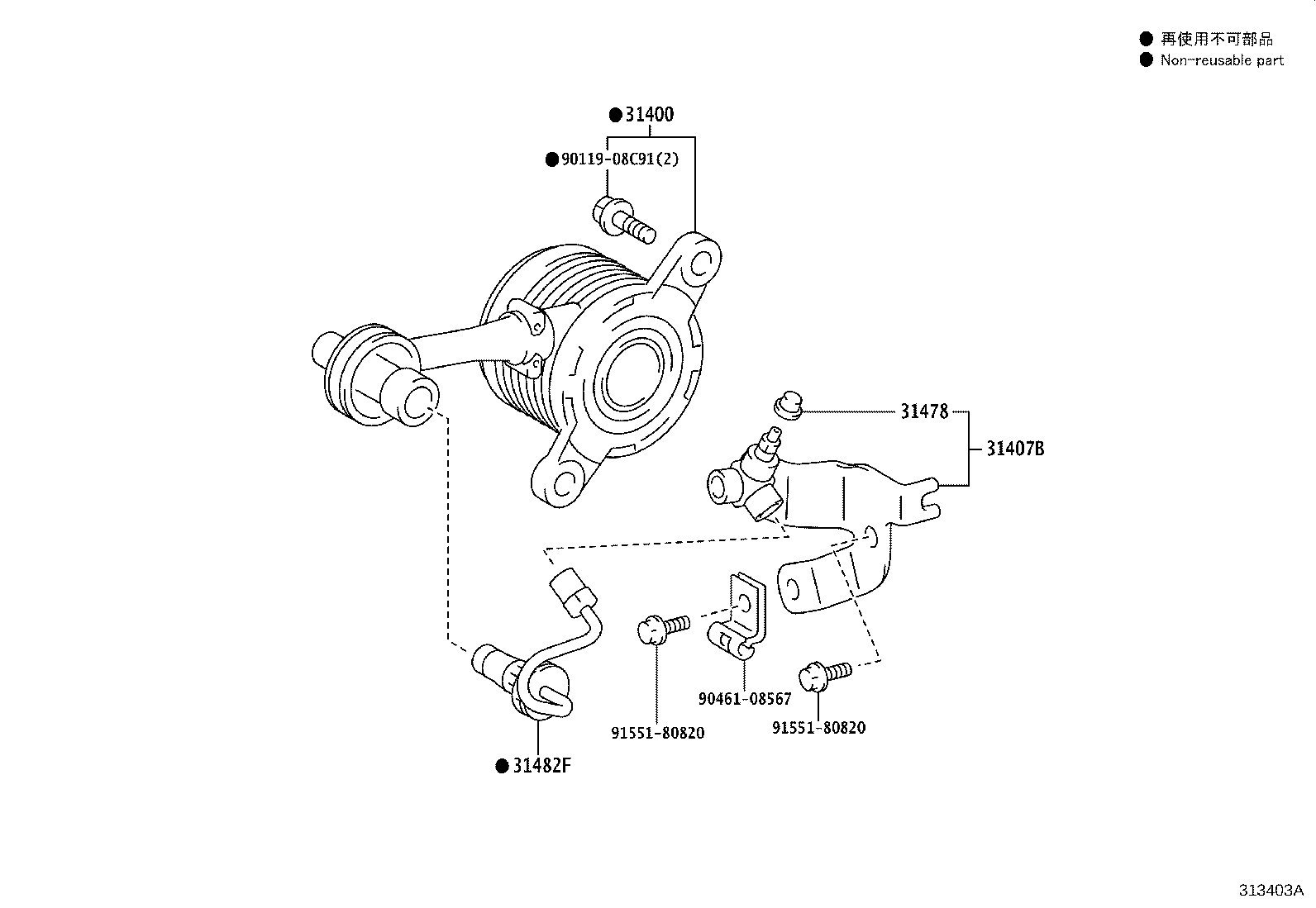

Figure 313404A 313404A 2019-09 → — Figure 313403A 313403A 2019-09 → —

Part groups

PNCDescription
31126B Boot, Clutch Tube
31400 Cylinder Assy, Clutch Release W/Bearing
31407B Bleeder Sub-assy, Clutch Release
31478 Cap, Bleeder Plug(FOR RELEASE CYLINDER)
31482F Tube, Clutch Release Cylinder W/Bearing TO Bleeder
31483 Tube, Bleeder Clutch Release
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
