Toyota Corolla (S.AMERICA)
2019-09 → present · chassis MZEA12,ZRE210,ZWE211 · catalogue 157380 · General
Supported model
Data version 2024-11

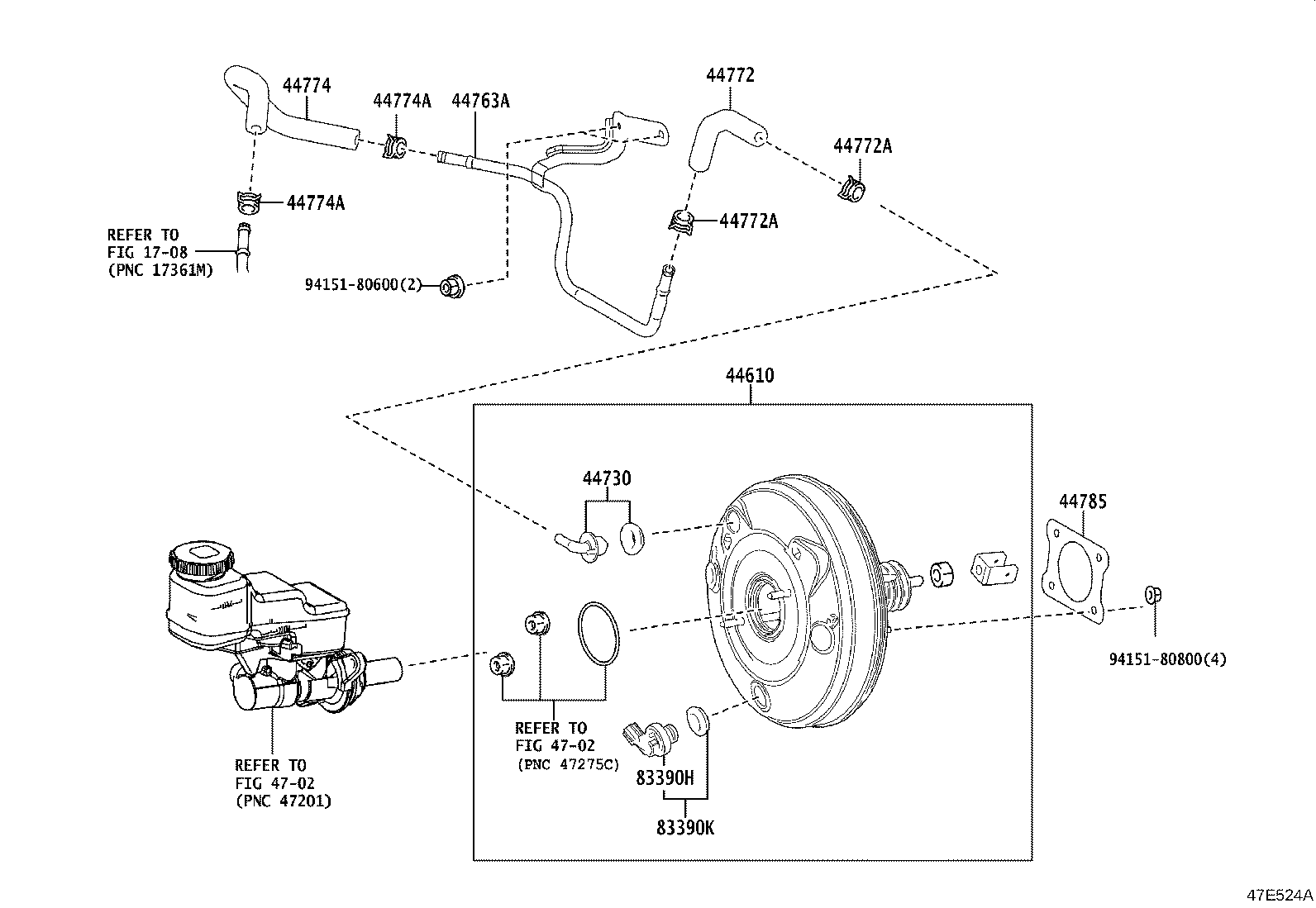

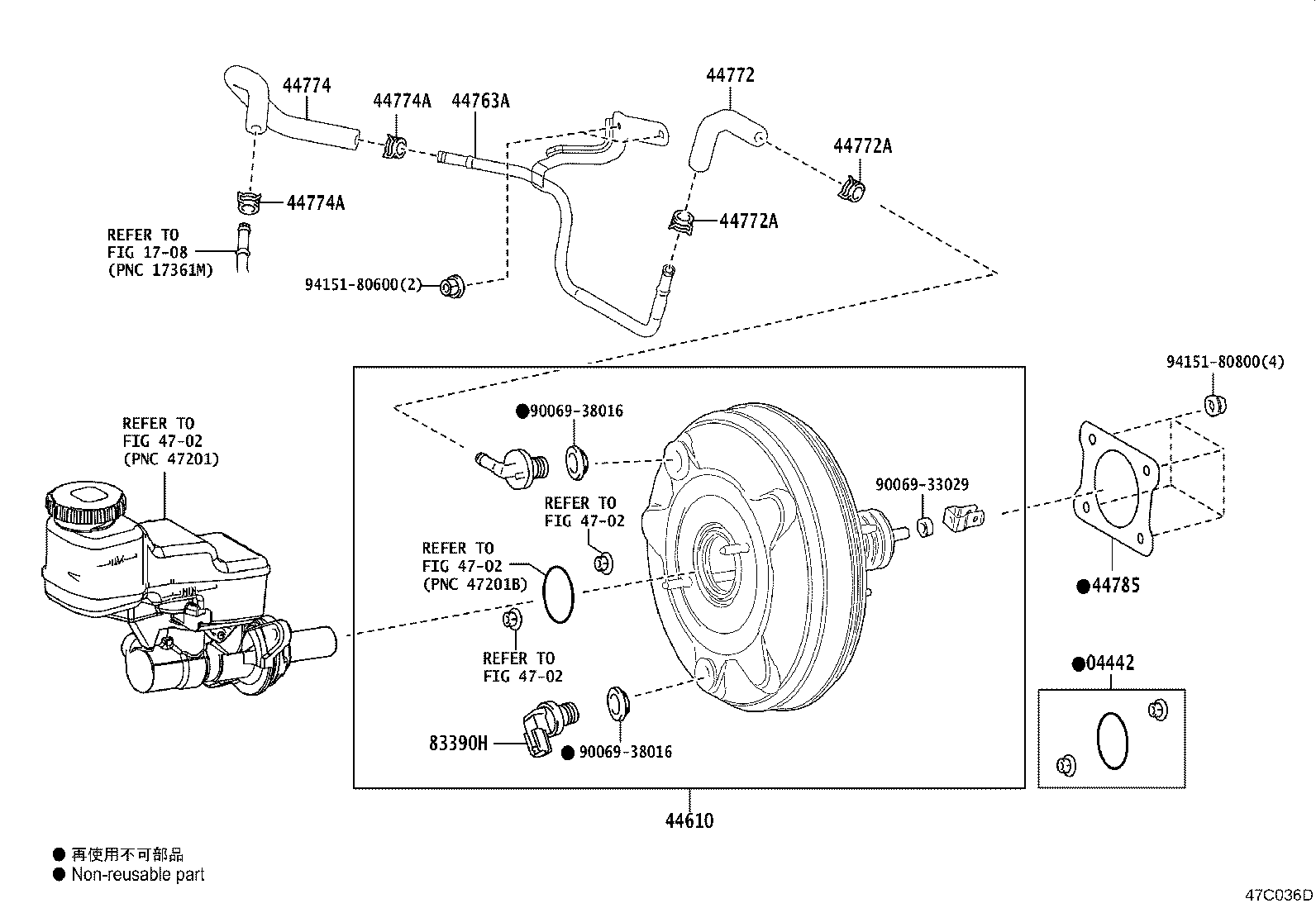

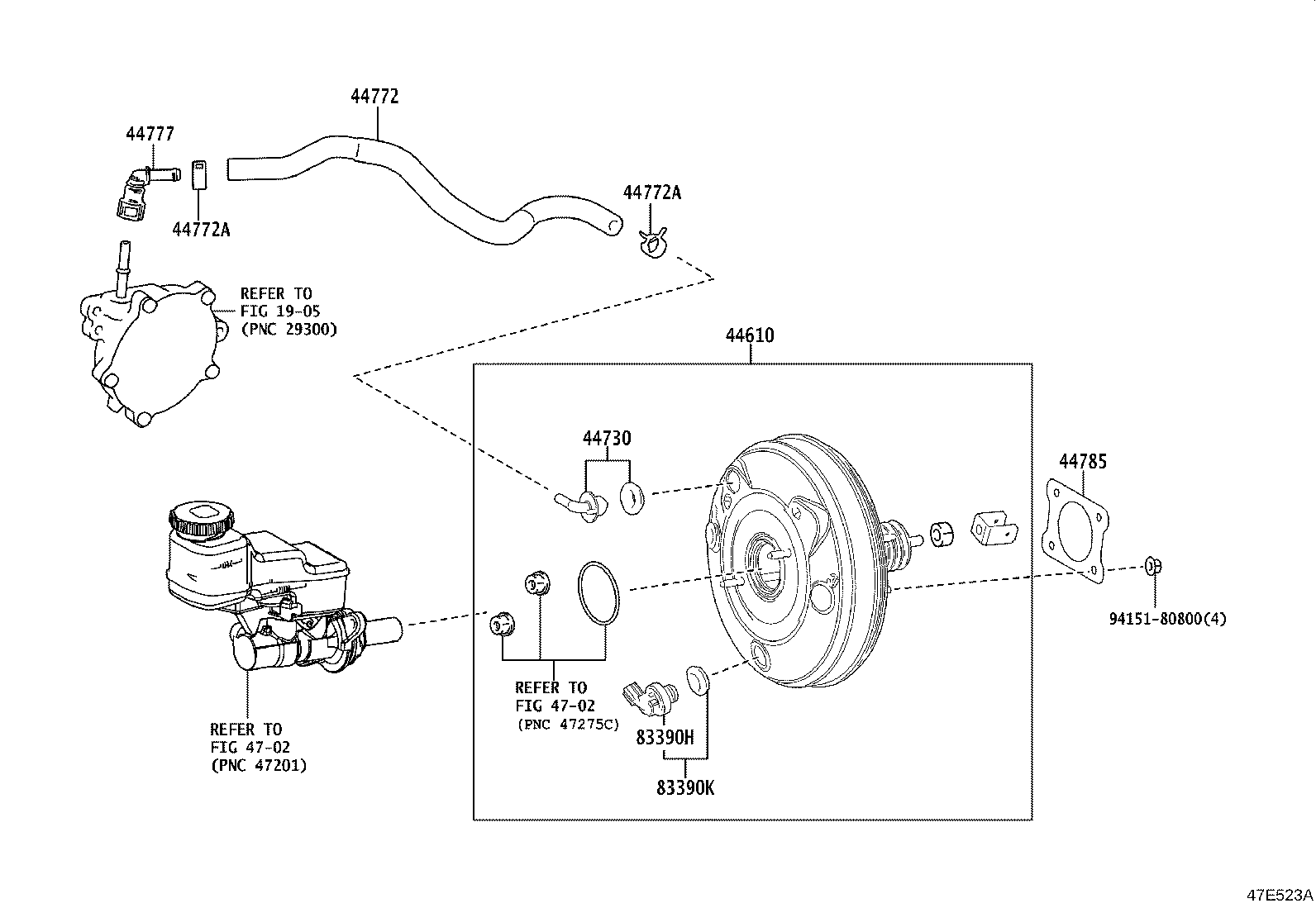

Brake Booster & Vacuum Tube
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04442 | Fitting Kit, Brake Booster |
| 44610 | Booster Assy, Brake |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44763A | Tube, Hose TO Hose, NO.1 |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44772A | Clip(FOR CHECK VALVE TO CONNECTOR TUBE) |
| 44774 | Hose, Union TO Connector Tube |
| 44774A | Clip(FOR UNION TO CONNECTOR TUBE HOSE) |
| 44777 | Connector, Vacuum Hose, NO.1 |
| 44785 | Gasket, Brake Booster |
| 83390H | Switch Assy, Vacuum Warning |
| 83390K | Body Valve Set, Booster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
