Toyota Corolla (S.AMERICA)
2019-09 → present · chassis MZEA12,ZRE210,ZWE211 · catalogue 157380 · General
Supported model
Data version 2024-11
Front Fender Apron & Dash Panel
49 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

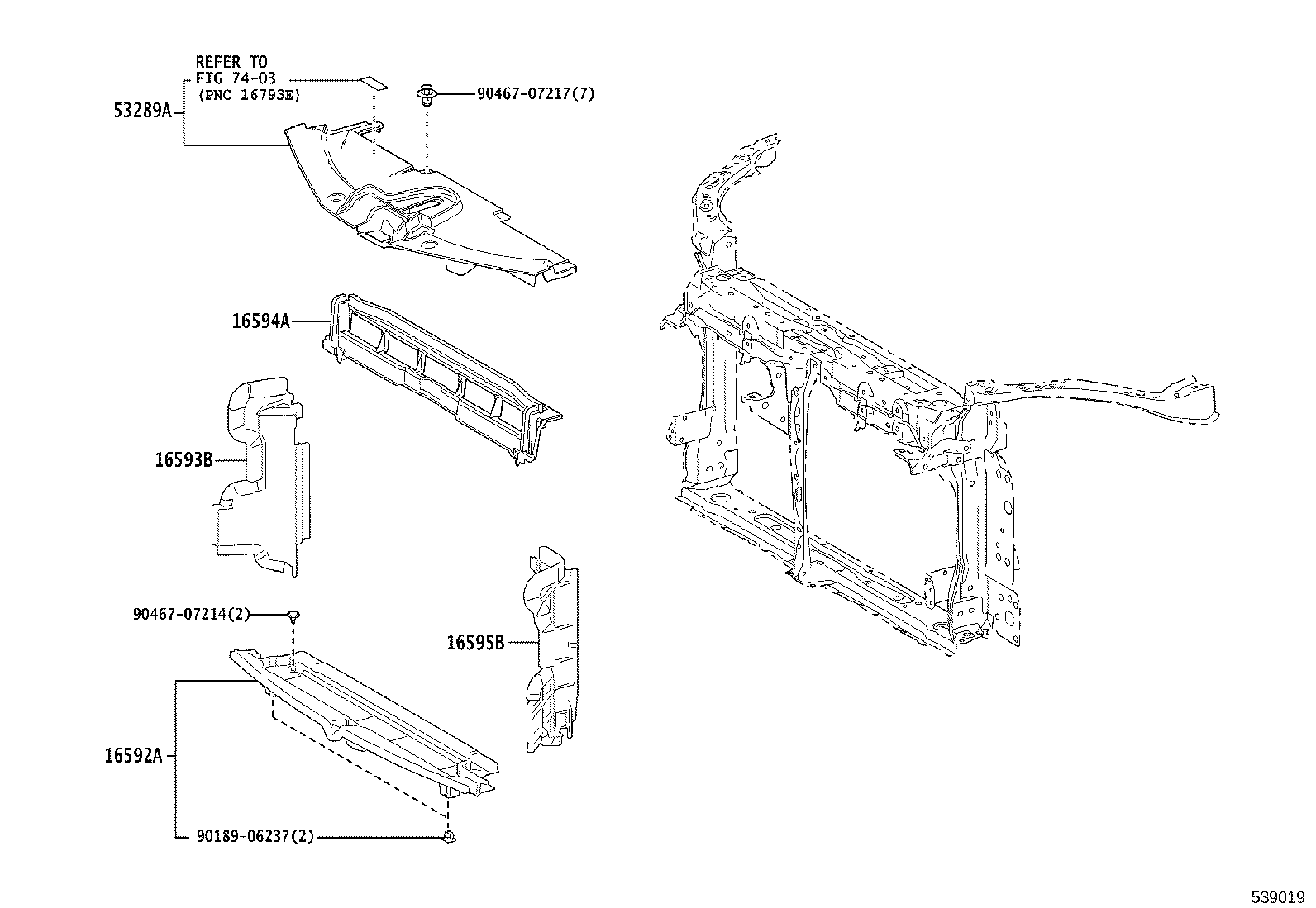

| 16592A | Guide, Radiator Air, NO.3 |
| 16593B | Guide, Radiator Air, NO.1 RH |
| 16594A | Guide, Radiator Air, NO.2 |
| 16595B | Guide, Radiator Air, NO.1 LH |

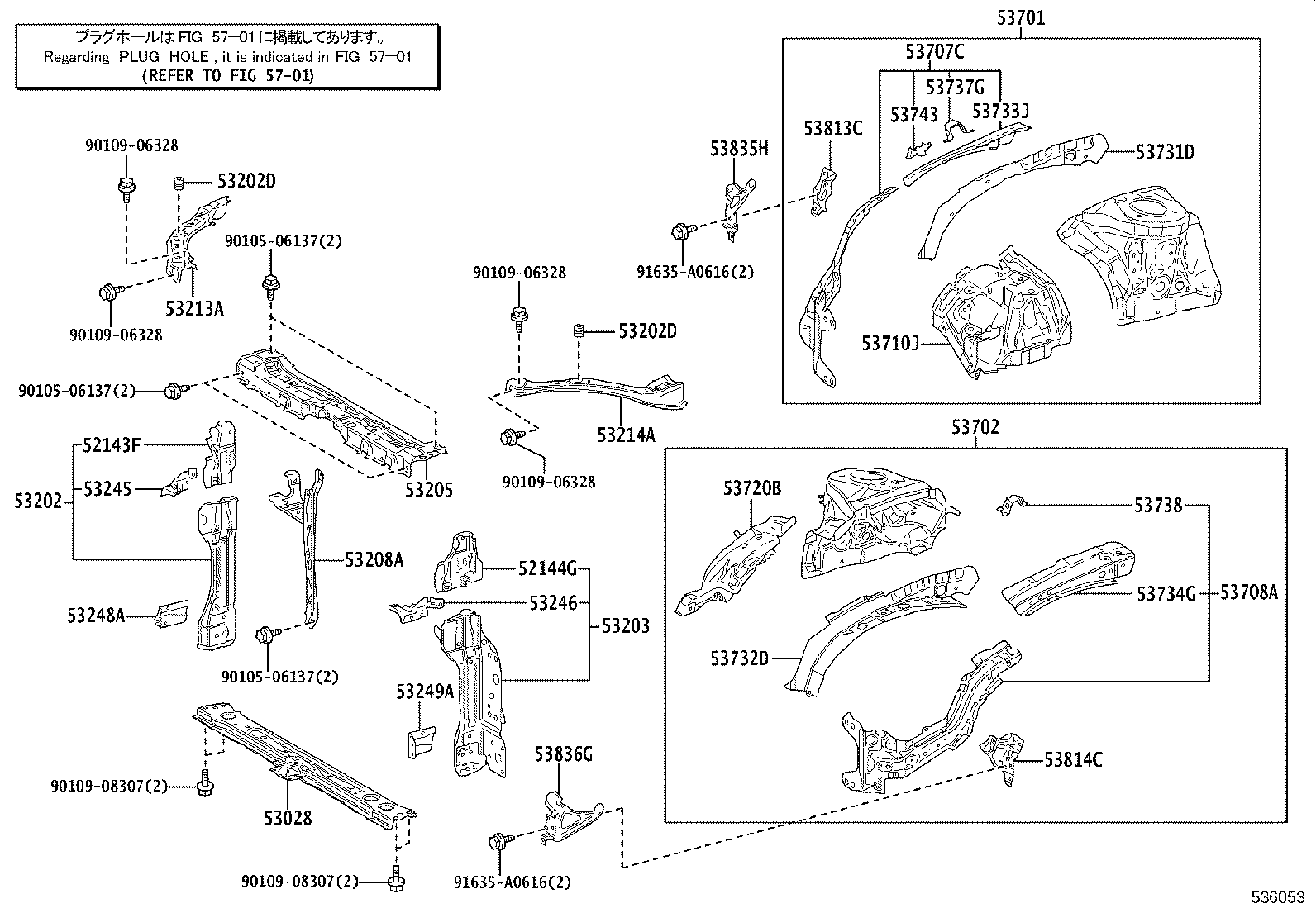

| 52143F | Bracket, Front Bumper Side, RH |
| 52144G | Bracket, Front Bumper Side, LH |
| 53028 | Support Sub-assy, Radiator, Lower |
| 53202 | Support Sub-assy, Radiator, RH |
| 53202D | Cushion, Radiator Support |
| 53203 | Support Sub-assy, Radiator, LH |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53208A | Support Sub-assy, Hood Lock |
| 53213A | Support, Radiator, Upper RH |
| 53214A | Support, Radiator, Upper LH |
| 53245 | Bracket, Headlamp, RH |
| 53246 | Bracket, Headlamp, LH |
| 53248A | Bracket, Radiator Shutter, RH |
| 53249A | Bracket, Radiator Shutter, LH |
| 53289A | Cover, Radiator Support Opening |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53707C | Extension Sub-assy, Front Fender Apron, Front RH |
| 53708A | Extension Sub-assy, Front Fender Apron, Front LH |
| 53710J | Apron Assy, Front Fender, RH |
| 53720B | Apron Assy, Front Fender, LH |
| 53731D | Member, Front Apron TO Cowl Side, Upper RH |
| 53732D | Member, Front Apron TO Cowl Side, Upper LH |
| 53733J | Member, Front Apron TO Cowl Side, Outer Front RH |
| 53734G | Member, Front Apron TO Cowl Side, Outer Front LH |
| 53737G | Plate, Front Apron TO Cowl Side Member, RH |
| 53738 | Plate, Front Apron TO Cowl Side Member, LH |
| 53743 | Reinforcement, Front Fender Apron Extension |
| 53813C | Extension, Front Fender, RH |
| 53814C | Extension, Front Fender, LH |
| 53835H | Brace, Front Fender TO Extension, RH |
| 53836G | Brace, Front Fender TO Extension, LH |

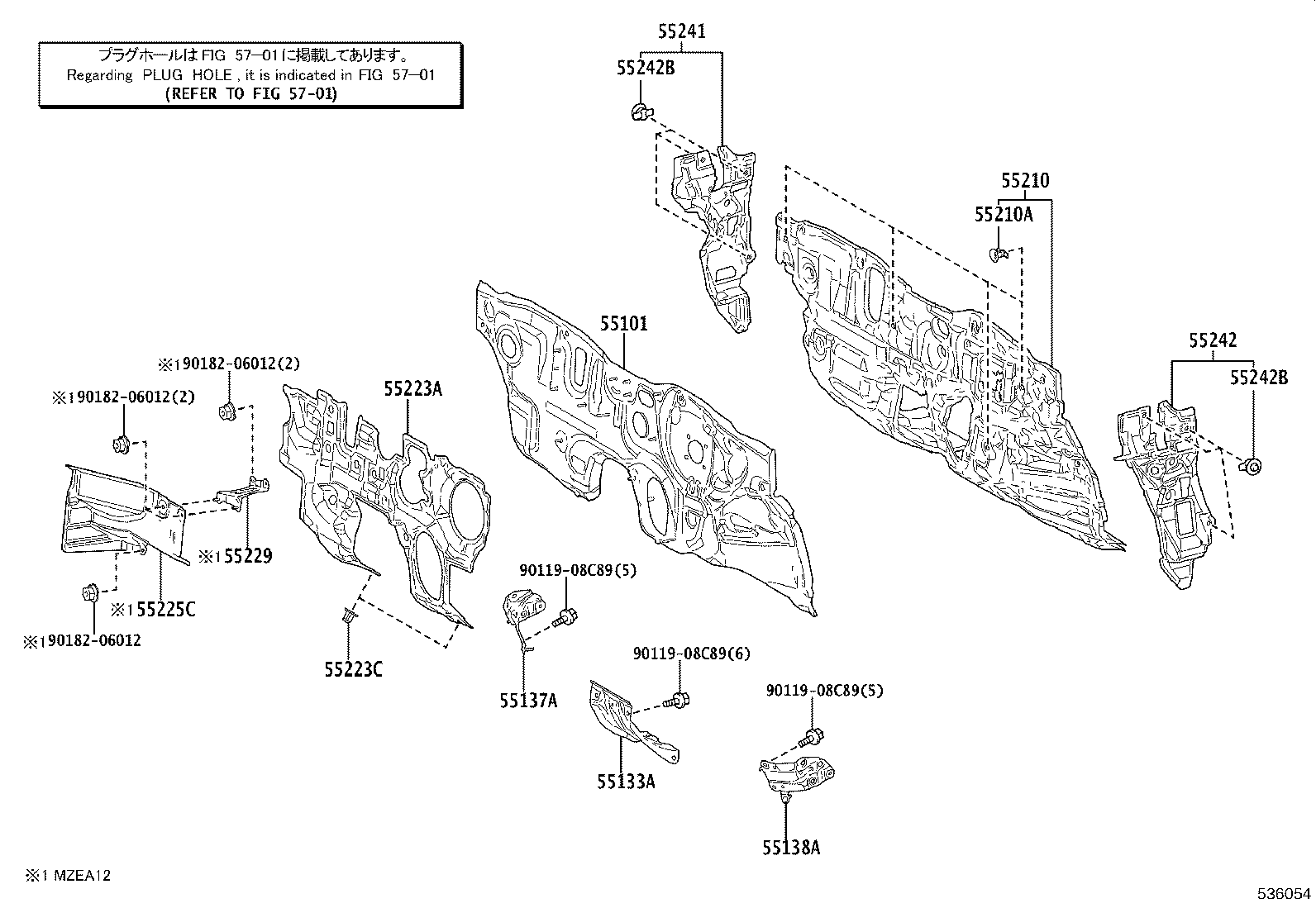

| 55101 | Panel Sub-assy, Dash |
| 55133A | Reinforcement, Dash TO Floor, RH |
| 55137A | Brace, Dash TO Frame, RH |
| 55138A | Brace, Dash TO Frame, LH |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55223A | Insulator, Dash Panel, Outer |
| 55223C | Clip |
| 55225C | Insulator, Dash Panel Heat |
| 55229 | Plate, Dash Panel Insulator, NO.4 |
| 55241 | Silencer, Front Panel Side, NO.1 RH |
| 55242 | Silencer, Front Panel Side, NO.1 LH |
| 55242B | Clip, Front Panel Side Silencer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
