Toyota Corolla (S.AMERICA)

2019-09 → present · chassis MZEA12,ZRE210,ZWE211 · catalogue 157380 · General

Supported model Data version 2024-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

49 part groups · 4 illustrations

Illustrations

587157B 2019-09 → —

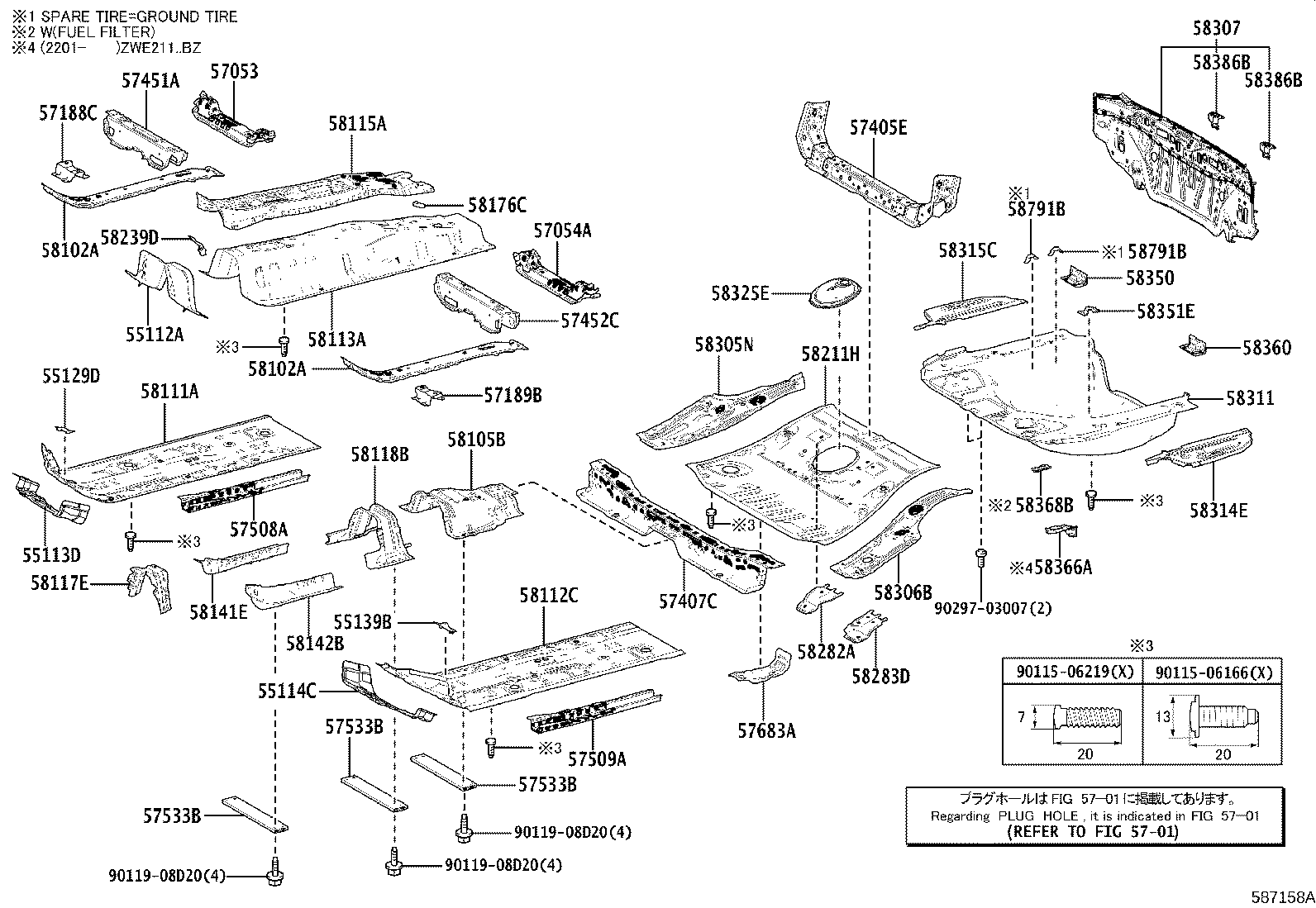

587158A 2019-09 → 2024-12

587158A 2024-12 → —

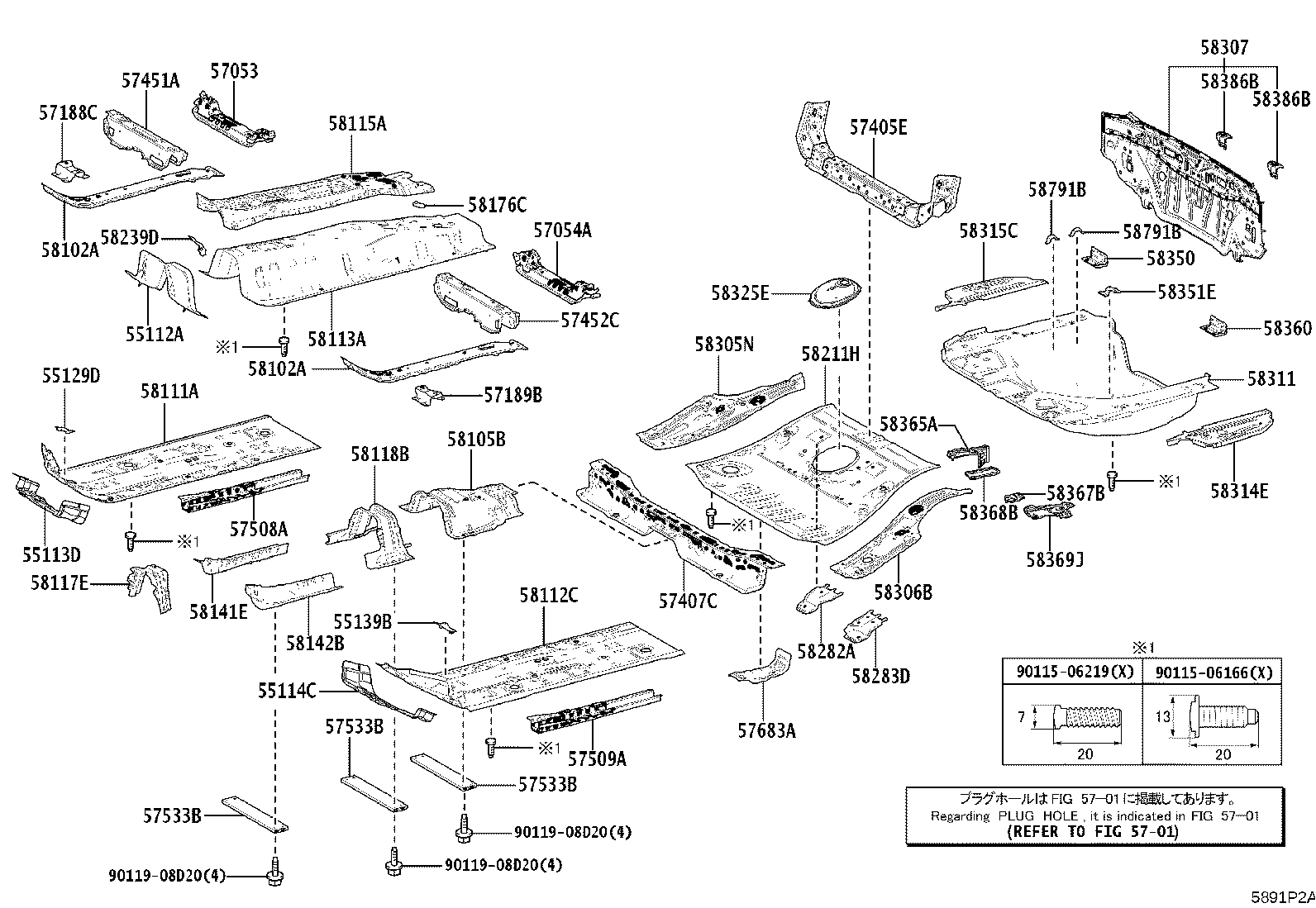

5891P2A 2024-12 → —

Part groups

PNC	Description
55112A	Panel, Dash, NO.2
55113D	Panel, Dash, Lower RH
55114C	Panel, Dash, Lower LH
55129D	Cover, Dash Panel Hole, RH
55139B	Cover, Dash Panel Hole, LH
57053	Reinforcement Sub-assy, Front Floor Crossmember, RH
57054A	Reinforcement Sub-assy, Front Floor Crossmember, LH
57188C	Reinforcement, Front Side Member Extension, RH
57189B	Reinforcement, Front Side Member Extension, LH
57405E	Member Sub-assy, Center Floor Cross, NO.2
57407C	Member Sub-assy, Center Floor Cross, NO.1
57451A	Member, Front Floor Cross, RH
57452C	Member, Front Floor Cross, LH
57508A	Reinforcement Sub-assy, Front Floor, RH
57509A	Reinforcement Sub-assy, Front Floor, LH
57533B	Brace, Front Floor, Center
57683A	Bracket, Fuel Tank Mounting, NO.1
58102A	Reinforcement Sub-assy, Front Floor
58105B	Panel Sub-assy, Front Floor Rear Upper Sub
58111A	Pan, Front Floor, RH
58112C	Pan, Front Floor, LH
58113A	Panel, Front Floor, Center
58115A	Reinforcement, Front Floor Panel
58117E	Panel, Front Floor Sub Cover
58118B	Reinforcement, Front Floor Panel, NO.2
58141E	Reinforcement, Front Side Member TO Floor Pan, RH
58142B	Reinforcemnet, Front Side Member TO Floor Pan, LH
58176C	Reinforcement, Parking Brake Base, NO.2
58211H	Pan, Center Floor
58239D	Bracket, Cable Clamp
58282A	Base, Belt Anchor TO Floor Pan, NO.3 RH
58283D	Base, Belt Anchor TO Floor Pan, NO.3 LH
58305N	Extension Sub-assy, Rear Floor TO Quarter, RH
58306B	Extension Sub-assy, Rear Floor TO Quarter, LH
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58314E	Extension, Rear Floor Side Panel, LH
58315C	Extension, Rear Floor Side Panel, RH
58325E	Cover, Rear Floor Service Hole
58350	Reinforcement Assy, Rear Floor Panel, RH
58351E	Bracket, Spare Wheel Clamp
58360	Reinforcement Assy, Rear Floor Panel, LH
58365A	Bracket, Fuel Tank Support, RH
58366A	Bracket, Fuel Tank Support, LH
58367B	Bracket, Fuel Tube
58368B	Bracket, Fuel Tube, NO.2
58369J	Bracket, Rear Floor Brace
58386B	Bracket, Rear Bumper Cover, NO.2
58791B	Carrier, Jack

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
