Toyota Corolla (S.AMERICA)
2019-09 → present · chassis MZEA12,ZRE210,ZWE211 · catalogue 157380 · General
Supported model
Data version 2024-11

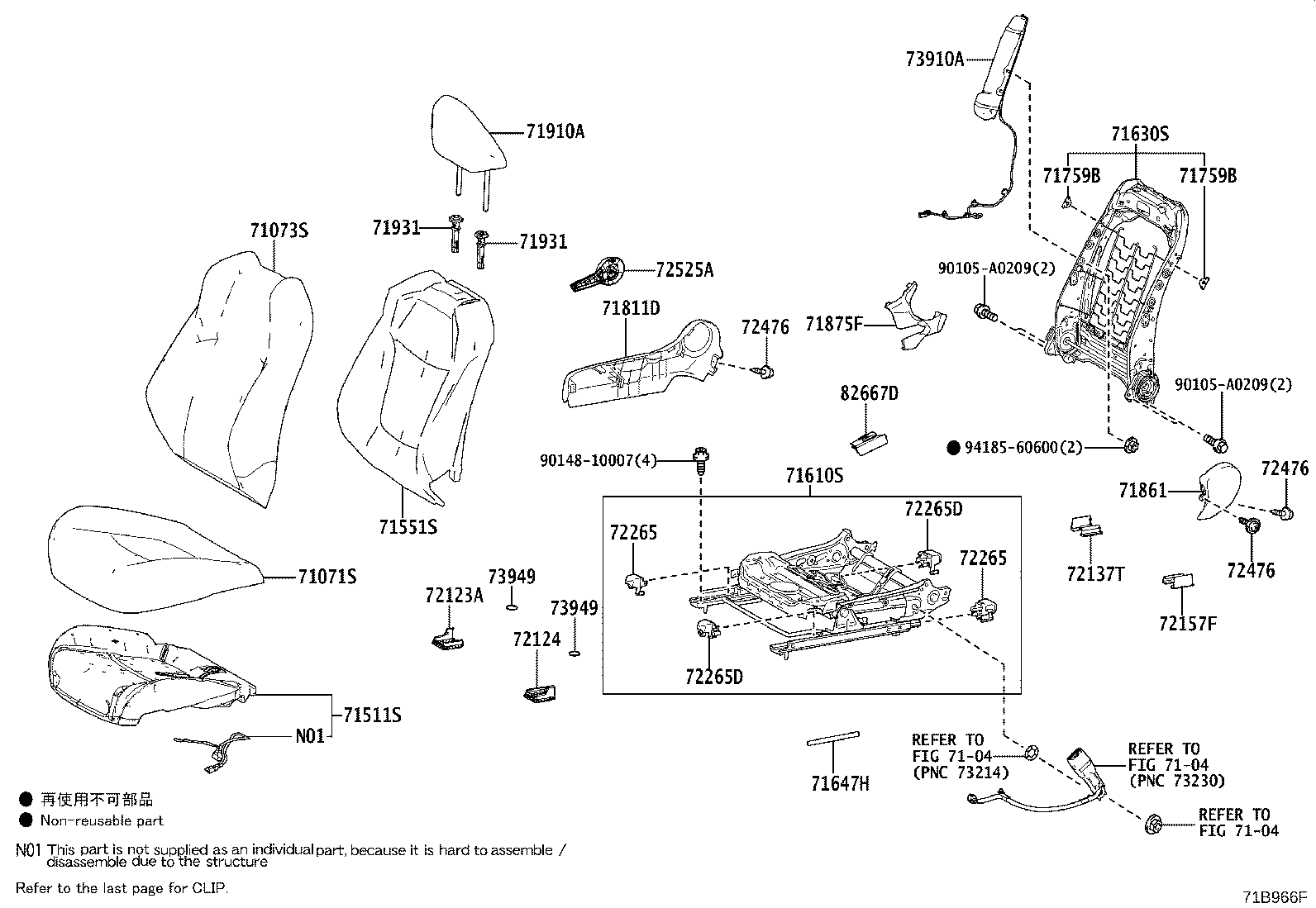

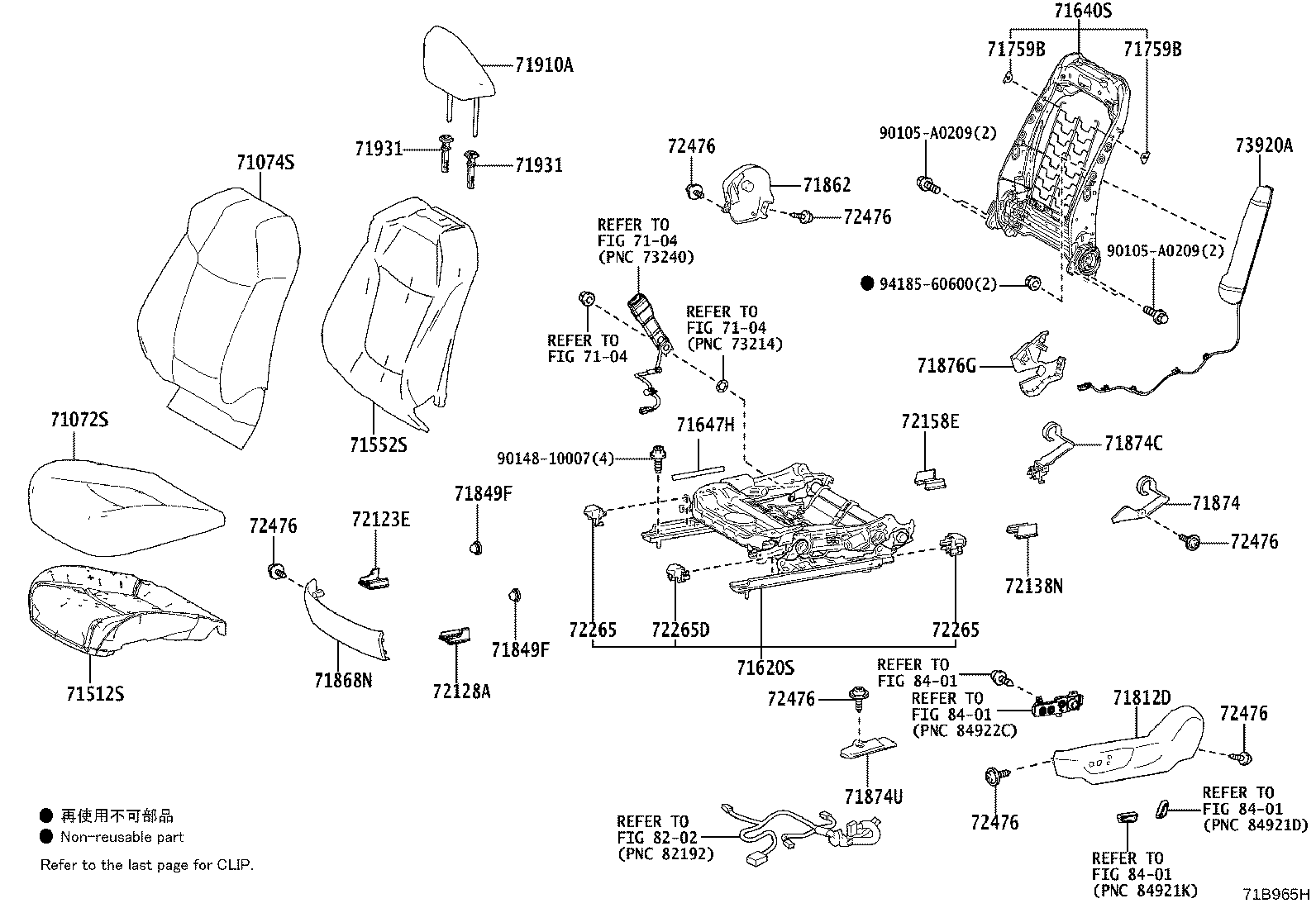

Front Seat & Seat Track
45 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71647H | Protector, Front Seat Cushion Edge |
| 71759B | Hook, Front Seatback |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71849F | Cap, Seat Adjuster Cover, LH(FOR LH SEAT) |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71868N | Shield, Front Seat Cushion, Front LH |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874C | Shield, Front Seat Cushion, Lower |
| 71874U | Shield, Front Seat Cushion, Lower LH |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72123E | Cover, Seat Track Bracket, Inner Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137T | Cover, Seat Track Bracket, Outer Rear RH |
| 72138N | Cover, Seat Track Bracket, Outer Rear LH |
| 72157F | Cover, Seat Track Bracket, Inner Rear RH |
| 72158E | Cover, Seat Track Bracket, Inner Rear LH |
| 72265 | Cover, Seat Track Upper Rail, RH |
| 72265D | Cover, Seat Track Upper Rail |
| 72476 | Screw, Horizontal Jack, Inner |
| 72495 | Handle, Vertical Adjusting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 73949 | Cap |
| 82667D | Holder, Connector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
