Toyota Corolla (S.AMERICA)
2019-09 → present · chassis MZEA12,ZRE210,ZWE211 · catalogue 157380 · General
Supported model
Data version 2024-11
Seat Belt & Child Restraint Seat

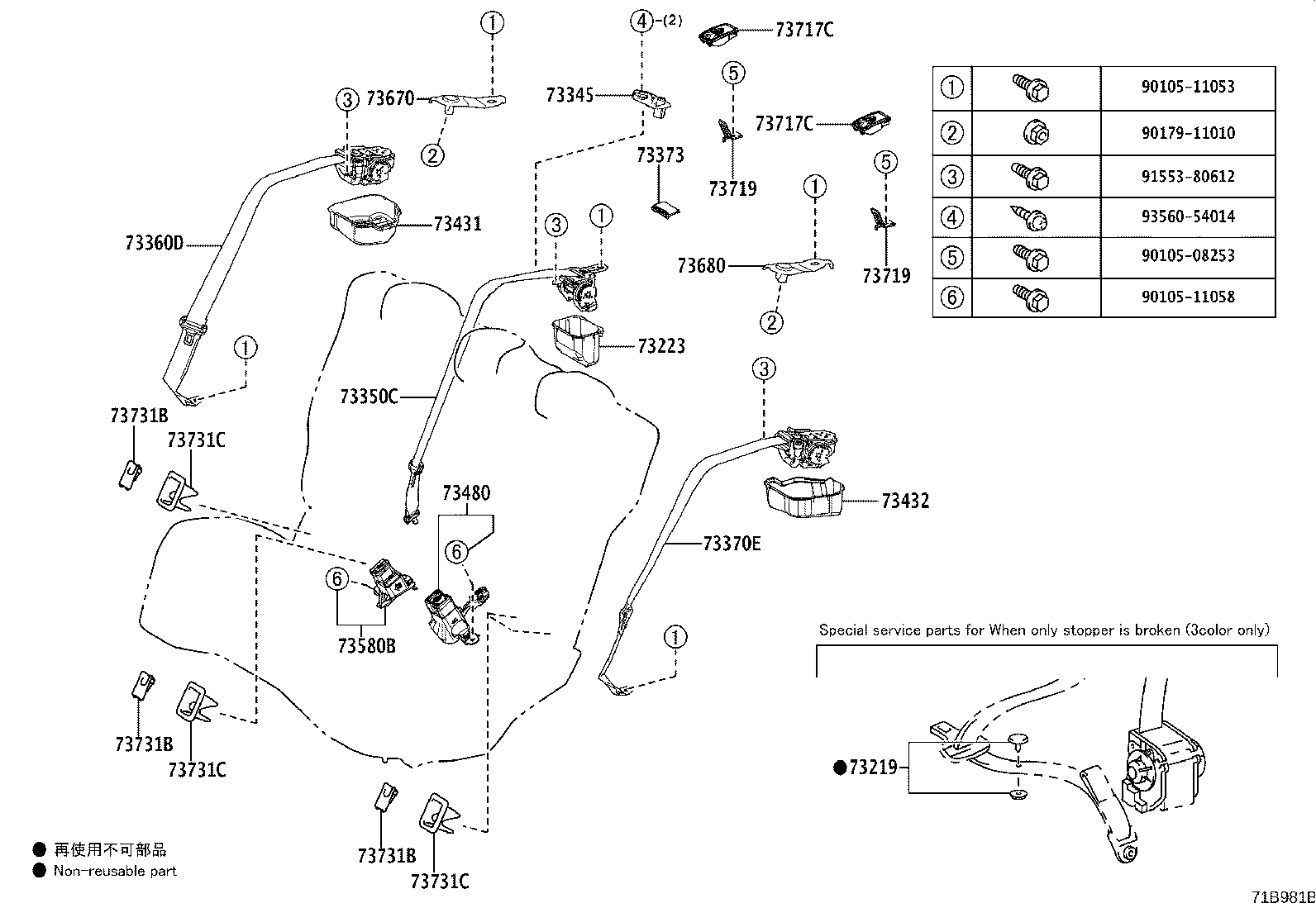

26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 73023 | Plate Sub-assy, Front Shoulder Belt Anchor, RH |
| 73024 | Plate Sub-assy, Front Shoulder Belt Anchor, LH |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73214 | Plate, Front Seat Belt Anchor |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73223 | Cover, Seat Belt Retractor |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73345 | Guide, Rear Seat Shoulder Belt, Center |
| 73350C | Belt Assy, Rear Seat, Outer Center |
| 73360D | Belt Assy, Rear Seat, Outer RH |
| 73370E | Belt Assy, Rear Seat, Outer LH |
| 73373 | Cover, Rear Seat Shoulder Belt |
| 73431 | Cover, Rear Seat Belt Retractor, RH |
| 73432 | Cover, Rear Seat Belt Retractor, LH |
| 73480 | Belt Assy, Rear Seat Inner W/Center, LH |
| 73580B | Belt Assy, Rear Seat, Inner RH |
| 73670 | Bracket Assy, Rear Seat Belt Outer Anchor, RH |
| 73680 | Bracket Assy, Rear Seat Belt Outer Anchor, LH |
| 73717C | Cover, Child Restraint Seat Tether Anchor, Center |
| 73719 | Bracket, Child Restraint Seat Tether Anchor |
| 73731B | Cover, Child Restraint Seat, NO.1 |
| 73731C | Cover, Child Restraint Seat, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
