Toyota Corolla (S.AMERICA)

2019-09 → present · chassis MZEA12,ZRE210,ZWE211 · catalogue 157380 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

14 part groups · 2 illustrations

Illustrations

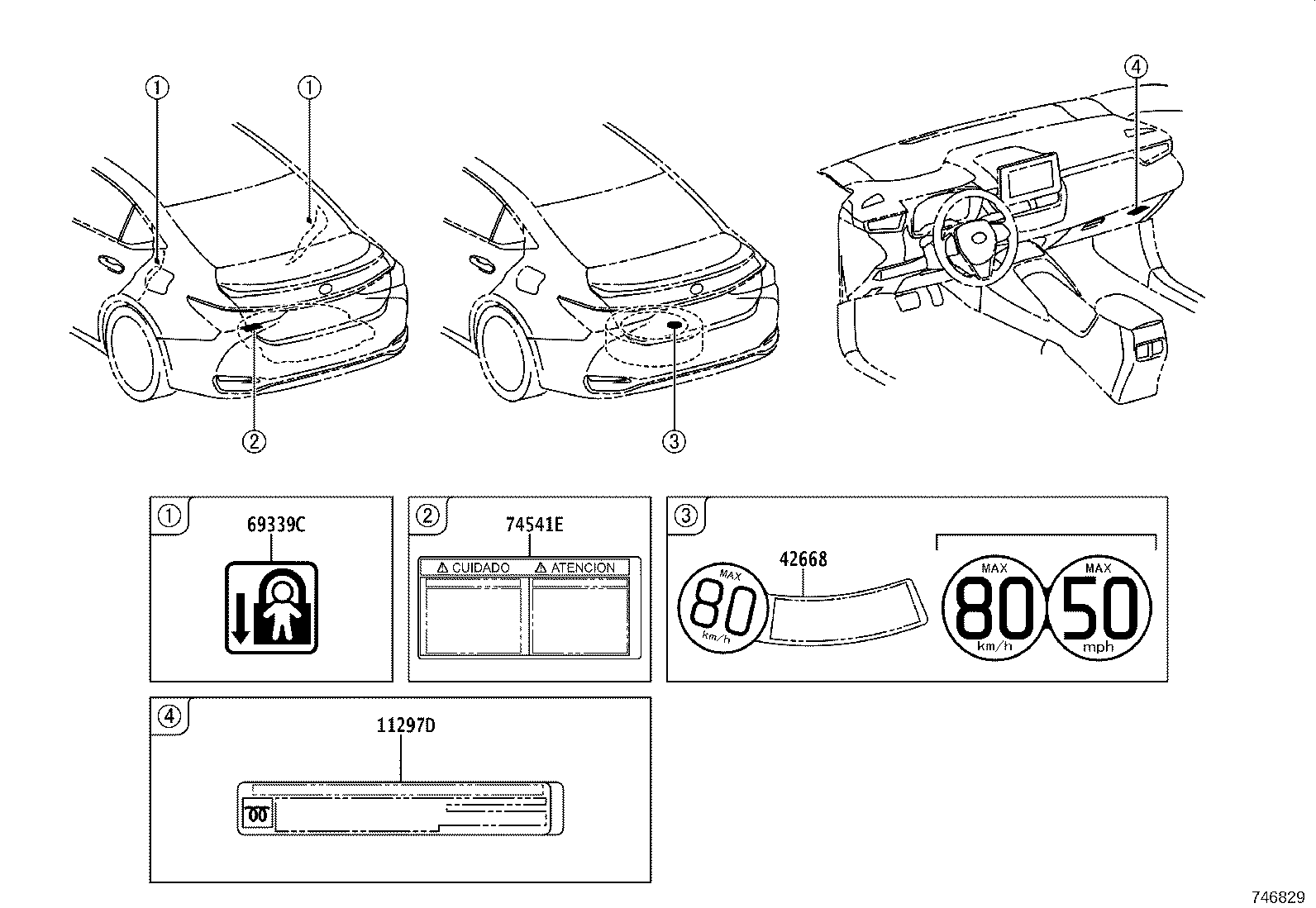

Figure 746828A 746828A 2019-09 → — Figure 746829 746829 2019-09 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11285J Label, Coolant System Caution, NO.2
11291B Plate, Engine Name
11293D Label, Engine Caution
11297D Label, Engine Starting Information
16793E Label, Cooling Fan Caution
42668 Label, Compact Spare Tire Caution
47997C Label, Accumulator Caution, NO.1
69339C Label, Child Protector Information
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74751 Label, Tire Pressure Information
88723H Label, Cooler Service Caution
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
