Toyota Corolla (S.AMERICA)

2019-09 → present · chassis MZEA12,ZRE210,ZWE211 · catalogue 157380 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

82 part groups · 17 illustrations

Illustrations

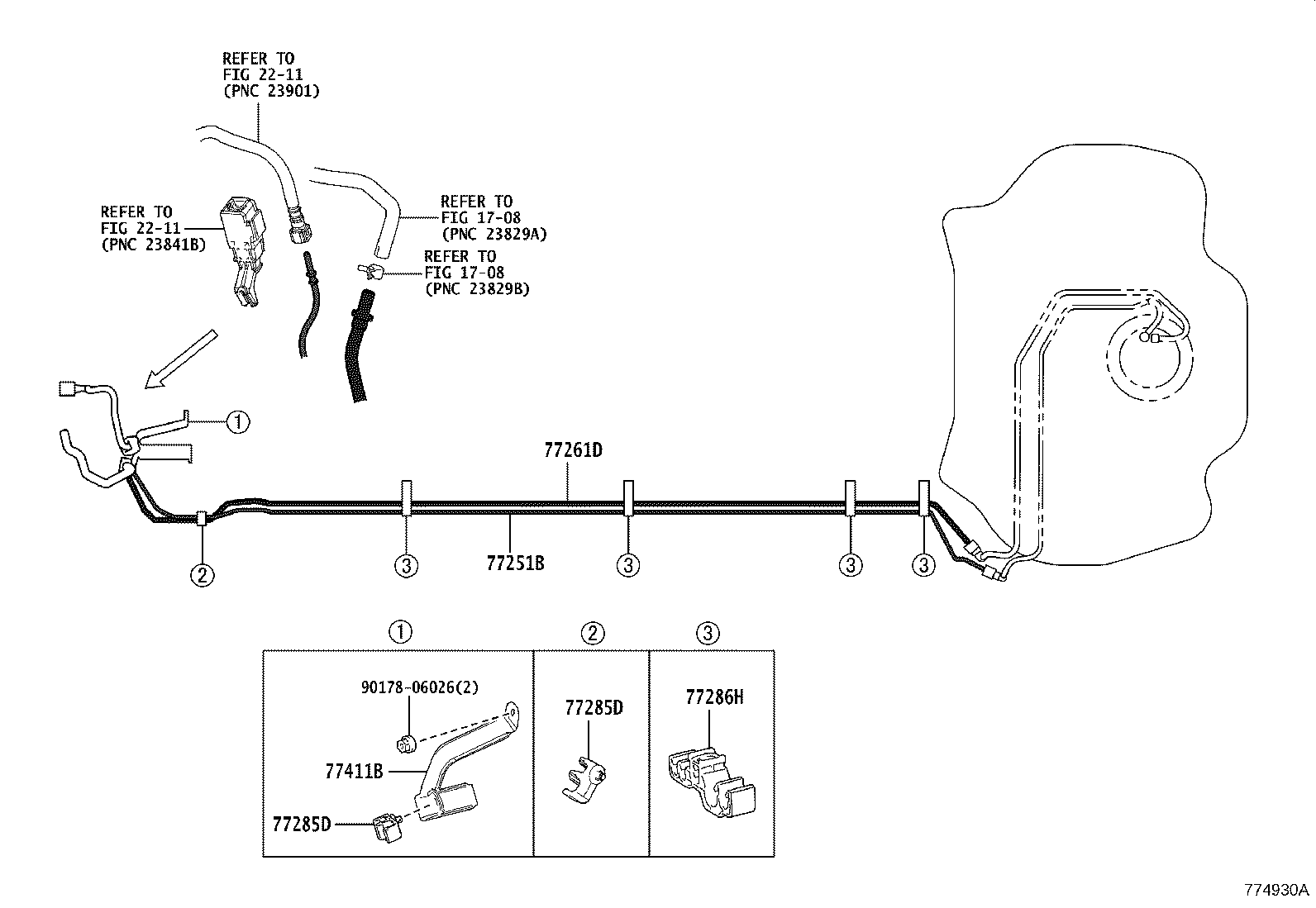

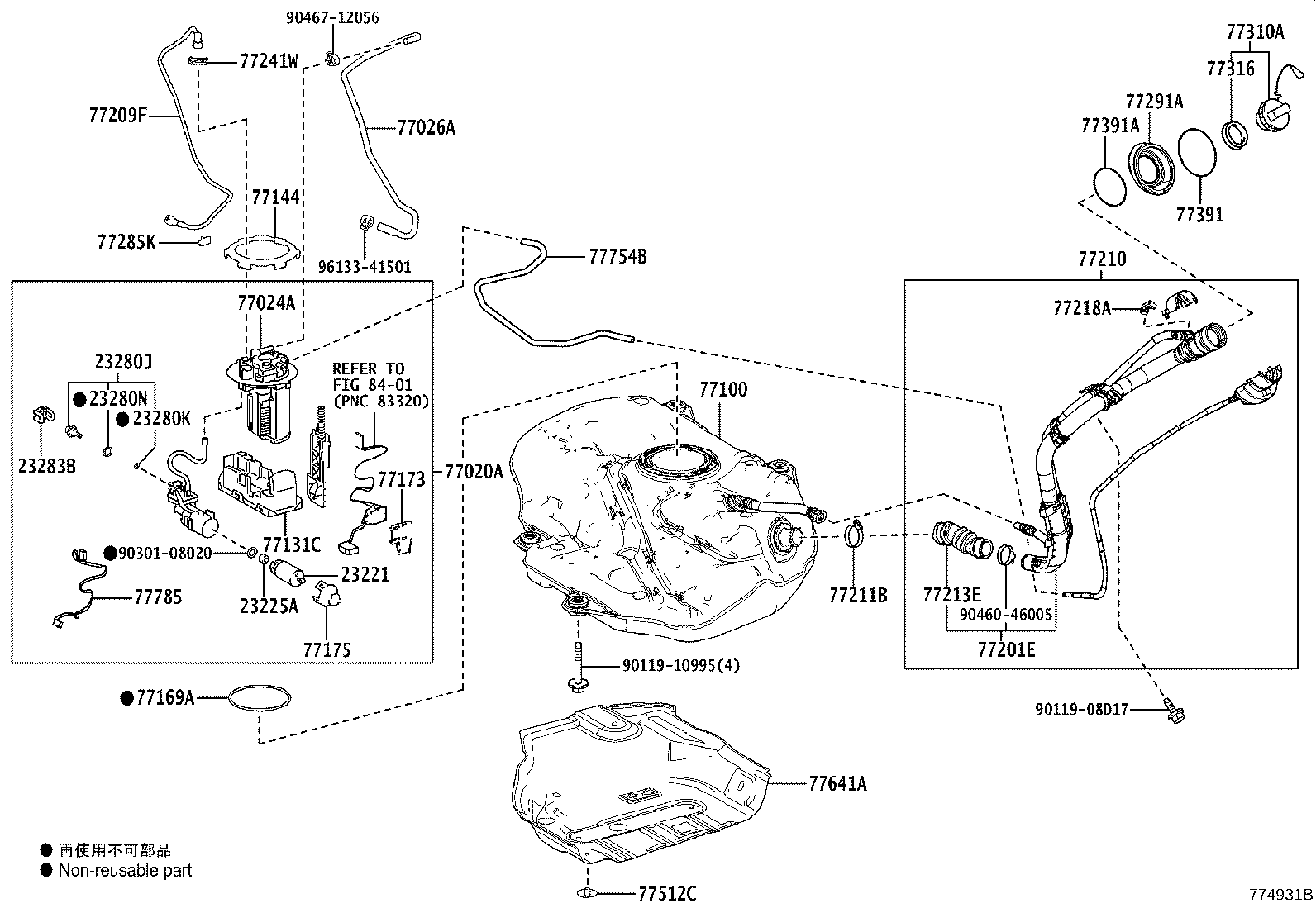

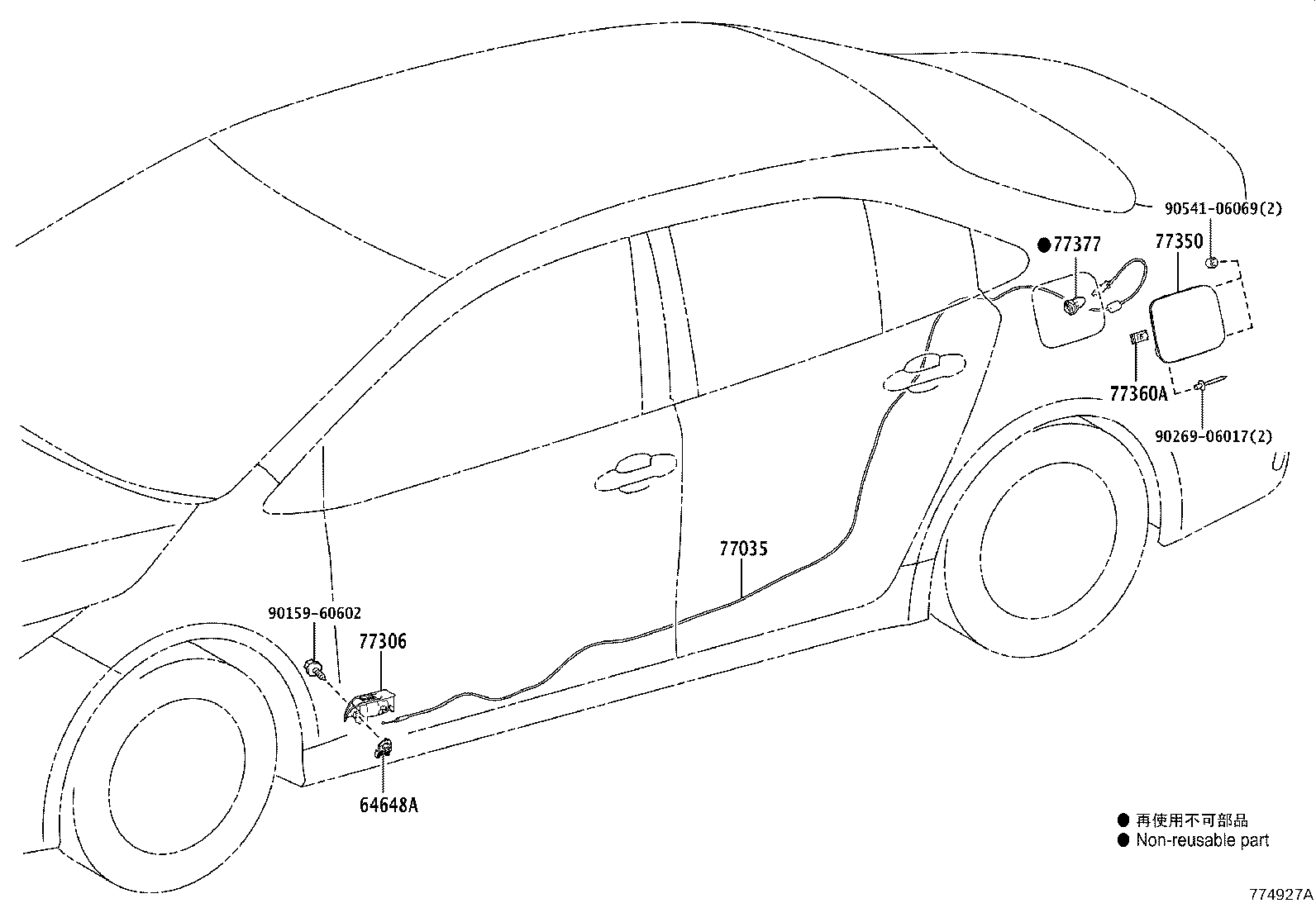

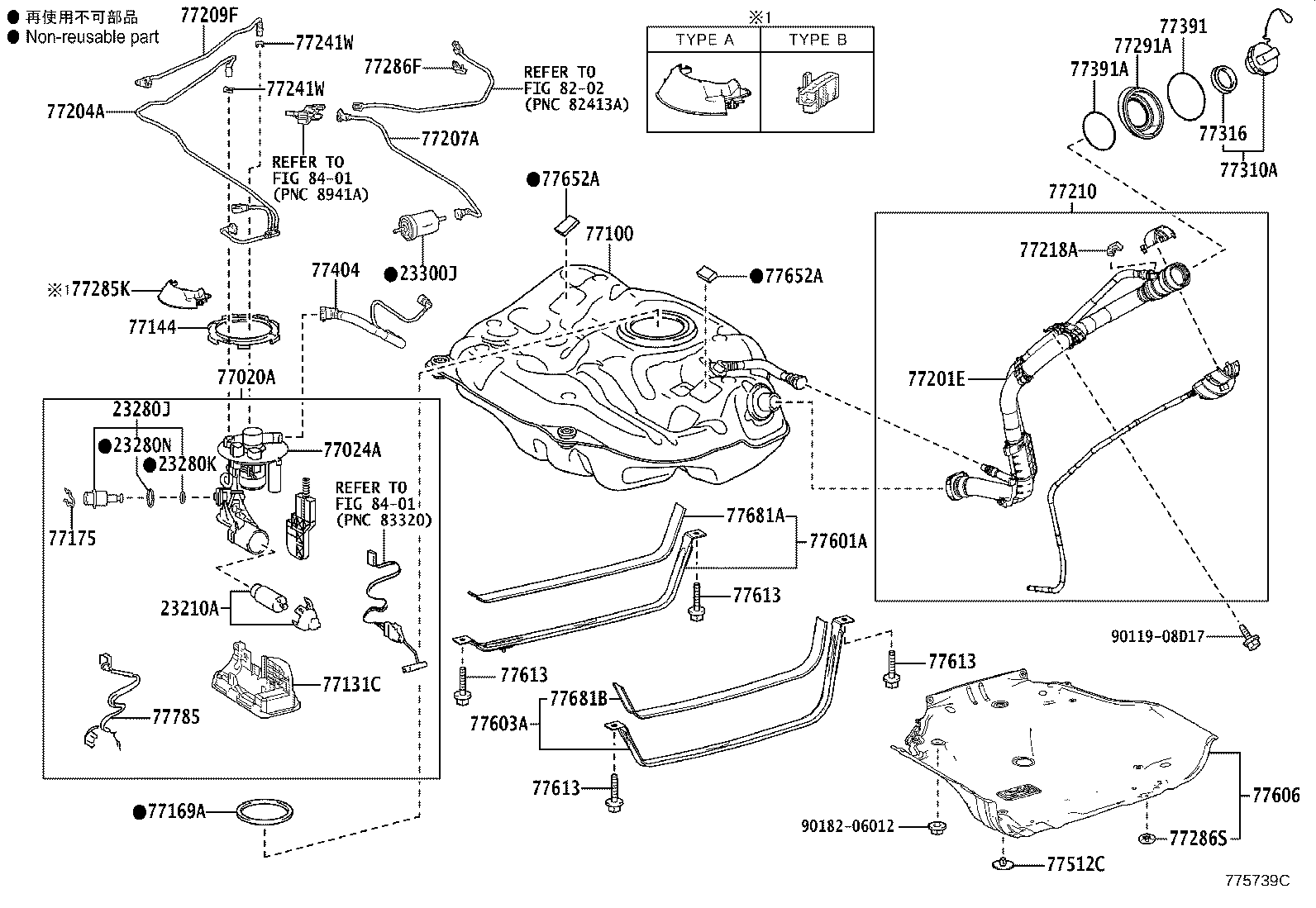

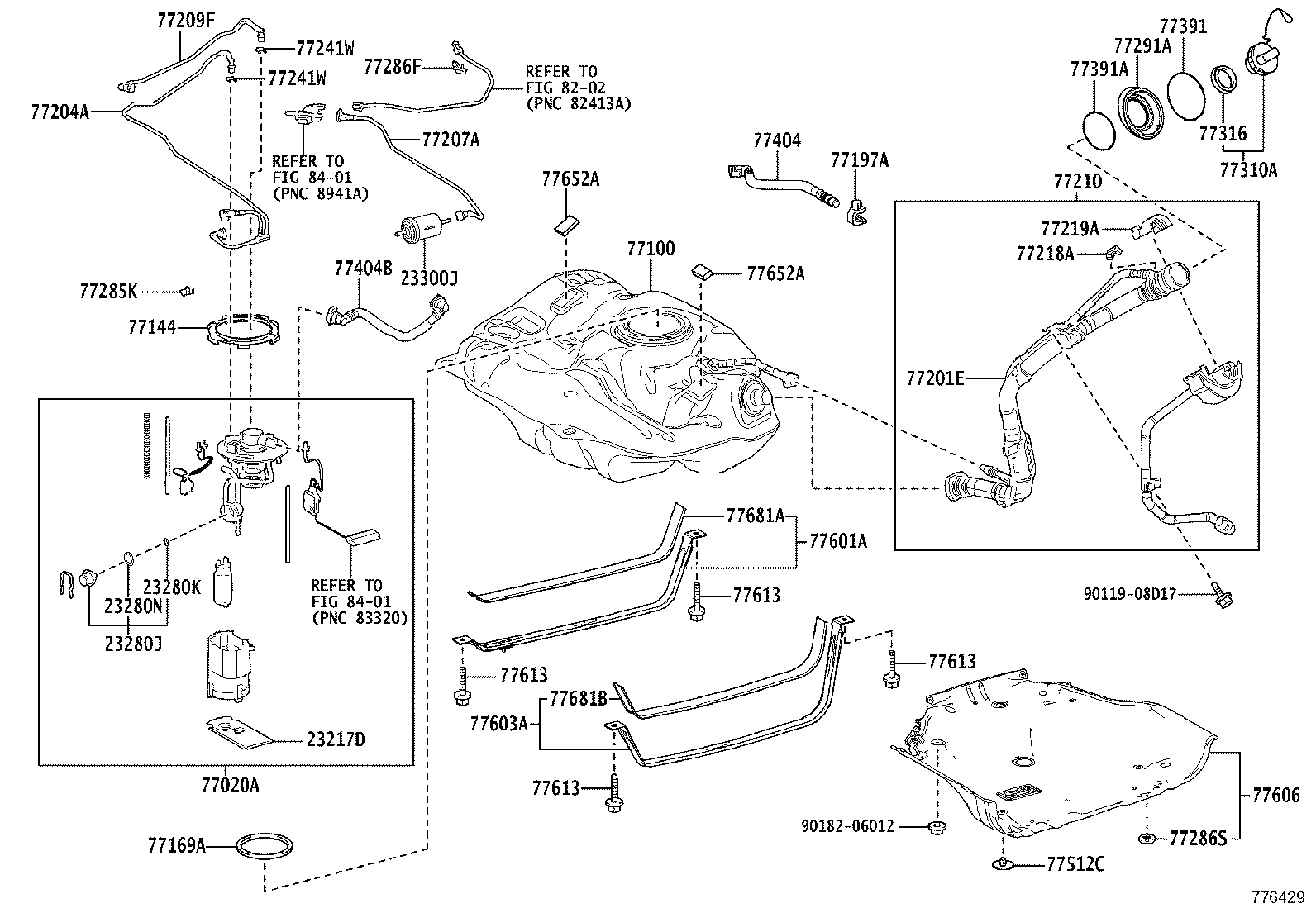

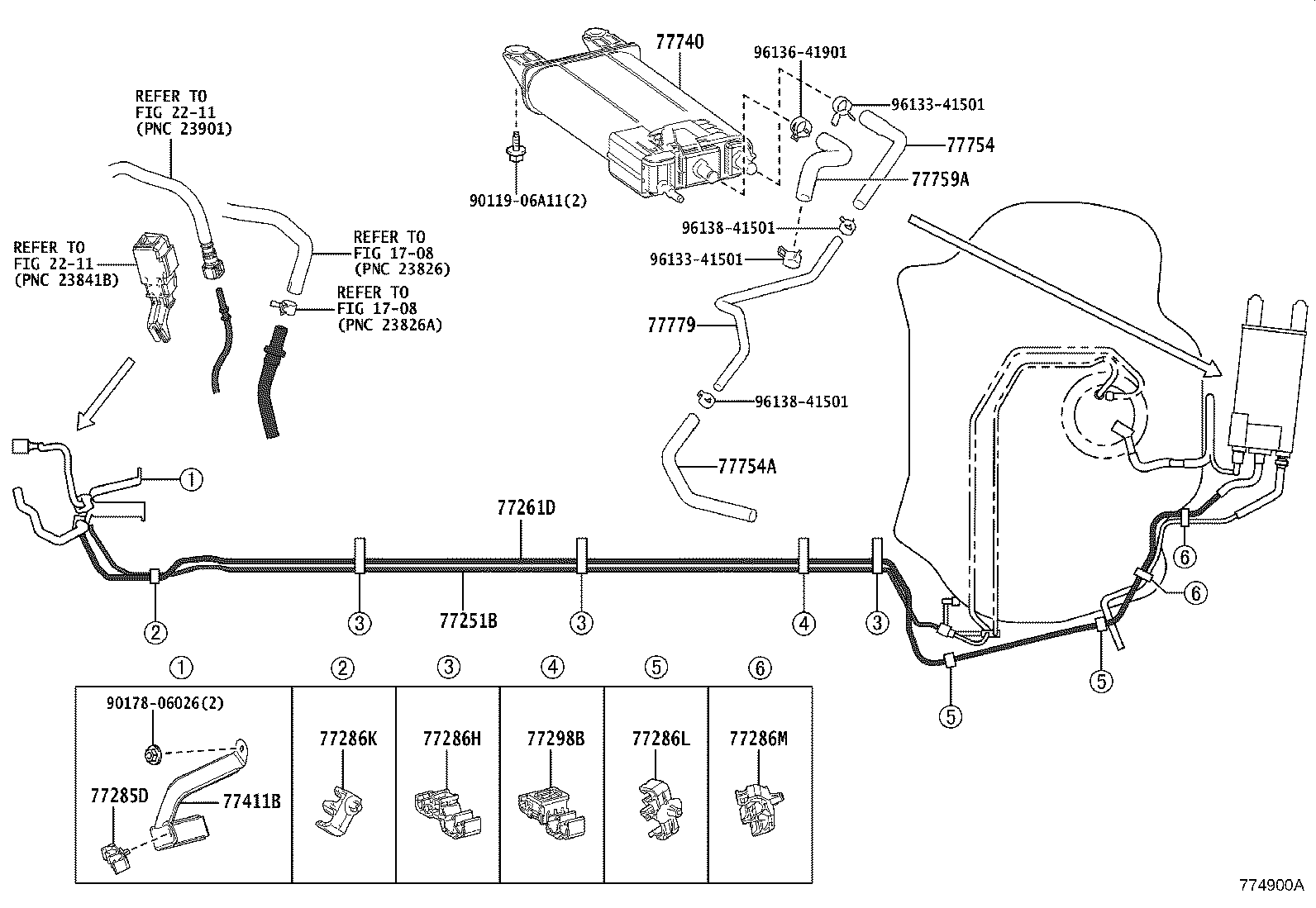

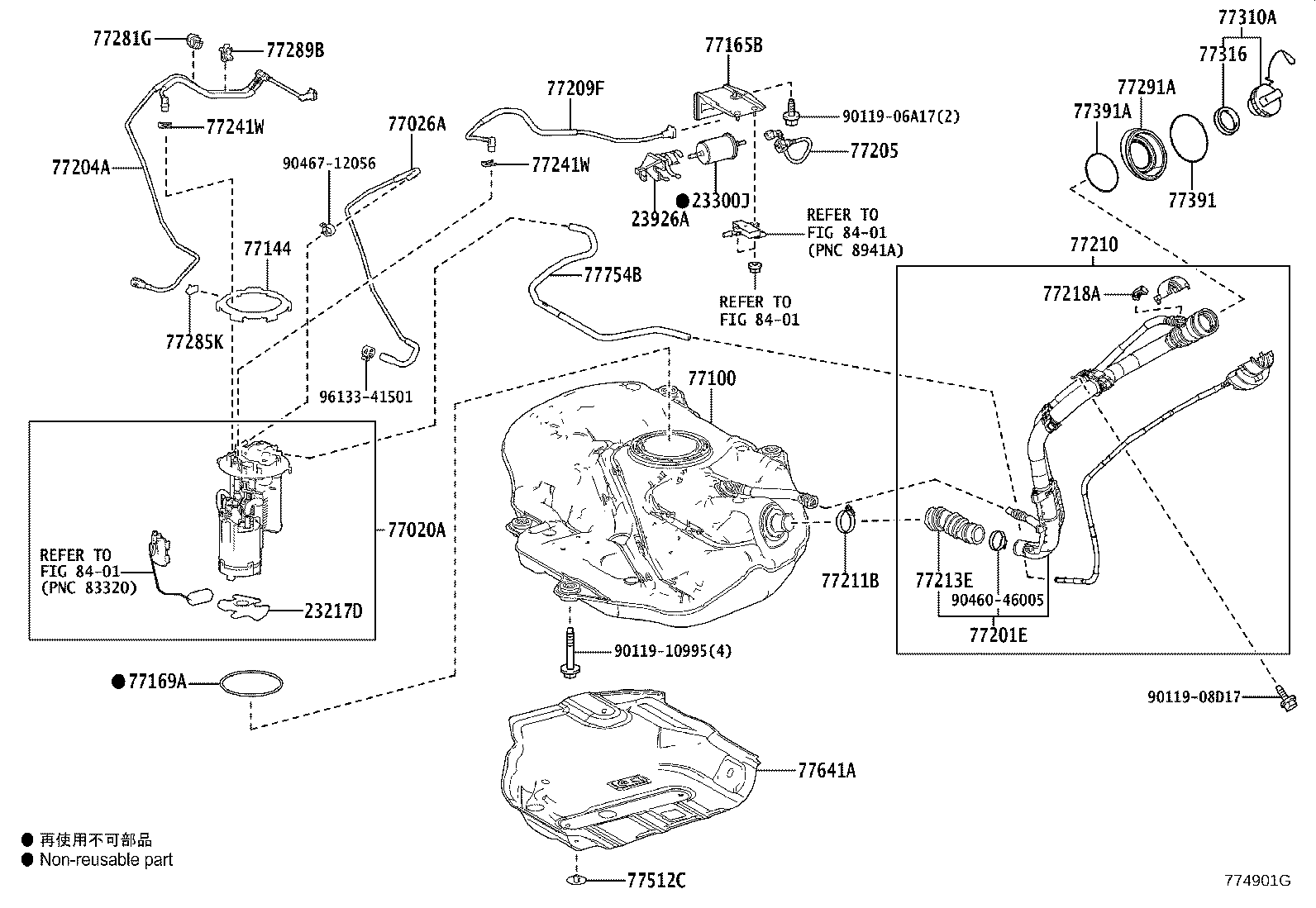

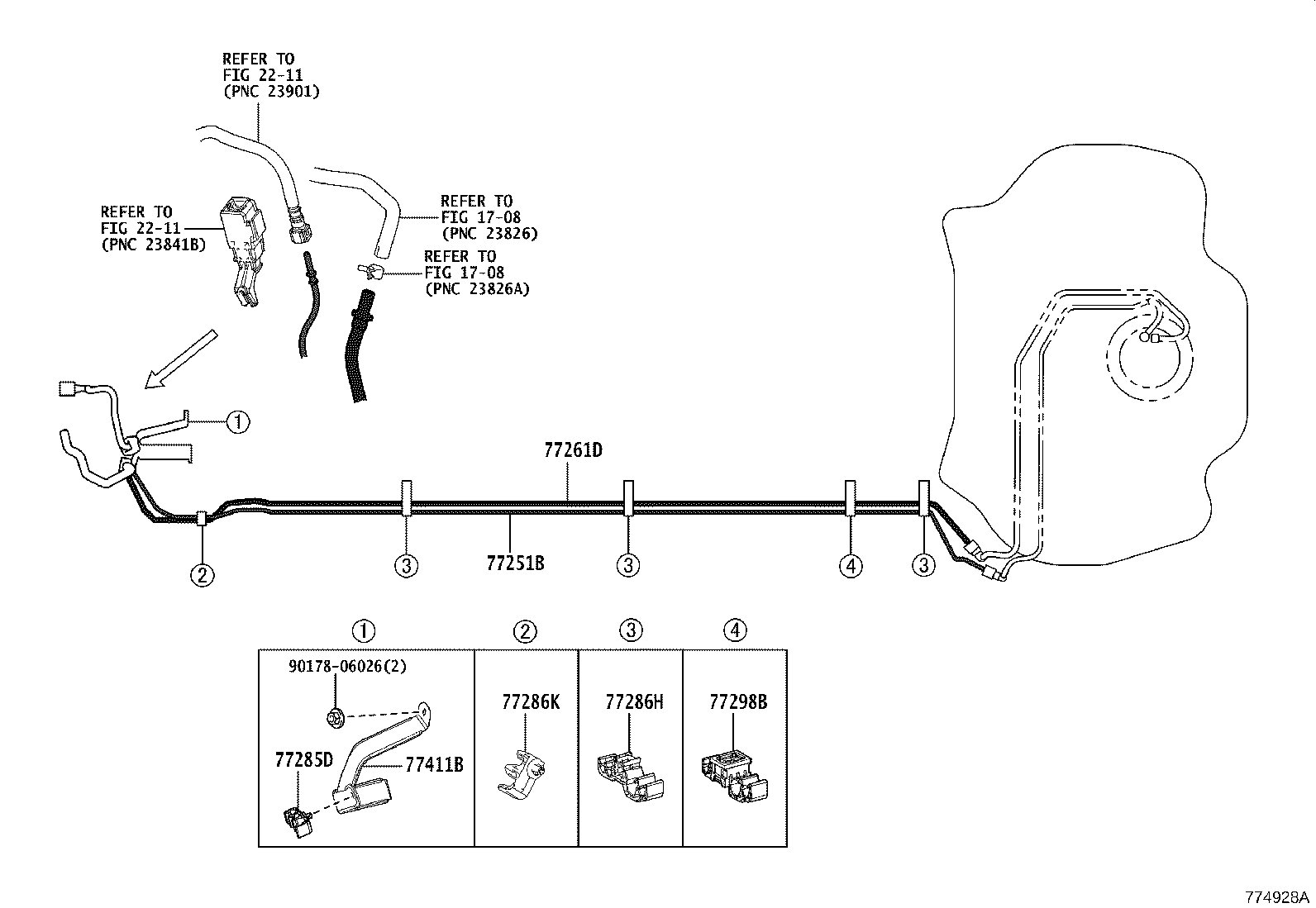

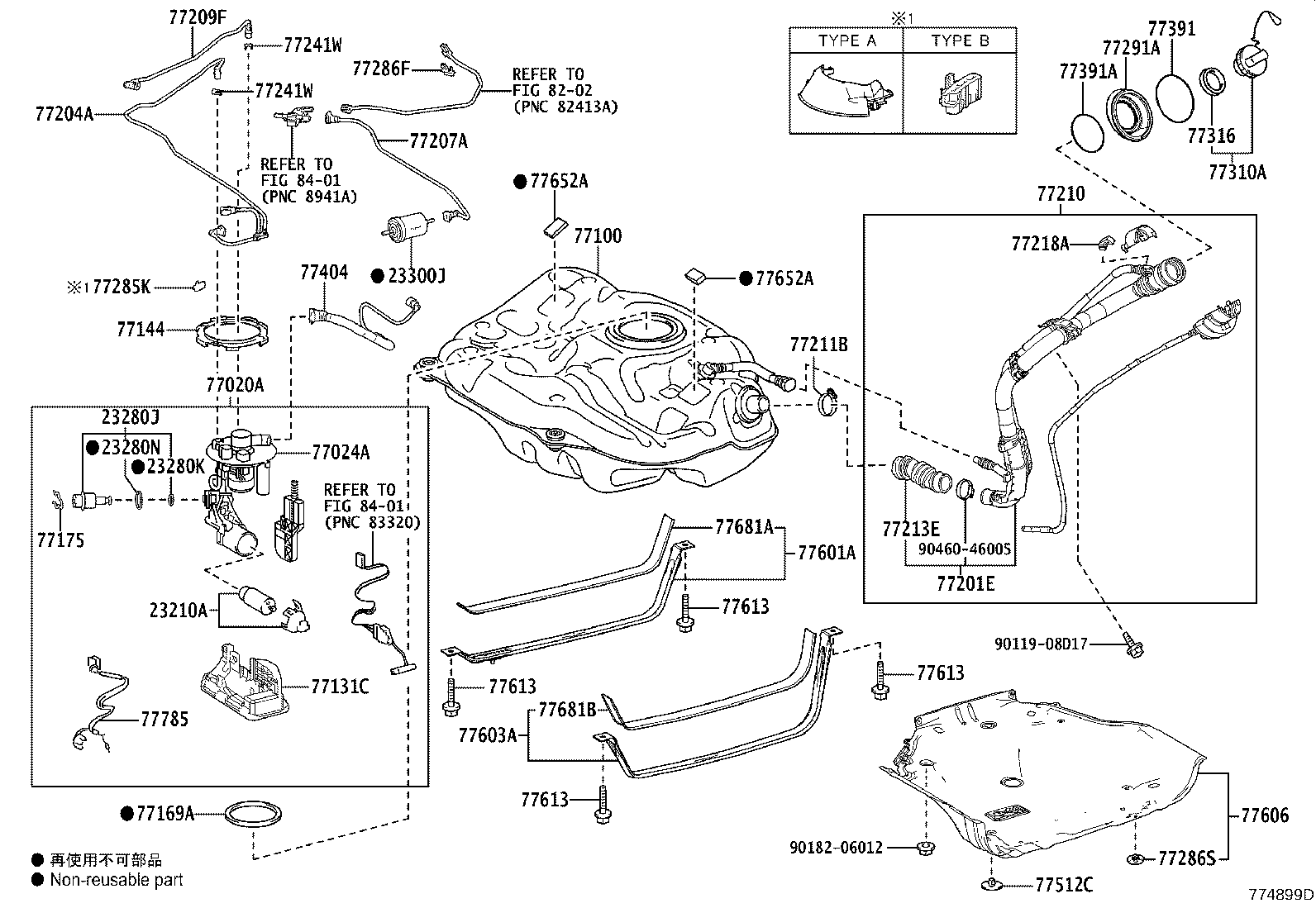

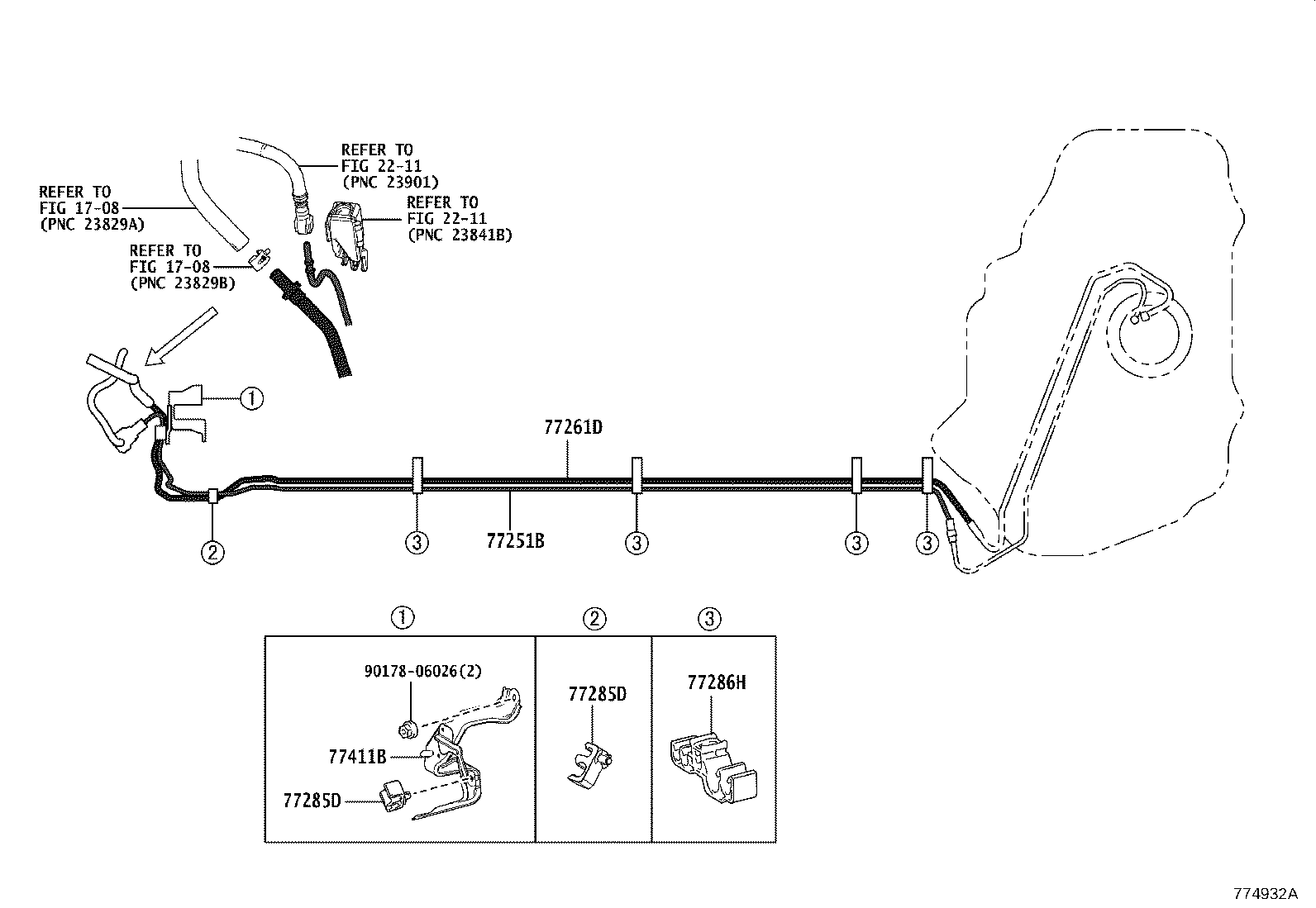

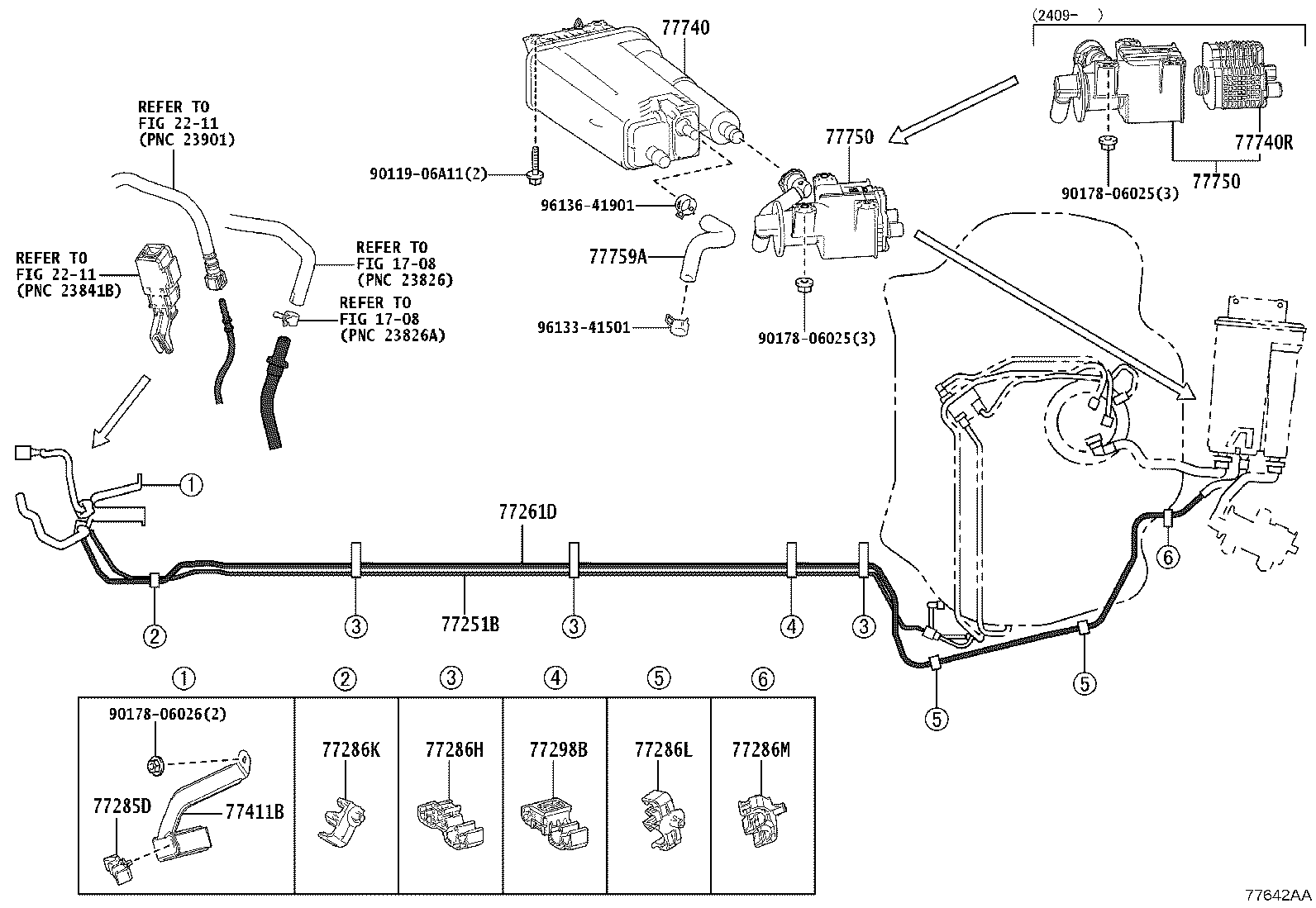

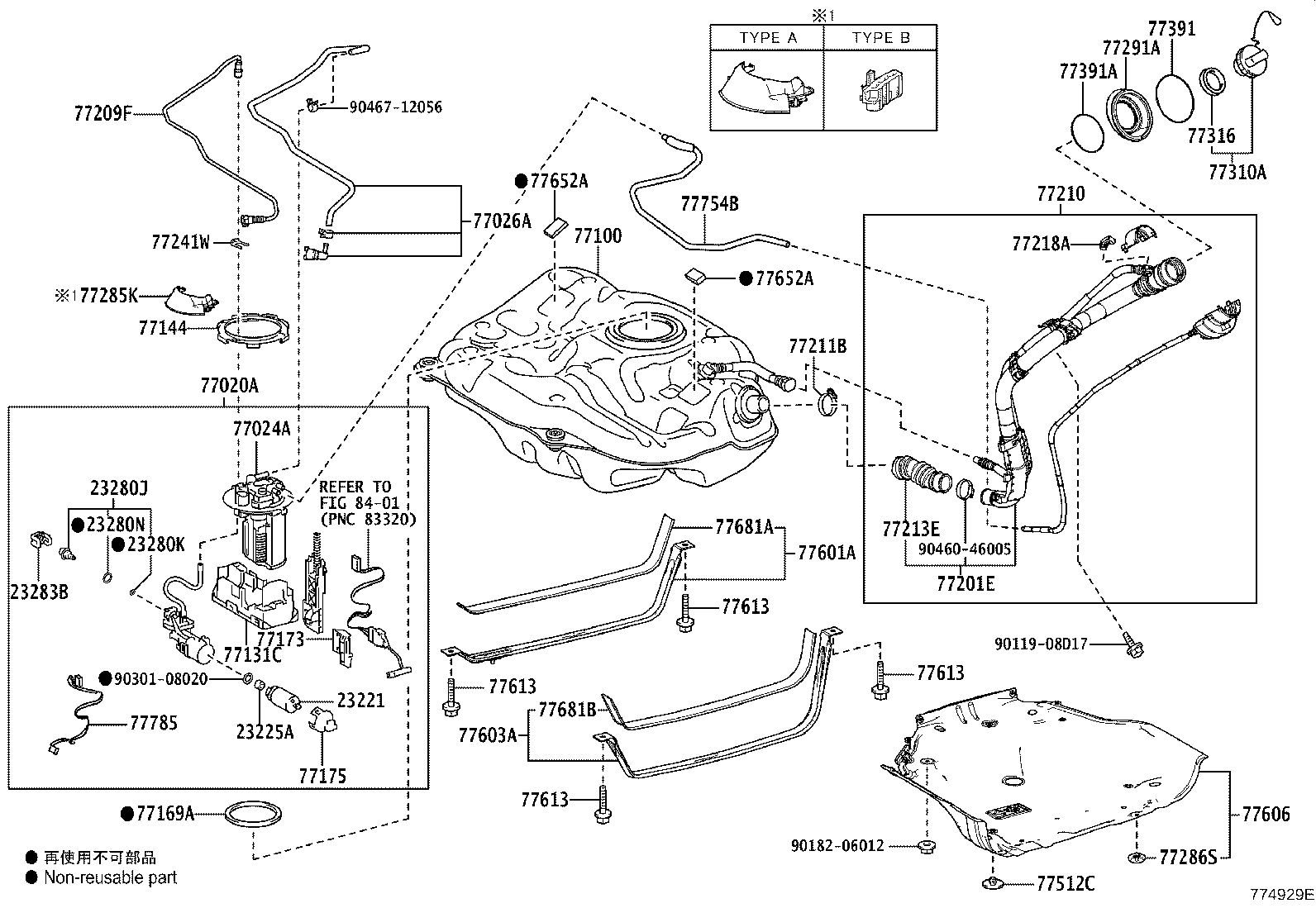

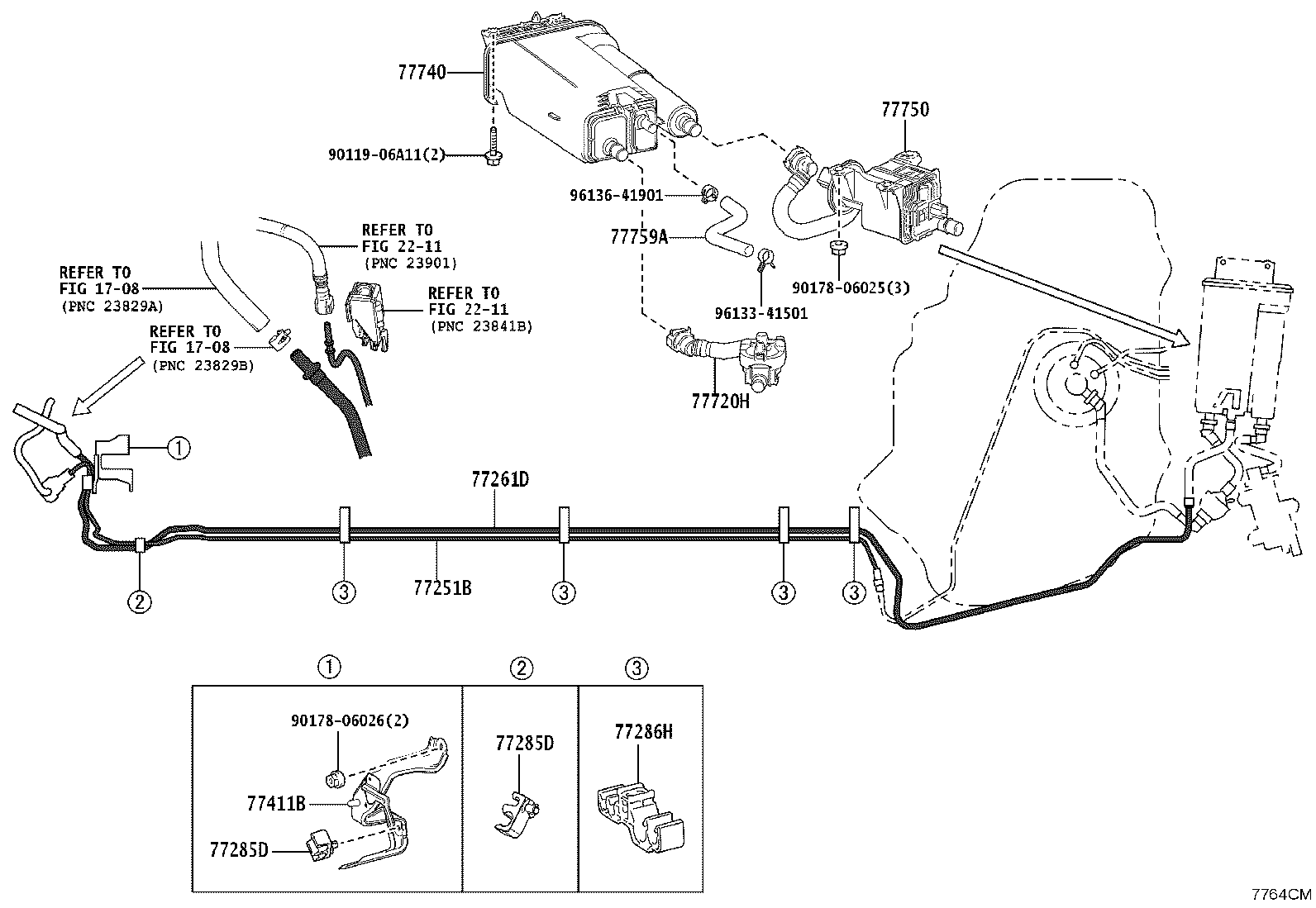

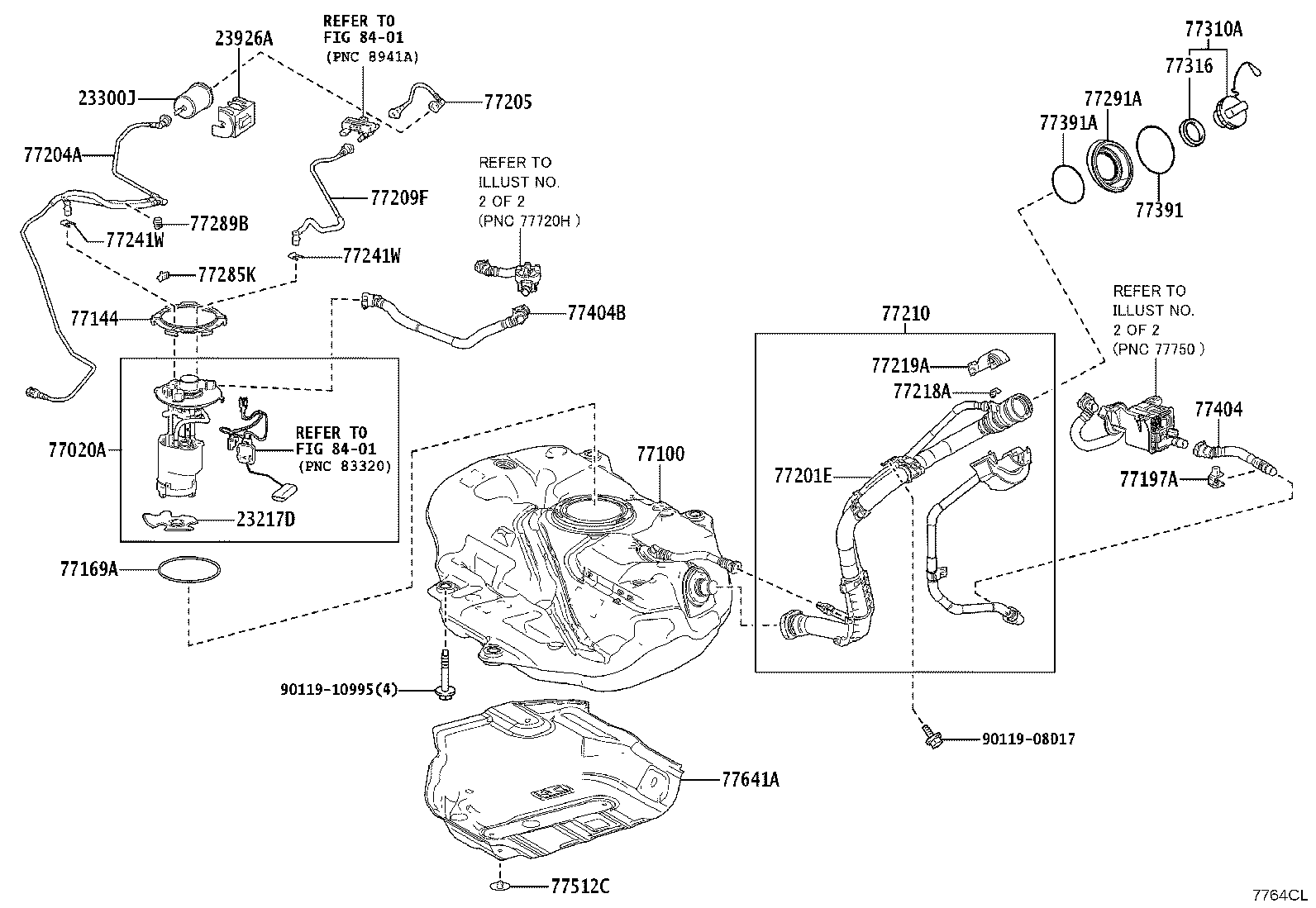

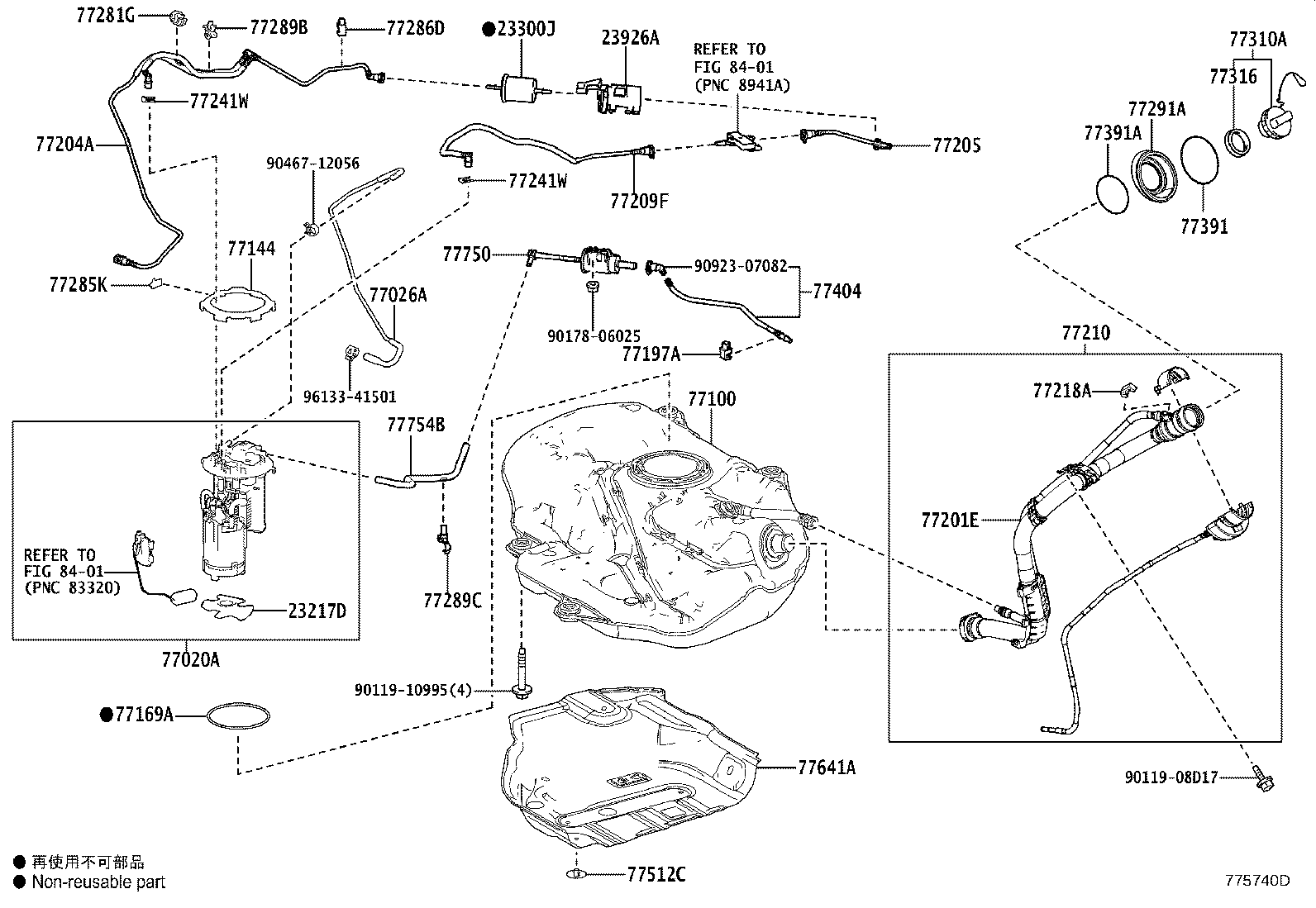

Figure 774926E 774926E 2019-09 → — Figure 774899D 774899D 2019-09 → 2022-01 Figure 775739C 775739C 2022-01 → 2023-09 Figure 776429 776429 2023-09 → — Figure 774929E 774929E 2019-09 → — Figure 774931B 774931B 2019-09 → — Figure 774901G 774901G 2019-09 → 2022-01 Figure 775740D 775740D 2022-01 → 2024-12 Figure 7764CL 7764CL 2024-12 → — Figure 774928A 774928A 2019-09 → — Figure 774900A 774900A 2019-09 → 2023-09 Figure 77642AA 77642AA 2023-09 → — Figure 774930A 774930A 2019-09 → — Figure 774932A 774932A 2019-09 → 2024-12 Figure 774932A 774932A 2024-12 → — Figure 7764CM 7764CM 2024-12 → — Figure 774927A 774927A 2019-09 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23070A Ring, O, NO.1(FOR FUEL MAIN VALVE)
23210A Pump Assy, Fuel W/Motor & Bracket
23217D Filter, Fuel Pump
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23280J Regulator Assy, Fuel Pressure
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
23280N Ring, O(FOR FUEL PRESSURE REGULATOR), NO.2
23283B Holder, Fuel Pressure Regulator
23300J Filter Assy, Fuel
23926A Stay, Fuel Filter Support
64648A Grommet, Luggage Door Lock Opener
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77131C Sub-tank, Fuel, NO.1
77144 Retainer, Fuel Pump Gauge
77165B Bracket, Fuel Tube Connector Set
77169A Gasket, Fuel Suction Tube Set
77173 Bracket, Fuel Gage
77175 Support, Fuel Suction, NO.2
77197A Clamp, Evaporation Vent Tube, NO.2
77201E Pipe Sub-assy, Fuel Tank Filler
77204A Tube, Fuel Tank Return
77205 Tube Sub-assy, Fuel Main
77207A Tube Sub-assy, Fuel Return
77209F Tube Sub-assy, Fuel Tank Main
77210 Pipe Assy, Fuel Tank Filler
77211B Clamp (FOR FUEL FILLER PIPE)
77213E Hose, Fuel Tank TO Filler Pipe
77218A Support, Fuel Tank Filler Pipe, NO.3
77219A Cover, Fuel Tank Filler Pipe
77241W Clip, Tube Joint
77251B Tube, Fuel Main
77261D Tube, Fuel Tank TO Canister
77281G Clamp, Fuel Hose
77285D Clamp, Fuel Tube, NO.1
77285K Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77286F Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77286K Clamp, Fuel Tube, NO.2
77286L Clamp, Fuel Tube, NO.5
77286M Clamp, Fuel Tube, NO.6
77286S Cushion, Fuel Tank Protector
77289B Clamp, Fuel Tube, NO.3
77289C Clamp, Fuel Tube, NO.4
77291A Shield, Fuel Tank Filler Pipe
77298B Clamp, Fuel Tube, NO.4
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77360A Spring Assy, Fuel Filler Opening Lid
77377 Retainer, Fuel Filler Opening Lid Lock
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77404 Hose Sub-assy, Fuel Tank Vent
77404B Hose Sub-assy, Fuel Tank Vent, NO.2
77411B Support, Fuel Tube Grommet, NO.1
77512C Bracket, Fuel Tank
77601A Band Sub-assy, Fuel Tank, NO.1
77603A Band Sub-assy, Fuel Tank, NO.2
77606 Protector Sub-assy, Fuel Tank, NO.1
77613 Bolt, Fuel Tank Band Set
77641A Protector, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77681A Seat, Fuel Tank Band
77681B Seat, Fuel Tank Band
77720H Valve Assy, Fuel Outlet
77740 Canister Assy, Charcoal
77740R Pump Sub-assy, Leak Detection
77750 Canister Assy, Charcoal
77754 Hose, Charcoal Canister Outlet, NO.1
77754A Hose, Charcoal Canister Outlet, NO.2
77754B Hose, Charcoal Canister Outlet
77759A Hose, Charcoal Canister
77779 Tube, Charcoal Canister Outlet
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
