Toyota Corolla (S.AMERICA)

2019-09 → present · chassis MZEA12,ZRE210,ZWE211 · catalogue 157380 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

22 part groups · 5 illustrations

Illustrations

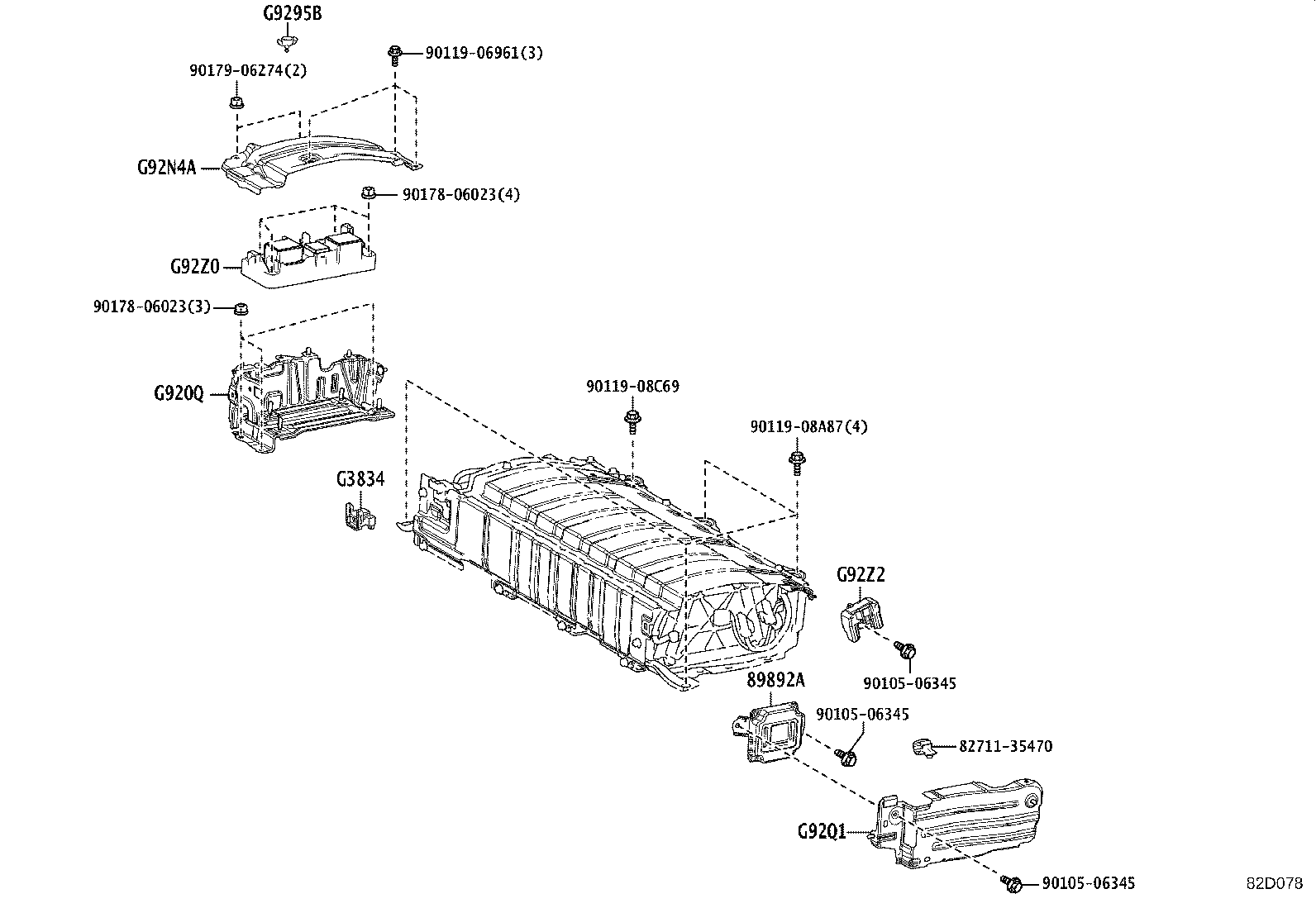

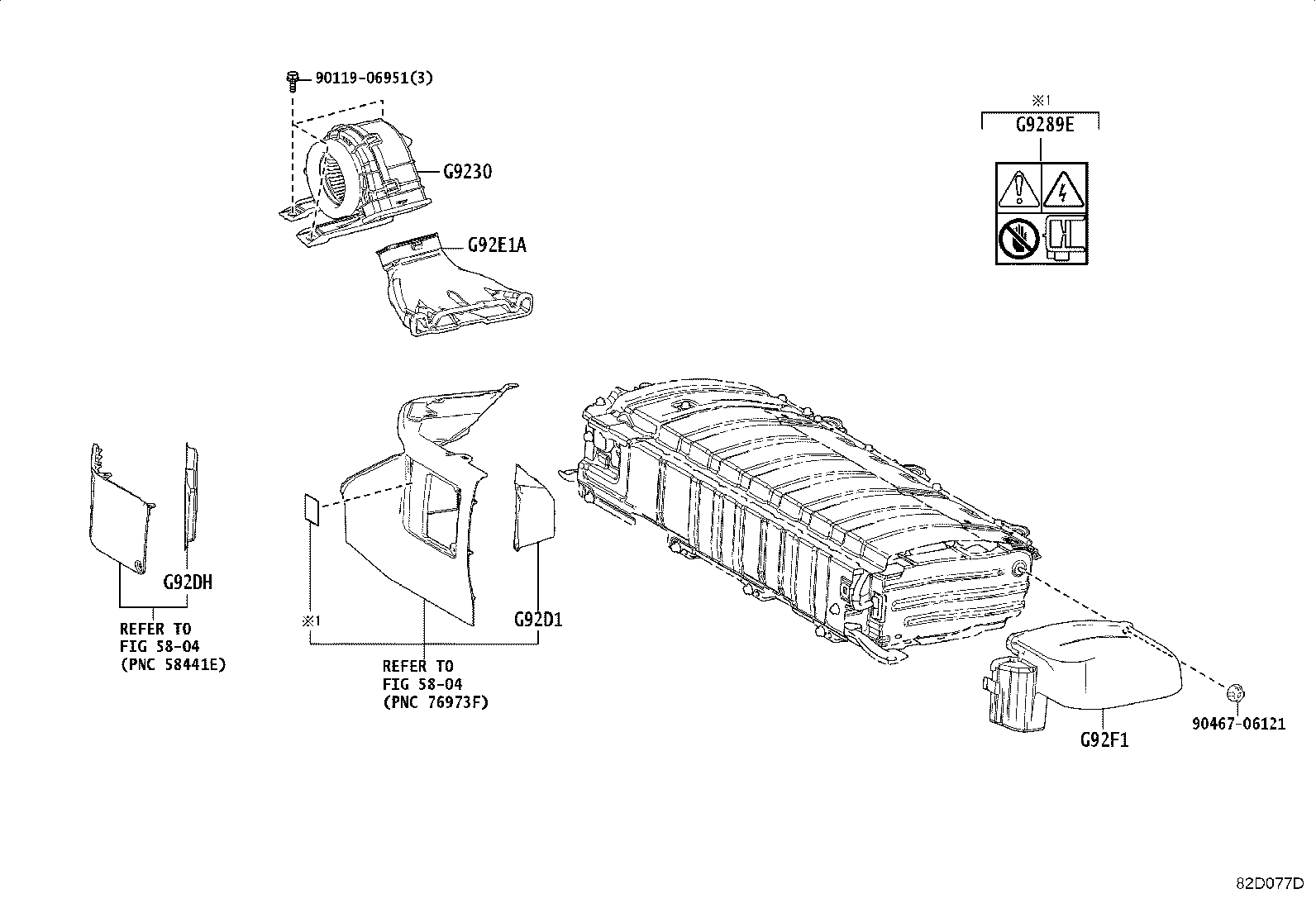

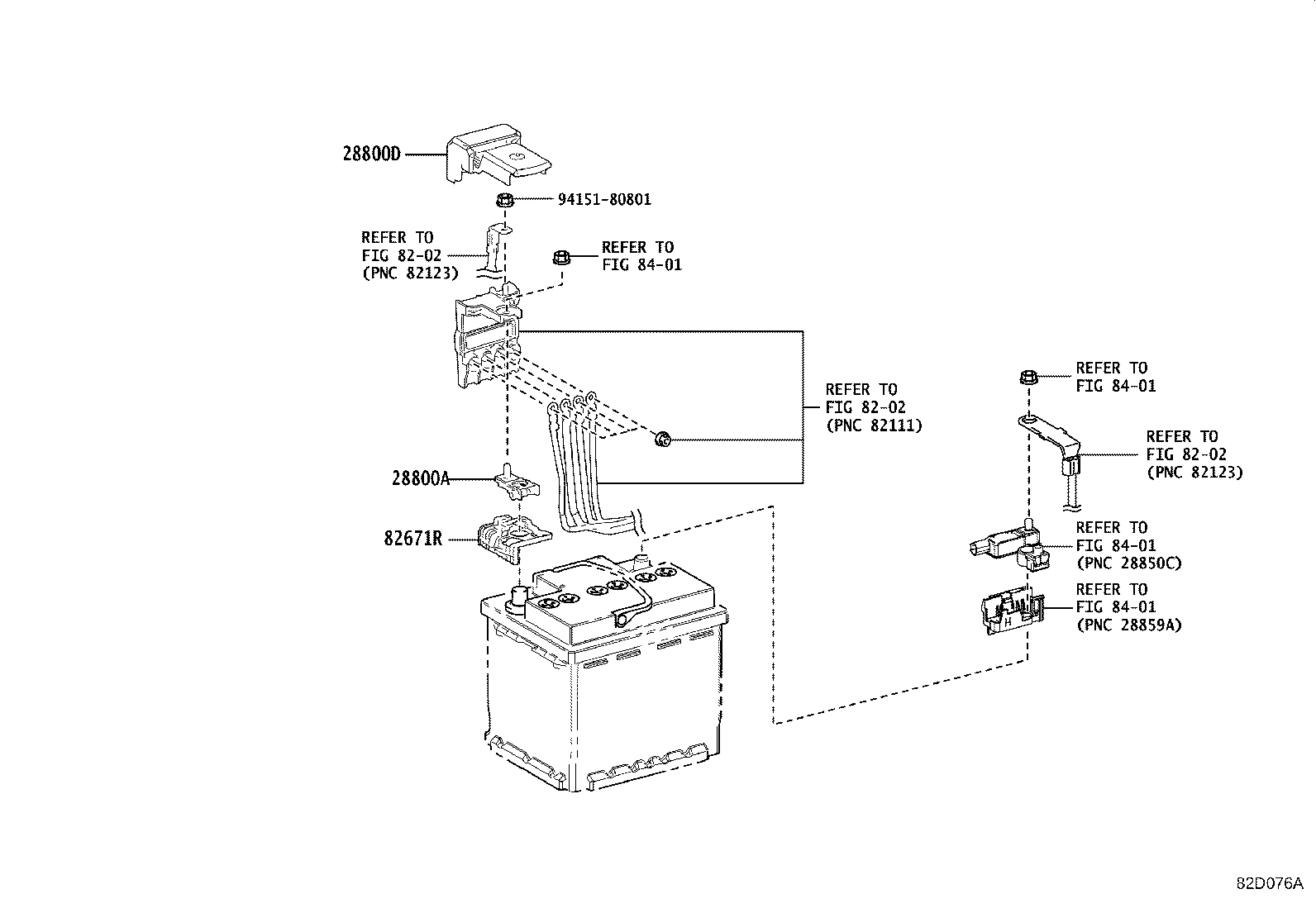

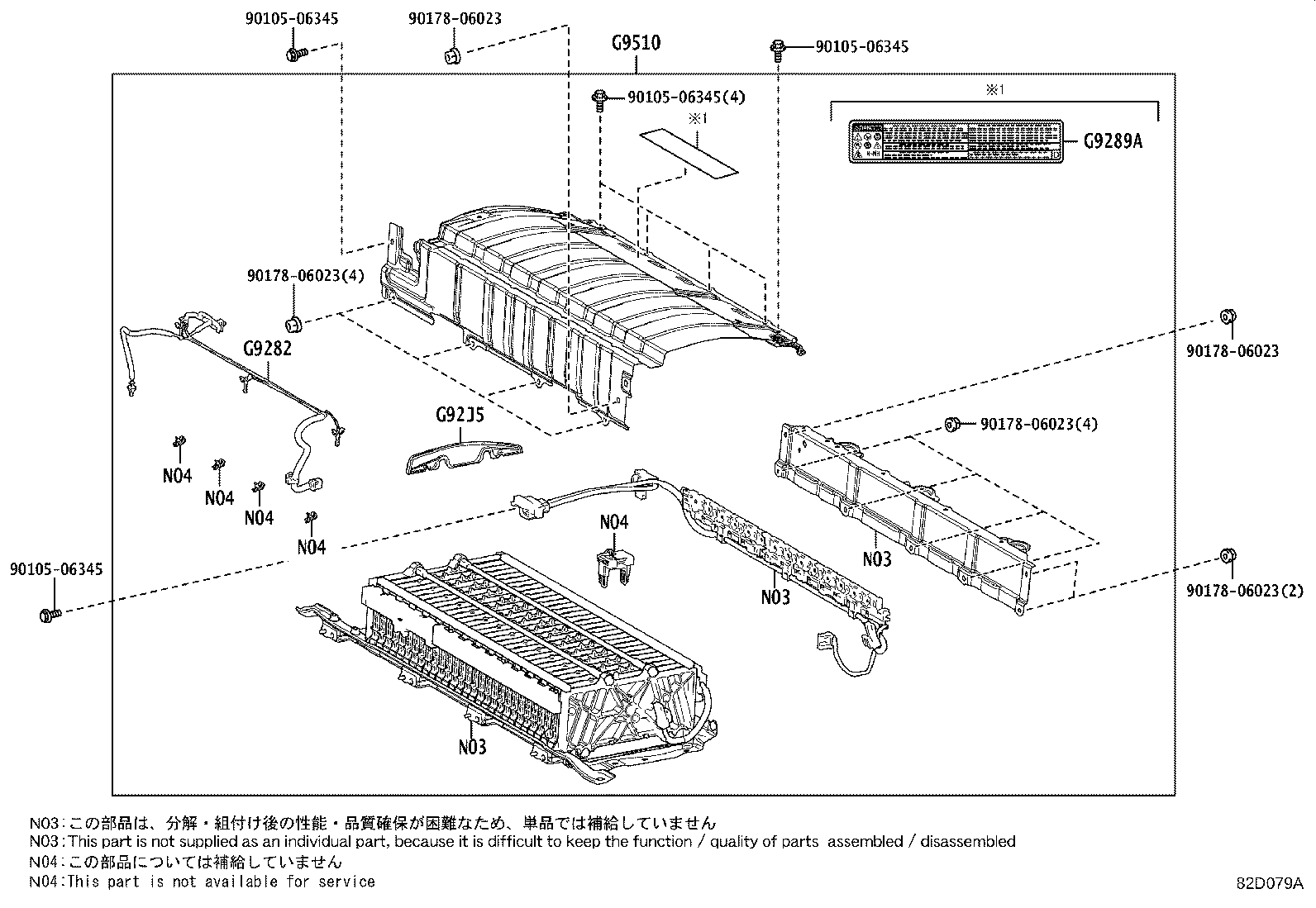

Figure 82D075A 82D075A 2019-09 → — Figure 82D076A 82D076A 2019-09 → — Figure 82D077D 82D077D 2019-09 → — Figure 82D078 82D078 2019-09 → — Figure 82D079A 82D079A 2019-09 → —

Part groups

PNCDescription
28800A Terminal, Battery Positive
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800J Terminal, Battery Negative
82671R Stopper, Battery Terminal
89892A Sensor, Battery Voltage
G3834 Grip, Service Plug
G920Q Shield Sub-assy, Hybrid Battery, NO.1
G9230 Blower Assy, Battery Cooling
G9282 Thermistor, Hybrid Battery
G9289A Label, Battery Caution
G9289E Label, Battery Caution, NO.2
G9295B Striker, Battery Cover Lock
G92D1 Duct, Hybrid Battery Intake, NO.1
G92DH Filter, HV Battery Intake, NO.1
G92E1A Duct, HV Battery Intake, NO.1 LH
G92F1 Duct, Hybrid Battery Exhaust, NO.1
G92J5 Packing, Hybrid Battery, NO.1
G92N4A Panel, HV Battery RH Cover, NO.1
G92Q1 Panel, HV Battery Shield, NO.1
G92Z0 Block Assy, HV Battery Junction
G92Z2 Block, Hybrid Battery Terminal
G9510 Battery Assy, HV Supply
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
