Toyota Corolla (S.AMERICA)
2019-09 → present · chassis MZEA12,ZRE210,ZWE211 · catalogue 157380 · General
Supported model
Data version 2024-11
Heating & Air Conditioning - Control & Air Duct
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

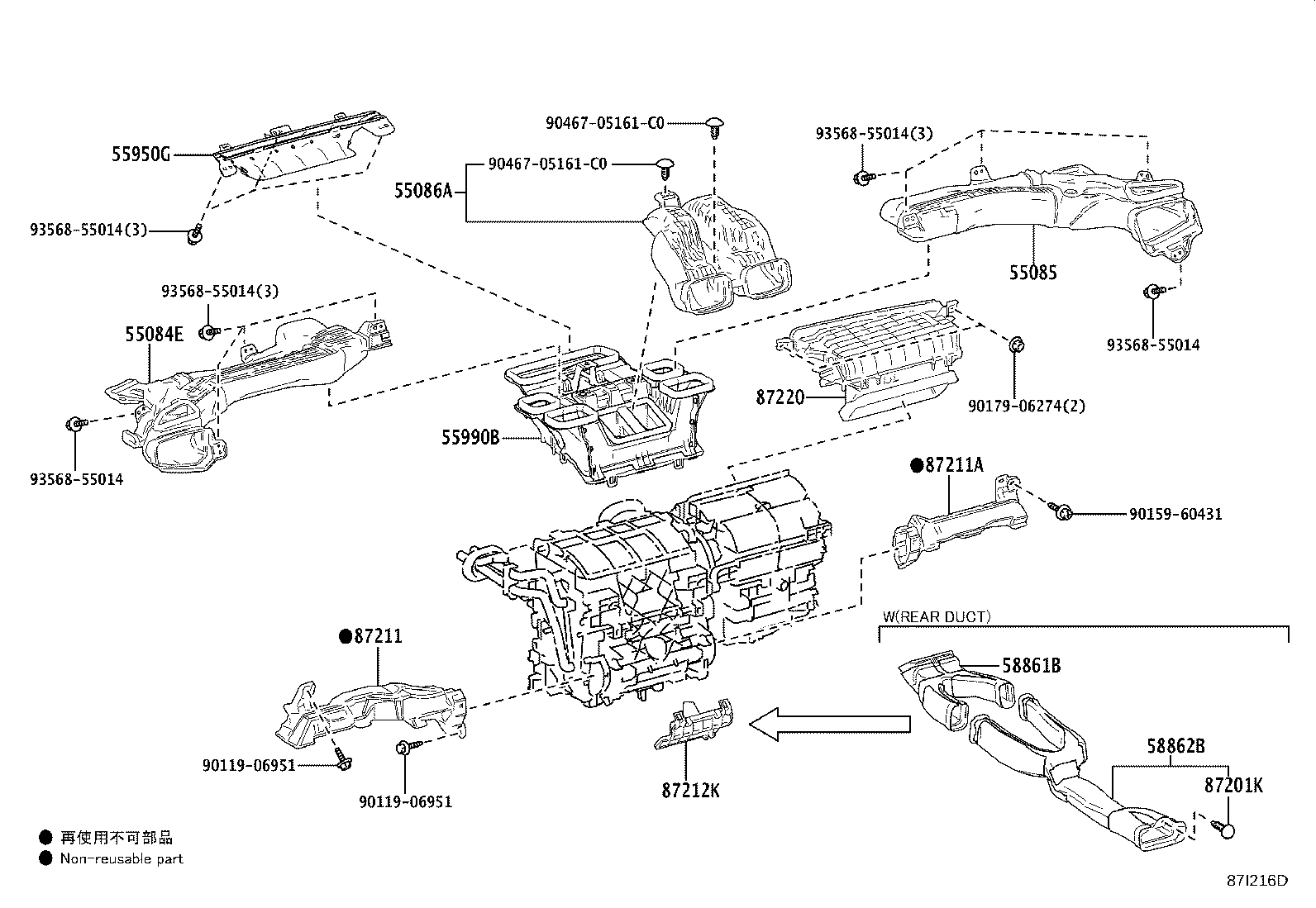

| 55084E | Duct Sub-assy, Heater TO Register, NO.1 |
| 55085 | Duct Sub-assy, Heater TO Register, NO.2 |
| 55086A | Duct Sub-assy, Heater TO Register, Center |
| 55900 | Control Assy, Air Conditioner |
| 55901D | Control Sub-assy, Heater, NO.1 |
| 55902E | Control Sub-assy, Heater, NO.2 |
| 55903A | Control Sub-assy, Heater, NO.3 |
| 55906 | Cable Sub-assy, Heater Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55950G | Nozzle Assy, Defroster |
| 55990B | Nozzle Assy, Defroster, Lower |
| 58861B | Duct, Console Box, NO.1 |
| 58862B | Duct, Console Box, NO.2 |
| 87201K | Clip (FOR AIR DUCT) |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212K | Duct, Air, Rear NO.6 |
| 87220 | Duct Assy, Air |

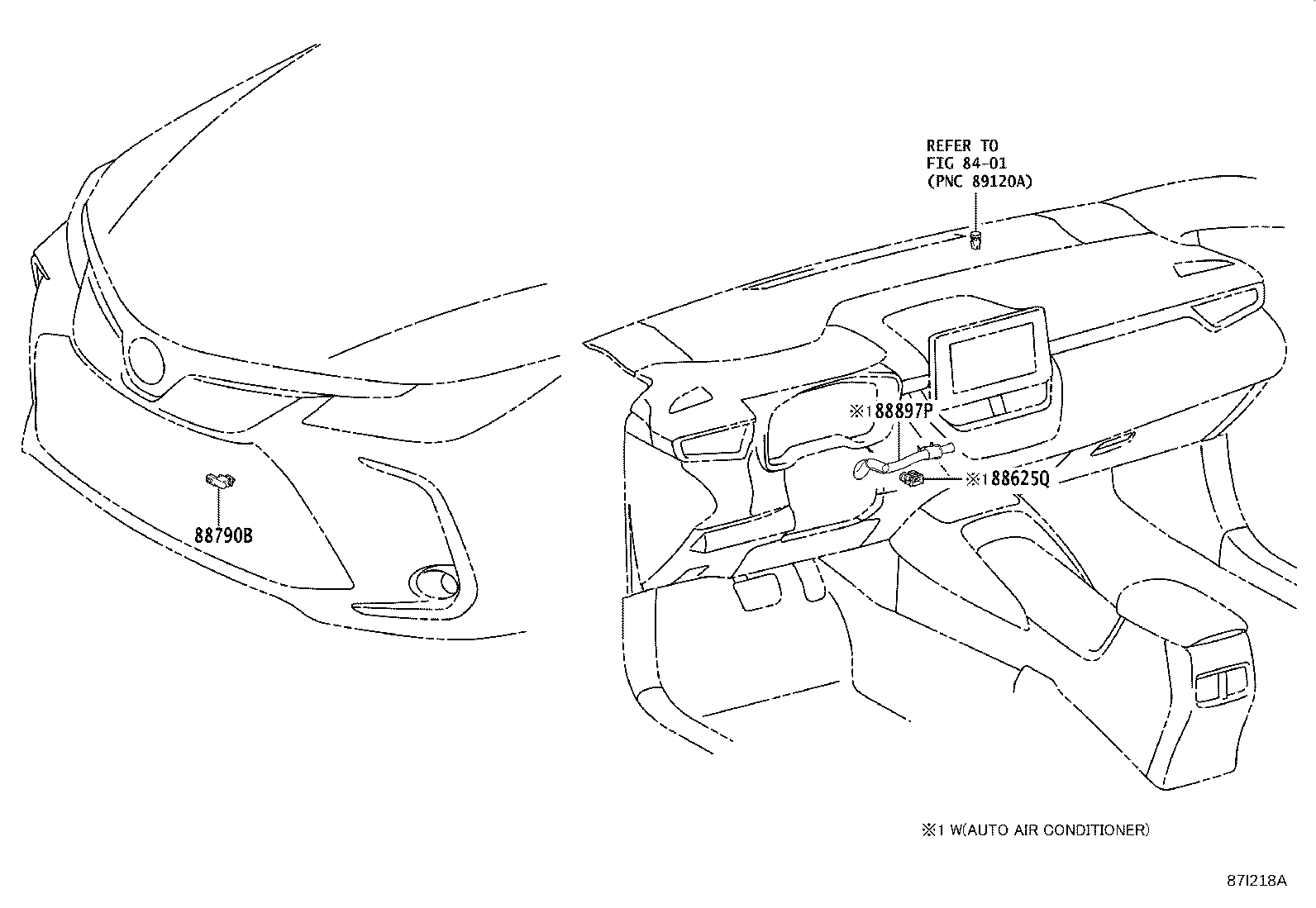

| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88790B | Thermistor Assy |
| 88897P | Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
