Heating & Air Conditioning - Water Piping

5 part groups · 4 illustrations

Illustrations

Figure 87I212A

87I212A 2019-09 → —

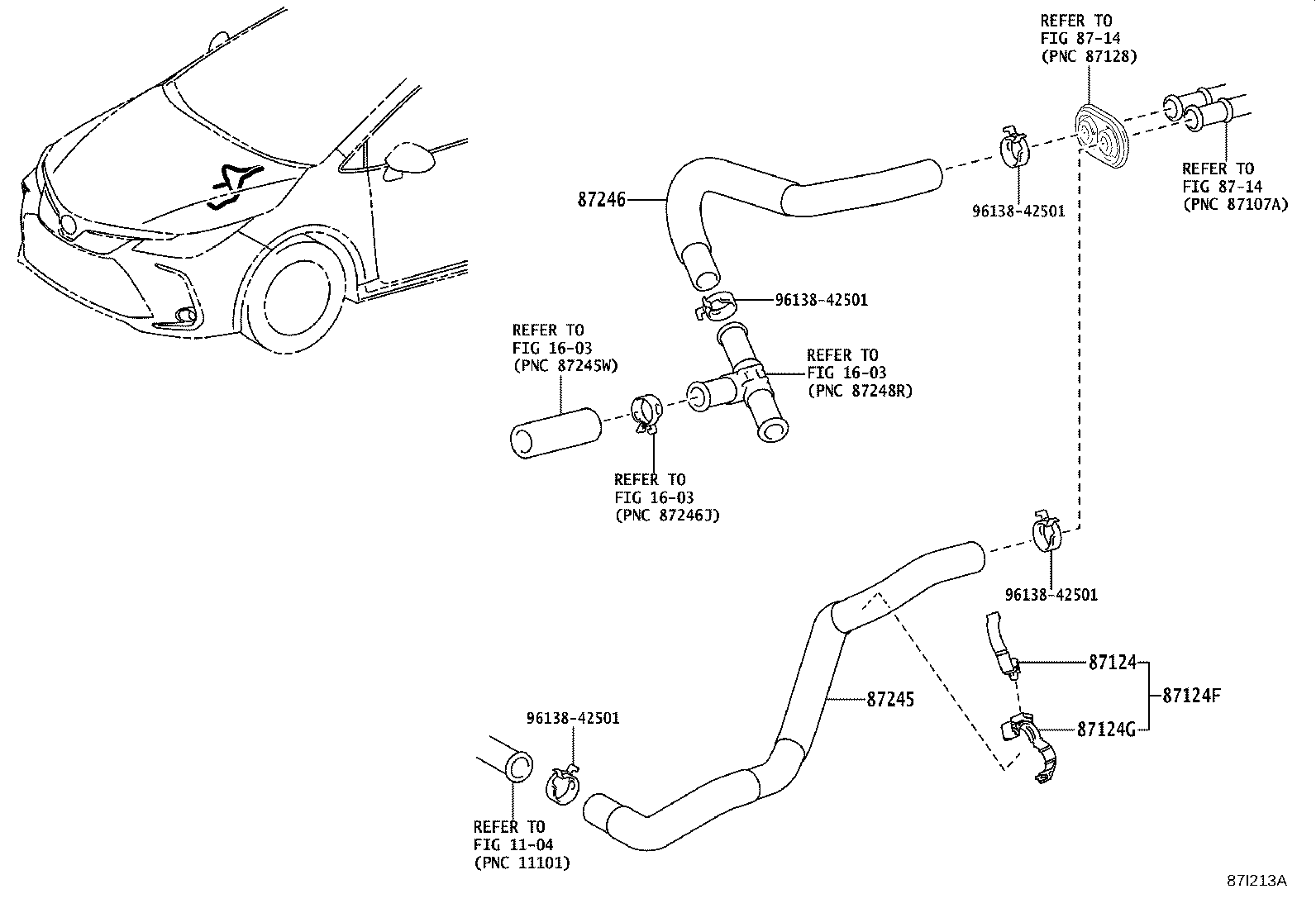

Figure 87I213A

87I213A 2019-09 → —

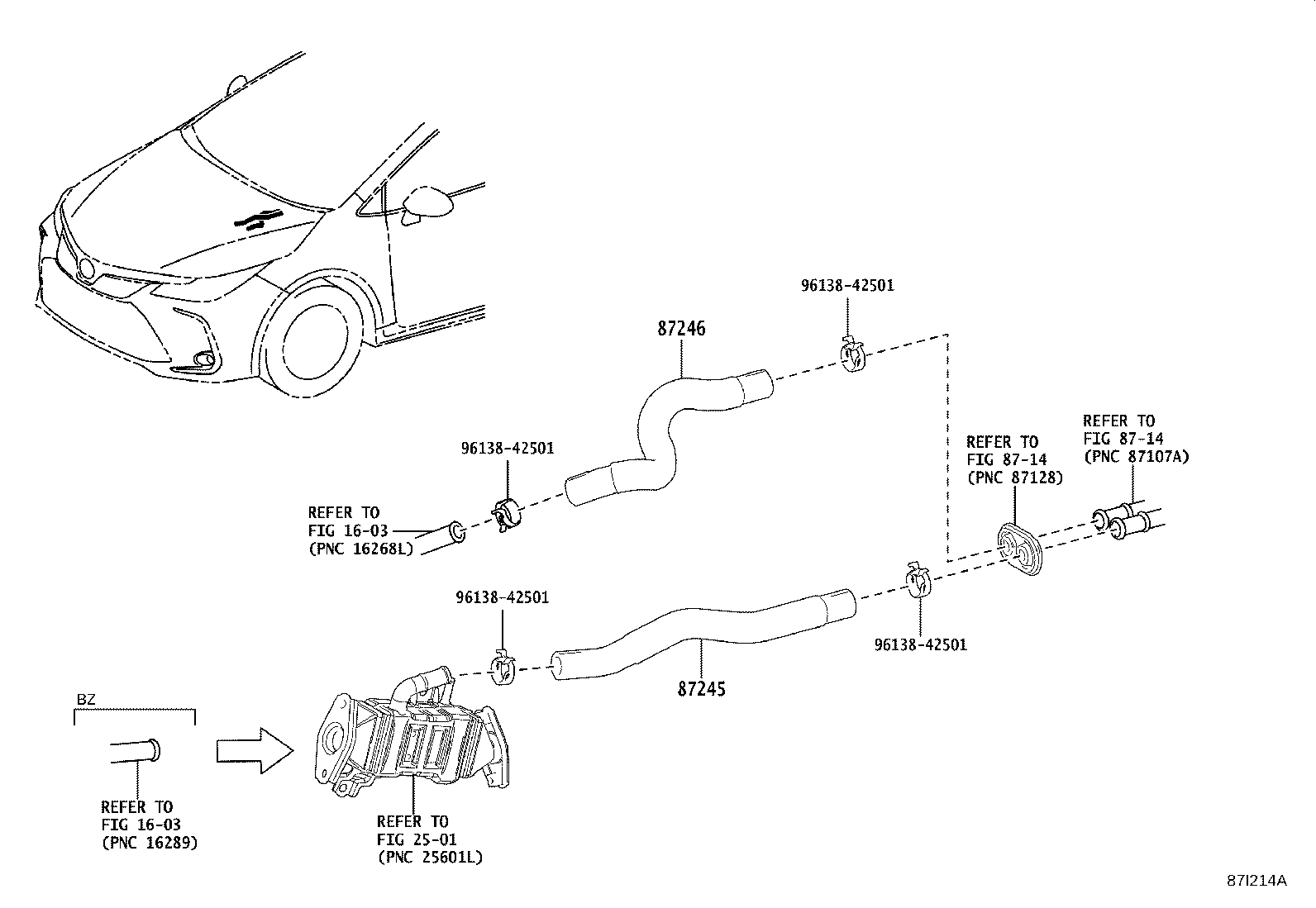

Figure 87I214A

87I214A 2019-09 → —

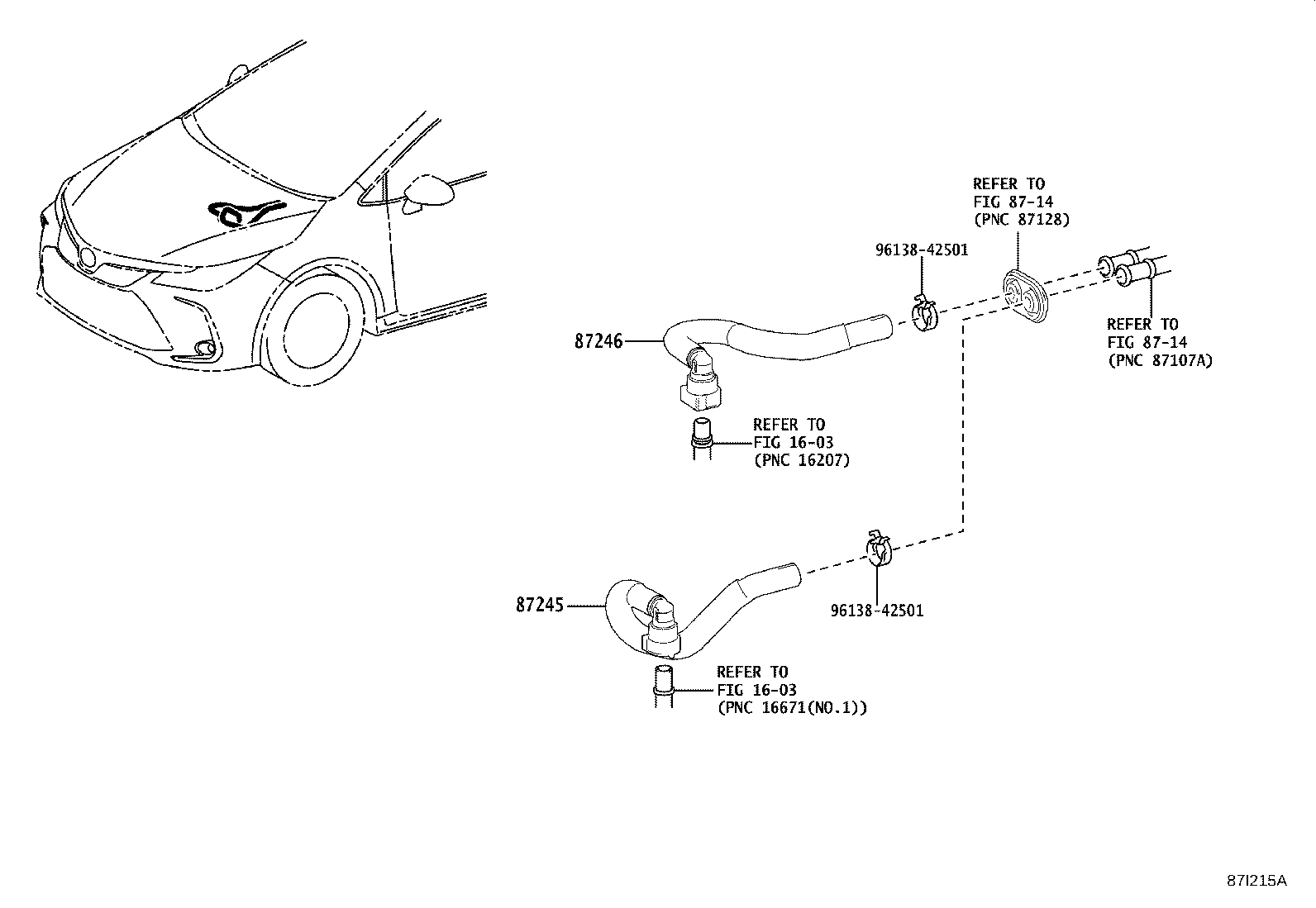

Figure 87I215A

87I215A 2019-09 → —

Part groups

PNC	Description
87124	Clamp, Heater
87124F	Clamp, Heater Hose, NO.1
87124G	Clamp, Heater Hose, NO.2
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
