Toyota Corolla (S.AMERICA)

2019-09 → present · chassis MZEA12,ZRE210,ZWE211 · catalogue 157380 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

3 part groups · 3 illustrations

Illustrations

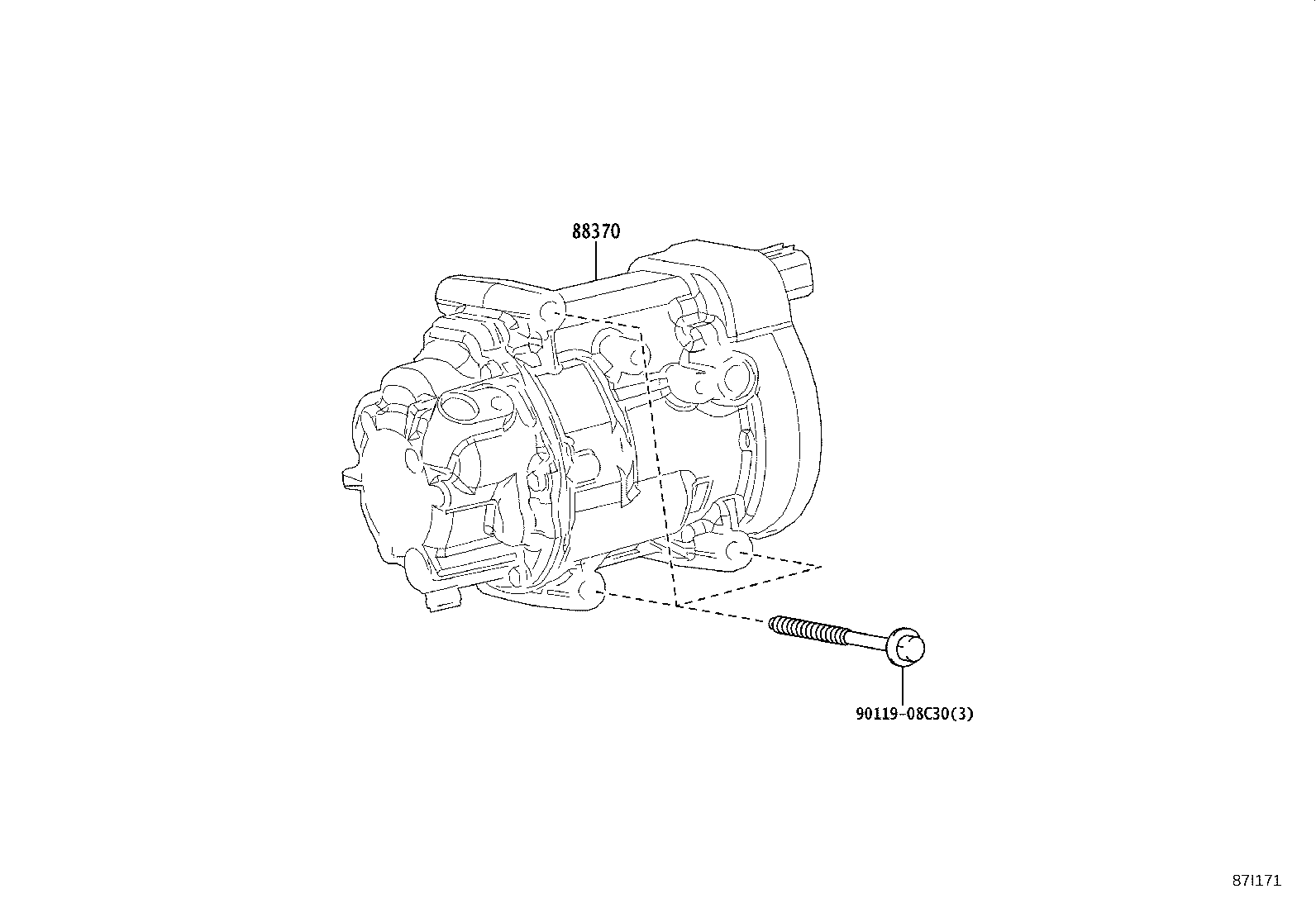

Figure 87I168 87I168 2019-09 → — Figure 87I170 87I170 2019-09 → — Figure 87I171 87I171 2019-09 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88370 Compressor Assy, W/Motor
88446D Bolt, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
