Toyota E'z
2011-06 → 2016-12 · chassis ZGR2# · catalogue 158310 · General
Supported model
Data version 2016-12
Shift Lever & Retainer
19 part groups · 3 illustrations

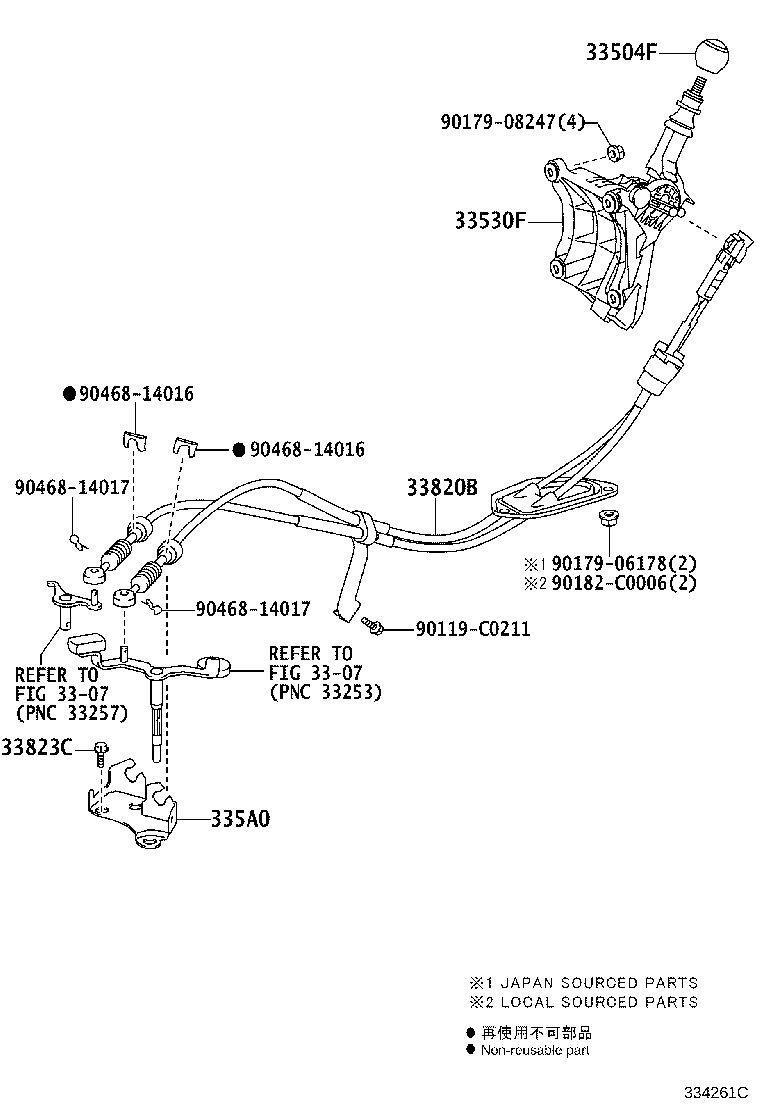

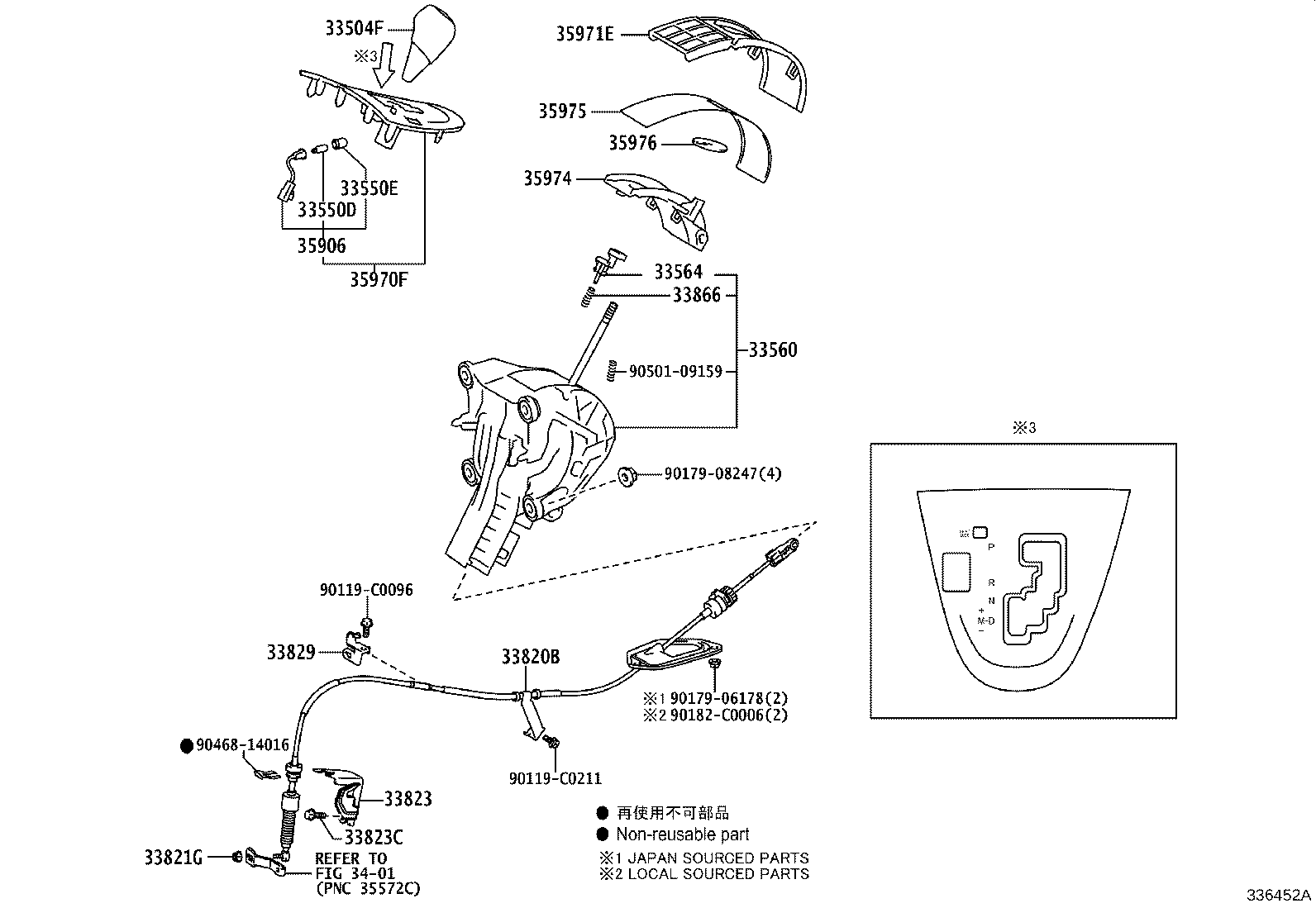

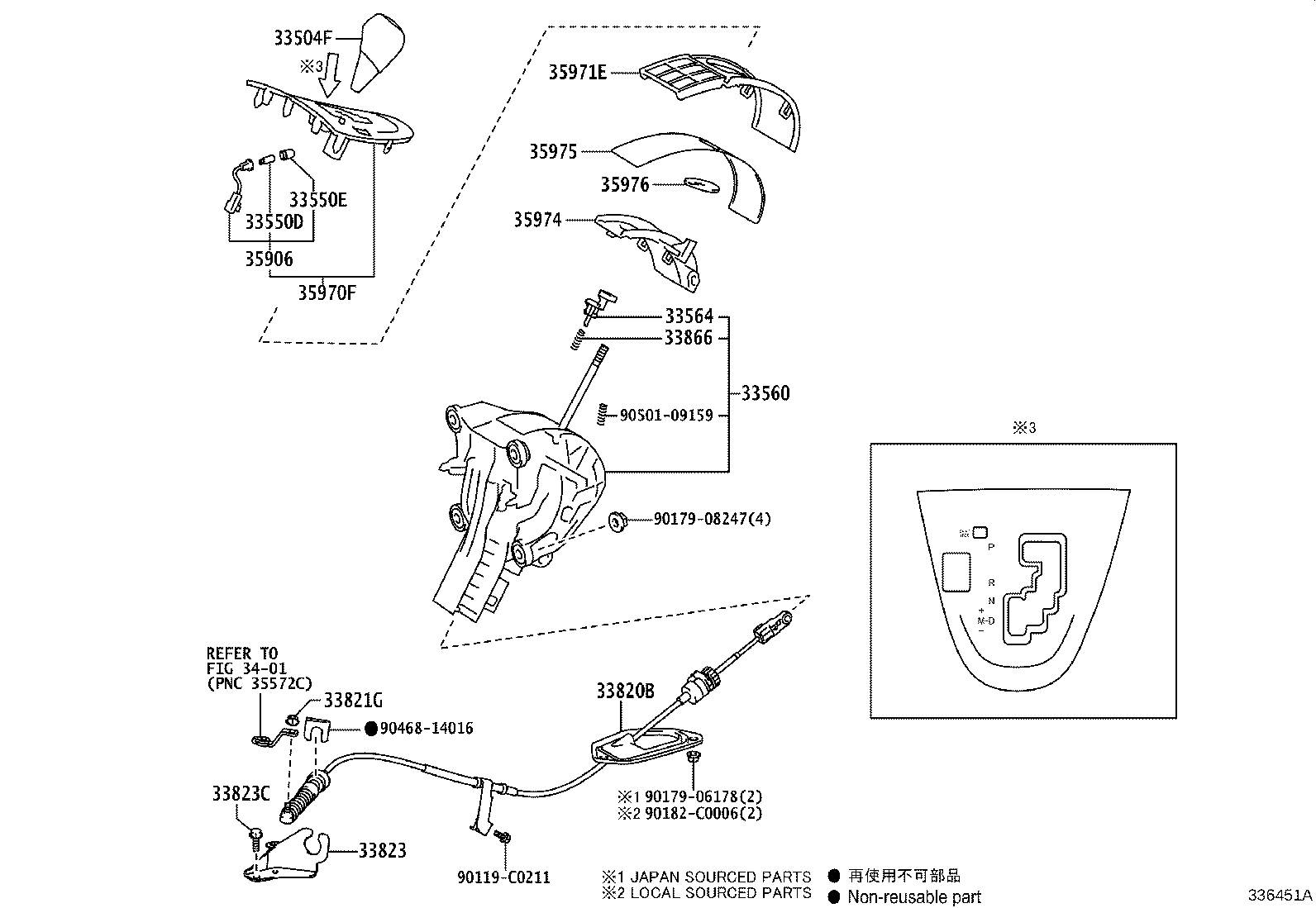

Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33560 | Unit Assy, Shift Lock Control |
| 33564 | Link, Shift Lock Release, NO.1 |
| 335A0 | Bracket Assy, Control Cable |
| 33820B | Cable Assy, Transmission Control |
| 33821G | Nut (FOR TRANSMISSION CONTROL CABLE) |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33823C | Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) |
| 33829 | Support, Transmission Control Cable |
| 33866 | Spring, Shift Lock Release |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35970F | Housing Assy, Position Indicator |
| 35971E | Housing, Position Indicator |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976 | Cover, Slide, NO.2 (FOR POSITION INDICATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
