Toyota E'z
2011-06 → 2016-12 · chassis ZGR2# · catalogue 158310 · General
Supported model
Data version 2016-12
Transaxle Assy(CVT)
85 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 16283J | Hose, Water By-pass, NO.6 |
| 16283K | Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16581M | Clamp, Hose(FOR WATER HOSE) |

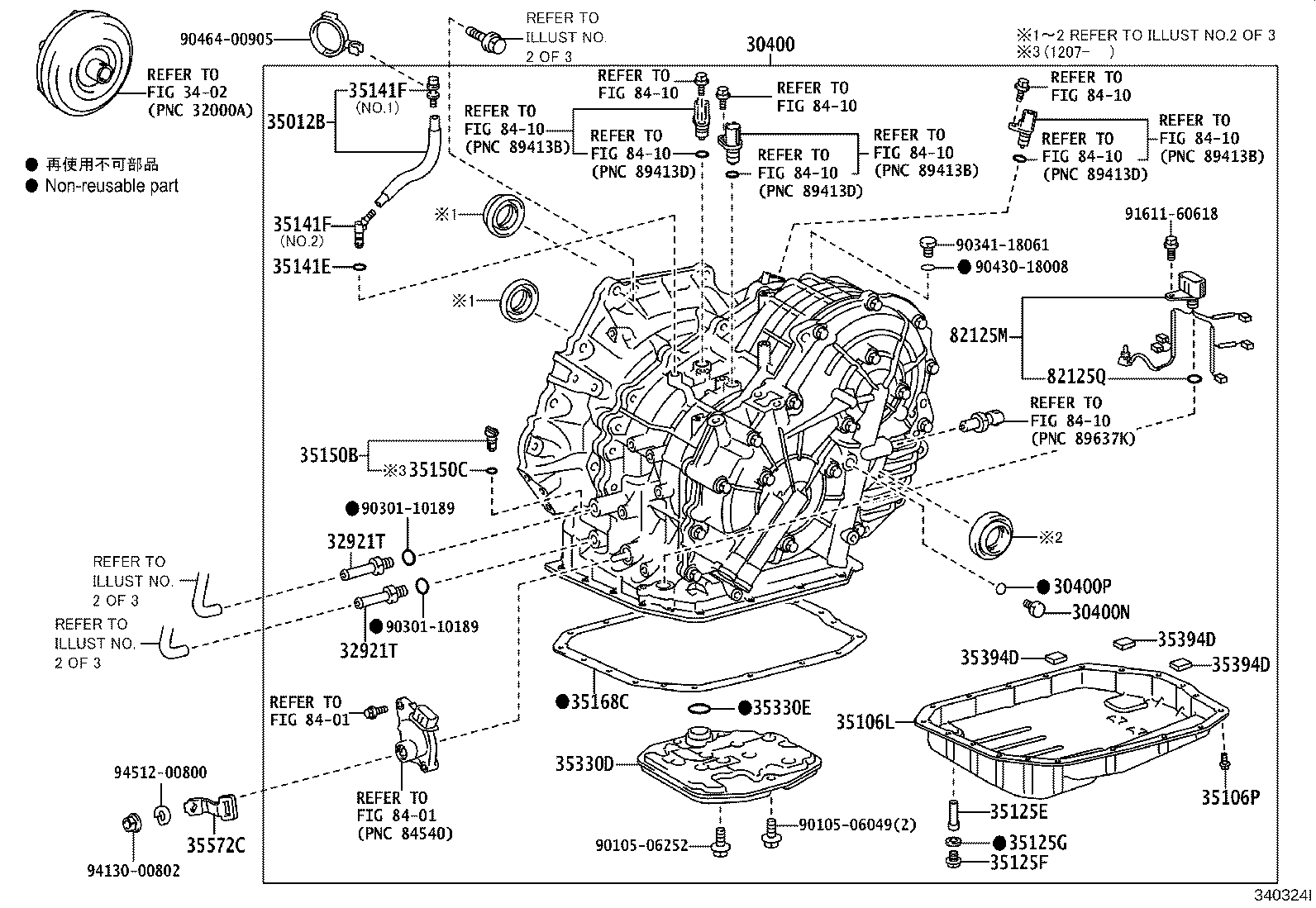

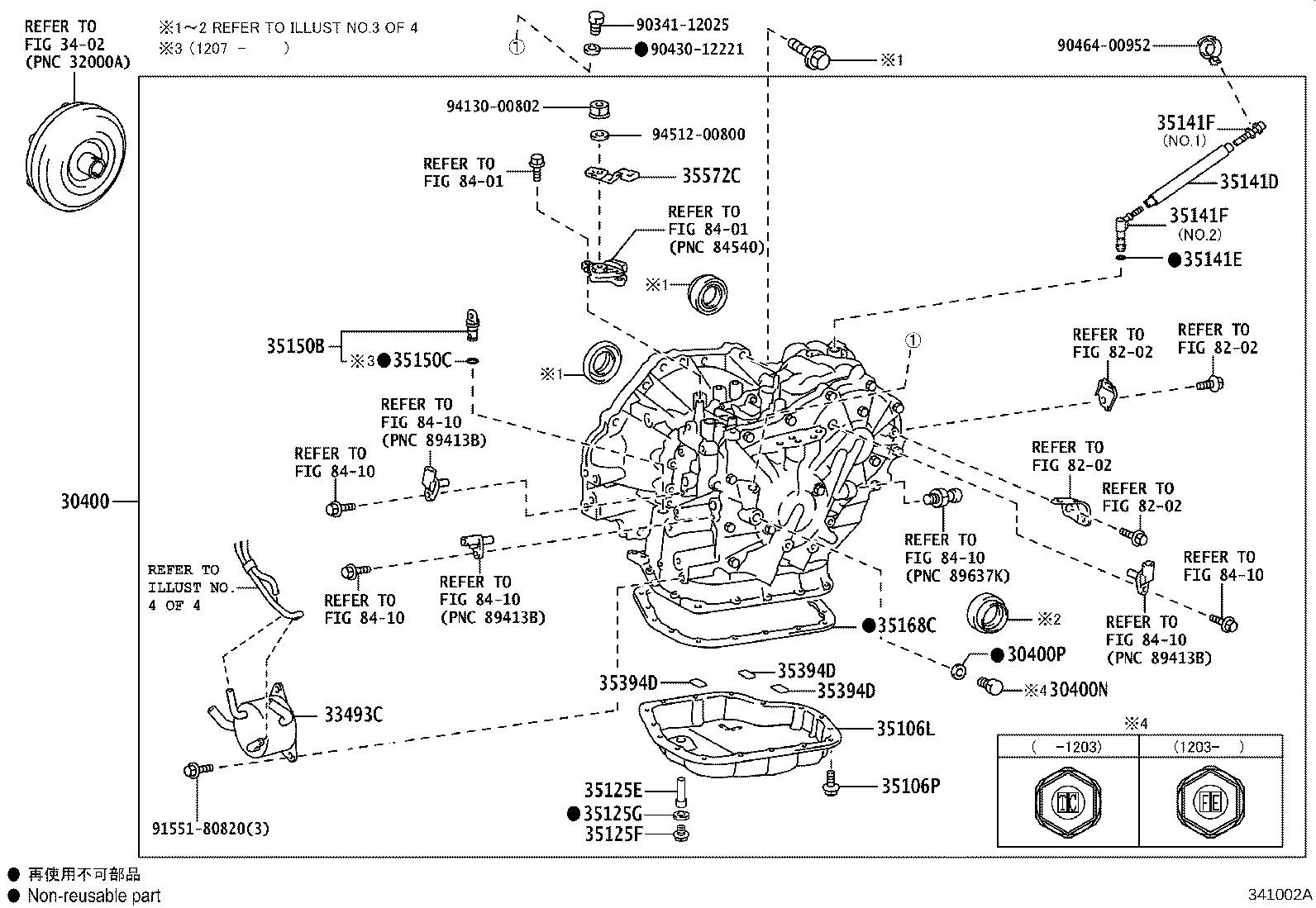

| 30400 | Transaxle Assy, Continuously Variable |

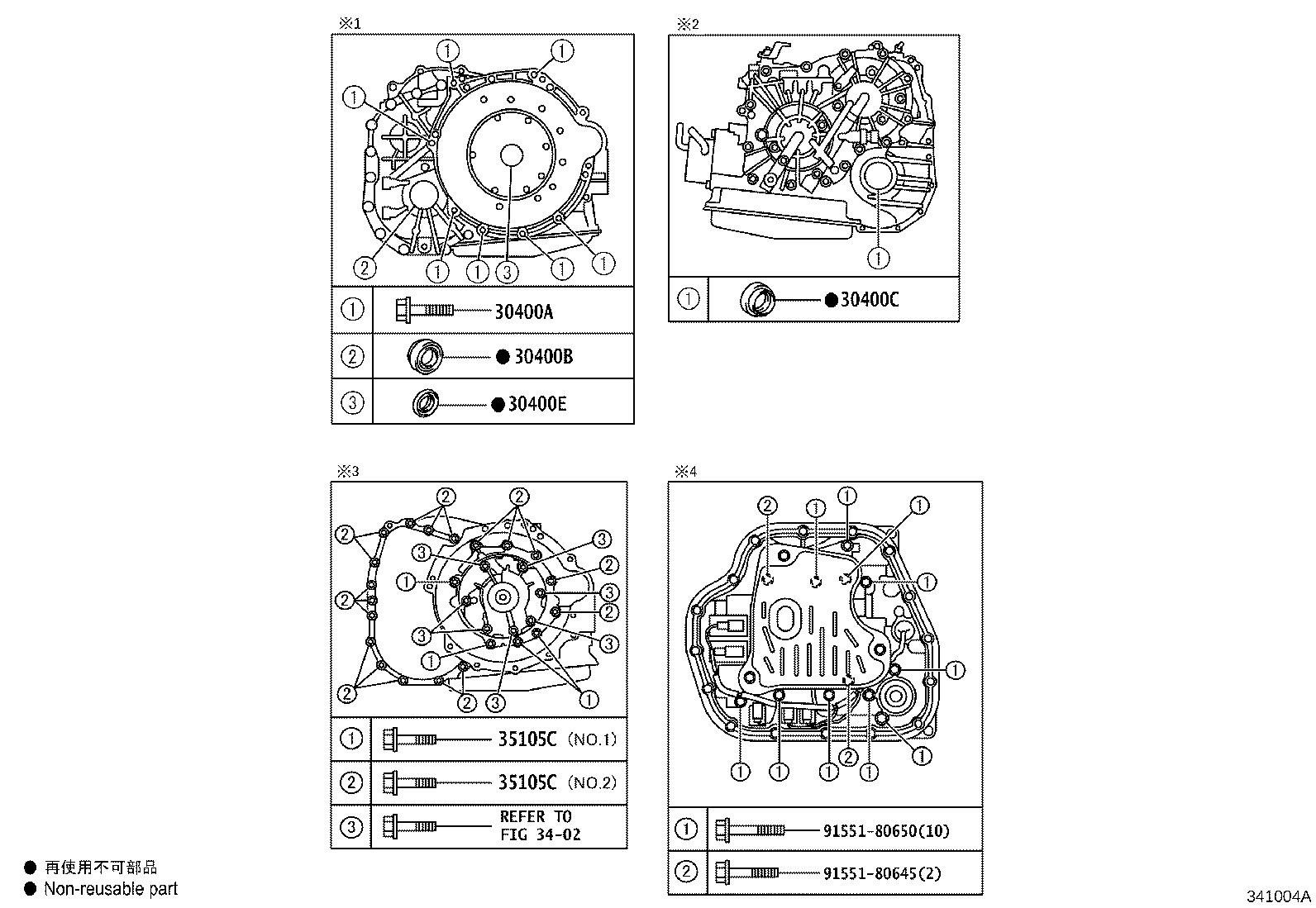

| 30400A | Bolt(FOR TRANSAXLE & ENGINE SETTING) |
| 30400B | Seal, Type T Oil, NO.1(FOR CVT) |
| 30400C | Seal, Type T Oil, NO.2(FOR CVT) |
| 30400E | Seal, Type T Oil(FOR CVT OIL PUMP) |
| 30400H | Bearing, Thrust Needle Roller |
| 30400J | Plug, Transaxle Hole |
| 30400K | Gasket, Transaxle Hole Plug |
| 30400N | Plug, Refill(CVT) |
| 30400P | Gasket, Refill Plug(CVT) |

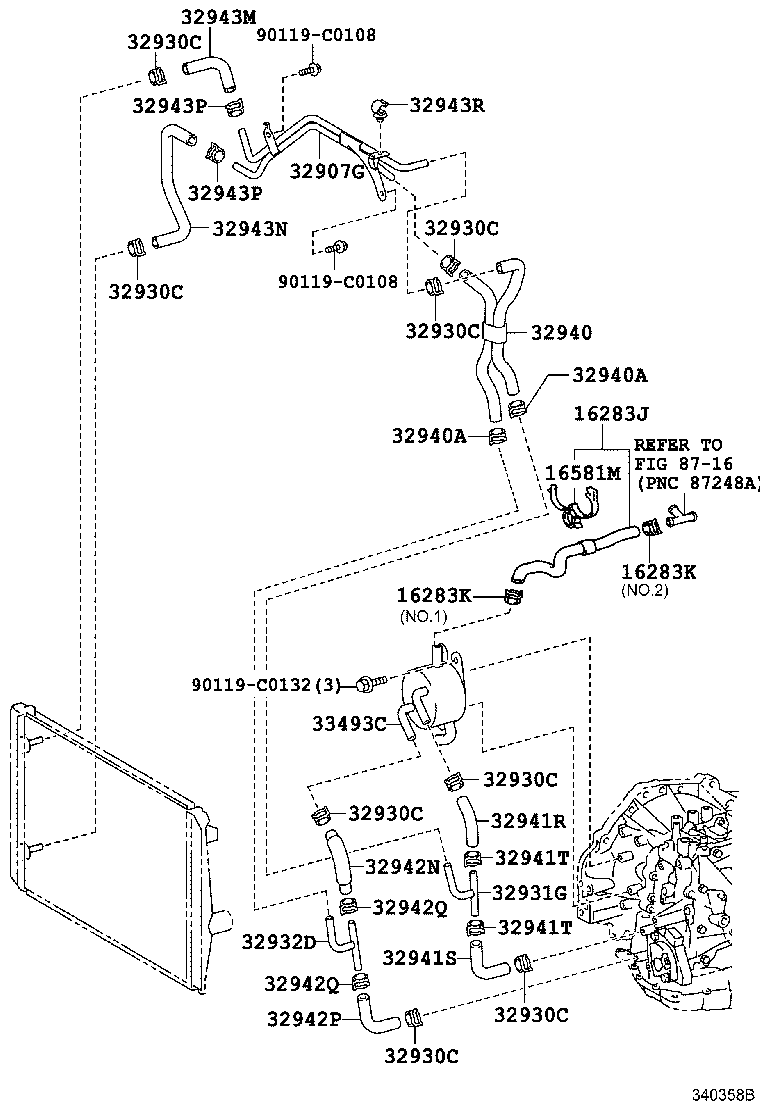

| 32907G | Tube Sub-assy, Oil Cooler W/O Hose |
| 32921T | Connector, Tube |

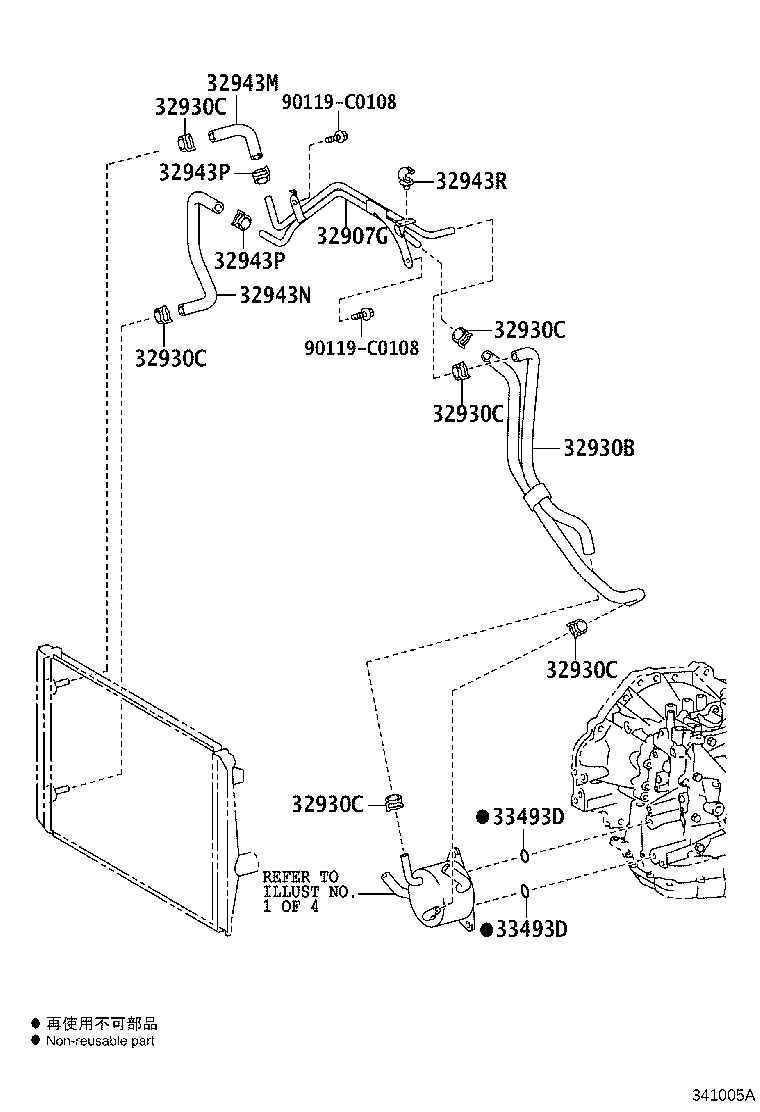

| 32930B | Hose Assy, Transmission Oil Cooler NO.1 |
| 32930C | Clip, NO.1(FOR OIL COOLER HOSE) |
| 32931G | Tube, Oil Cooler Inlet, Front |
| 32932D | Tube, Oil Cooler Outlet, Front |
| 32940 | Hose Assy, Transmission Oil Cooler, NO.2 |
| 32940A | Clip, NO.2(FOR OIL COOLER HOSE) |
| 32941R | Hose, Oil Cooler Inlet, NO.1 |
| 32941S | Hose, Oil Cooler Inlet, NO.2 |
| 32941T | Clip, NO.1(FOR OIL COOLER HOSE) |
| 32942N | Hose, Oil Cooler Outlet, NO.1 |
| 32942P | Hose, Oil Cooler Outlet, NO.2 |
| 32942Q | Clip, NO.1(FOR OIL COOLER HOSE) |
| 32943M | Hose, Transmission Oil Cooler, NO.1 |
| 32943N | Hose, Transmission Oil Cooler, NO.2 |
| 32943P | Clip, NO.1(FOR OIL COOLER HOSE) |
| 32943R | Clamp, NO.1(FOR OIL COOLER HOSE) |
| 33493C | Cooler, Transmission Oil |
| 33493D | Ring, O (FOR TRANSMISSION OIL COOLER) |
| 35012B | Hose Sub-assy, Transmission Breather |
| 35068E | Spring Sub-assy, 1ST & Reverse Brake Return |
| 35075D | Gear Sub-assy, Front Planetary Ring |
| 35105C | Bolt(FOR TRANSAXLE HOUSING & CASE SET) |
| 35106L | Pan Sub-assy, Transaxle Oil(CVT) |
| 35106P | Bolt(FOR TRANSAXLE OIL PAN) |
| 35125E | Tube, Overflow(CVT) |
| 35125F | Plug, Overflow(CVT) |
| 35125G | Gasket, Overflow Plug(CVT) |
| 35141D | Hose(FOR BREATHER PLUG) |
| 35141E | Ring, O(FOR BREATHER PLUG) |
| 35141F | Plug, Breather, NO.1(CVT) |
| 35145D | Gasket, Transaxle Case |
| 35150B | Plug Assy, Transmission Case |
| 35150C | Ring, O (FOR TRANSMISSION CASE PLUG) |
| 35165B | Plate, Transmission Case, NO.1 |
| 35168C | Gasket, Transaxle Oil Pan(CVT) |
| 35174B | Plate, Oil Reservoir Lock |
| 35195C | Clamp, Transaxle Apply Tube, NO.1 |
| 35330D | Strainer Assy, Oil |
| 35330E | Ring, O (FOR OIL STRAINER) |
| 35394D | Magnet, Oil Cleaner(CVT) |
| 35410J | Body Assy, Transmission Valve |
| 35482C | Clamp, Temperature Sensor |
| 35506L | Seal, Oil (FOR MANUAL VALVE LEVER SHAFT) |
| 35572C | Lever, Transmission Control Shaft |
| 35603E | Spring Sub-assy, Forward Clutch Return |

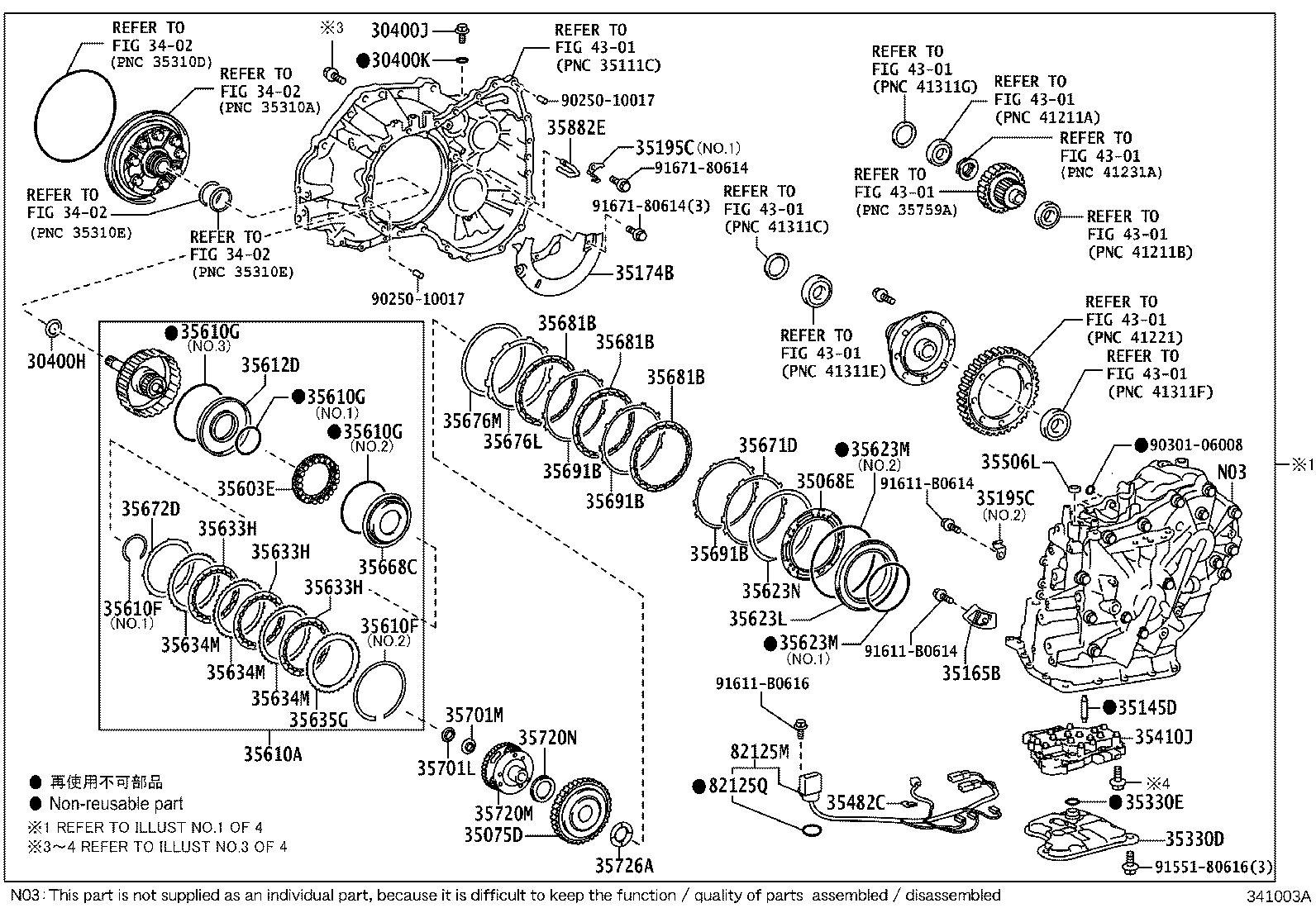

| 35610A | Clutch Assy, Forward Multiple Disc |
| 35610F | Ring, Snap (FOR FORWARD MULTIPLE DISC CLUTCH) |
| 35610G | Ring, O (FOR FORWARD MULTIPLE DISC CLUTCH) |
| 35612D | Piston, Forward Clutch |
| 35623L | Piston, Reverse Brake |
| 35623M | Ring, O (FOR REVERSE BRAKE PISTON) |
| 35623N | Ring, Snap (FOR REVERSE BRAKE PISTON) |
| 35633H | Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH) |
| 35634M | Plate, Clutch, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) |
| 35635G | Flange, Forward Clutch |
| 35668C | Balancer, Clutch, NO.1 |
| 35671D | Plate, Brake Cushion |
| 35672D | Plate, Clutch Cushion |
| 35676L | Flange, Brake |
| 35676M | Ring, Snap (FOR BRAKE FLANGE) |
| 35681B | Disc, Brake, NO.1 |
| 35691B | Plate, Brake, NO.1 |
| 35701L | Race, Thrust Bearing (FOR INPUT SHAFT) |
| 35701M | Bearing, Thrust Needle Roller (FOR INPUT SHAFT) |
| 35720M | Gear Assy, Planetary |
| 35720N | Bearing, Thrust Needle Roller (FOR PLANETARY GEAR) |
| 35726A | Washer, Planetary Ring Gear Thrust |
| 35882E | Tube, Differential Gear Lube Apply |
| 82125M | Wire, Transmission |
| 82125Q | Ring, O(FOR TRANSMISSION WIRE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
