Front Steering Gear & Link

5 part groups · 1 illustrations

Illustrations

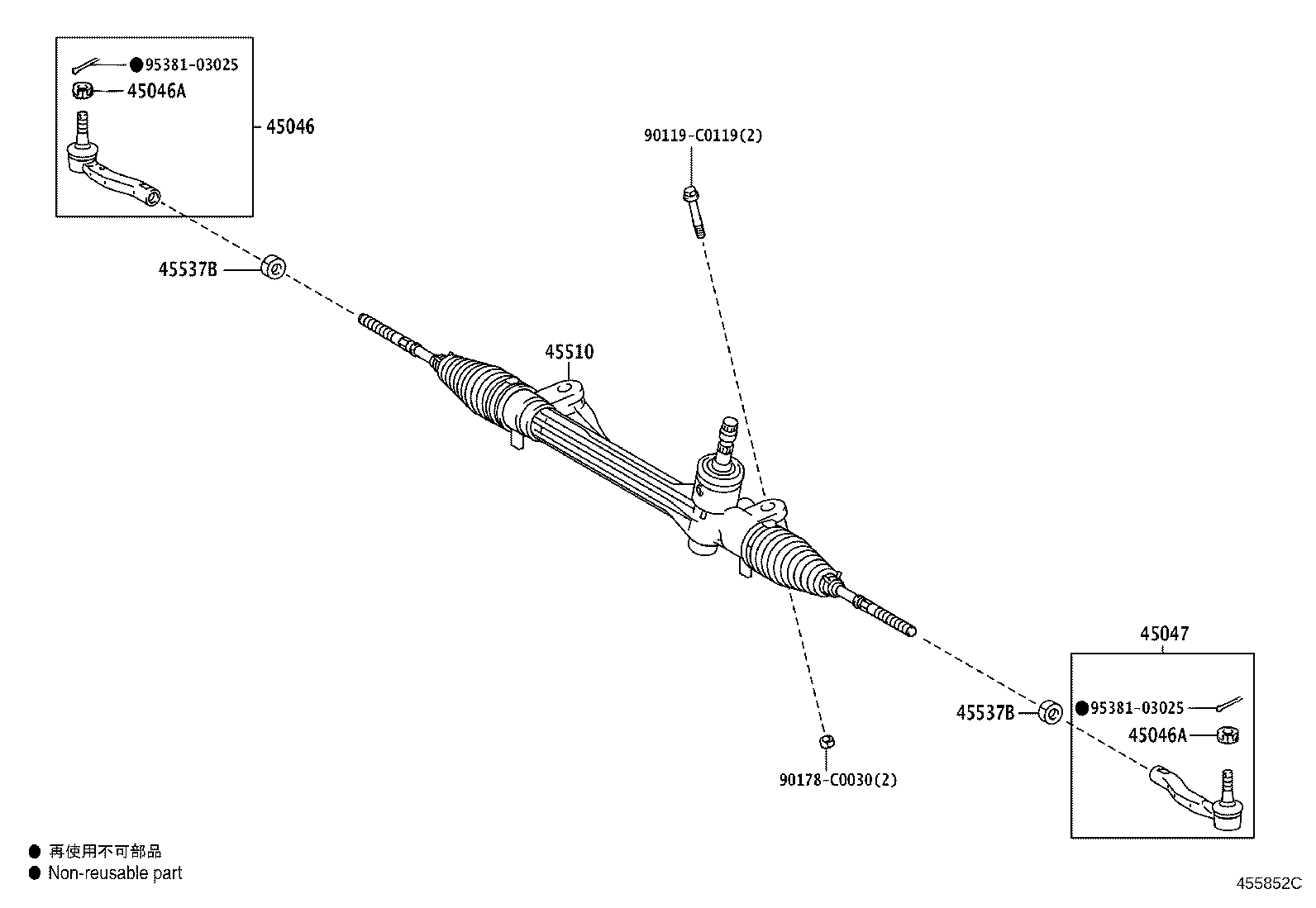

Figure 455852C

455852C 2011-06 → —

Part groups

PNC	Description
45046	End Sub-assy, Tie Rod, RH
45046A	Nut, Castle(FOR TIE ROD END)
45047	End Sub-assy, Tie Rod, LH
45510	Gear Assy, Steering
45537B	Nut, Rack End Lock

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
