Toyota E'z
2011-06 → 2016-12 · chassis ZGR2# · catalogue 158310 · General
Supported model
Data version 2016-12

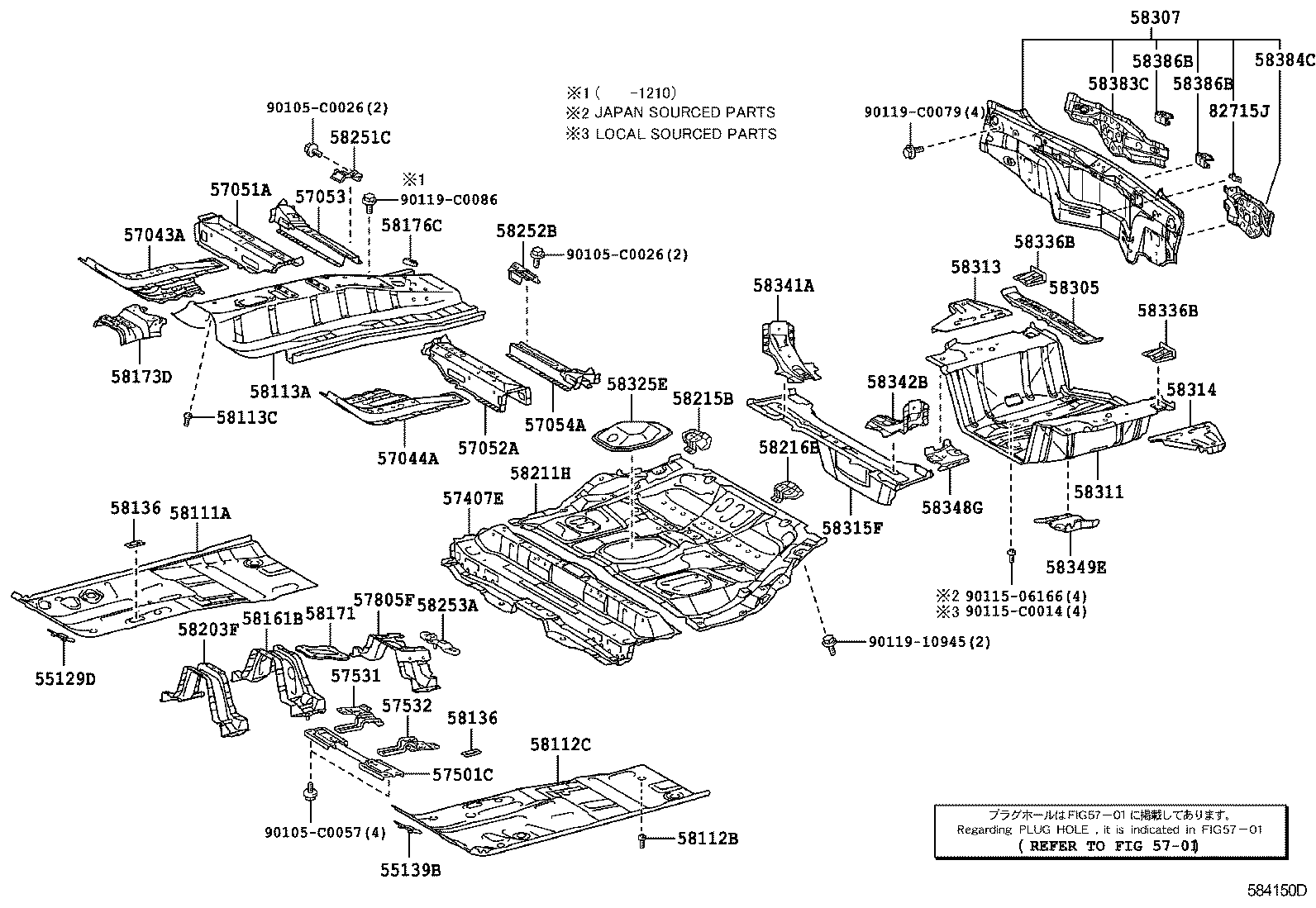

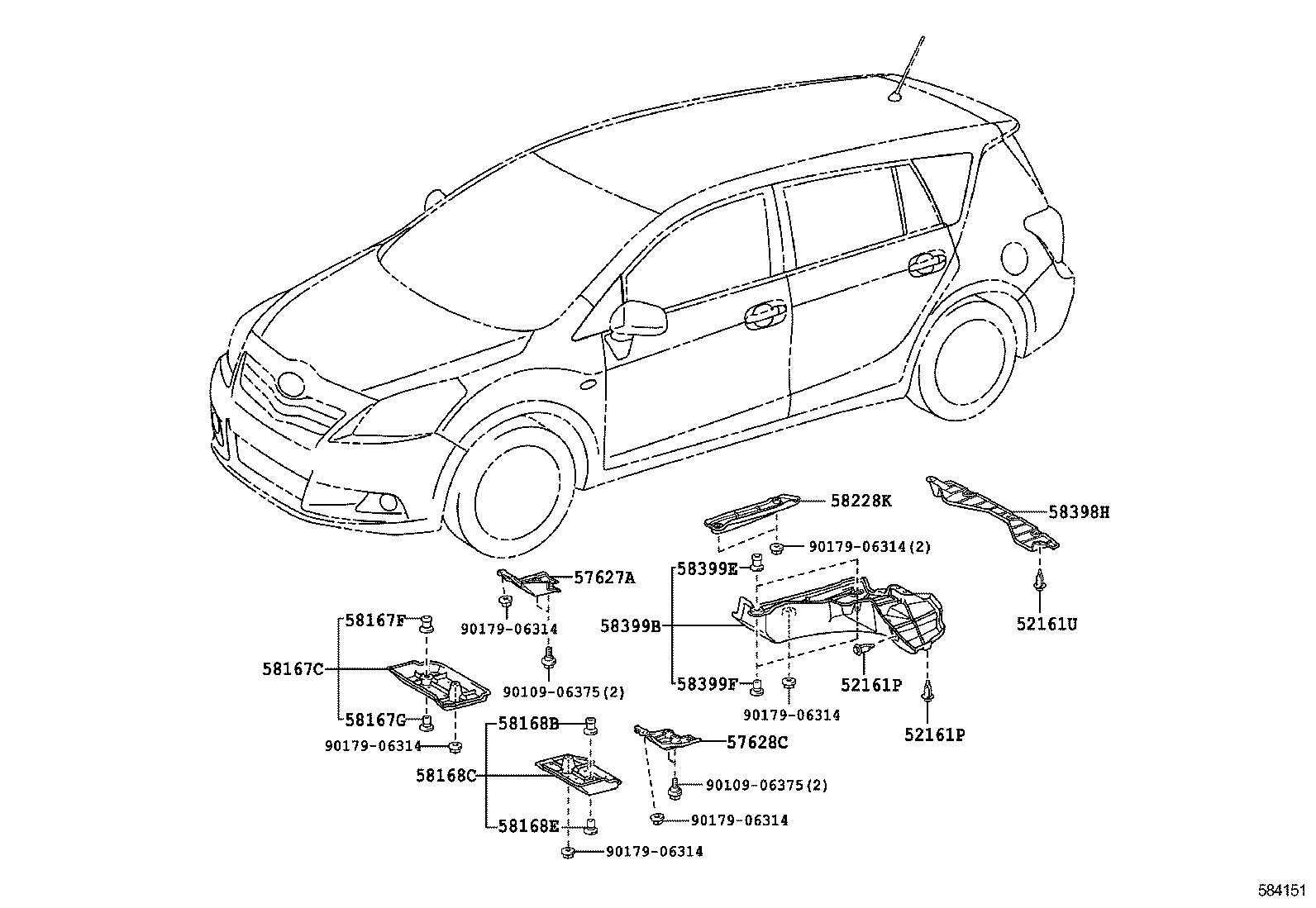

Floor Pan & Lower Back Panel
61 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161P | Piece, Rear Bumper |
| 52161U | Piece, Rear Bumper |
| 55129D | Cover, Dash Panel Hole, RH |
| 55139B | Cover, Dash Panel Hole, LH |
| 57043A | Reinforcement Sub-assy, Front Side Member, Rear RH |
| 57044A | Reinforcement Sub-assy, Front Side Member, Rear LH |
| 57051A | Member Sub-assy, Front Floor Cross, RH |
| 57052A | Member Sub-assy, Front Floor Cross, LH |
| 57053 | Reinforcement Sub-assy, Front Floor Crossmember, RH |
| 57054A | Reinforcement Sub-assy, Front Floor Crossmember, LH |
| 57407E | Member Sub-assy, Center Floor Cross |
| 57501C | Brace Sub-assy, Front Floor, Center |
| 57531 | Bracket, Front Floor Center Brace, RH |
| 57532 | Bracket, Front Floor Center Brace, LH |
| 57627A | Cover, Rear Floor Side Member, RH |
| 57628C | Cover, Rear Floor Side Member, LH |
| 57805F | Reinforcement Sub-assy, Belt Anchor, NO.1 |
| 58111A | Pan, Front Floor, RH |
| 58112B | Bolt, Weld(FOR FRONT FLOOR PAN, LH) |
| 58112C | Pan, Front Floor, LH |
| 58113A | Panel, Front Floor, Center |
| 58113C | Bolt, Weld(FOR FRONT FLOOR PANEL, CENTER) |
| 58136 | Cover, Front Floor Hole |
| 58161B | Reinforcement, Belt Anchor TO Floor Pan |
| 58167C | Cover, Front Floor, Center RH |
| 58167F | Clip, NO.1(FOR FLOOR UNDER COVER) |
| 58167G | Clip, NO.2(FOR FLOOR UNDER COVER) |
| 58168B | Clip, NO.1(FOR FLOOR UNDER COVER) |
| 58168C | Cover, Front Floor, Center LH |
| 58168E | Clip, NO.2(FOR FLOOR UNDER COVER) |
| 58171 | Reinforcement, Parking Brake Base |
| 58173D | Bracket, Computer Mounting, NO.4 |
| 58176C | Reinforcement, Parking Brake Base, NO.2 |
| 58203F | Bracket Sub-assy, Exhaust Pipe Mounting |
| 58211H | Pan, Center Floor |
| 58215B | Bracket, Rear Seat Mounting, RH |
| 58216B | Bracket, Rear Seat Mounting, LH |
| 58228K | Plate, Air Guide, RH |
| 58251C | Brace, Floor Panel, Front RH |
| 58252B | Brace, Floor Panel, Front LH |
| 58253A | Bracket, Parking Cable Clamp |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313 | Panel, Rear Floor Side, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58315F | Extension, Rear Floor Side Panel, Front |
| 58325E | Cover, Rear Floor Service Hole |
| 58336B | Reinforcement, Rear Floor Pan |
| 58341A | Bracket, Rear Absorber Mounting, RH |
| 58342B | Bracket, Rear Absorber Mounting, LH |
| 58348G | Plate, Rear Floor Side, RH |
| 58349E | Plate, Rear Floor Side, LH |
| 58383C | Reinforcement, Body Lower Back Panel, Inner |
| 58384C | Reinforcement, Body Lower Back, NO.2 LH |
| 58386B | Bracket, Rear Bumper Cover, NO.2 |
| 58398H | Cover, Floor Under, NO.1 |
| 58399B | Cover, Floor Under, NO.2 |
| 58399E | Clip, NO.1(FOR FLOOR UNDER COVER) |
| 58399F | Clip, NO.2(FOR FLOOR UNDER COVER) |
| 82715J | Bracket, Wiring Harness Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
