Toyota E'z
2011-06 → 2016-12 · chassis ZGR2# · catalogue 158310 · General
Supported model
Data version 2016-12

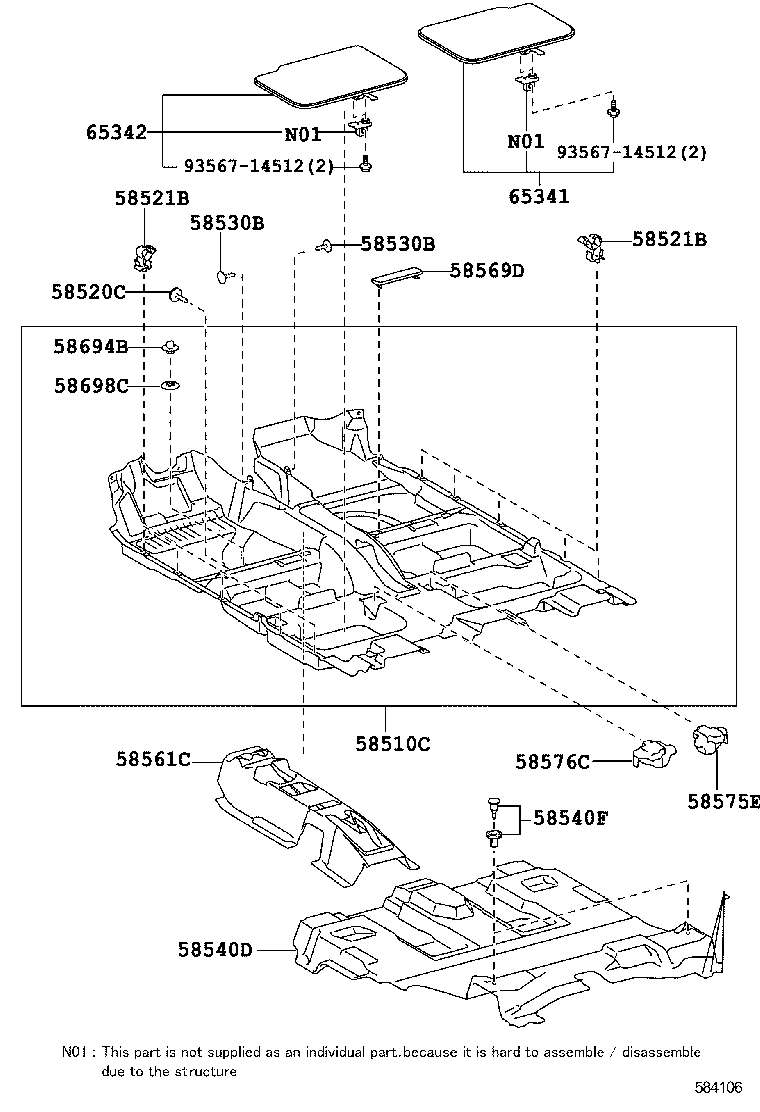

Mat & Carpet
14 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 58510C | Carpet Assy, Front Floor, Front |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58521B | Hook, Floor Carpet |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58540D | Carpet Assy, Floor, Rear |
| 58540F | Clip(FOR REAR FLOOR CARPET) |
| 58561C | Silencer, Front Floor, NO.1 |
| 58569D | Cover, Front Floor Caution Plate |
| 58575E | Pad, Front Floor, Rear NO.1 |
| 58576C | Pad, Front Floor, Rear NO.2 |
| 58694B | Plate, Mat Set, Upper |
| 58698C | Plate, Mat Set, Lower |
| 65341 | Board, Floor, NO.1 |
| 65342 | Board, Floor, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
