Toyota E'z

2011-06 → 2016-12 · chassis ZGR2# · catalogue 158310 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

14 part groups · 5 illustrations

Illustrations

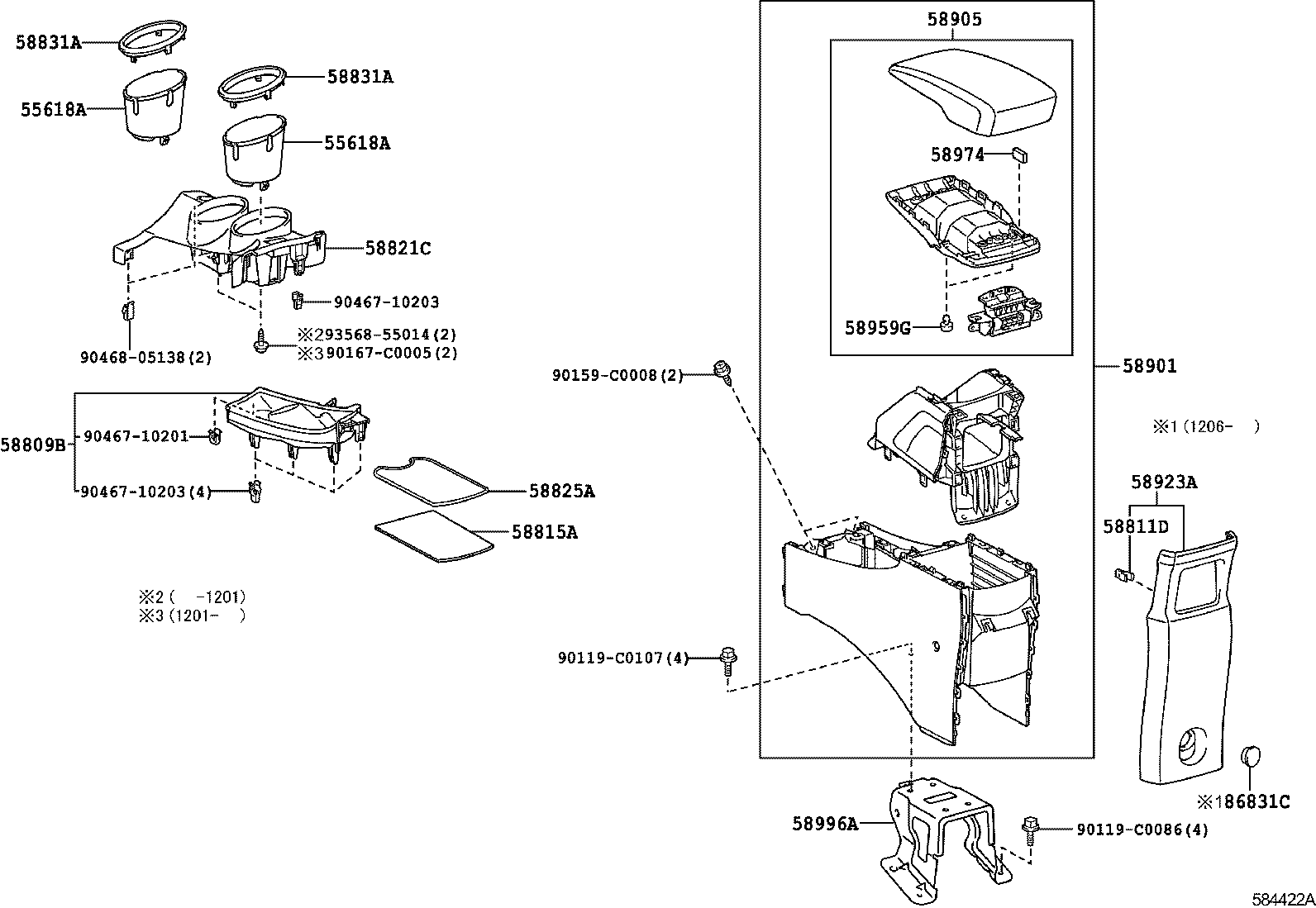

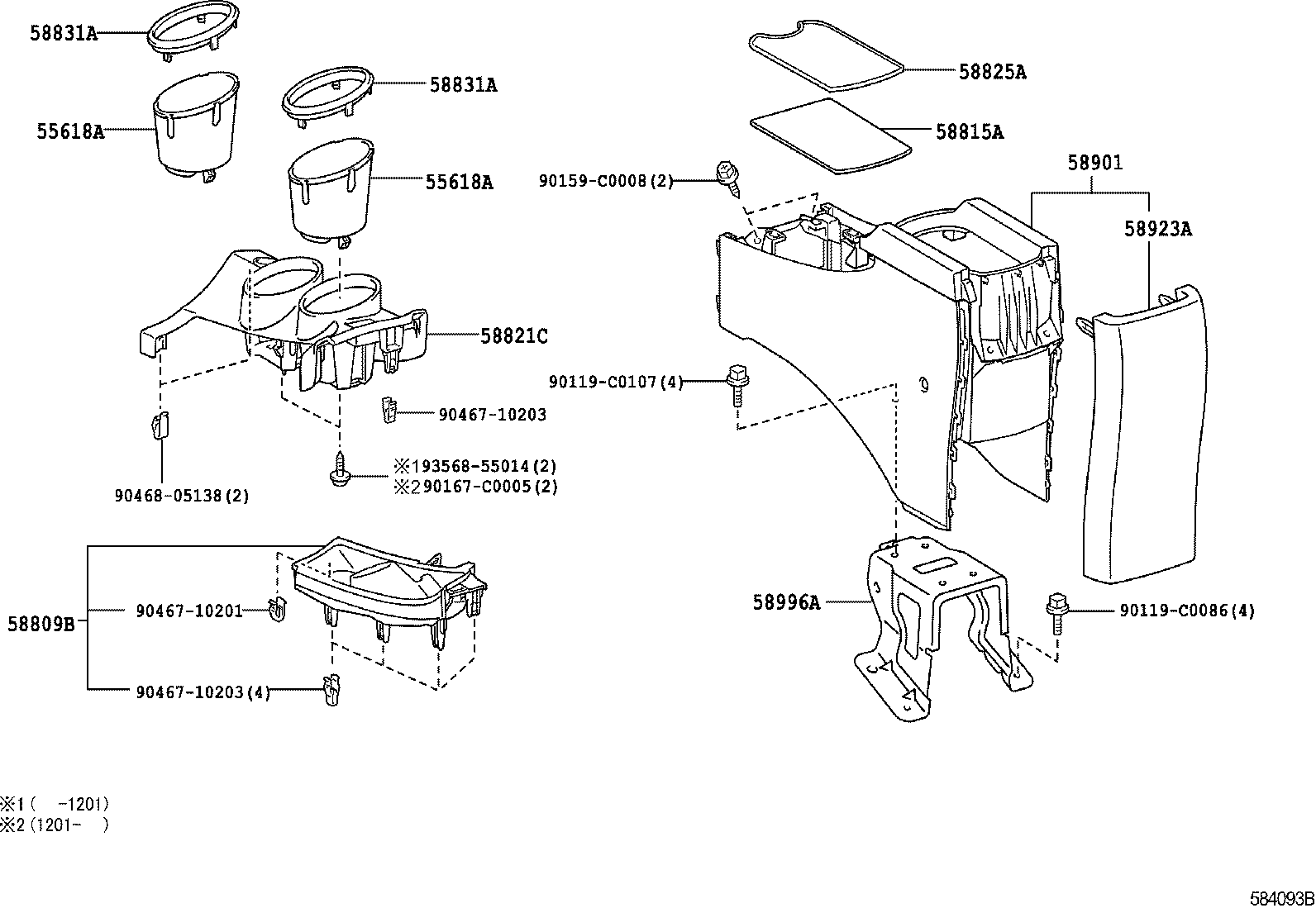

Figure 584093B 584093B 2011-06 → 2012-04 Figure 584093B 584093B 2011-06 → 2013-09 Figure 584422A 584422A 2011-06 → — Figure 584422A 584422A 2012-04 → — Figure 584422A 584422A 2013-09 → —

Part groups

PNCDescription
55618A Holder, Console Box Cup
58809B Cover Sub-assy, Parking Brake Hole
58811D Clip(FOR CONSOLE BOX)
58815A Carpet, Console Box
58821C Panel, Console, Upper
58825A Pocket, Console Box
58831A Garnish, Console Upper Panel, Front
58901 Panel Sub-assy, Box
58905 Door Sub-assy, Console Compartment
58923A Panel, Console Rear End
58959G Cushion, Console Compartment Door
58974 Plate, Console Compartment Door Lock
58996A Bracket, Console Box Mounting, NO.2
86831C Cover, Accessory Socket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
