Toyota E'z
2011-06 → 2016-12 · chassis ZGR2# · catalogue 158310 · General
Supported model
Data version 2016-12
Roof Panel & Back Window Glass
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|

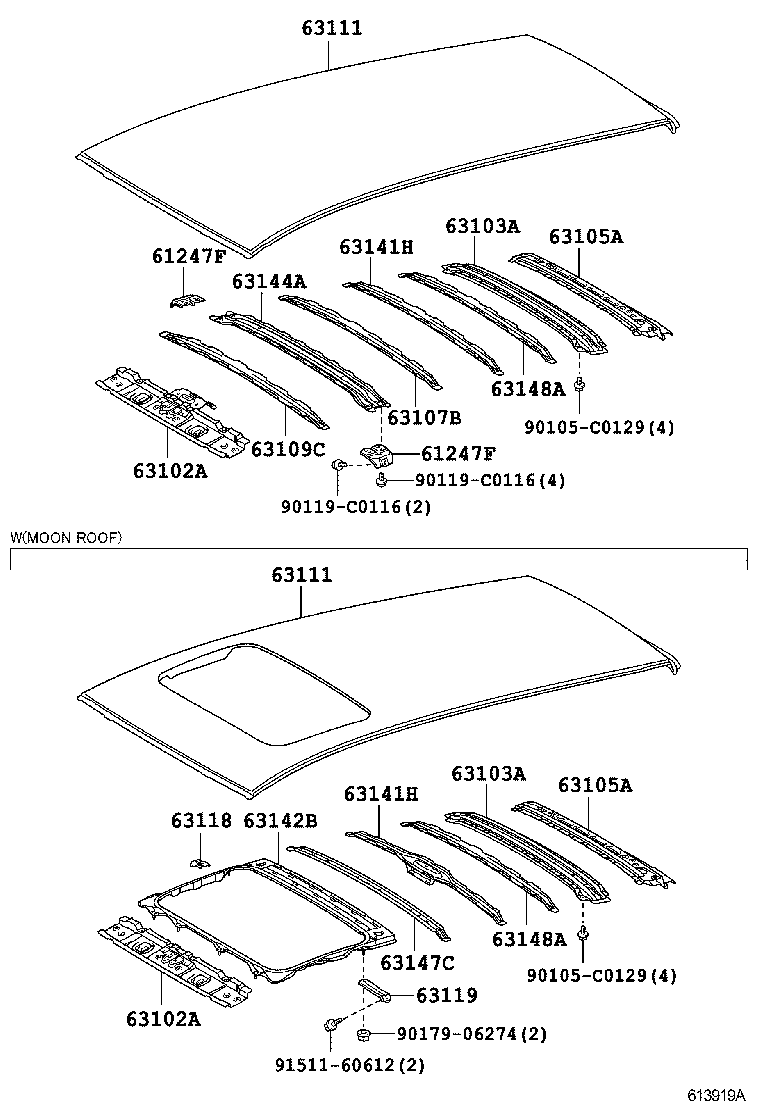

| 61247F | Reinforcement, Roof Side Rail, Inner |
| 63102A | Panel Sub-assy, Windshield Header |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63107B | Reinforcement Sub-assy, Roof Panel, RH |
| 63109C | Retainer Sub-assy, Roof Reinforcement |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63141H | Reinforcement, Roof Panel, Center |
| 63142B | Reinforcement, Roof Panel, Rear |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63147C | Reinforcement, Back Door Opening Frame, Upper Center |
| 63148A | Reinforcement, Roof Panel, NO.7 |

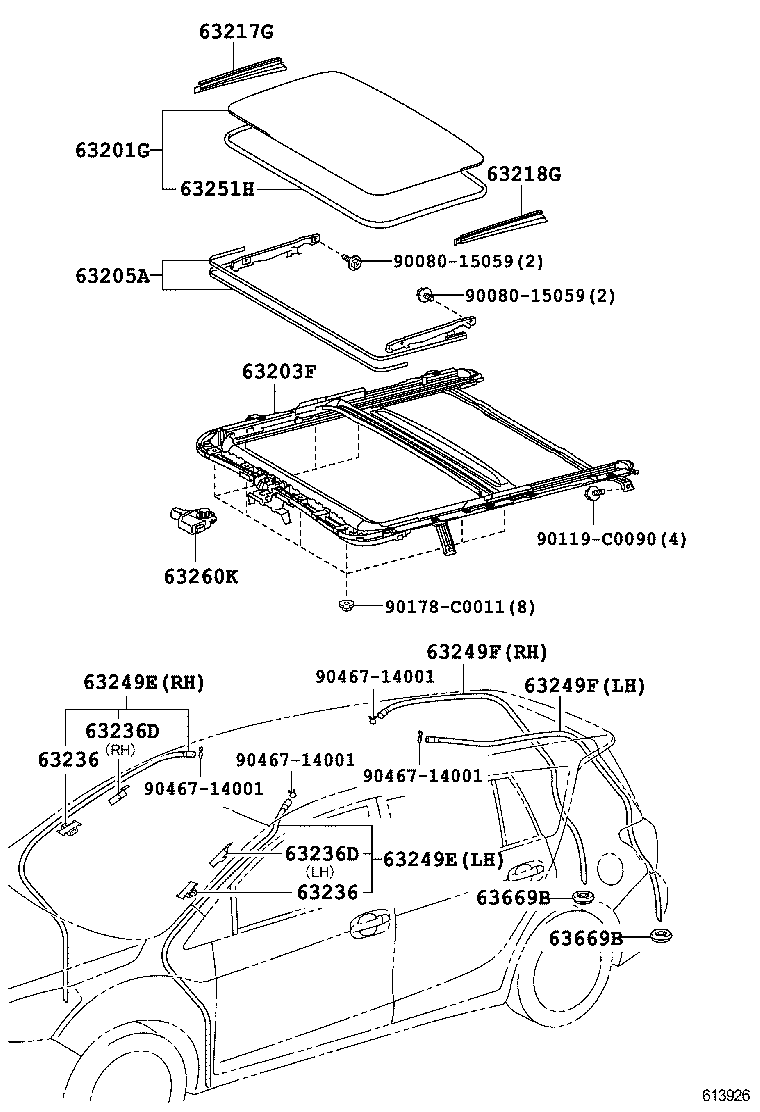

| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63236D | Clamp, Sliding Roof Drain Hose |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63251H | Weatherstrip, Sliding Roof |
| 63260K | Gear Assy, Sliding Roof Drive |
| 63669B | Grommet, Sliding Roof Drain |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
