Toyota E'z

2011-06 → 2016-12 · chassis ZGR2# · catalogue 158310 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

13 part groups · 2 illustrations

Illustrations

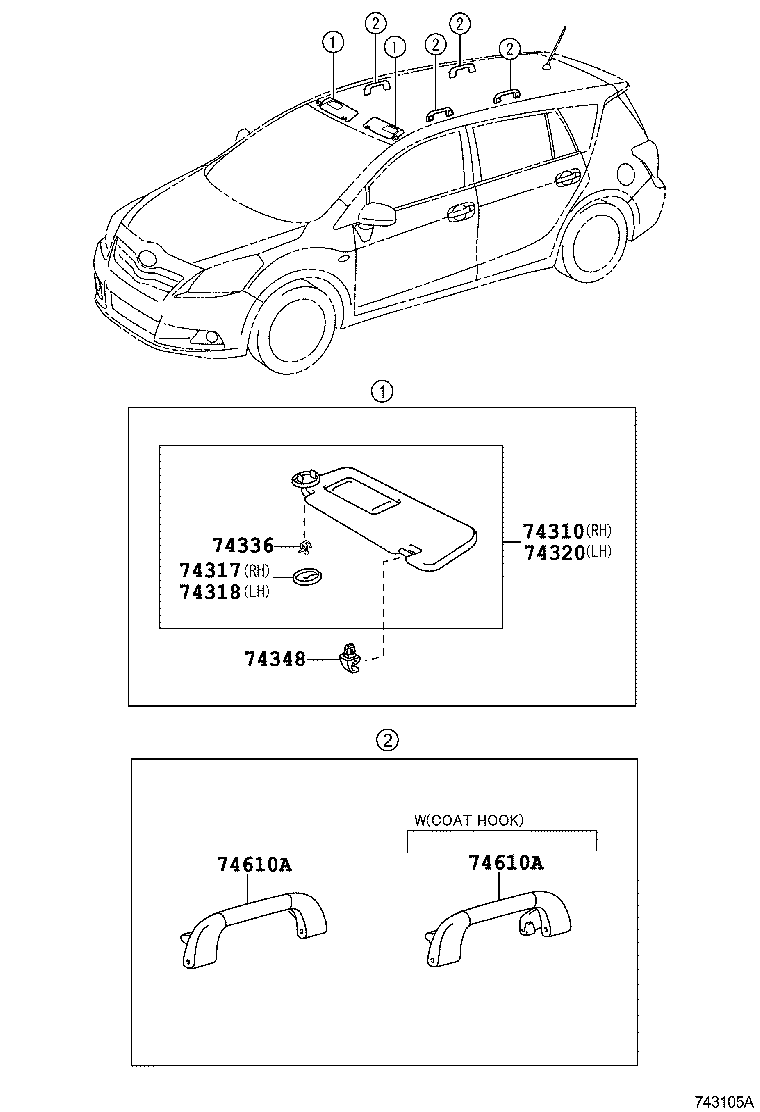

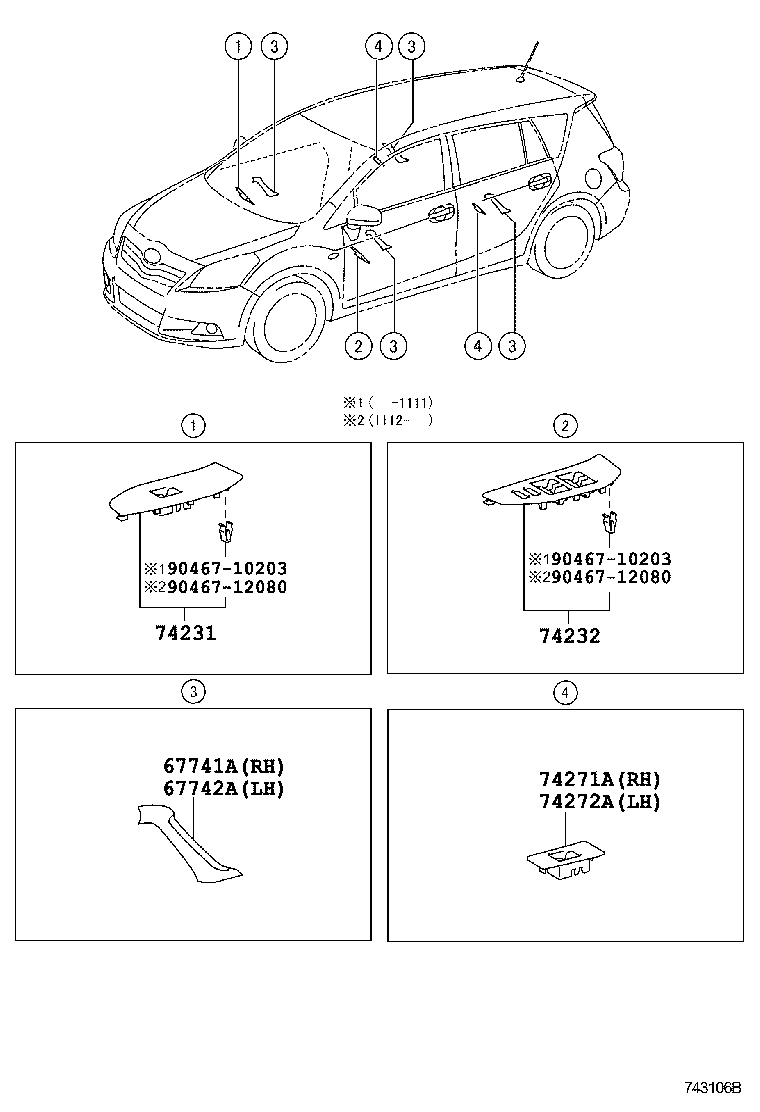

Figure 743106B 743106B 2011-06 → — Figure 743105A 743105A 2011-06 → —

Part groups

PNCDescription
67741A Moulding, Front Door Trim, RH
67742A Moulding, Front Door Trim, LH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74336 Clip, Visor Arm Set
74348 Holder, Visor
74610A Grip Sub-assy, Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
