Toyota E'z

2011-06 → 2016-12 · chassis ZGR2# · catalogue 158310 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

14 part groups · 1 illustrations

Illustrations

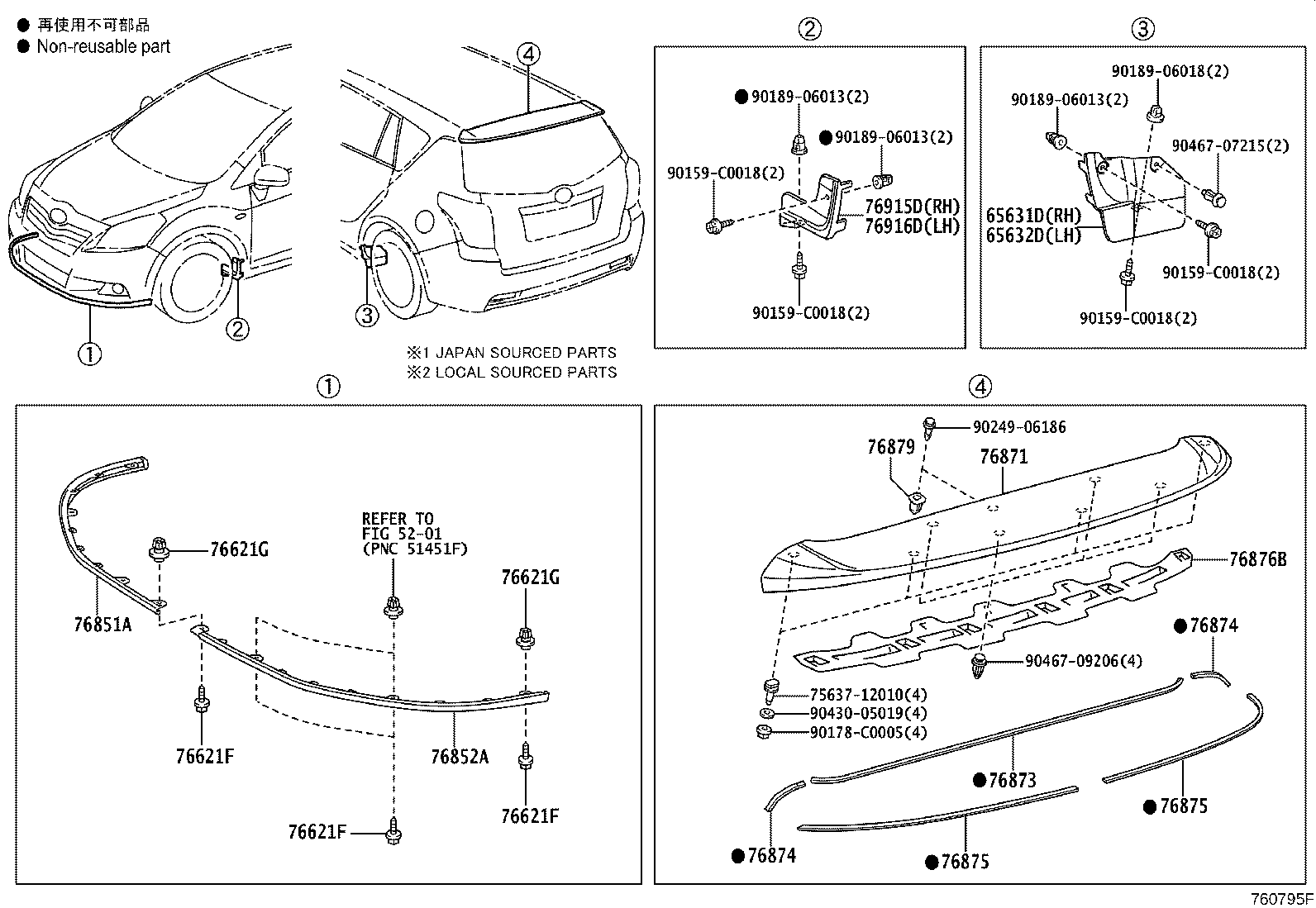

Figure 760795F 760795F 2011-06 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
76621F Screw, NO.1
76621G Grommet, NO.1
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76871 Spoiler, Rear
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76876B Insert, Rear Spoiler
76879 Clip, Rear Spoiler, NO.1
76915D Mudguard, Side, Front RH
76916D Mudguard, Side, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
