Toyota E'z

2011-06 → 2016-12 · chassis ZGR2# · catalogue 158310 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

62 part groups · 12 illustrations

Illustrations

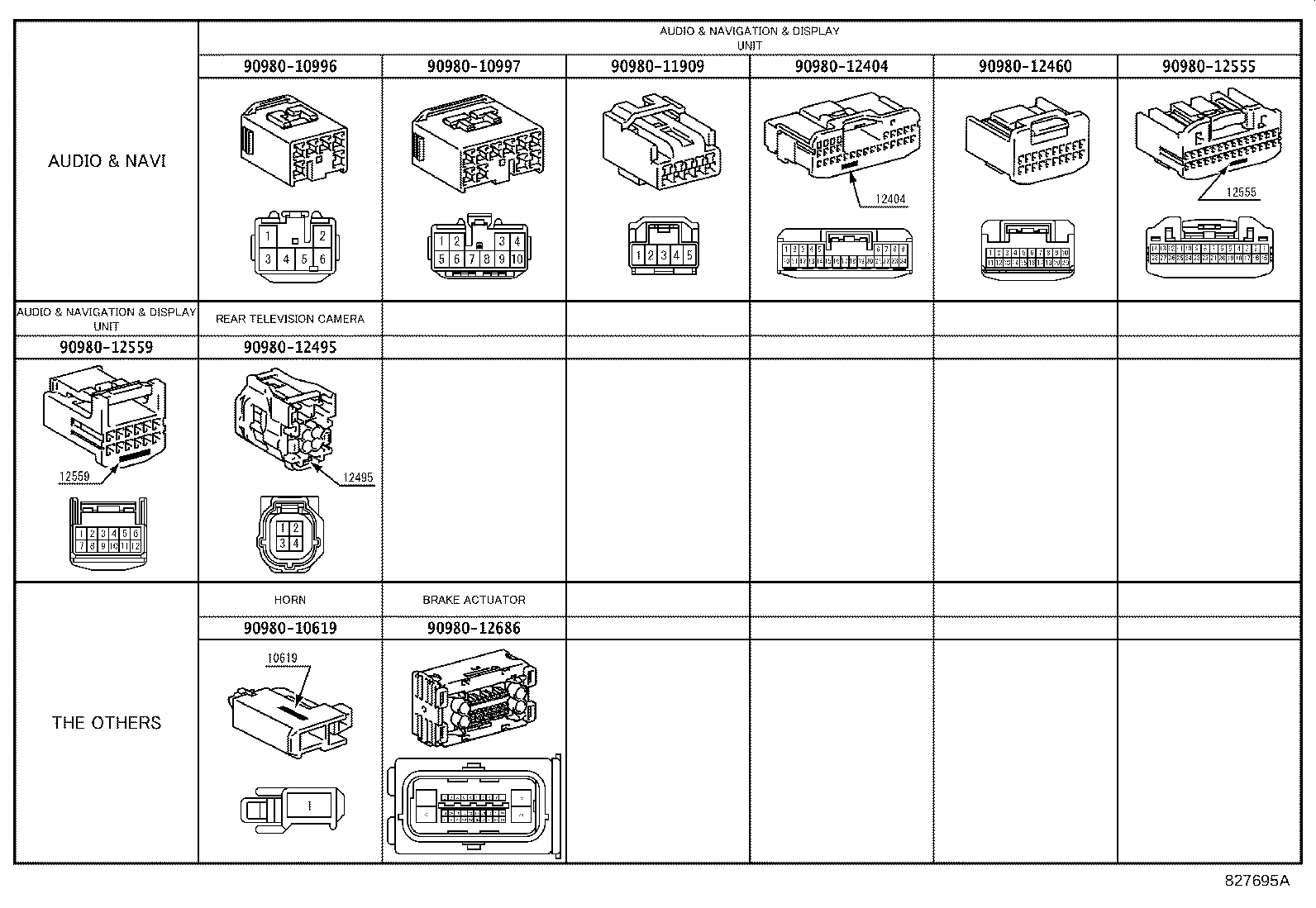

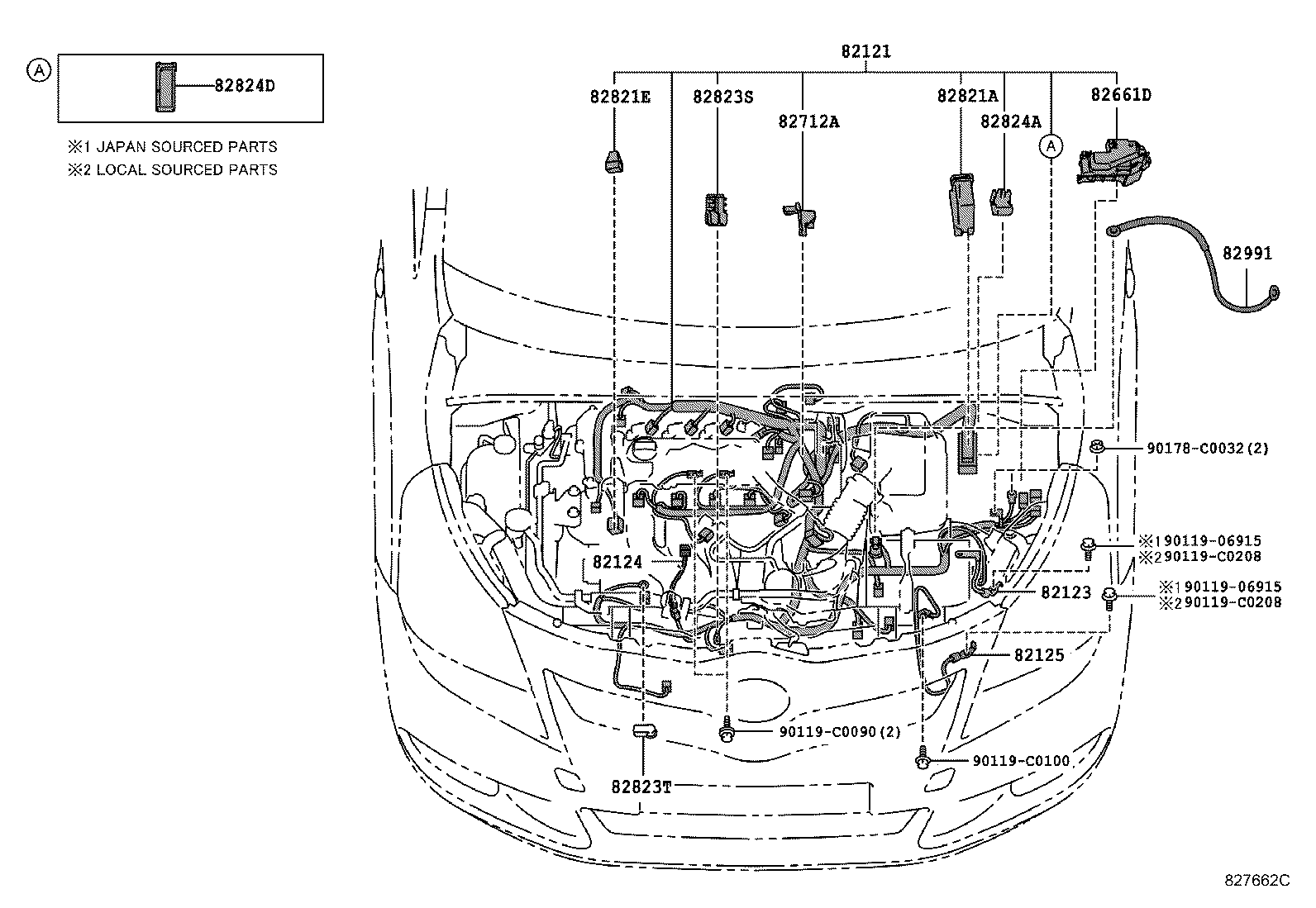

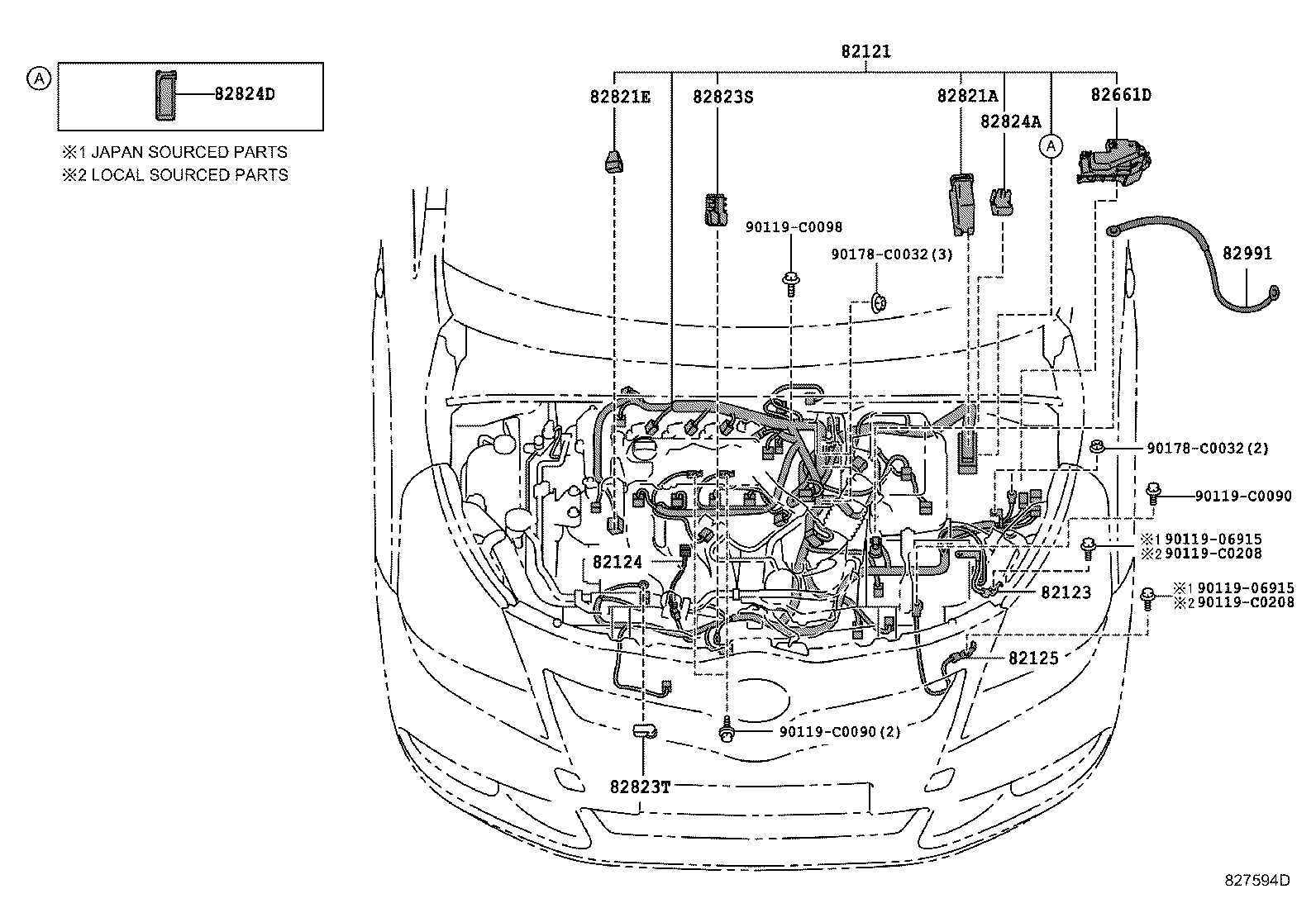

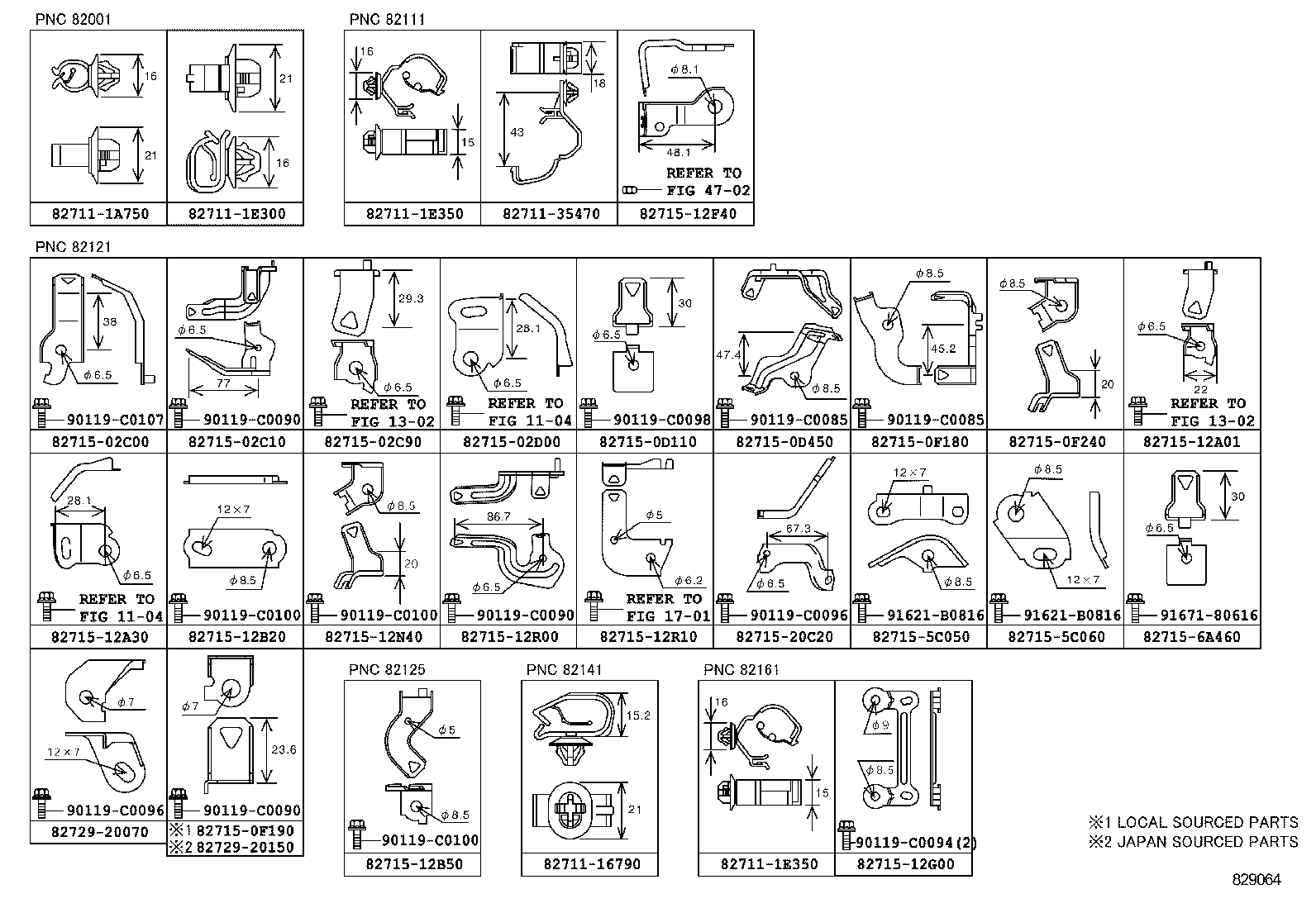

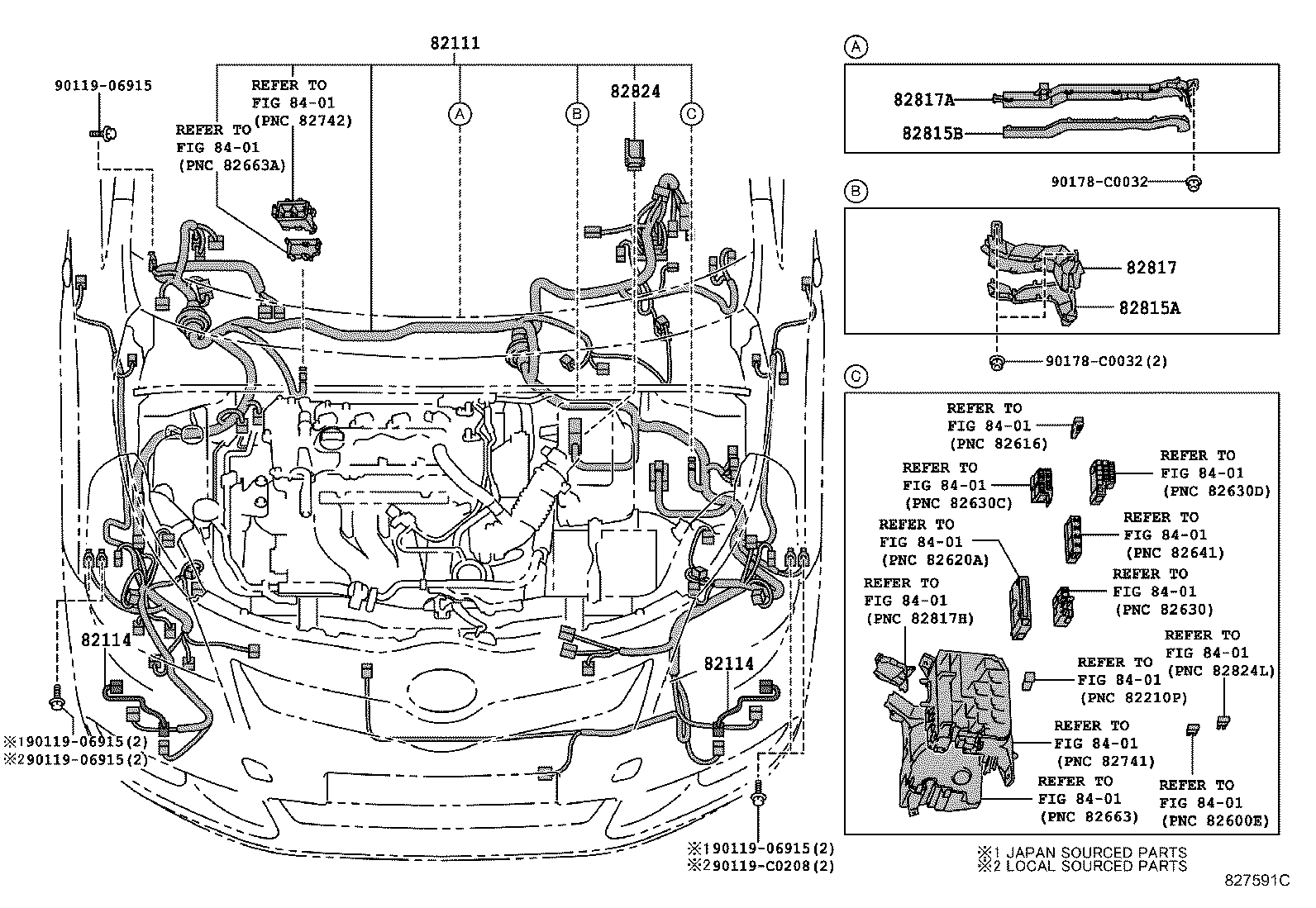

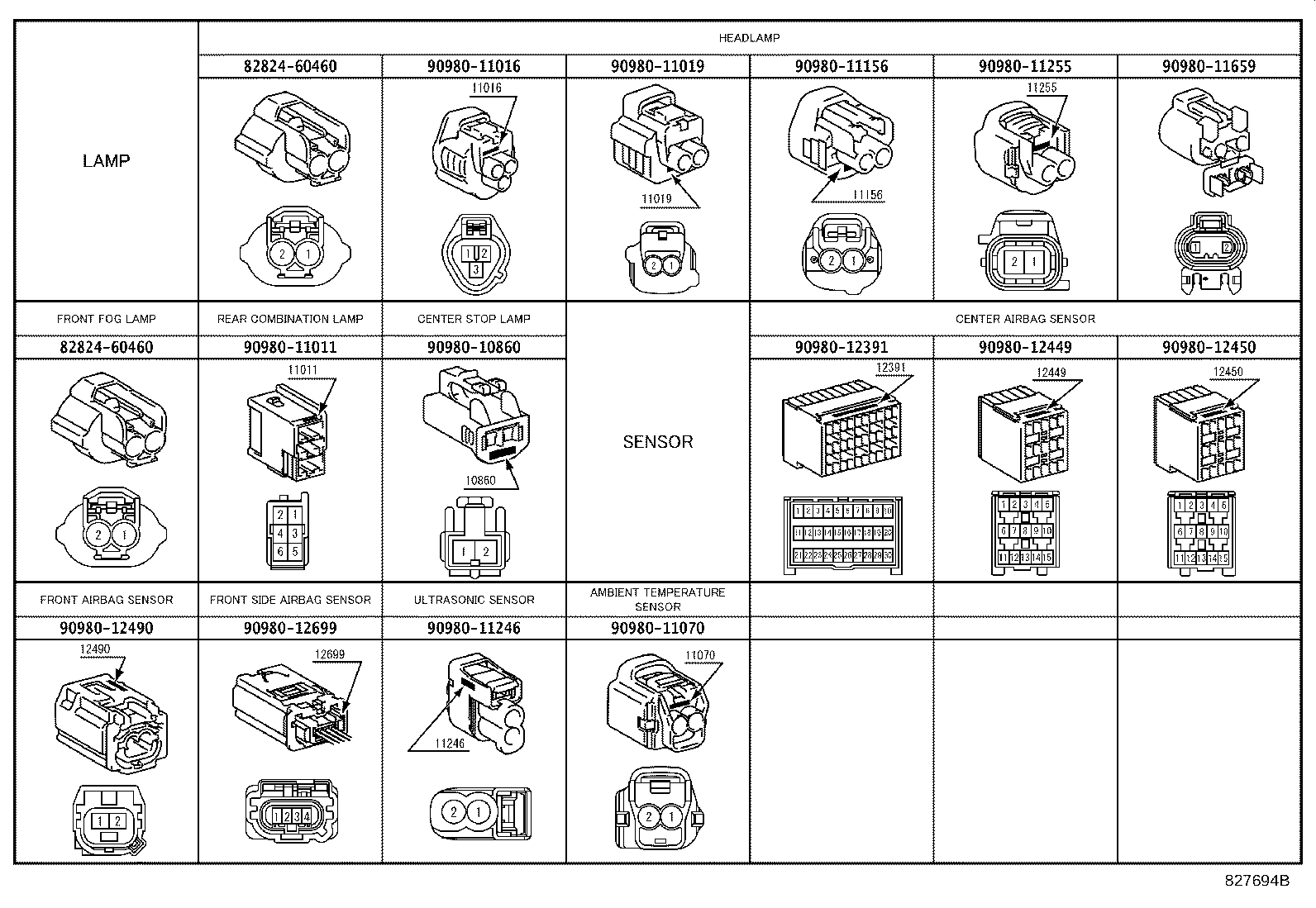

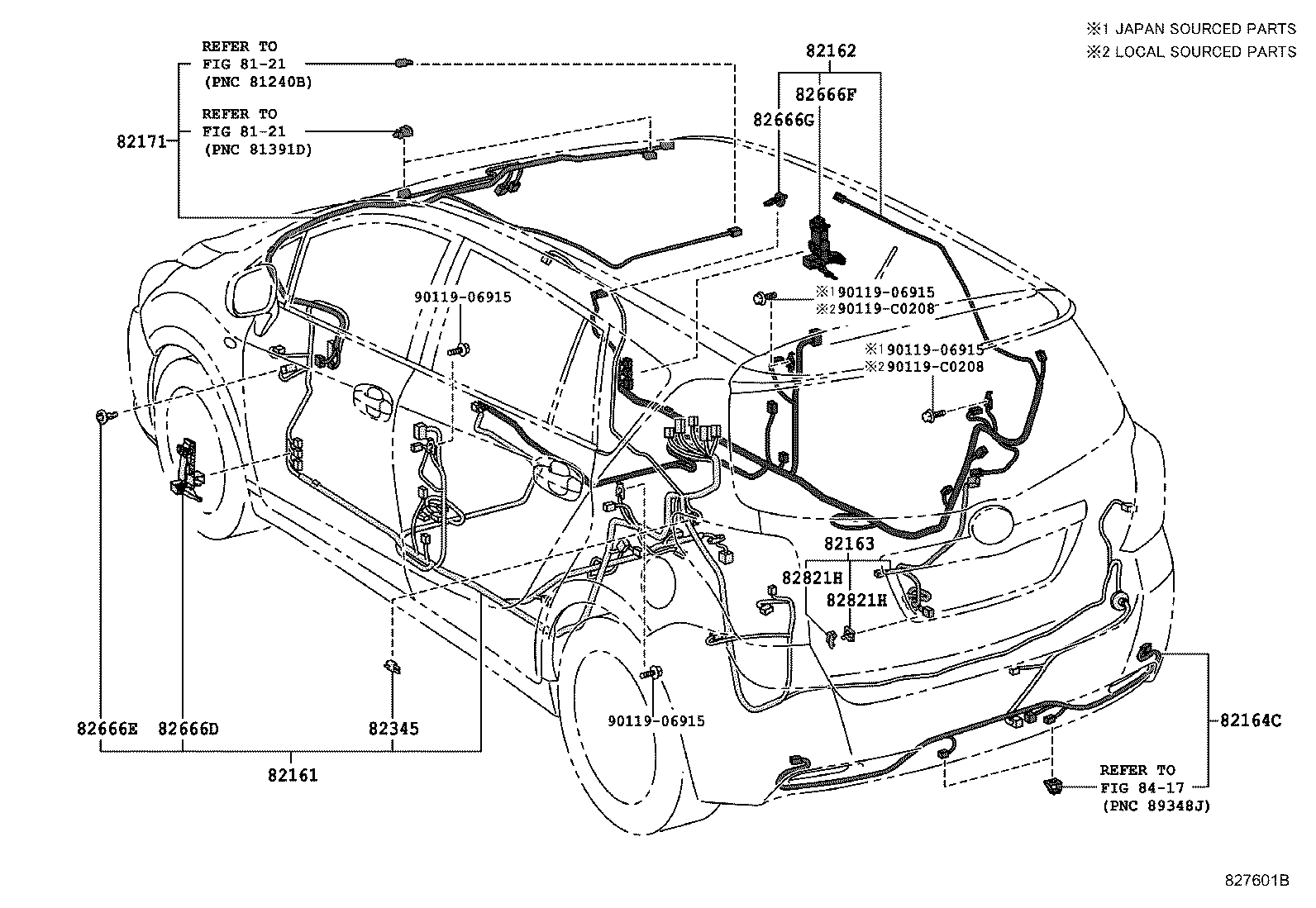

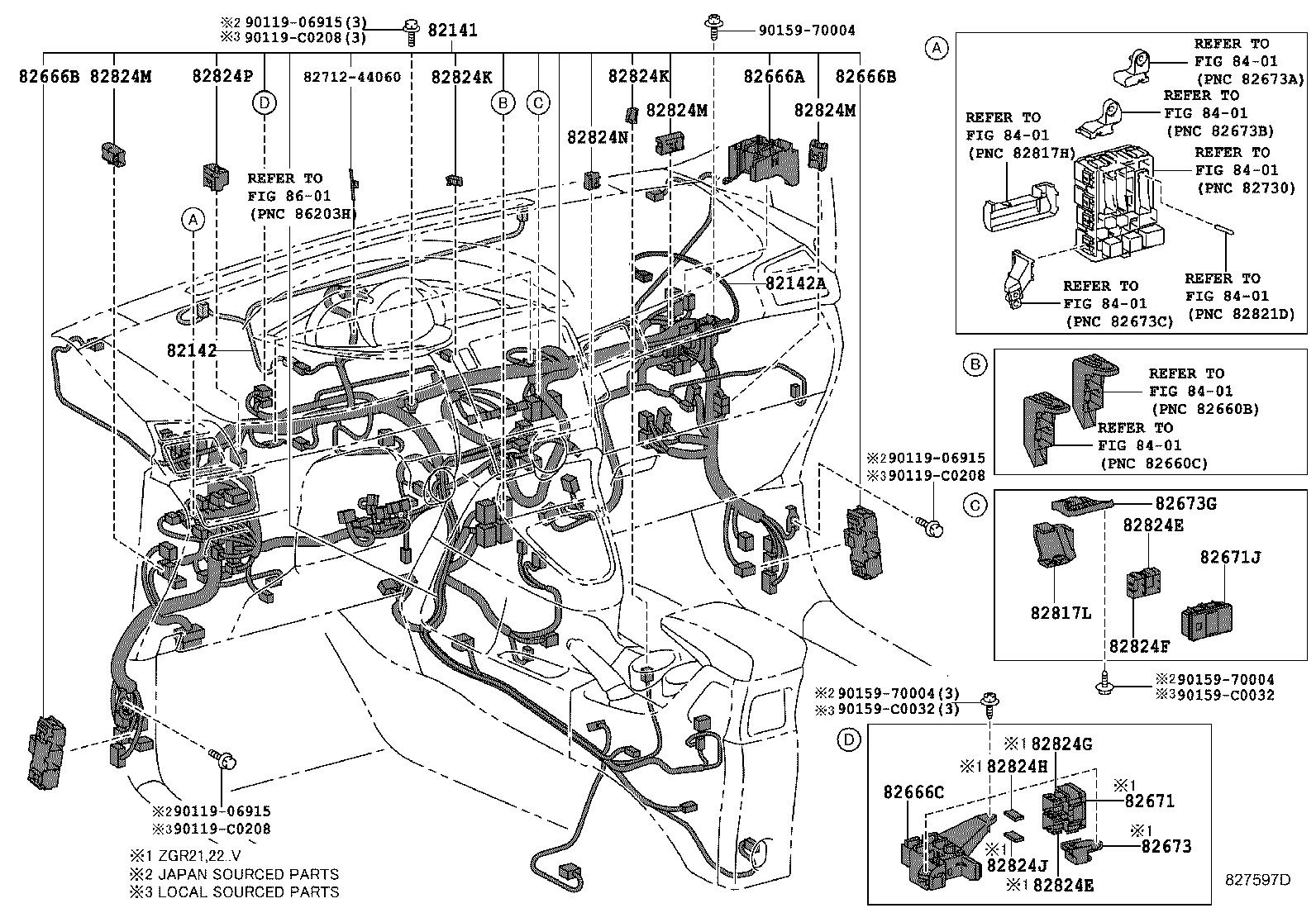

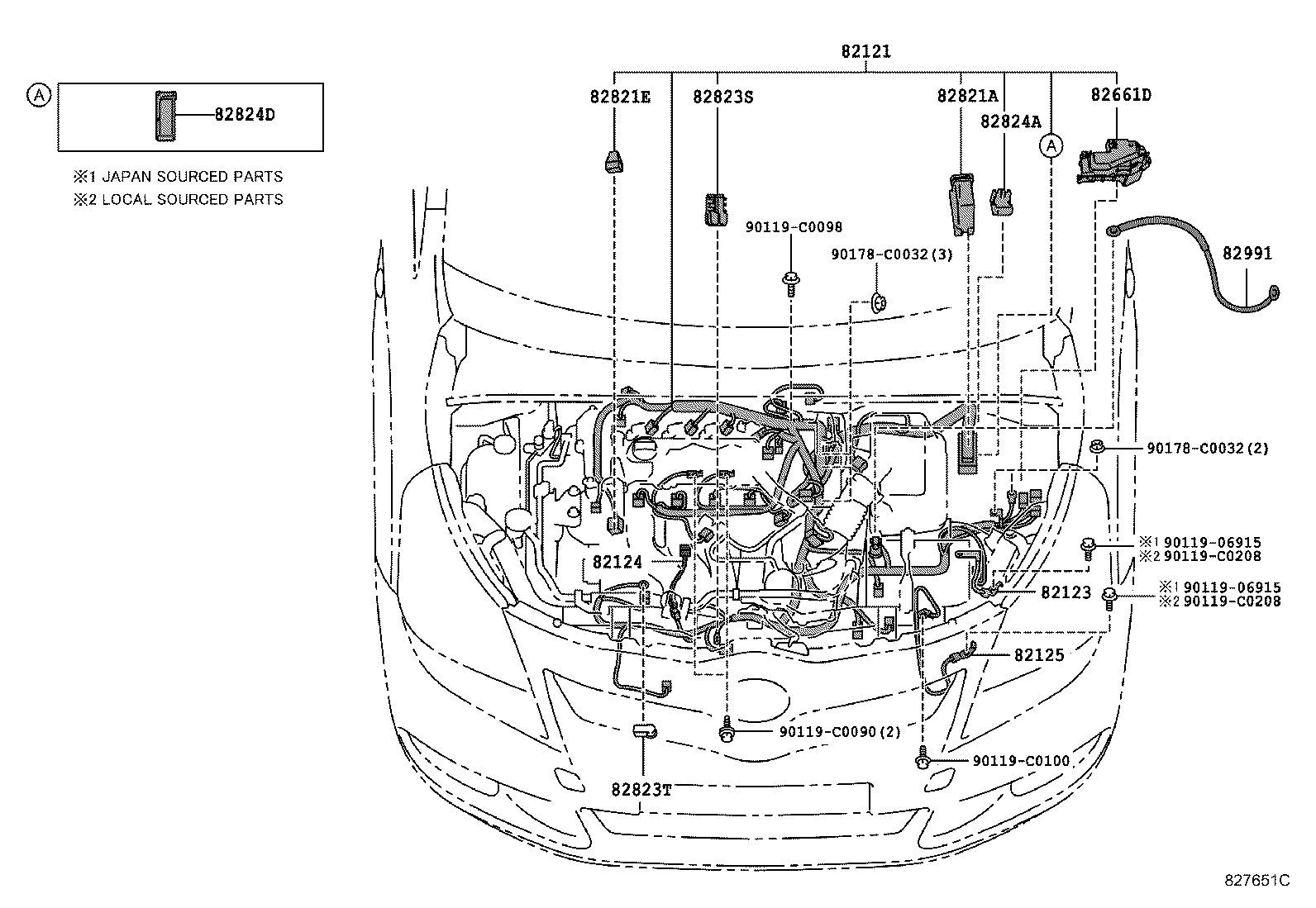

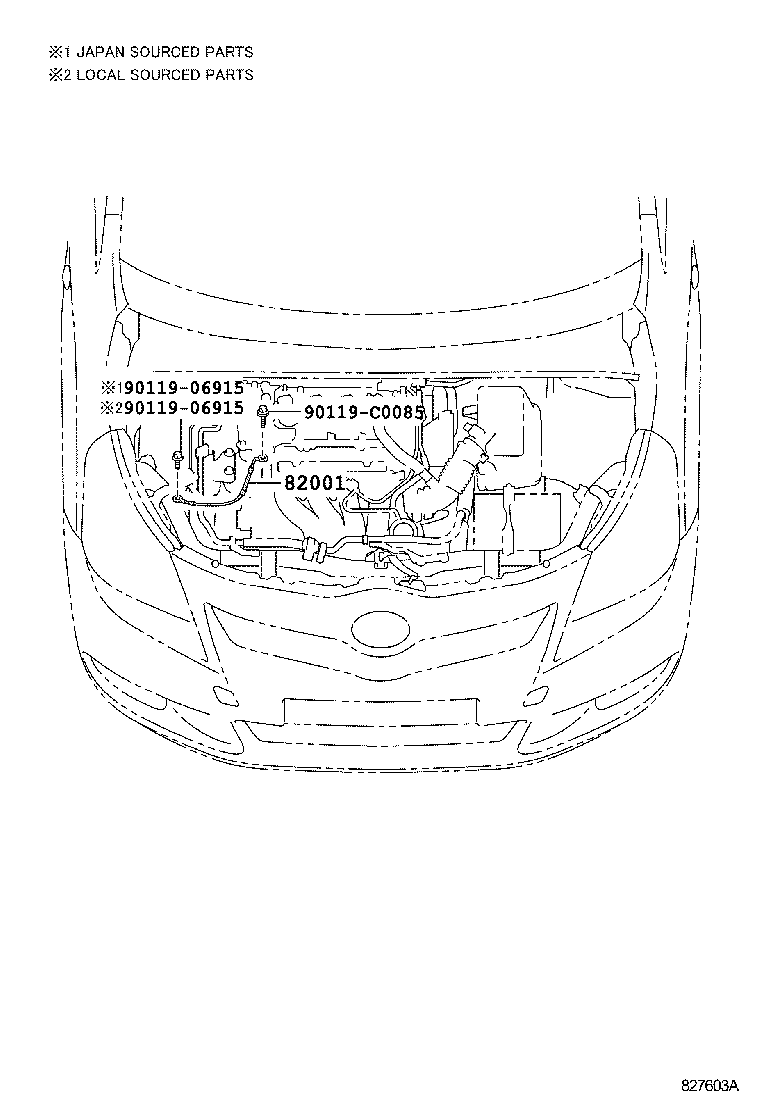

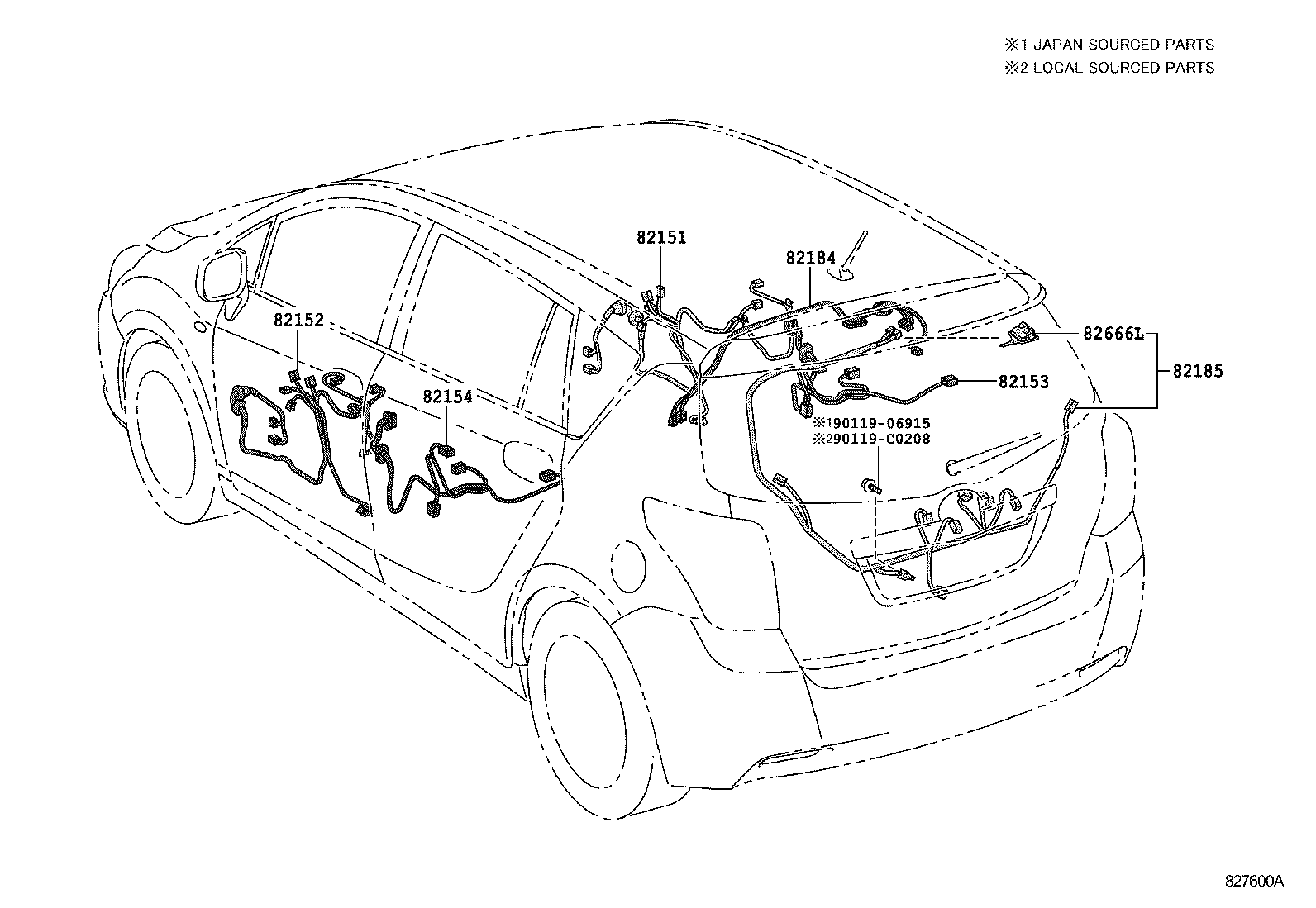

Figure 827591C 827591C 2011-06 → — Figure 827662C 827662C 2011-06 → — Figure 827651C 827651C 2011-06 → — Figure 827594D 827594D 2011-06 → — Figure 827597D 827597D 2011-06 → — Figure 827600A 827600A 2011-06 → — Figure 827601B 827601B 2011-06 → — Figure 827602 827602 2011-06 → — Figure 829064 829064 2011-06 → — Figure 827603A 827603A 2011-06 → — Figure 827694B 827694B 2011-06 → — Figure 827695A 827695A 2011-06 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164C Wire, Floor, NO.4
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82192 Wire, Front Seat, LH
8219B Wire, Front Seat, LH NO.2
82345 Diode
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82671 Block, Junction
82671J Block, Junction, NO.2
82673 Bracket, Junction Block
82673G Bracket, Junction Block
82712A Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817L Protector, Wiring Harness, NO.11
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
82824M Connector, Wiring Harness
82824N Connector, Wiring Harness
82824P Connector, Wiring Harness
82824S Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
