Toyota E'z

2011-06 → 2016-12 · chassis ZGR2# · catalogue 158310 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

94 part groups · 8 illustrations

Illustrations

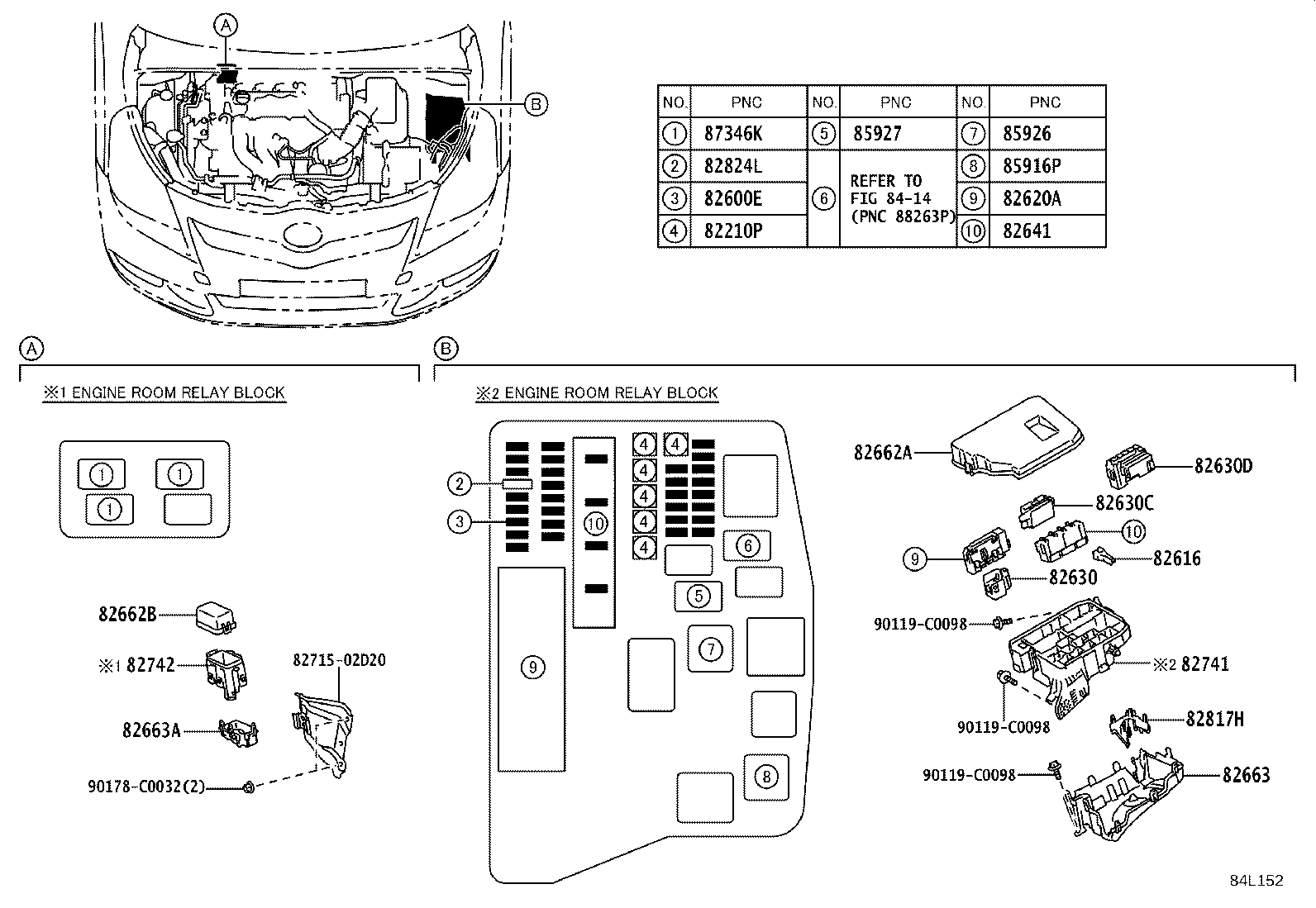

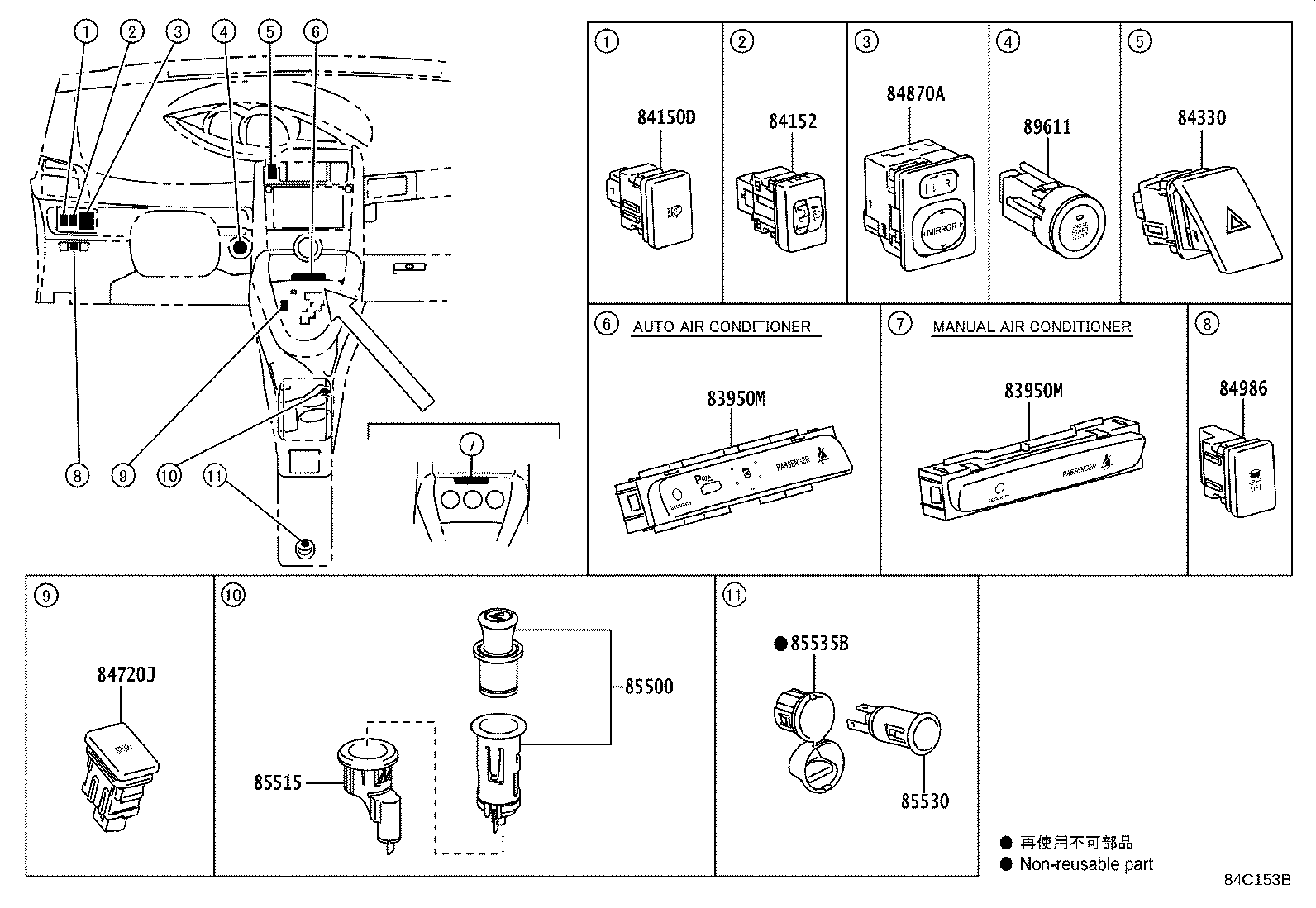

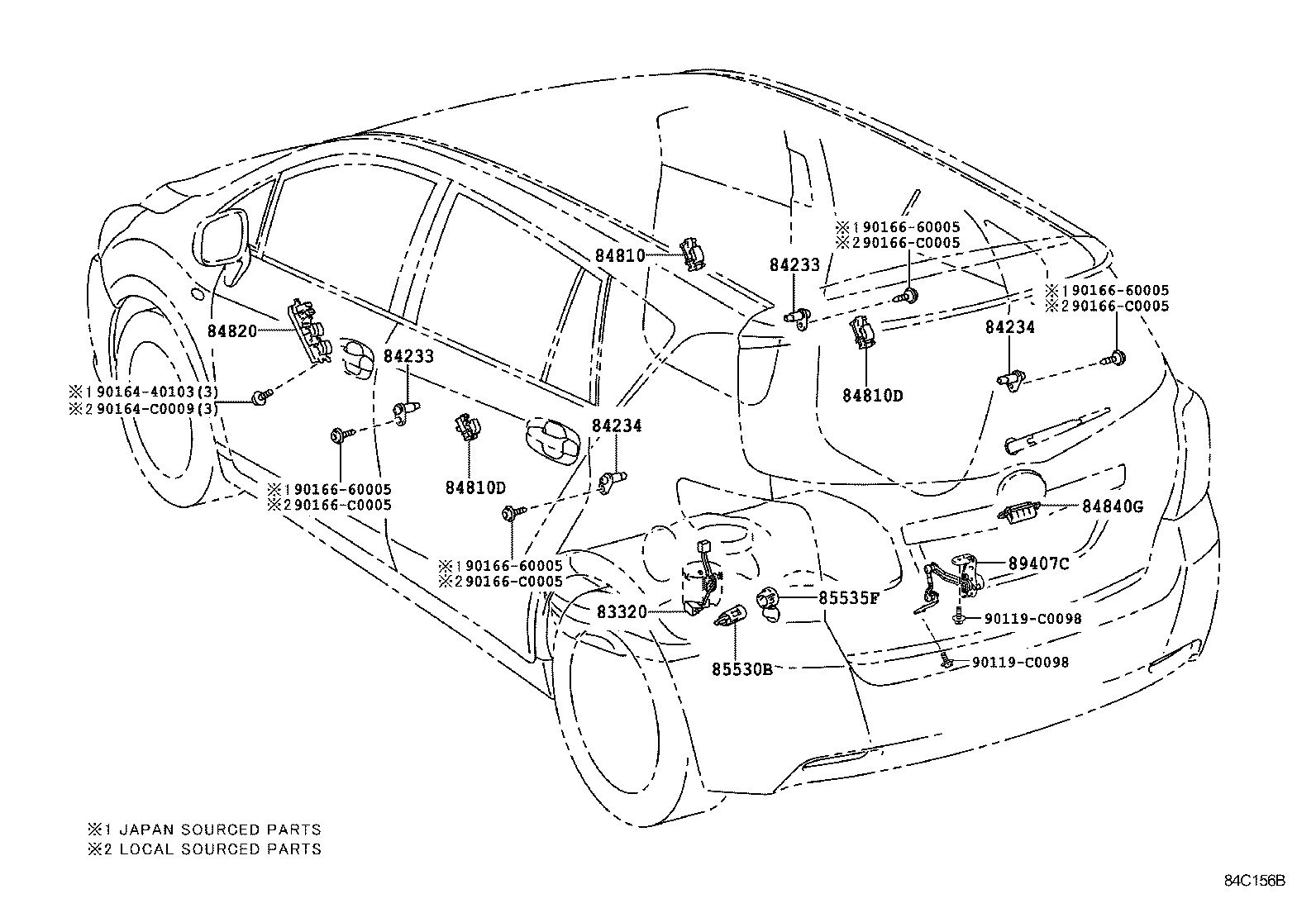

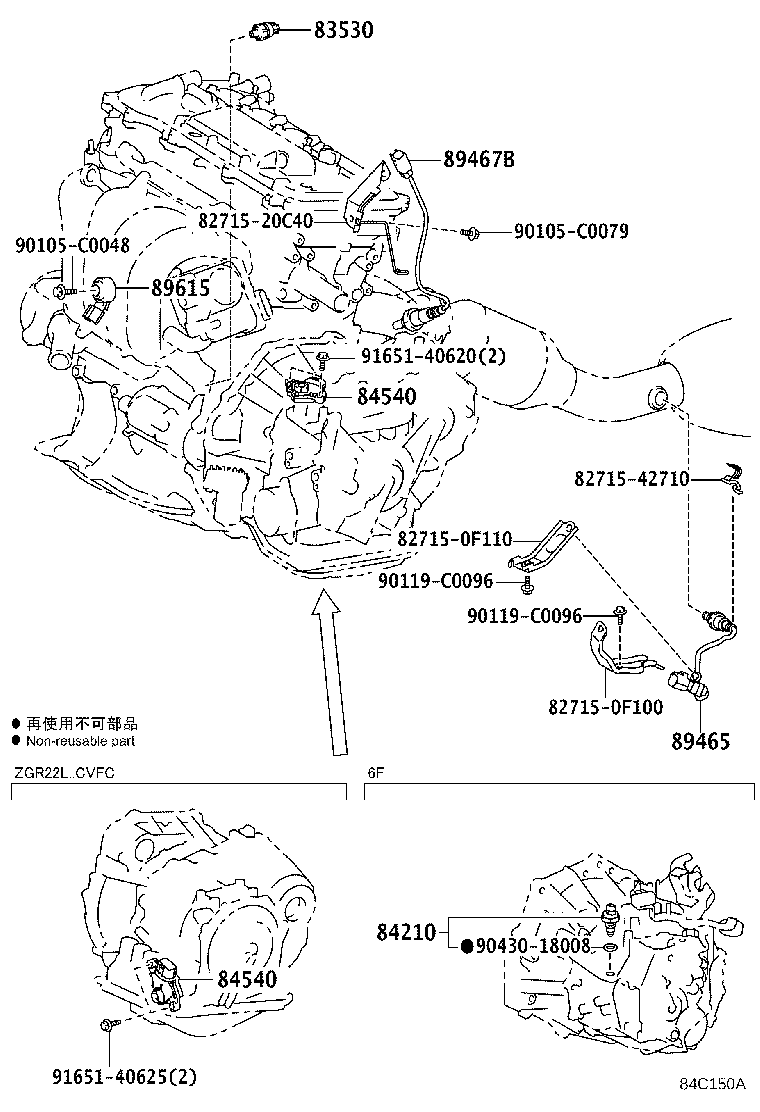

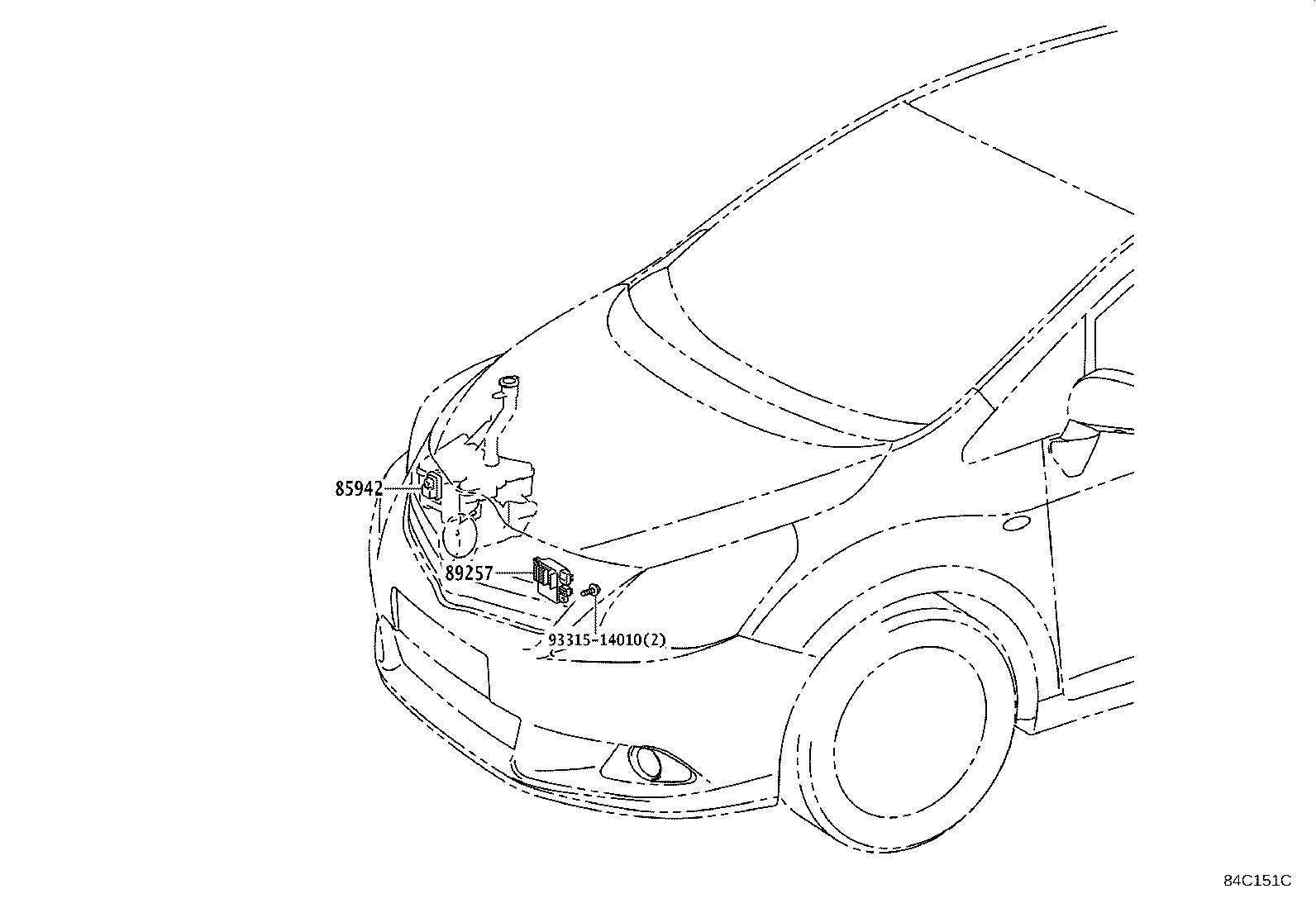

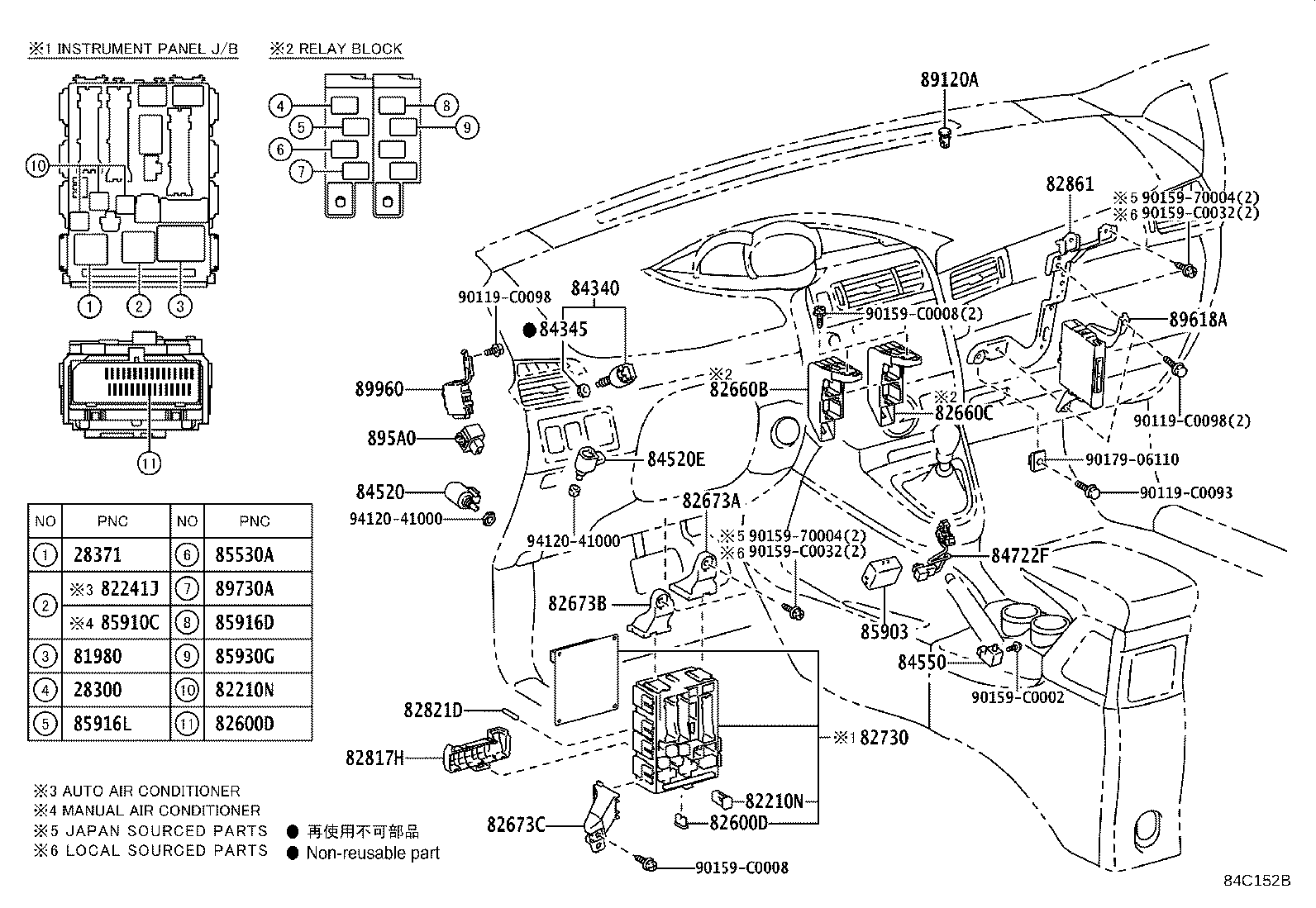

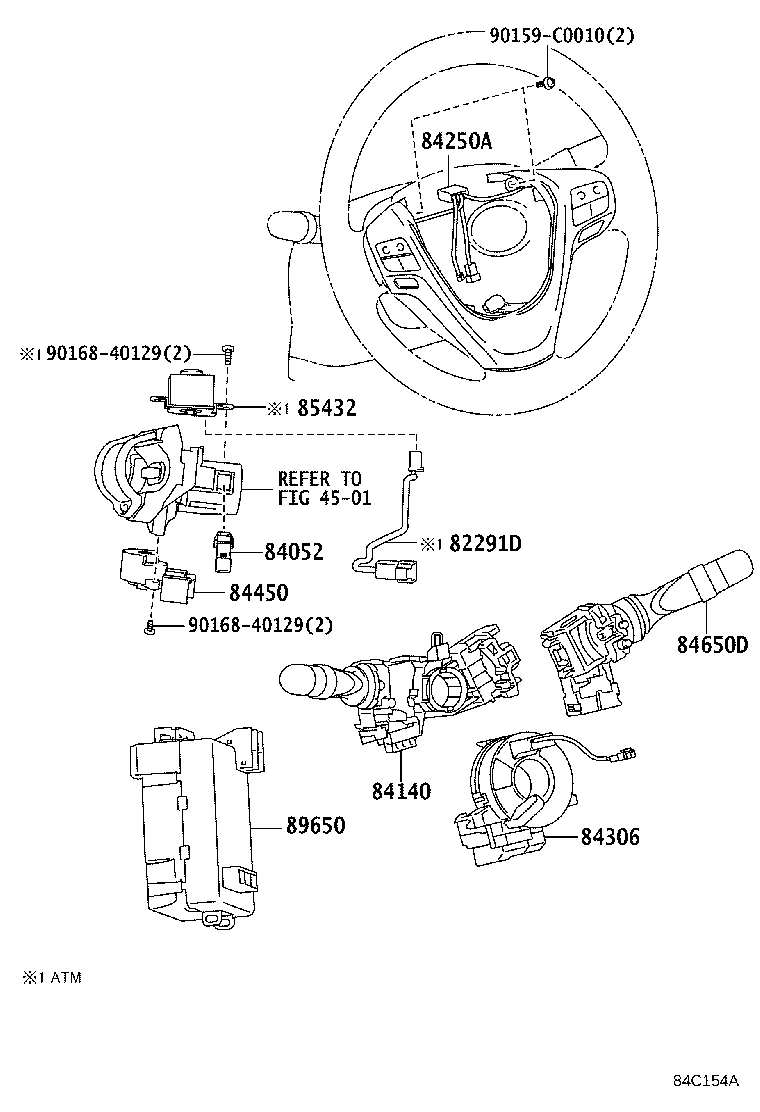

Figure 84C150A 84C150A 2011-06 → — Figure 84C151C 84C151C 2011-06 → — Figure 84L152 84L152 2011-06 → — Figure 84C152B 84C152B 2011-06 → — Figure 84C153B 84C153B 2011-06 → — Figure 84C154A 84C154A 2011-06 → — Figure 84C155 84C155 2011-06 → — Figure 84C156B 84C156B 2011-06 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
81980 Flasher Assy, Turn Signal
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82241J Pin, Short
82291D Wire, TO Solenoid
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82630 Holder Assy, Fuse
82630C Holder Assy, Fuse
82630D Holder, Fuse
82641 Relay, Integration NO.1
82660B Block Assy, Relay
82660C Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82817H Protector, Wiring Harness
82821D Cover, Connector
82824L Pin, Short
82861 Bracket, Computer Integration, NO.1
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83950M Lamp Assy, Telltale
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84520 Switch Assy, Clutch Start
84520E Switch Assy, Clutch Start, NO.2
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84720J Switch Assy, Pattern Select
84722F Switch, Transmission Control
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922A Switch, Front Power Seat(FOR LUMBAR)
84922C Switch, Front Power Seat, LH
84986 Switch, Vehicle Stability Control
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85515 Stay, Cigarette Lighter Bezel
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85530B Socket Assy, Power Outlet, Rear NO.1
85535B Cover, Power Outlet Socket, NO.1
85535F Cover, Power Outlet Socket, Rear
85903 Computer Sub-assy, Shift Lock Control
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85930G Relay, Acc
85942 Relay, Headlamp Cleaner Control
87346K Relay, Ptc Heater
89120A Sensor, Automatic Light Control
89257 Computer, Cooling Fan
89407C Sensor Sub-assy, Height Control, Rear
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
895A0 Relay Assy, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89618A Computer, Power Source Control
89650 Computer Assy, Power Steering
89730A Relay(FOR SECURITY WARNING)
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
