Toyota E'z

2011-06 → 2016-12 · chassis ZGR2# · catalogue 158310 · General

Supported model Data version 2016-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

7 part groups · 1 illustrations

Illustrations

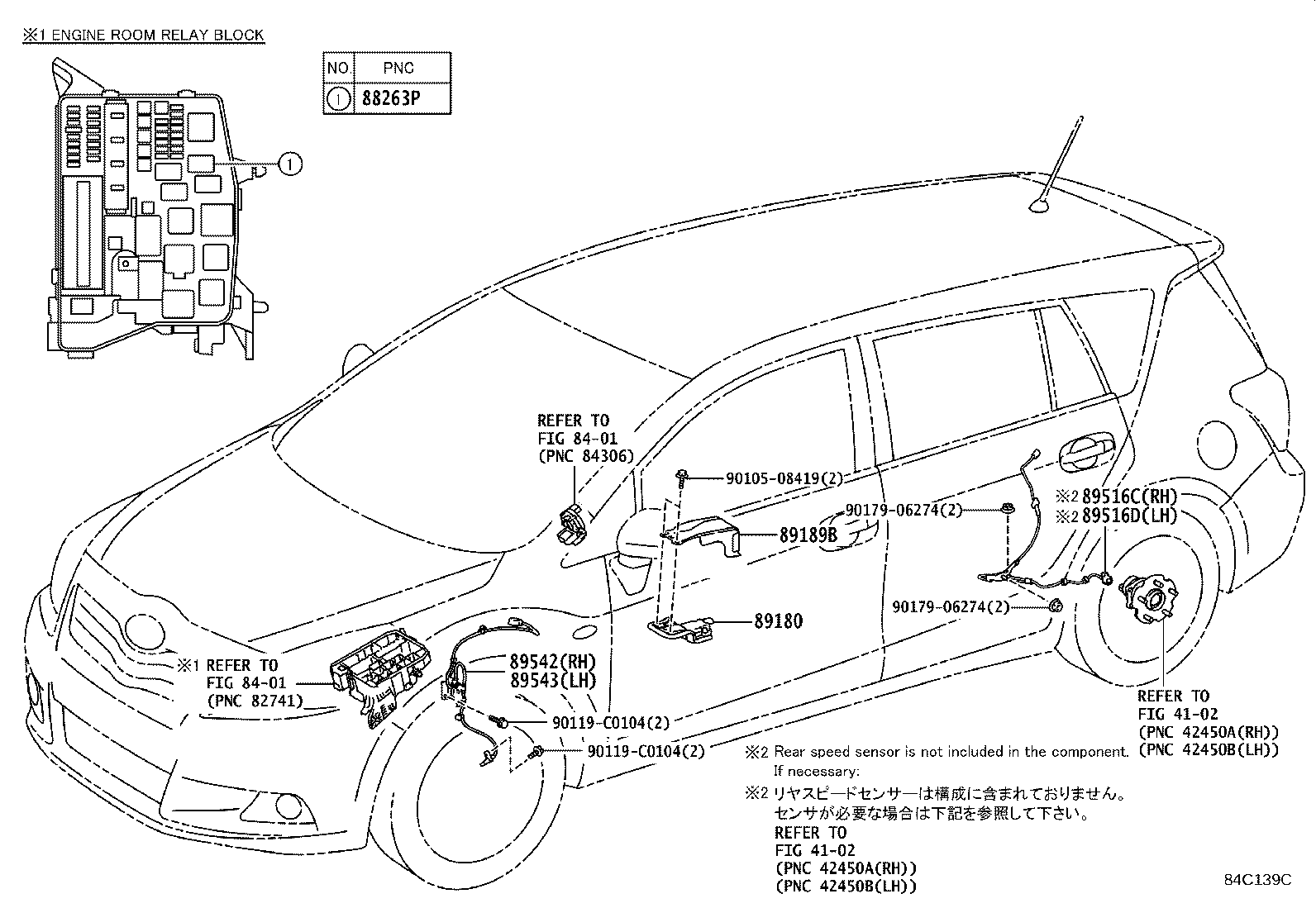

Figure 84C139C

84C139C 2011-06 → —

Part groups

PNC	Description
88263P	Relay, Stop Lamp Control
89180	Sensor Assy, Yawrate
89189B	Bracket, Yawrate Sensor
89516C	Wire, Skid Control Sensor, RH
89516D	Wire, Skid Control Sensor, LH
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
