Toyota E'z
2011-06 → 2016-12 · chassis ZGR2# · catalogue 158310 · General
Supported model
Data version 2016-12
Clearance & Back Sonar
6 part groups · 1 illustrations

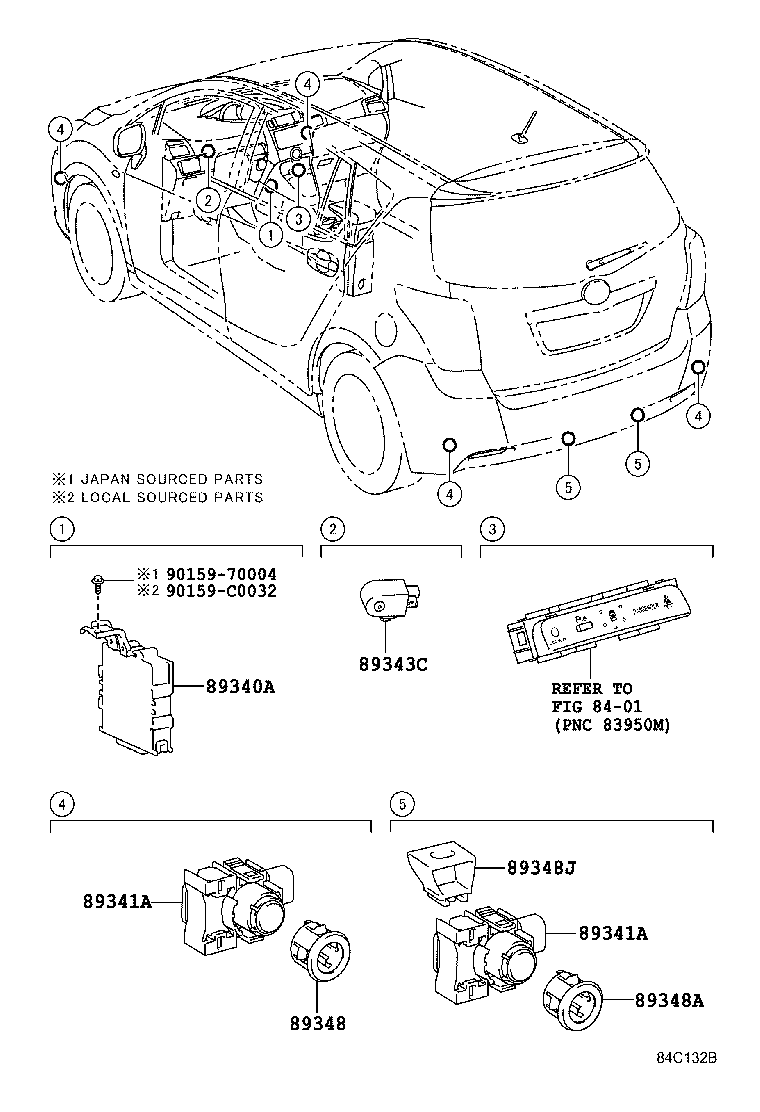

Illustrations
Part groups
| PNC | Description |
|---|---|
| 89340A | Computer Assy, Clearance Warning |
| 89341A | Sensor, Ultrasonic, NO.1 |
| 89343C | Buzzer, Clearance Warning, NO.1 |
| 89348 | Retainer, Ultrasonic Sensor, NO.1 |
| 89348A | Retainer, Ultrasonic Sensor, NO.2 |
| 89348J | Clip, Ultrasonic Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
