Toyota E'z

2011-06 → 2016-12 · chassis ZGR2# · catalogue 158310 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

11 part groups · 2 illustrations

Illustrations

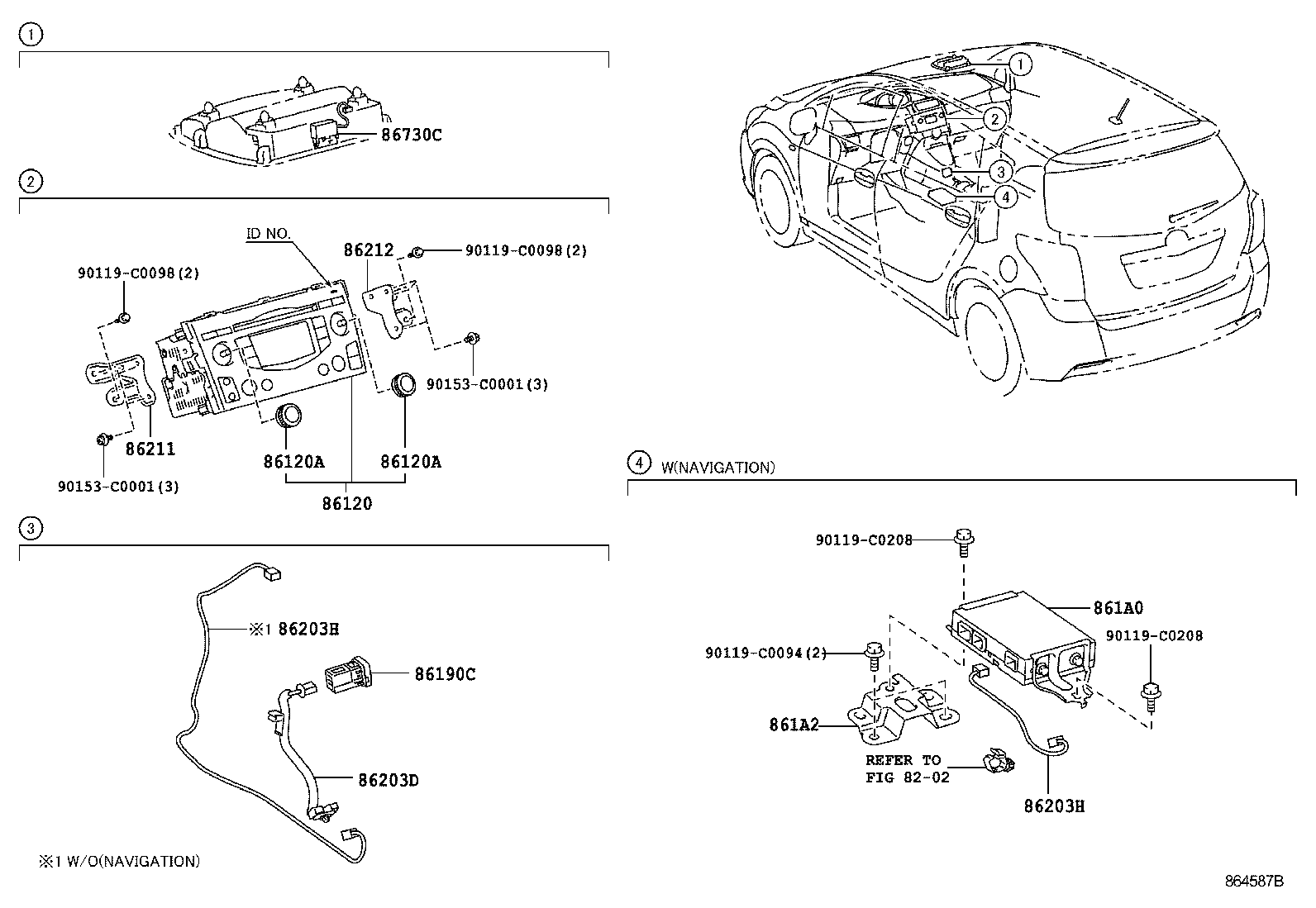

Figure 864587B 864587B 2011-06 → — Figure 864586A 864586A 2011-06 → —

Part groups

PNCDescription
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86190C Adapter Assy, Stereo Jack, NO.1
861A0 Computer Assy, Multi-media Interface
861A2 Bracket, Multi-media Interface, NO.1
86203D Wire, Stereo Component, NO.1
86203H Wire, Stereo Component, NO.2
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86730C Microphone Assy, Telephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
