Toyota E'z
2011-06 → 2016-12 · chassis ZGR2# · catalogue 158310 · General
Supported model
Data version 2016-12
Navigation & Front Monitor Display
7 part groups · 1 illustrations

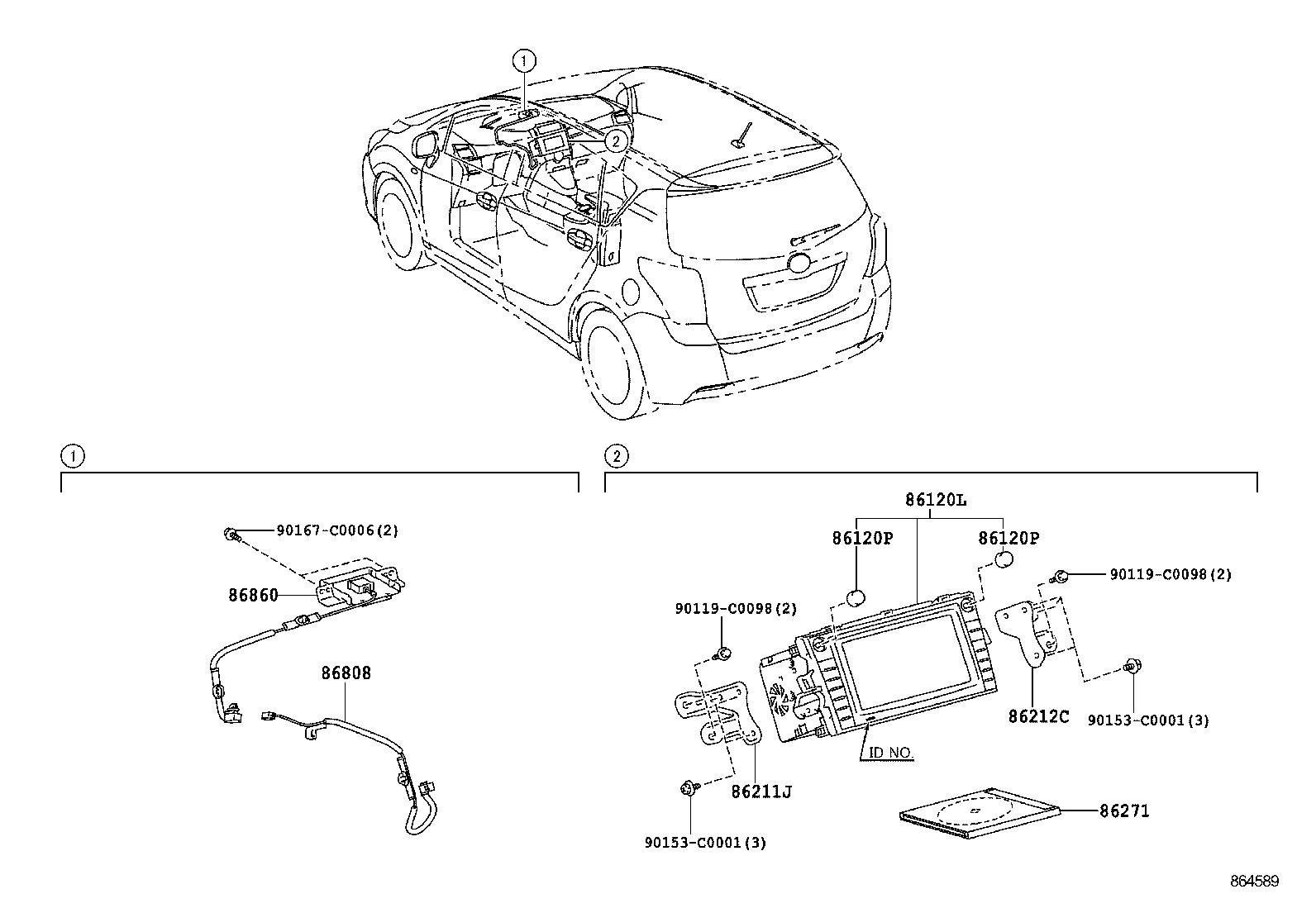

Illustrations
Part groups
| PNC | Description |
|---|---|
| 86120L | Receiver Assy, Navigation |
| 86120P | Knob, Navigation Receiver Switch |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86271 | Disc, Disc Player |
| 86808 | Cord Sub-assy, Navigation Antenna, NO.1 |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
