Toyota E'z

2011-06 → 2016-12 · chassis ZGR2# · catalogue 158310 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

6 part groups · 3 illustrations

Illustrations

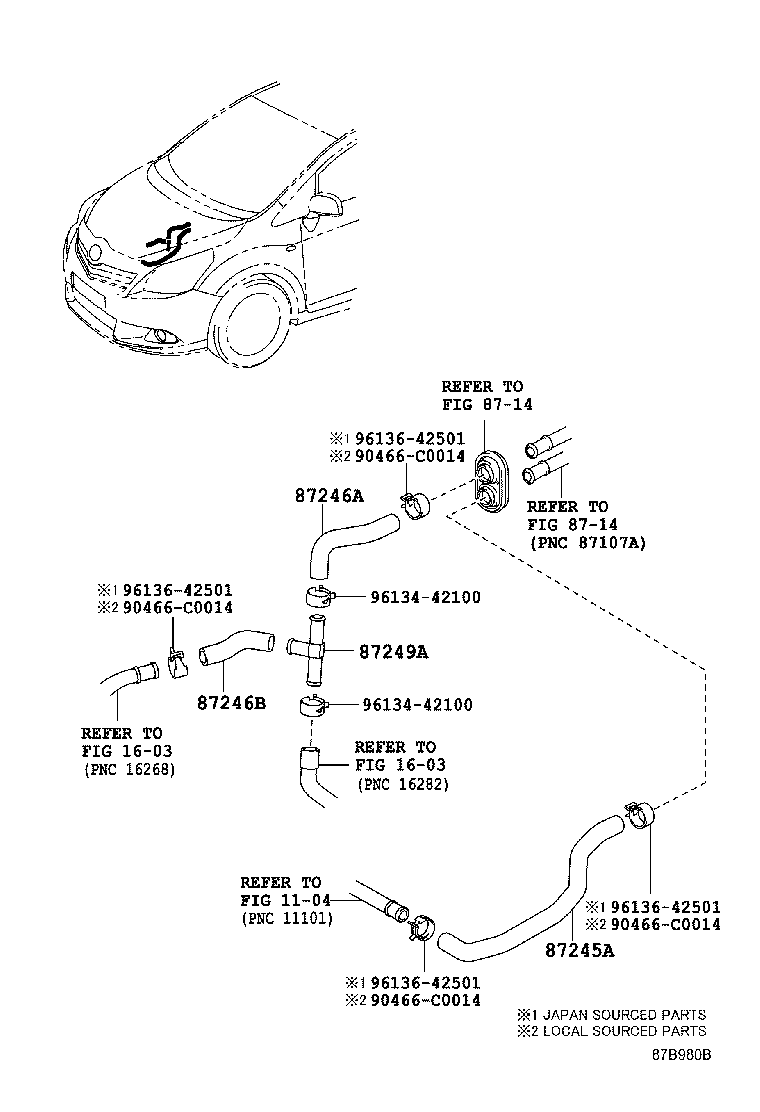

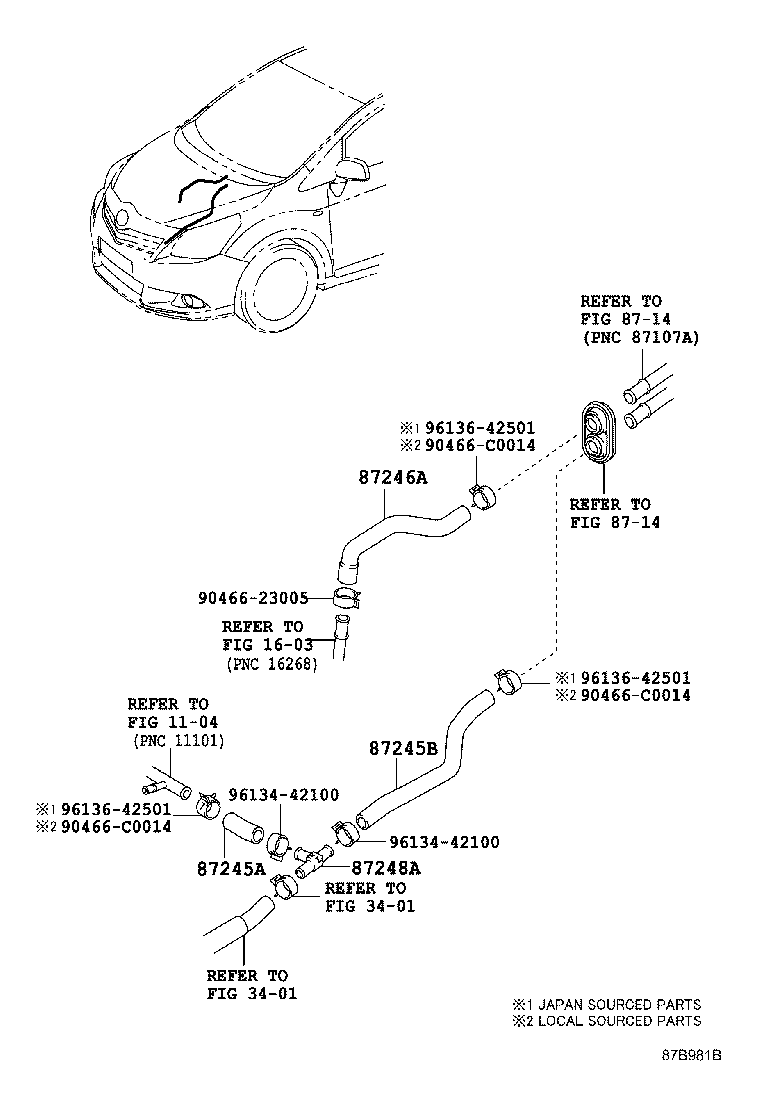

Figure 87B979B 87B979B 2011-06 → — Figure 87B980B 87B980B 2011-06 → — Figure 87B981B 87B981B 2011-06 → —

Part groups

PNCDescription
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
