Toyota Corolla (S.AFRICA)

2002-08 → 2007-07 · chassis ZZE12# · catalogue 158340 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

7 part groups · 2 illustrations

Illustrations

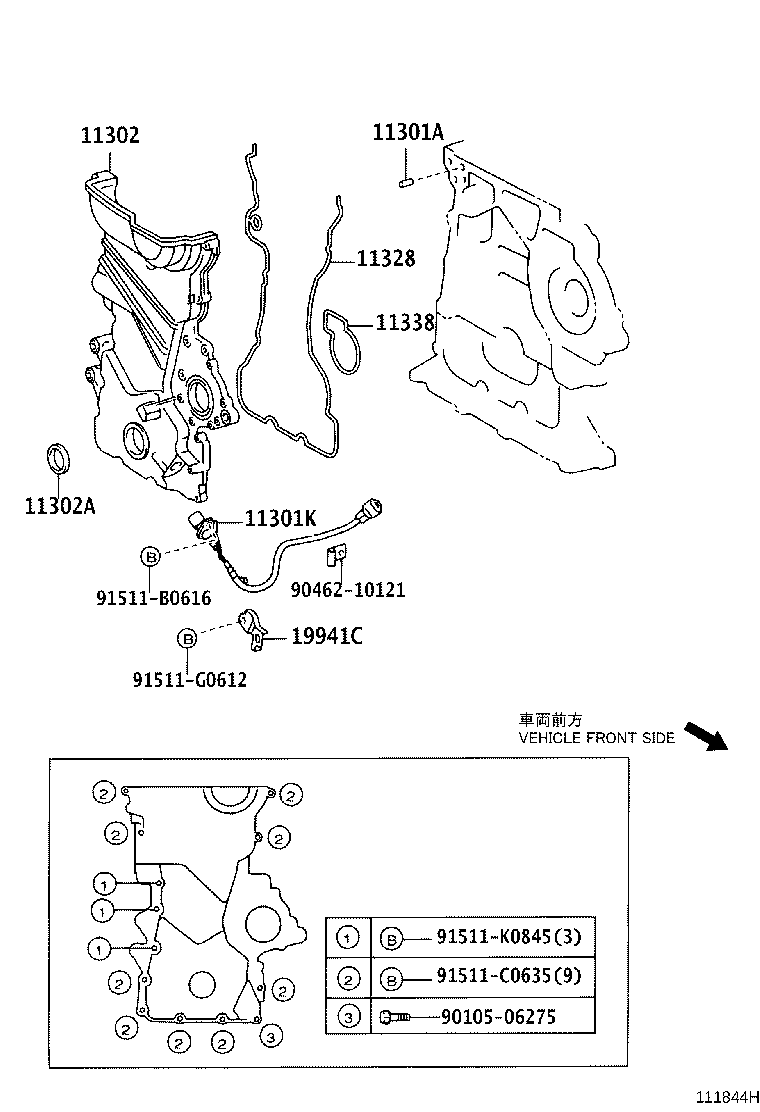

Figure 112491G 112491G 2002-08 → — Figure 111844H 111844H 2002-10 → —

Part groups

PNCDescription
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11328 Gasket, Timing Gear OR Chain Cover
11338 Gasket, Timing Chain Cover, NO.2
19941C Clamp, Cord(FOR CRANK POSITION SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
