Toyota Corolla (S.AFRICA)

2002-08 → 2007-07 · chassis ZZE12# · catalogue 158340 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

6 part groups · 2 illustrations

Illustrations

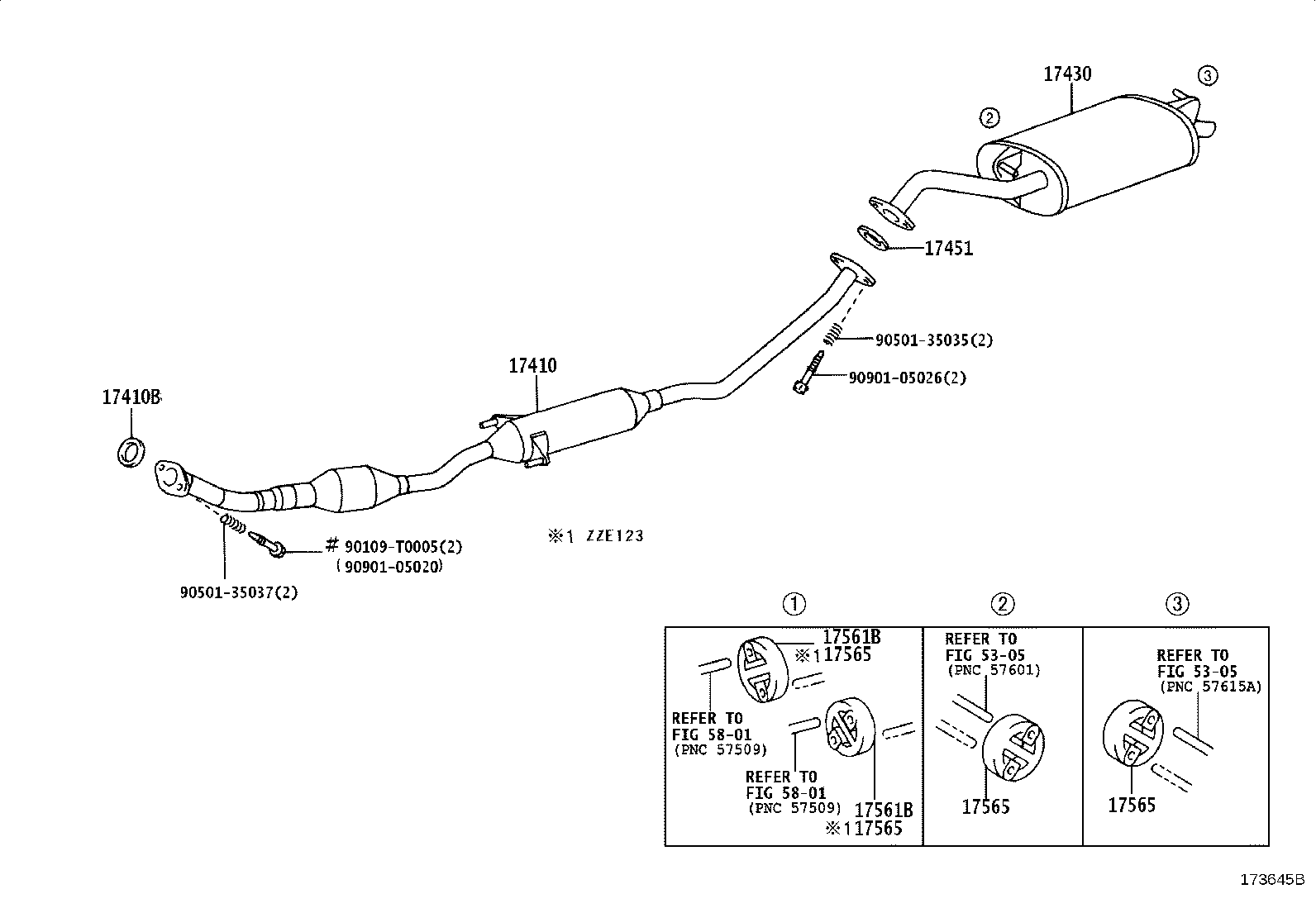

Figure 172883D 172883D 2002-08 → 2007-07 Figure 173645B 173645B 2003-03 → 2007-07

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17561B Support, Exhaust Pipe, NO.1
17565 Support, Exhaust Pipe, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
