Toyota Corolla (S.AFRICA)
2002-08 → 2007-07 · chassis ZZE12# · catalogue 158340 · General
Discontinued model
Data version 2008-01

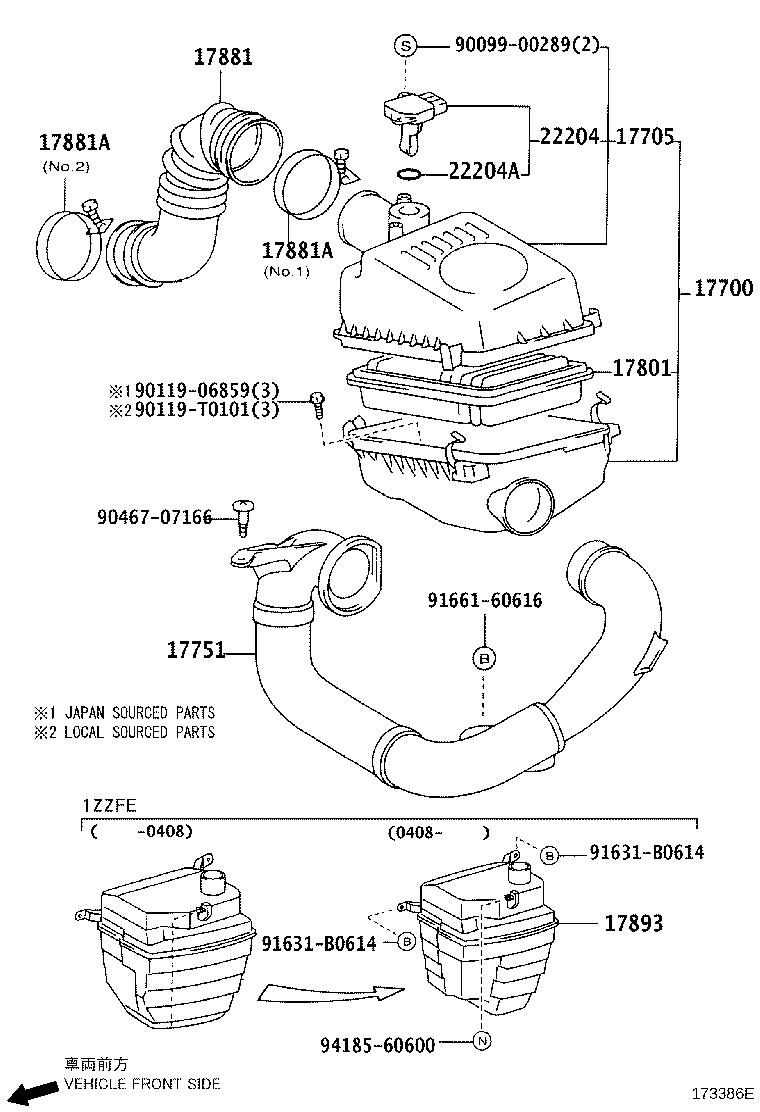

Air Cleaner
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17700 | Cleaner Assy, Air |
| 17701 | Case Sub-assy, Air Cleaner |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17893 | Resonator, Intake Air |
| 22204 | Meter Sub-assy, Intake Air Flow |
| 22204A | Ring, O(FOR INTAKE AIR FLOW METER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
