Toyota Corolla (S.AFRICA)

2002-08 → 2007-07 · chassis ZZE12# · catalogue 158340 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

12 part groups · 3 illustrations

Illustrations

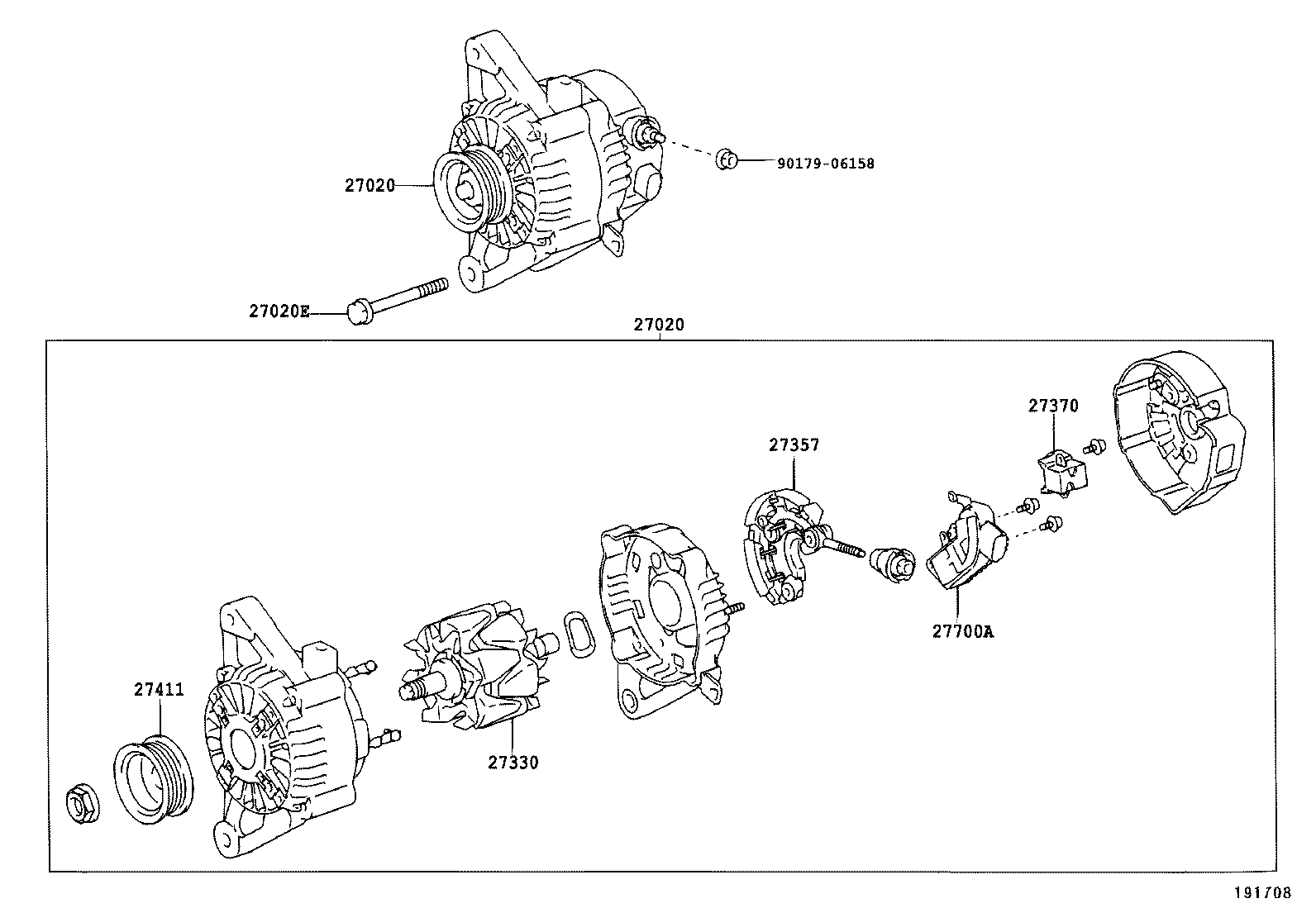

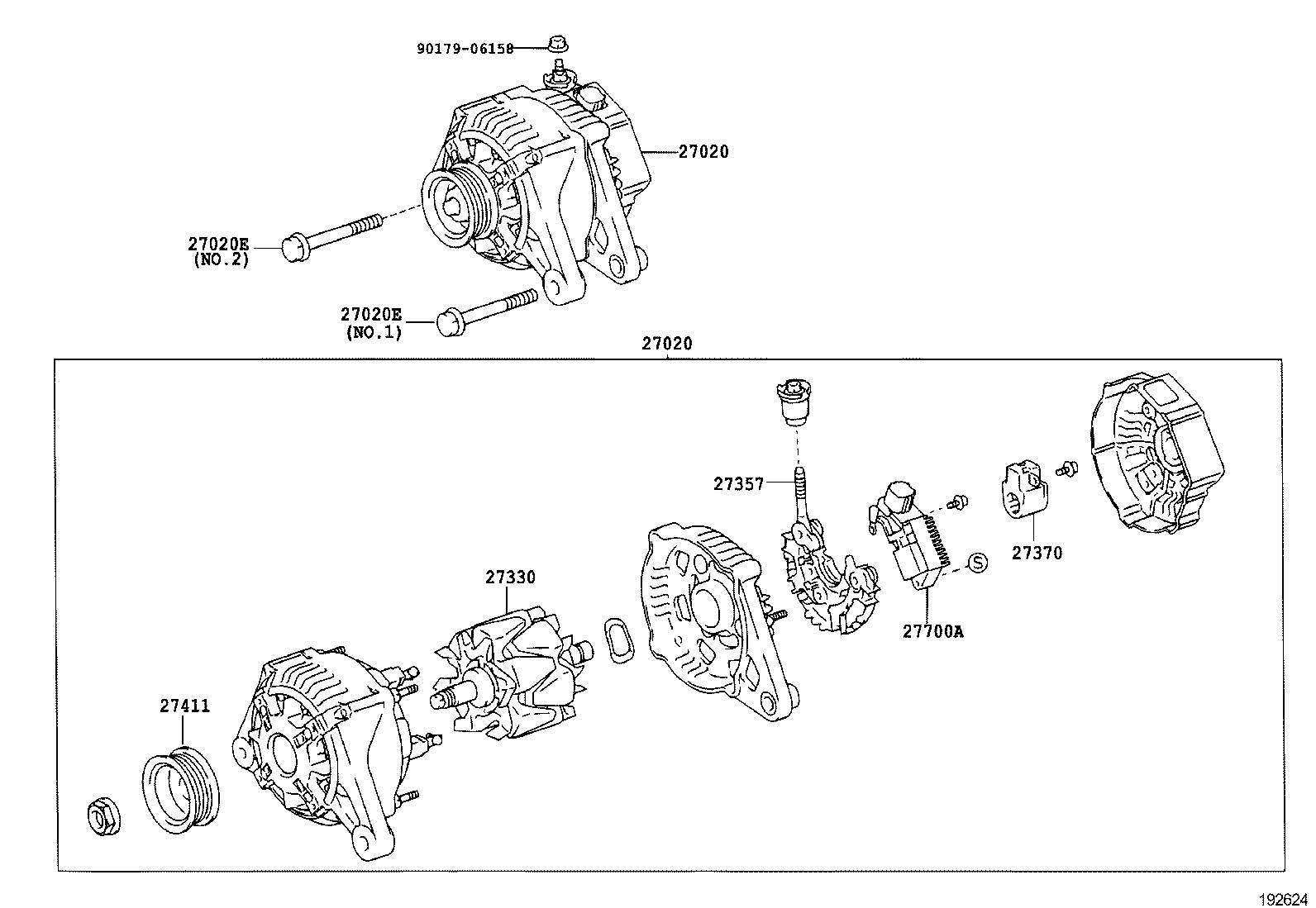

Figure 191626B 191626B 2002-08 → 2007-01 Figure 192624C 192624C 2007-01 → 2007-07 Figure 191708A 191708A 2002-08 → 2007-07

Part groups

PNCDescription
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27039 Cover, Alternator Rear End
27310 Frame Assy, Drive End, Alternator
27330 Rotor Assy, Alternator
27357 Holder, Alternator, W/Rectifier
27370 Holder Assy, Alternator Brush
27403 Pulley Set, Alternator
27404 Bearing Set, Alternator
27411 Pulley, Alternator
27700A Regulator Assy, Generator
27702 Regulator Sub-assy Generator W/Brush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
