Toyota Corolla (S.AFRICA)
2002-08 → 2007-07 · chassis ZZE12# · catalogue 158340 · General
Discontinued model
Data version 2008-01

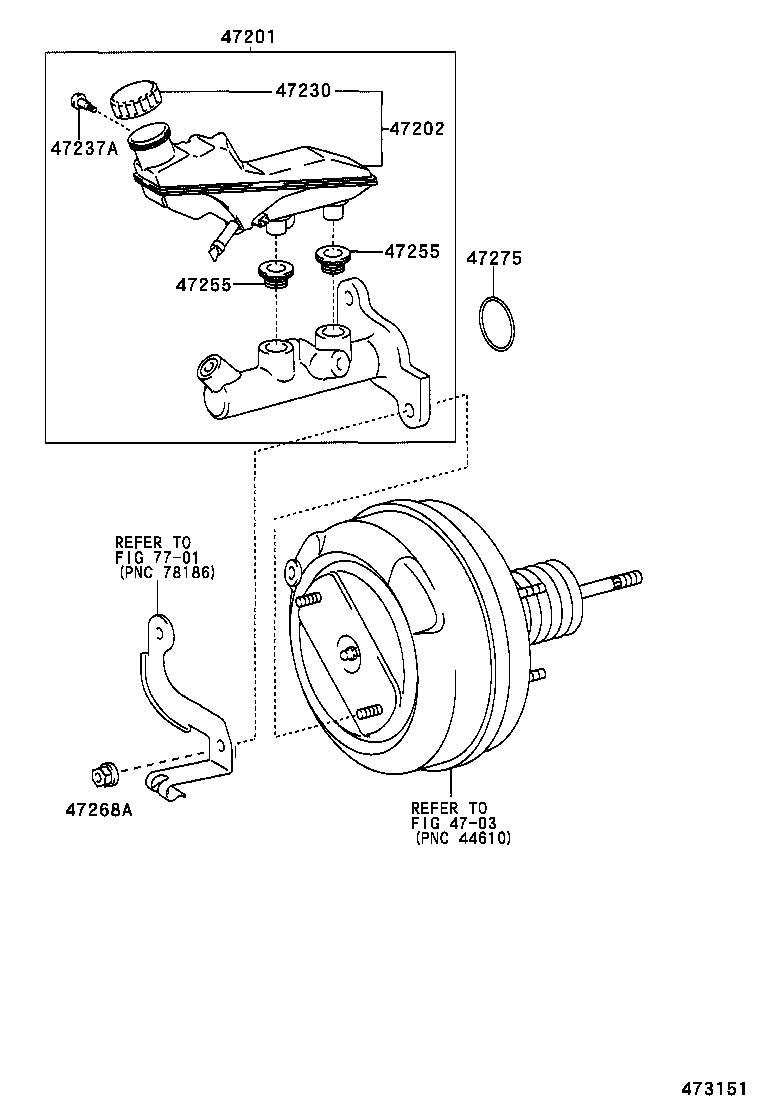

Brake Master Cylinder
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04493 | Cylinder Kit, Brake Master |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47210J | Gasket(FOR MASTER CYLINDER) |
| 47210T | Bolt(FOR BRAKE MASTER CYLINDER) |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47237A | Stopper, Breke Master Cylinder Reservoir Tank |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47268A | Nut, Brake Master Cylinder |
| 47275 | Gasket, Brake Master Cylinder |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
