Toyota Corolla (S.AFRICA)

2002-08 → 2007-07 · chassis ZZE12# · catalogue 158340 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

11 part groups · 4 illustrations

Illustrations

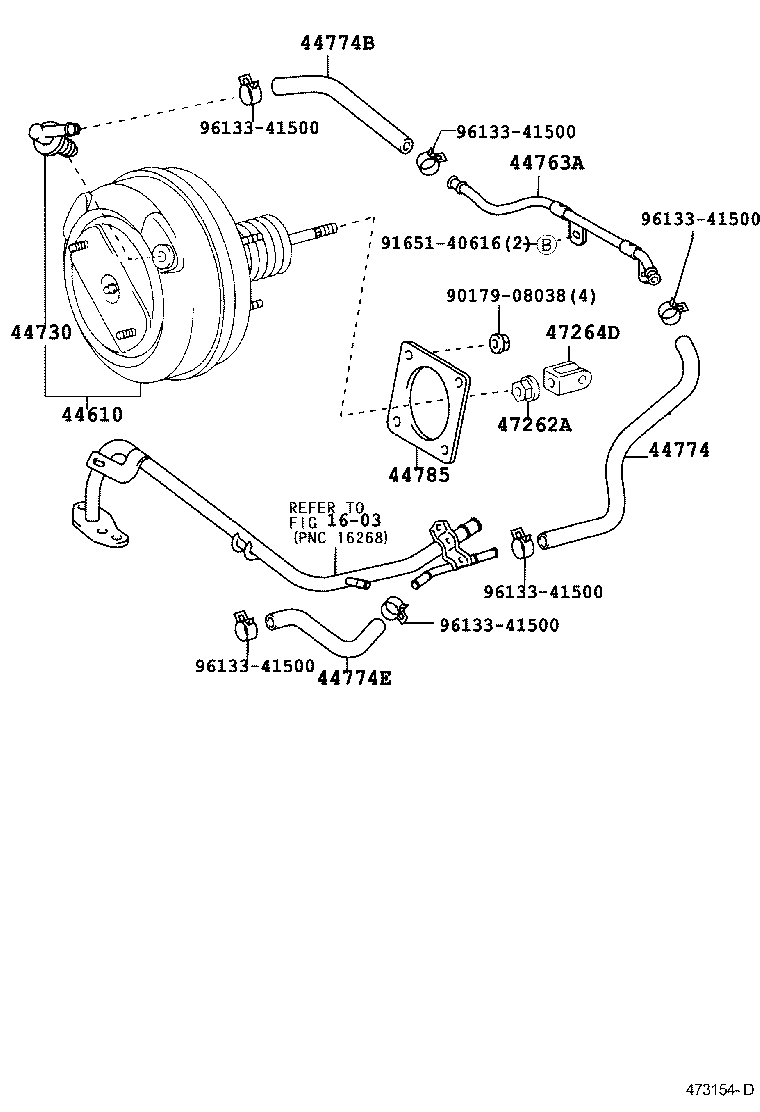

Figure 473153B 473153B 2002-08 → 2004-08 Figure 473153B 473153B 2003-03 → 2004-08 Figure 473154D 473154D 2002-08 → — Figure 473152D 473152D 2002-10 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44763A Tube, Hose TO Hose, NO.1
44774 Hose, Union TO Connector Tube
44774B Hose, Union TO Connector Tube
44774E Hose, Union TO Connector Tube
44785 Gasket, Brake Booster
47262A Nut, Master Cylinder Push Rod Clevis Lock
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
