Toyota Corolla (S.AFRICA)
2002-08 → 2007-07 · chassis ZZE12# · catalogue 158340 · General
Discontinued model
Data version 2008-01

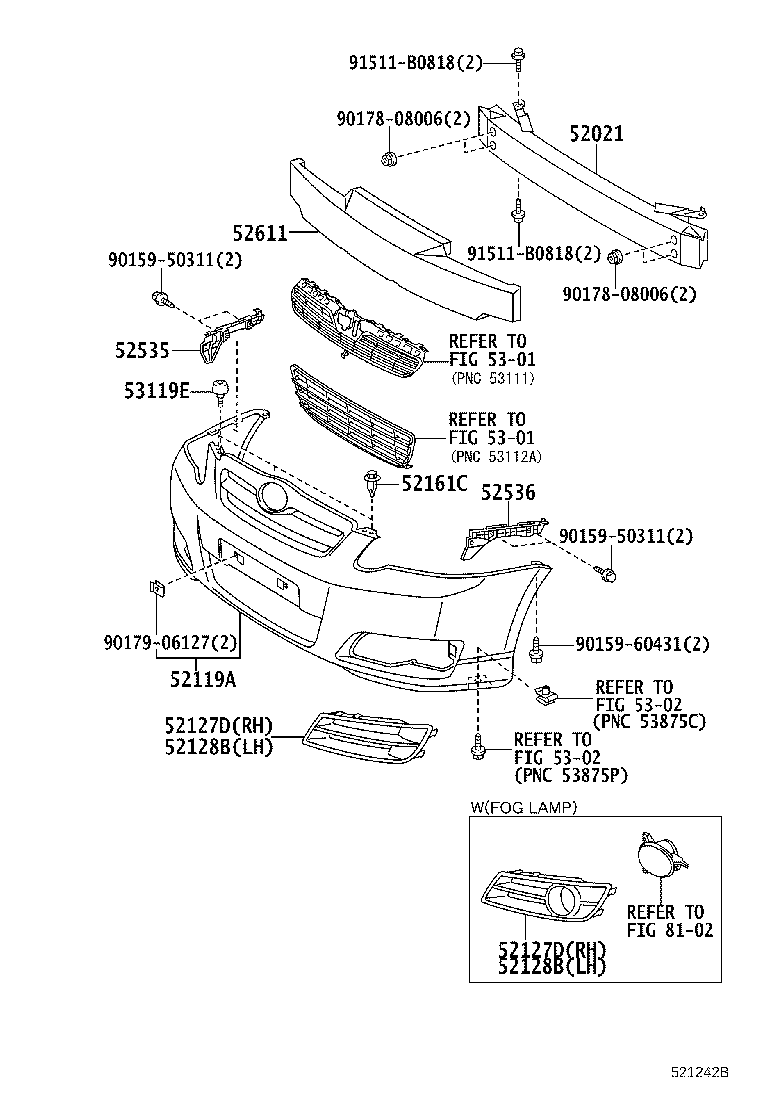

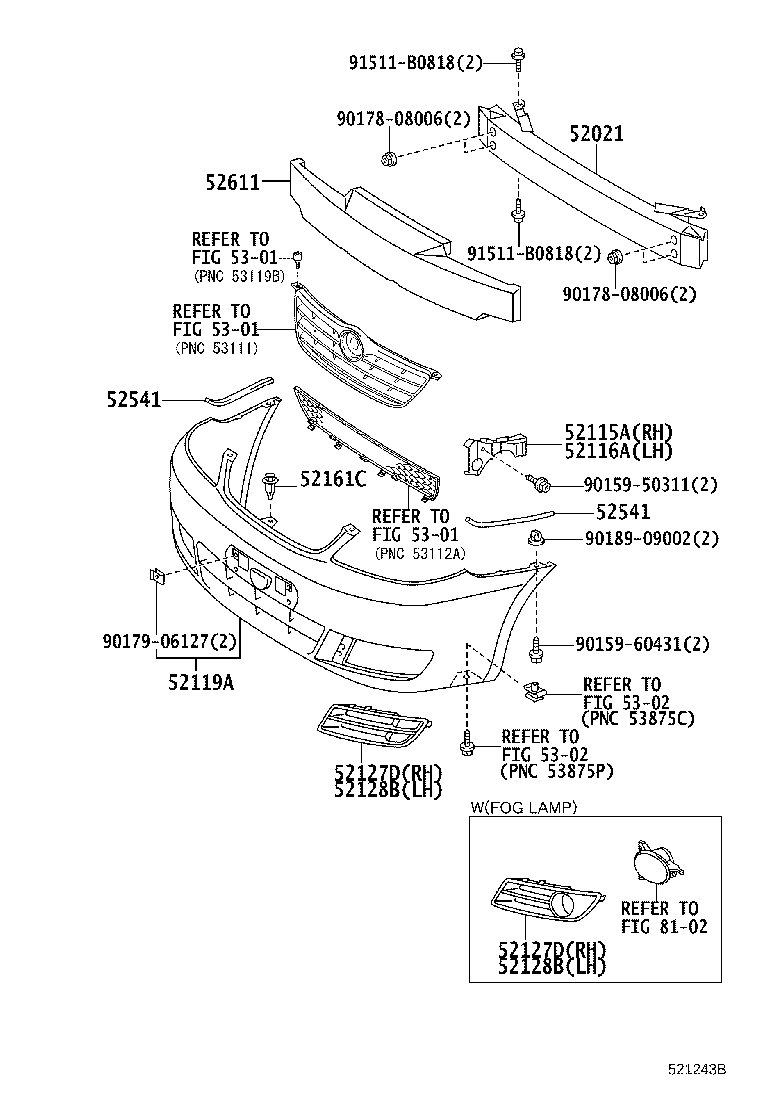

Front Bumper & Bumper Stay
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52161C | Piece, Front Bumper |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52541 | Protector, Front Bumper |
| 52611 | Absorber, Front Bumper Energy |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53119E | Protector, Radiator Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
