Toyota Corolla (S.AFRICA)

2002-08 → 2007-07 · chassis ZZE12# · catalogue 158340 · General

Discontinued model Data version 2008-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

3 part groups · 3 illustrations

Illustrations

Figure 531333A

531333A 2002-08 → 2004-08

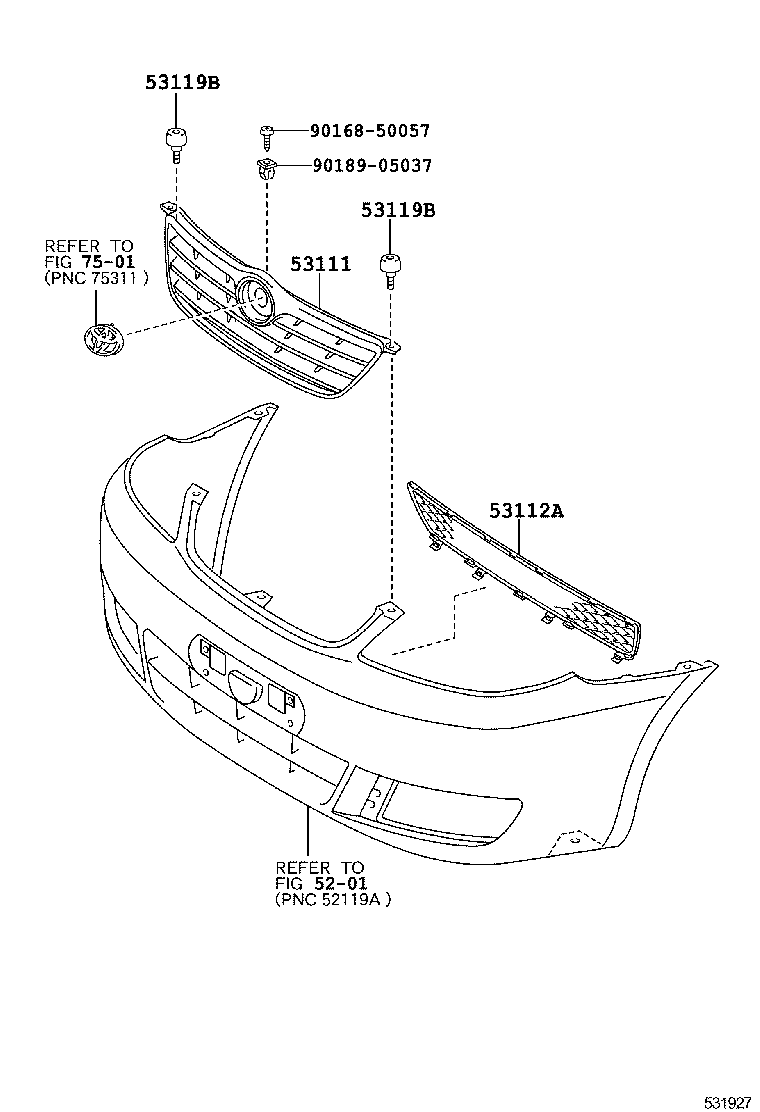

531927 2004-08 → —

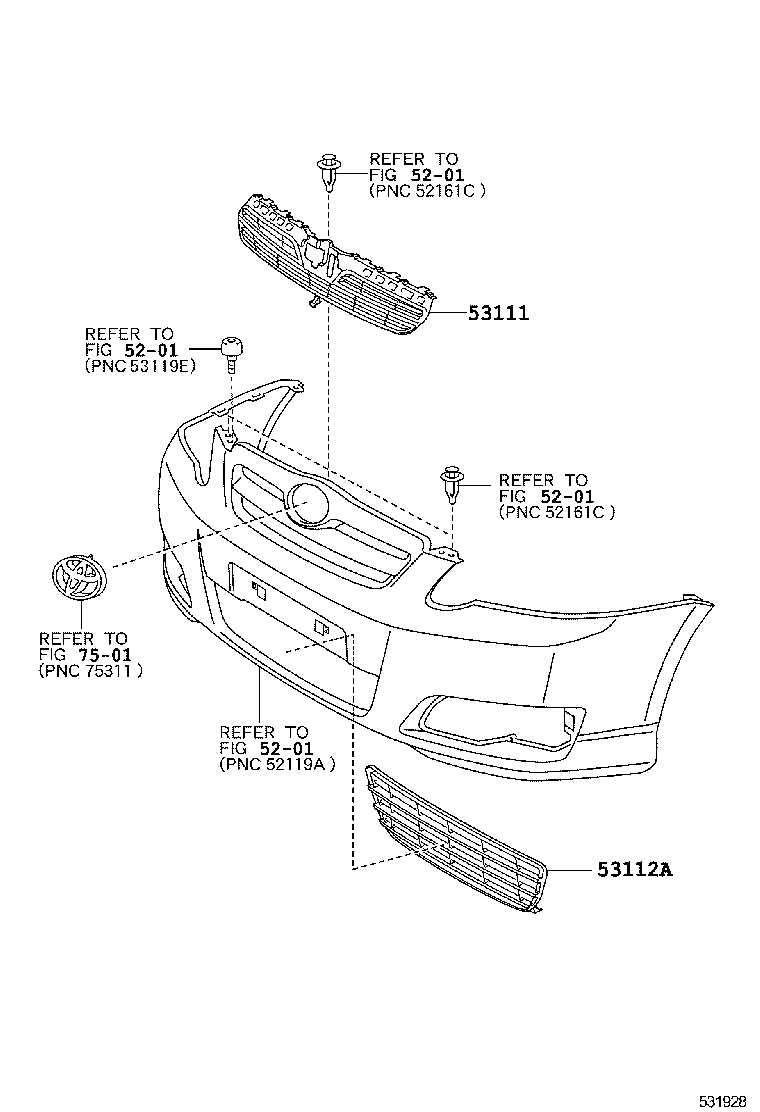

531928 2004-08 → —

Part groups

PNC	Description
53111	Grille, Radiator
53112A	Grille, Radiator, Lower
53119B	Protector, Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
