Toyota Corolla (S.AFRICA)
2002-08 → 2007-07 · chassis ZZE12# · catalogue 158340 · General
Discontinued model
Data version 2008-01

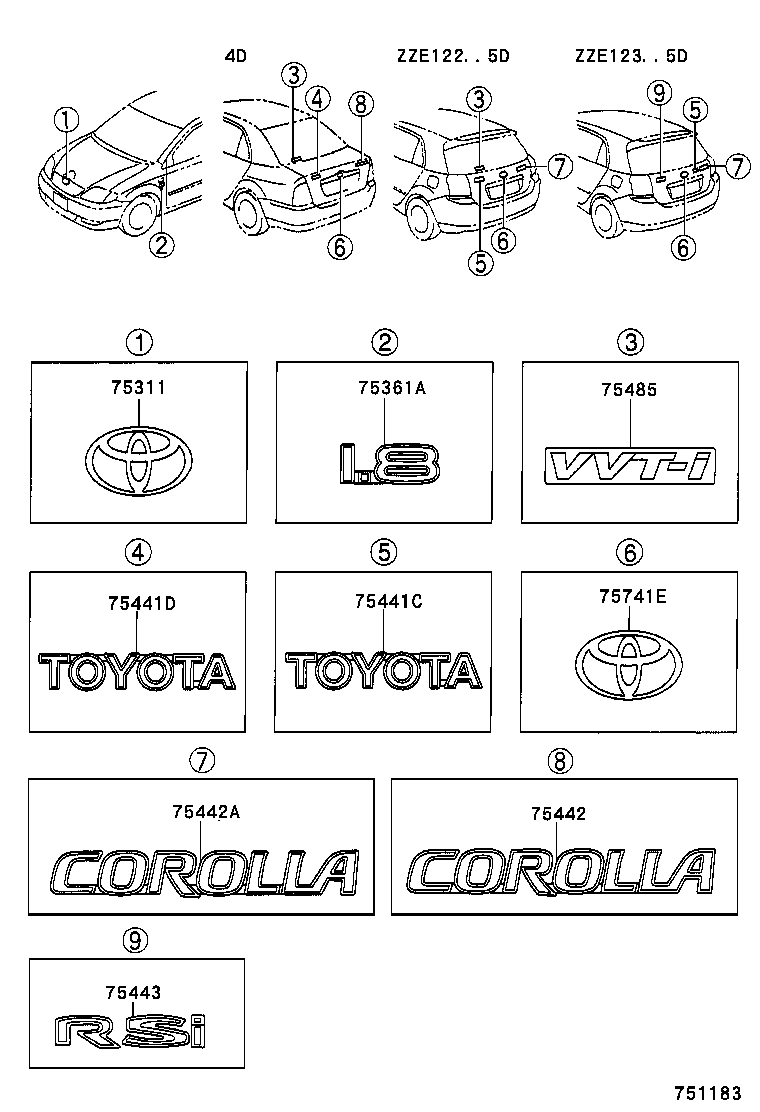

Emblem & Name Plate (EXTERIOR & INTERIOR)
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75311 | Emblem, Radiator Grille (OR FRONT PANEL) |
| 75361A | Plate, Front Fender Name, NO.1 |
| 75441C | Plate, Back Door Name |
| 75441D | Plate, Luggage Compartment Door Name, NO.1 |
| 75442 | Plate, Luggage Compartment Door Name, NO.2 |
| 75442A | Plate, Back Door Name, NO.2 |
| 75442B | Plate, Back Door Name, NO.2 |
| 75443 | Plate, Back Door Name, NO.3 |
| 75443A | Plate, Luggage Compartment Door, NO.3 |
| 75444 | Plate, Luggage Compartment Door, NO.4 |
| 75485 | Plate, Back Window Name |
| 75741E | Emblem, Symbol |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
