Toyota Corolla (S.AFRICA)

2002-08 → 2007-07 · chassis ZZE12# · catalogue 158340 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

10 part groups · 3 illustrations

Illustrations

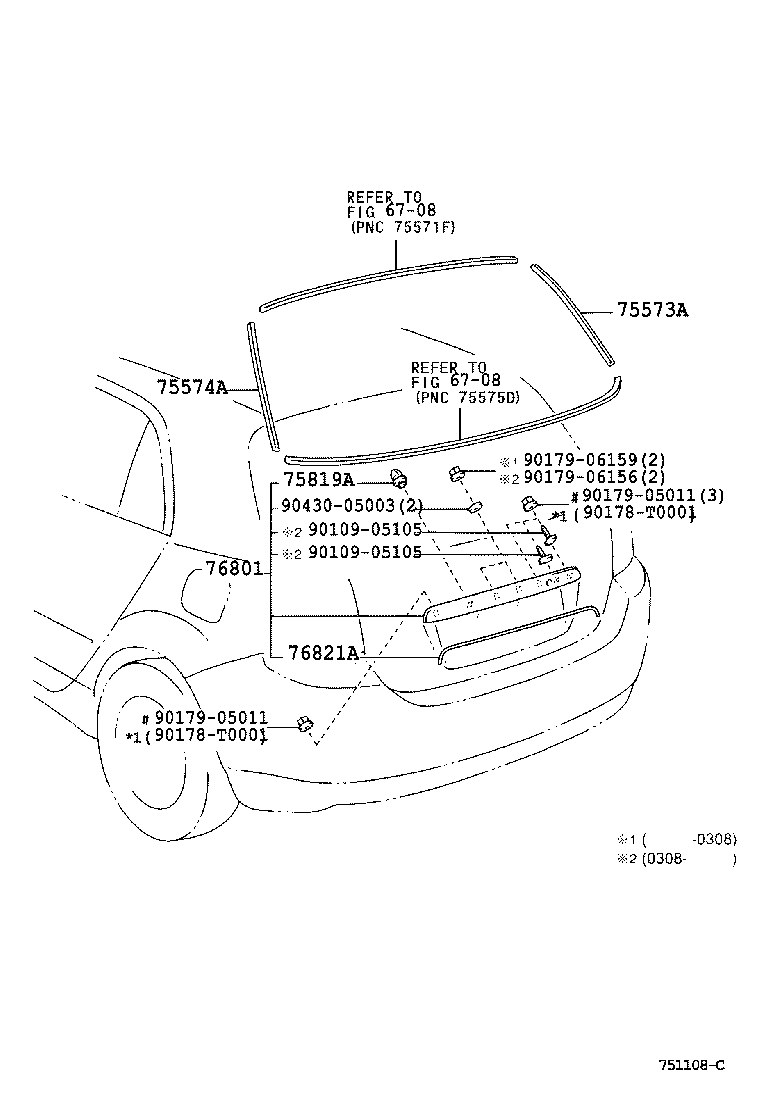

Figure 751107A 751107A 2002-08 → 2003-08 Figure 751231A 751231A 2003-08 → 2007-07 Figure 751108C 751108C 2002-10 → 2007-07

Part groups

PNCDescription
75571 Moulding, Back Window, Outside Upper
75573A Moulding, Back Window, Outside RH
75574A Moulding, Back Window, Outside LH
75819A Clip, Back Door Moulding
76801 Garnish Sub-assy, Back Door, Outside
76811B Garnish, Luggage Compartment Door, Outside
76817 Clip, Back Door Outside Garnish
76818A Pad, Luggage Garnish, NO.1
76821A Protector, Luggage Compartment Door Outside Garnish
76826 Retainer, Back Door Garnish, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
