Toyota Corolla (S.AFRICA)

2002-08 → 2007-07 · chassis ZZE12# · catalogue 158340 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

15 part groups · 4 illustrations

Illustrations

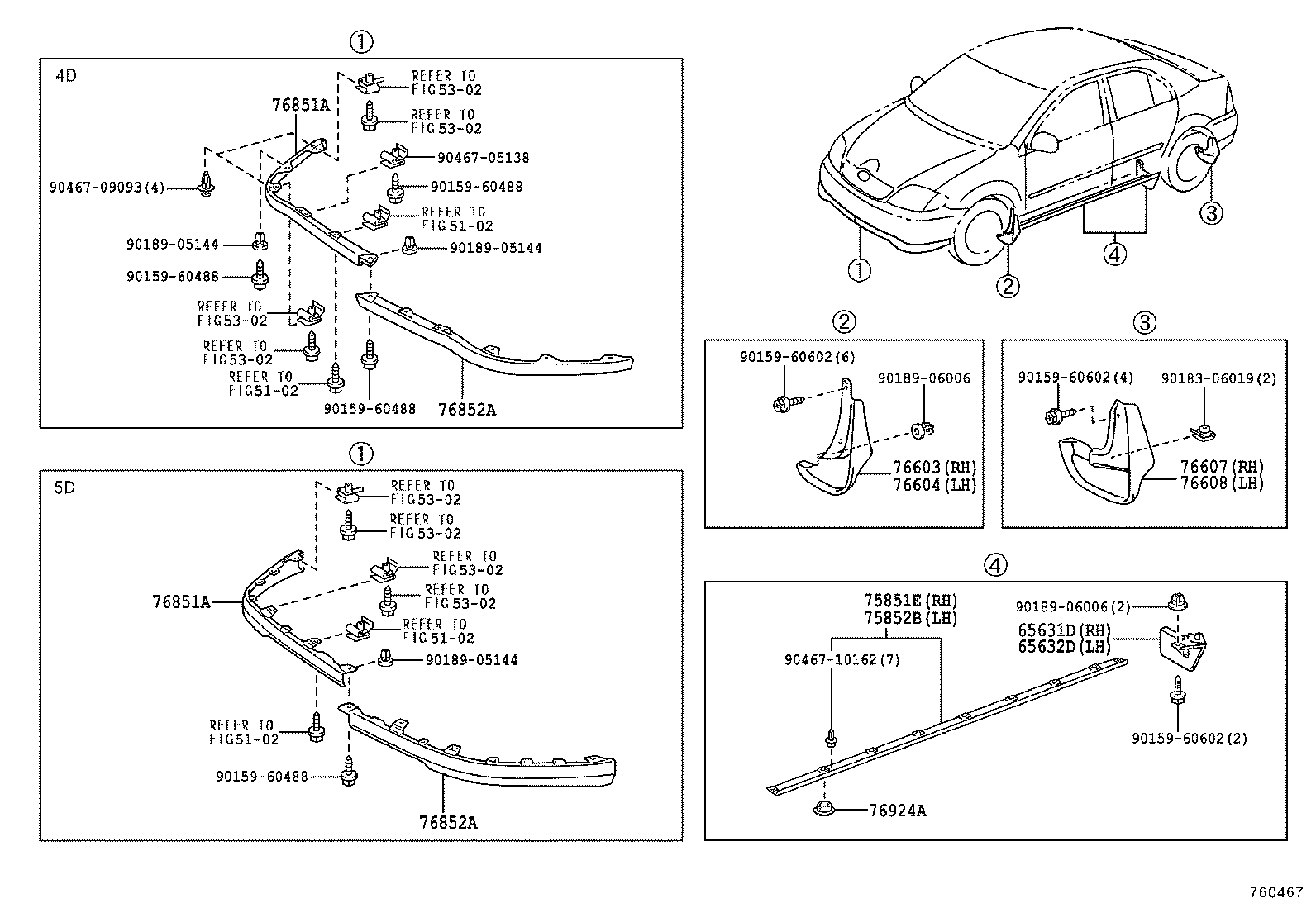

Figure 760287 760287 2002-08 → 2004-08 Figure 760467 760467 2004-08 → 2007-07 Figure 760232 760232 2002-10 → 2007-07 Figure 760232 760232 2006-08 → 2007-07

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75851E Moulding, Body Rocker Panel, RH
75852B Moulding, Body Rocker Panel, LH
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76871 Spoiler, Rear
76873 Protector, Rear Spoiler, NO.2
76875 Protector, Rear Spoiler, NO.4
76876A Protector, Rear Spoiler, NO.10
76924A Retainer, Side Mudguard, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
