Toyota Corolla (S.AFRICA)

2002-08 → 2007-07 · chassis ZZE12# · catalogue 158340 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

7 part groups · 6 illustrations

Illustrations

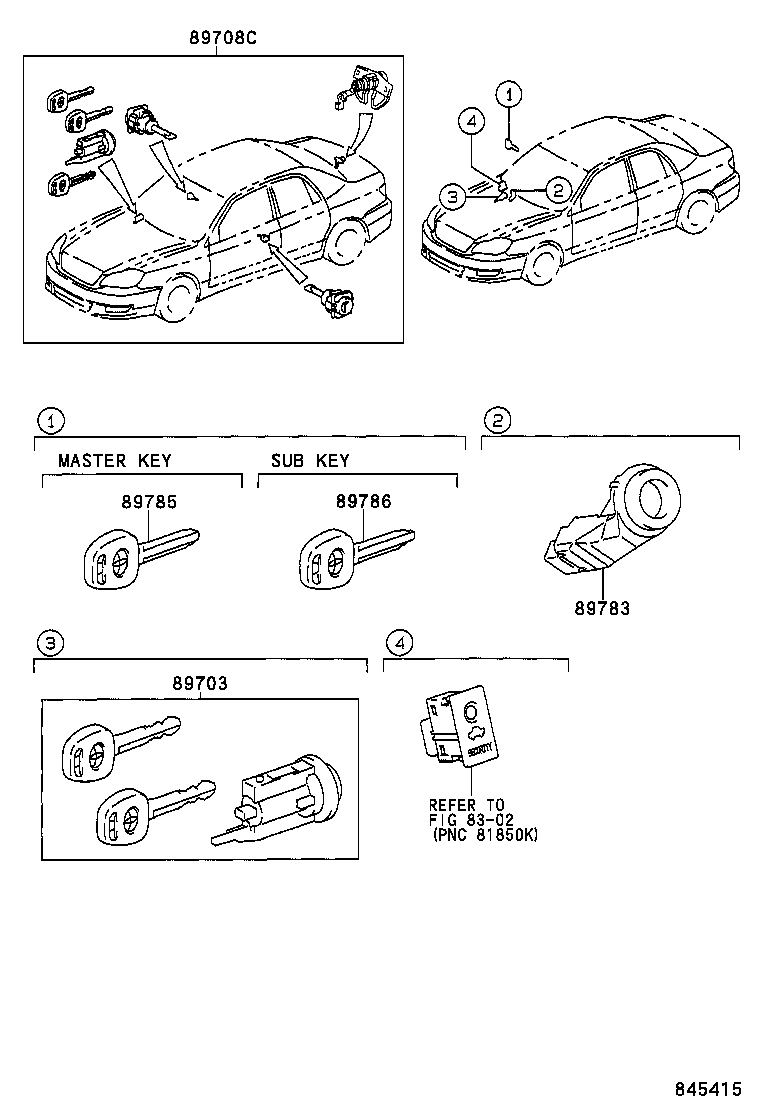

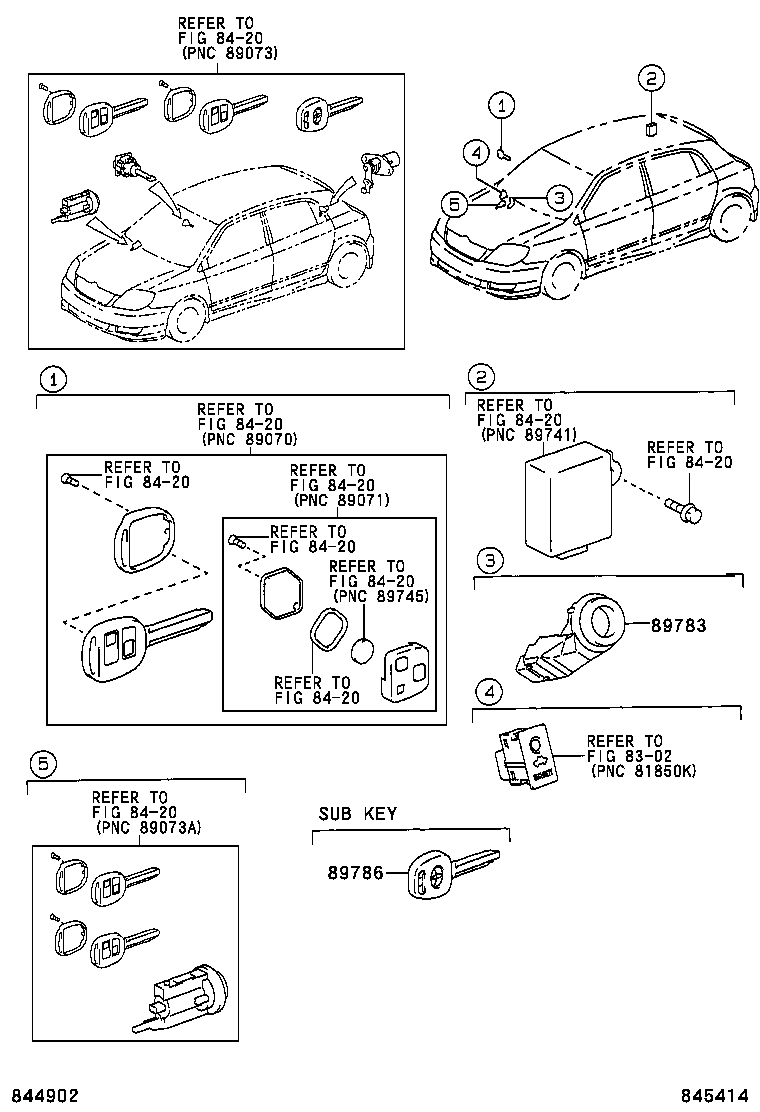

Figure 844903B 844903B 2002-08 → 2004-08 Figure 844903B 844903B 2004-08 → 2007-07 Figure 845414 845414 2003-03 → 2004-08 Figure 845414 845414 2004-08 → 2005-10 Figure 845415 845415 2003-03 → 2004-08 Figure 845415 845415 2004-08 → 2005-06

Part groups

PNCDescription
89703 Cylinder & Key Set, Ignition W/Transponder
89708C Cylinder Set, Lock W/Transponder Key Transmitter
89729 Switch, Theft Warning Courtesy
89730B Computer Assy, Theft Warning
89783 Amplifier, Transponder Key
89785 Transmitter, Transponder Key Master
89786 Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
