Toyota Corolla (S.AFRICA)
2002-08 → 2007-07 · chassis ZZE12# · catalogue 158340 · General
Discontinued model
Data version 2008-01

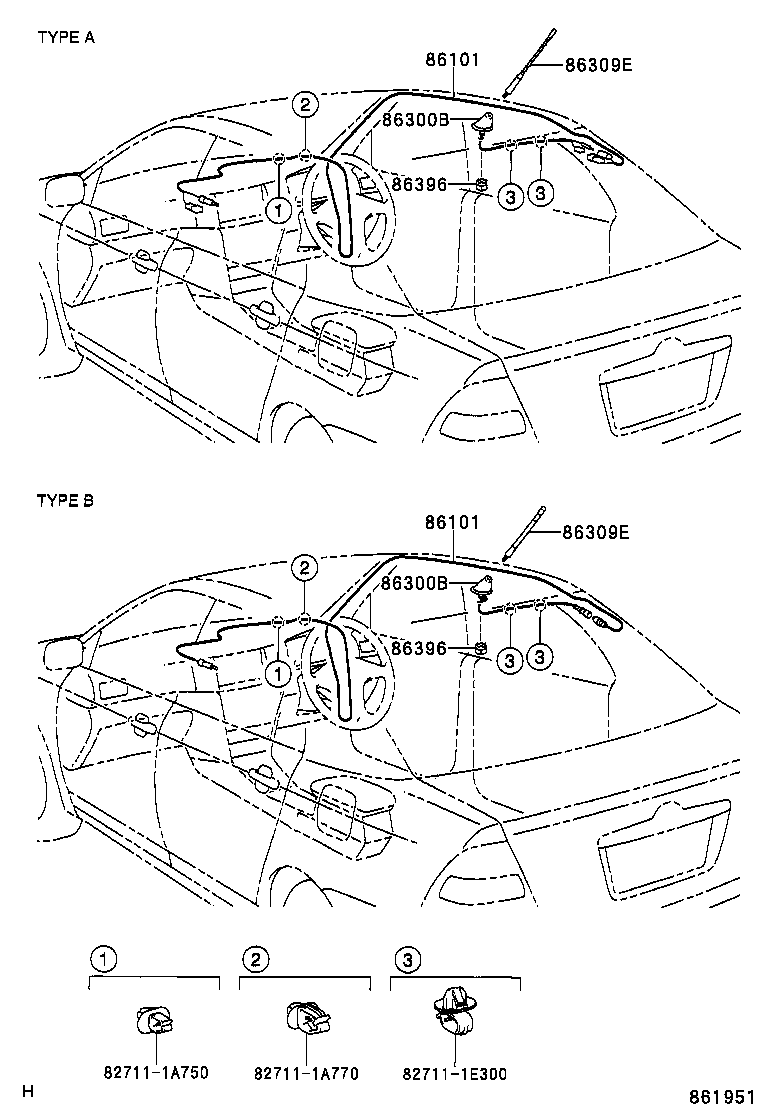

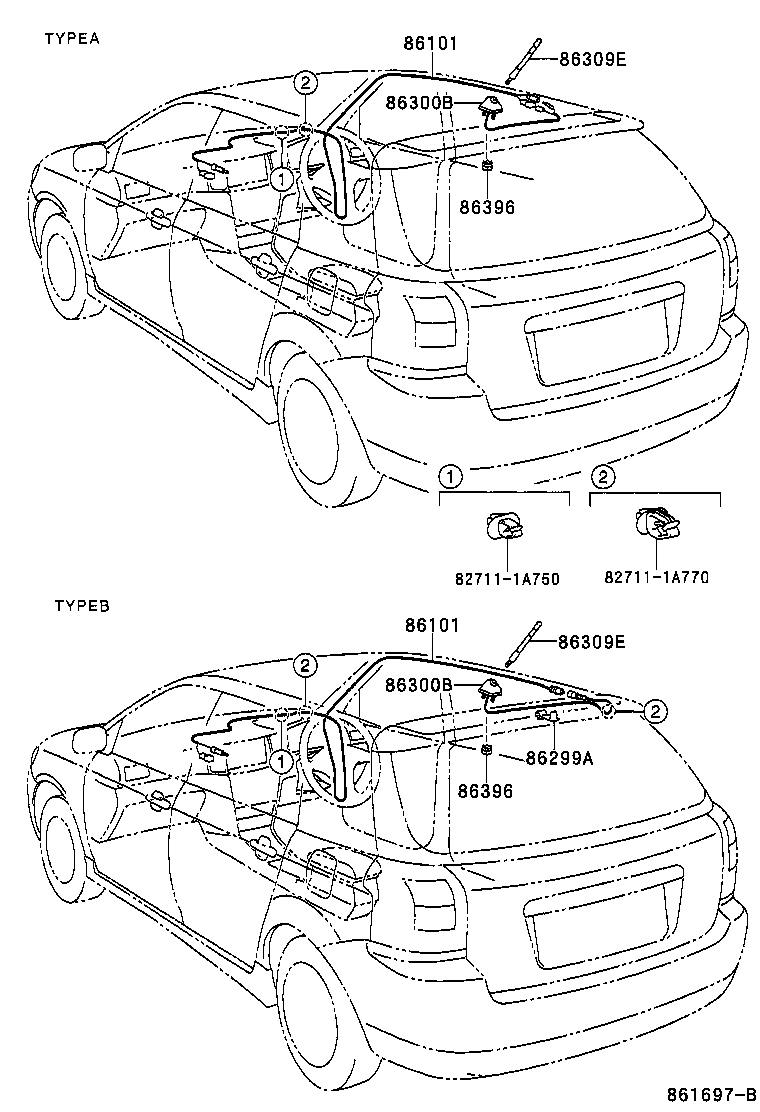

Antenna
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86101 | Cord Sub-assy, Antenna |
| 86299A | Clip, Radio TO Antenna Wire |
| 86300 | Antenna Assy, W/Holder |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86309E | Pole Sub-assy, Roof Antenna |
| 86392 | Ornament, Antenna |
| 86396 | Nut, Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
